Product Description

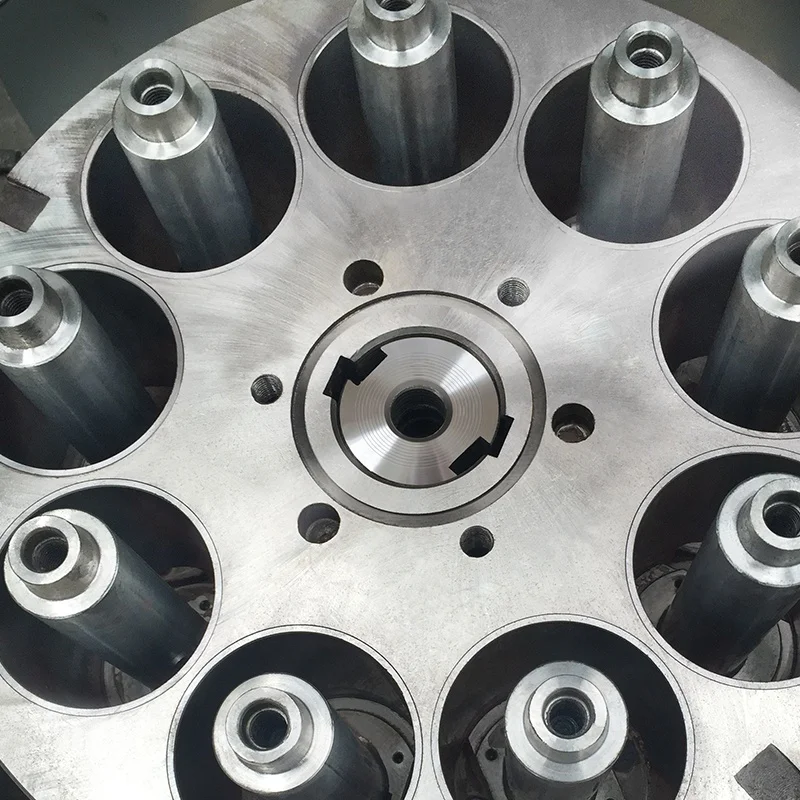

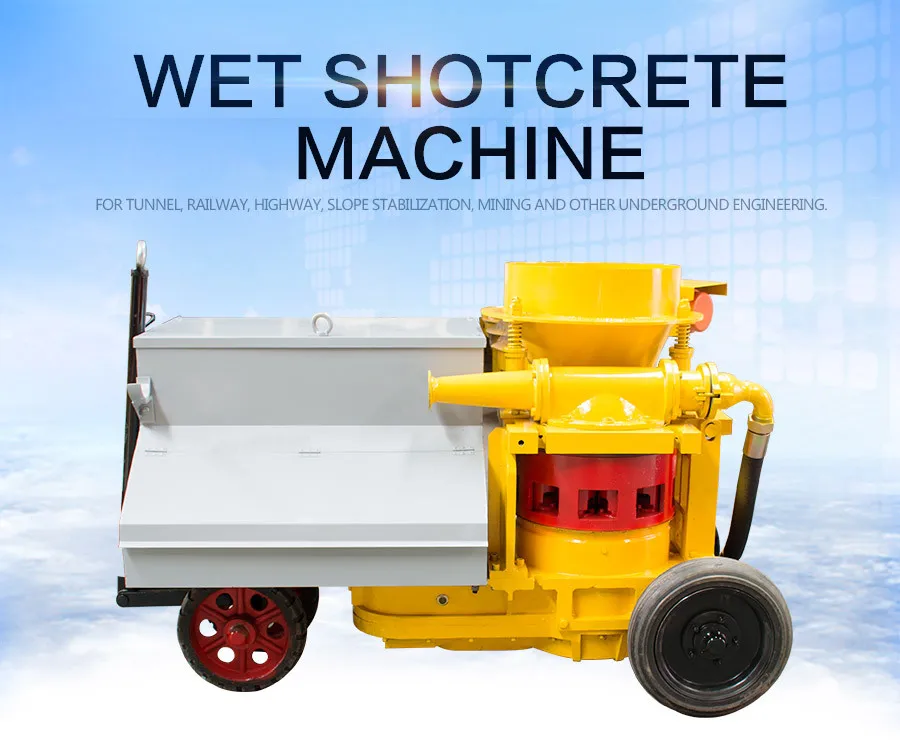

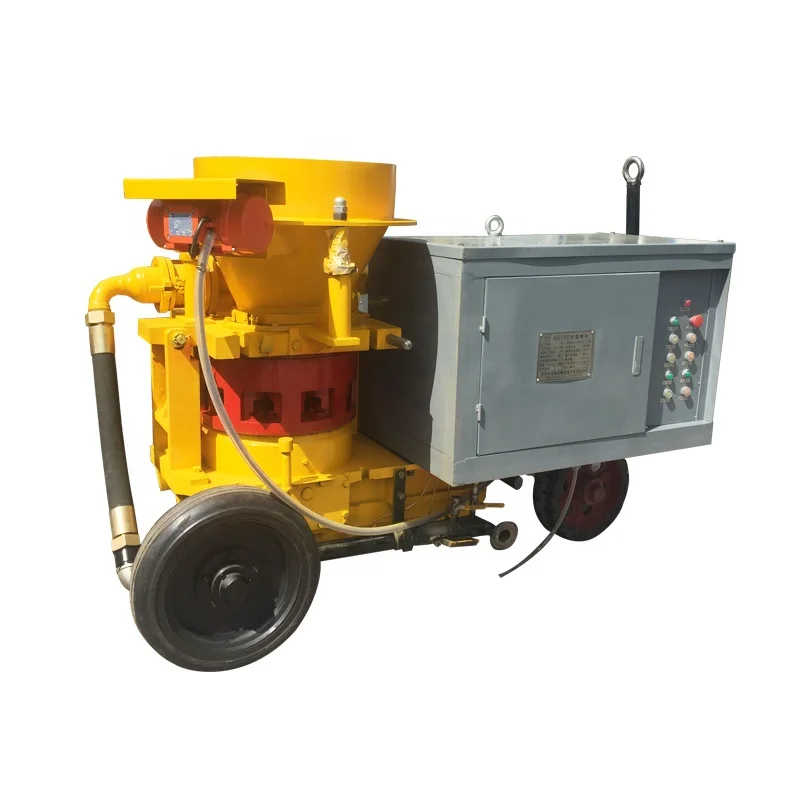

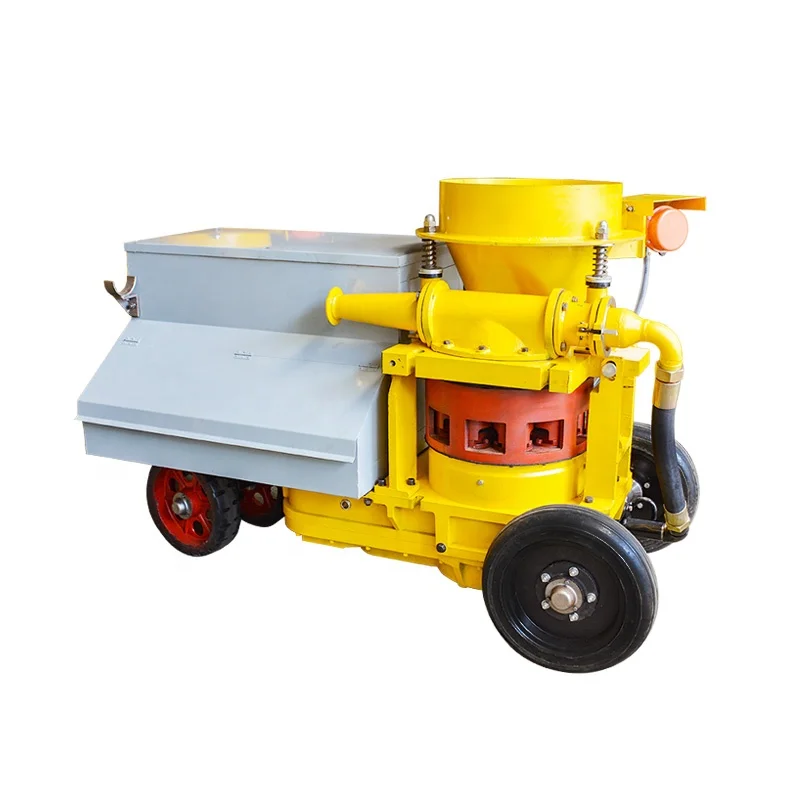

High quality spraying concrete shotcrete gunning machine concrete sprayer machine is a new generation of wet-mix concrete spraying machine developed by Weibang company and Germany ISAI company. The wet shotcrete machine on the principle of rotor-piston cam feeding mechanism is at the world leading level.

Main Features of High quality spraying concrete shotcrete gunning machine concrete sprayer machine:

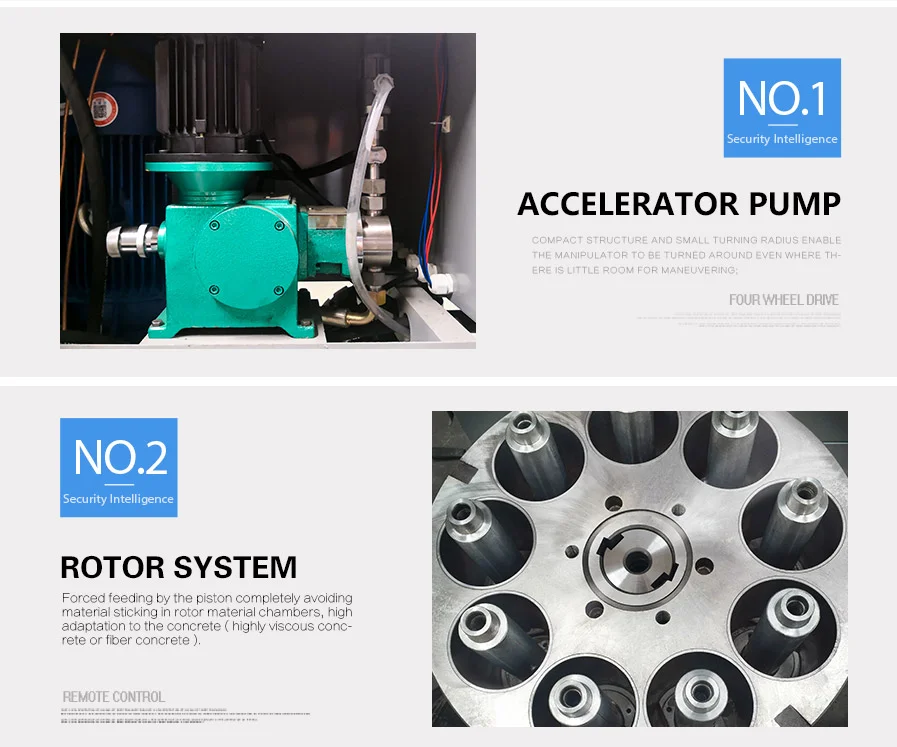

1, Forced feeding by the piston completely avoiding material sticking in rotor material chambers, high adaptation to the concrete(regardless of highly viscous concrete or fiber concrete).

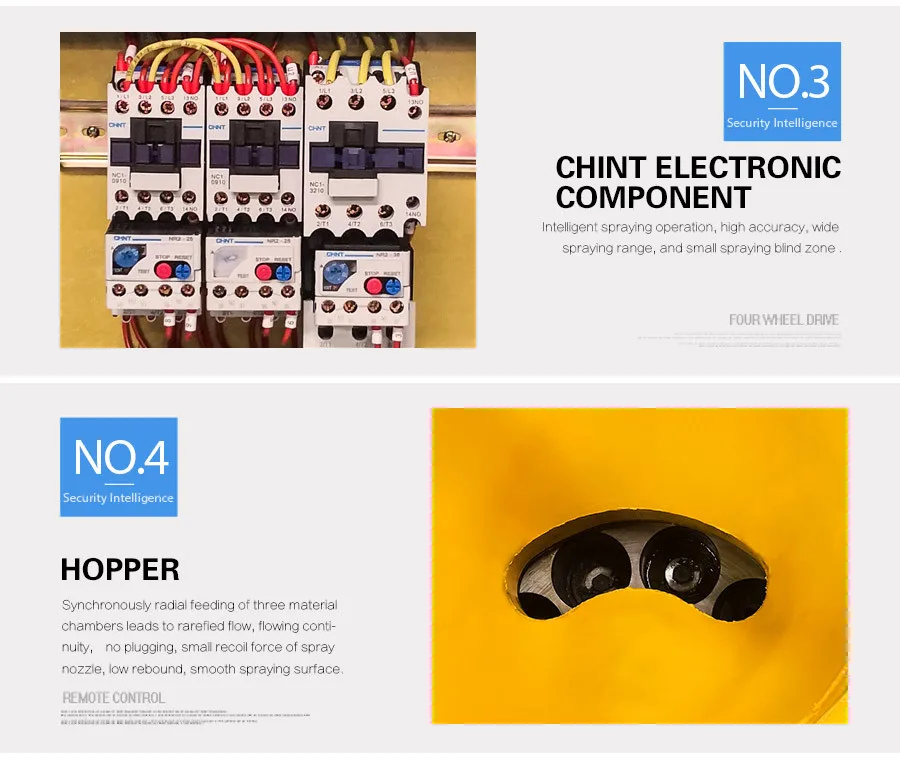

2, Synchronously radial feeding of three material chambers leads to rarefied flow, flowing continuity, no plugging, small recoil force of spray nozzle, low rebound, smooth spraying surface.

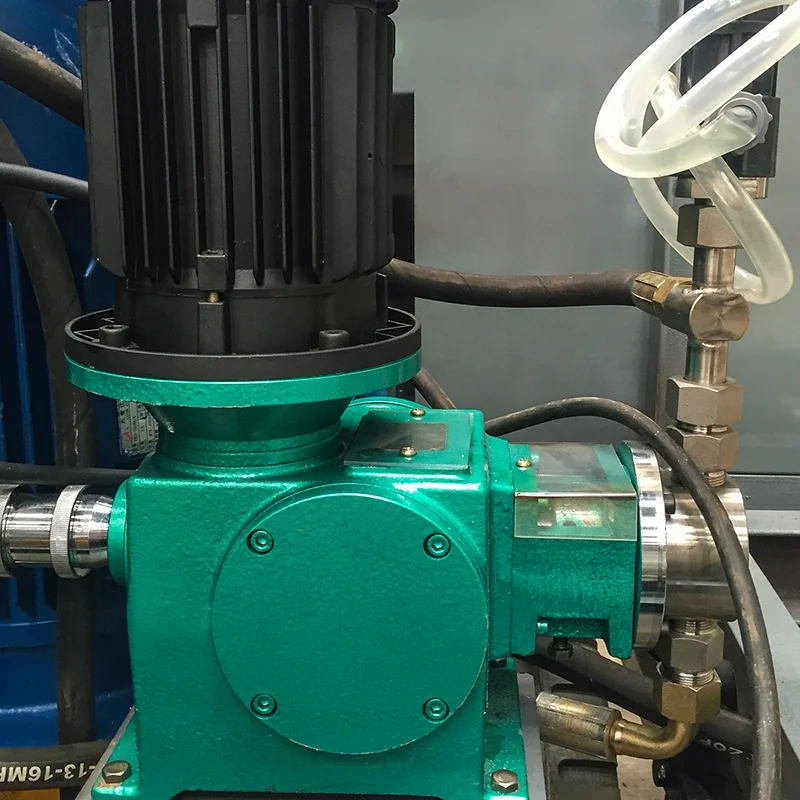

3, Liquid accelerator system allows accurate dosing and uniform mixing.

Technical Parameters of High quality spraying concrete shotcrete gunning machine concrete sprayer machine:
\t
Technical Parameters
\t
HS-700
\t
HS-600
\t
Spaying Capacity(m³/h)
\t
7
\t
6
\t
Max. Grain Size(mm)
\t
15
\t
15
\t
Group Aggregate Fineness Modulus
\t
≥2.5
\t
≥2.5
\t
Liquid Accelerator Dosage(%)
\t
0-7
\t
0-7
\t
Conveying Hose Diameter(mm)
\t
57
\t
57
\t
Concrete Slump(cm)
\t
10-20
\t
10-20
\t
System Air Pressure(MPa)
\t
≥0.5
\t
≥0.5
\t
Working Air Pressure(MPa)
\t
0.4-0.6
\t
0.4-0.6
\t
Air Consumption(m³/min)
\t
≥12
\t
≥12
\t
Maximum Conveying Distance
\t
Horizontal(m)
\t
30
\t
30
\t
Vertical(m)
\t
20
\t
20
\t
Machine Dust(mg/m³)
\t
<10
\t
<10
\t
Rebound(under standard process conditions)(%)
\t
Average≤20
\t
Average≤20
\t
Main Motor Power(kw)
\t
7.5
\t
7.5
\t
Dimensions(mm)
\t
2070×1000×1200
\t
2070×1000×1200
\t
Weight(kg)
\t
1400
\t
1400

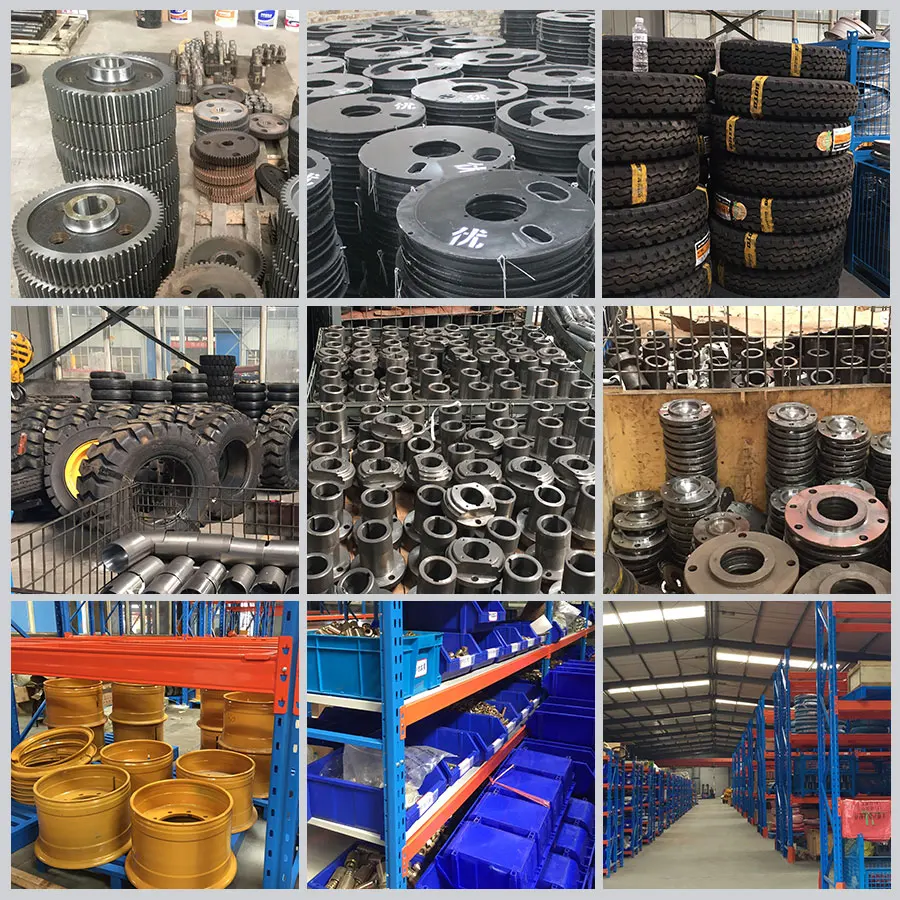

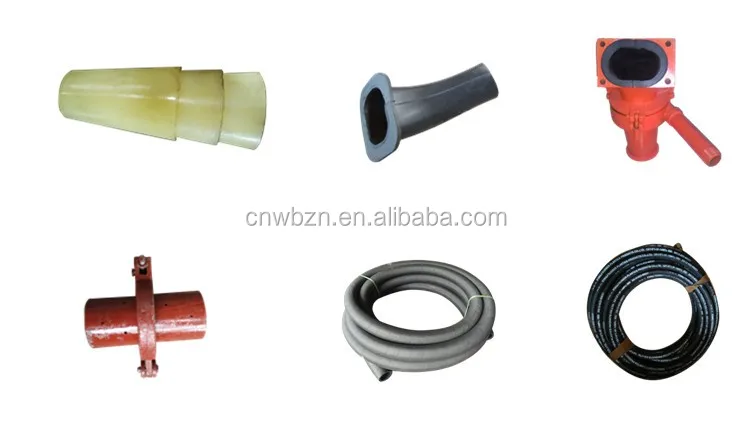

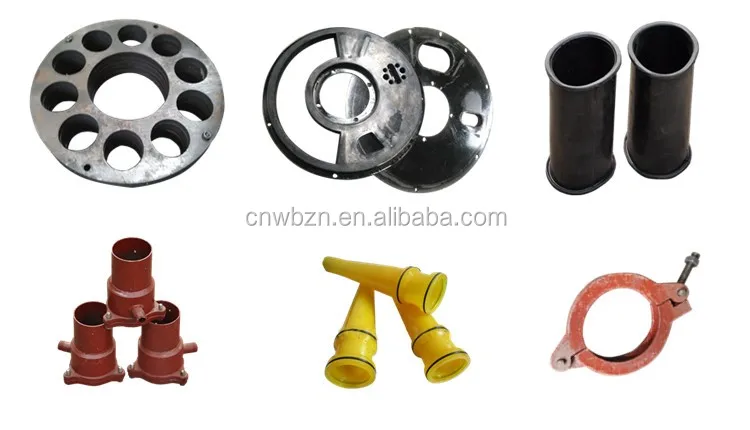

Spare Parts


The machine already have neccessory spare parts.


We suggest buy more sets for long time operation.

Spare parts production workshop and storage workshop. We guarantee high quality of each part of shotcrete machine .

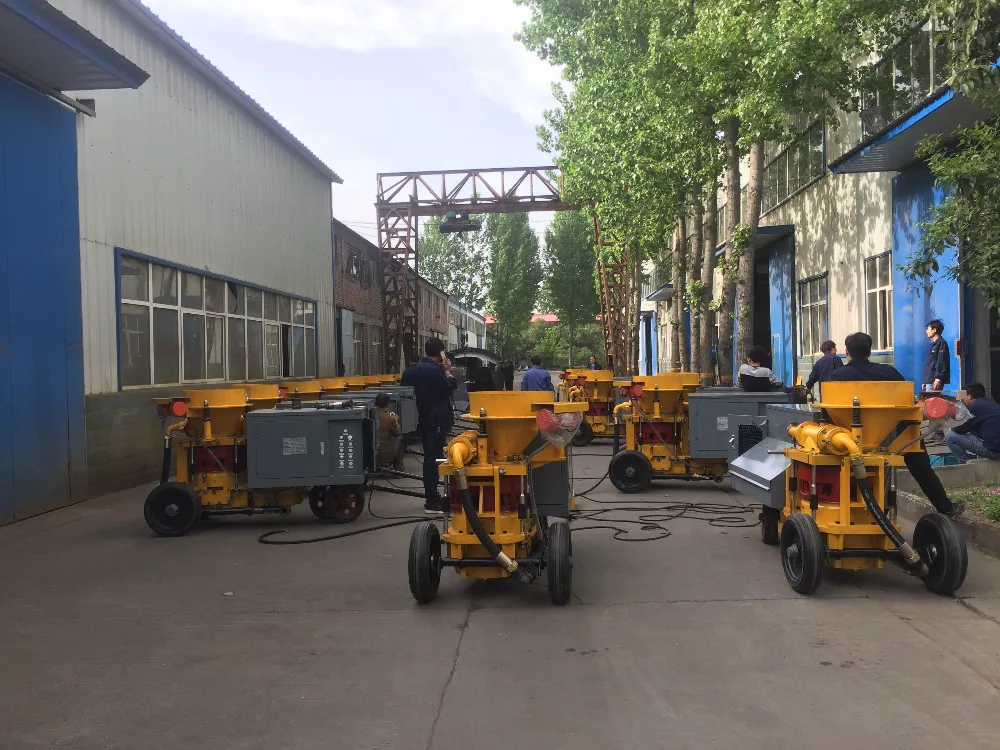

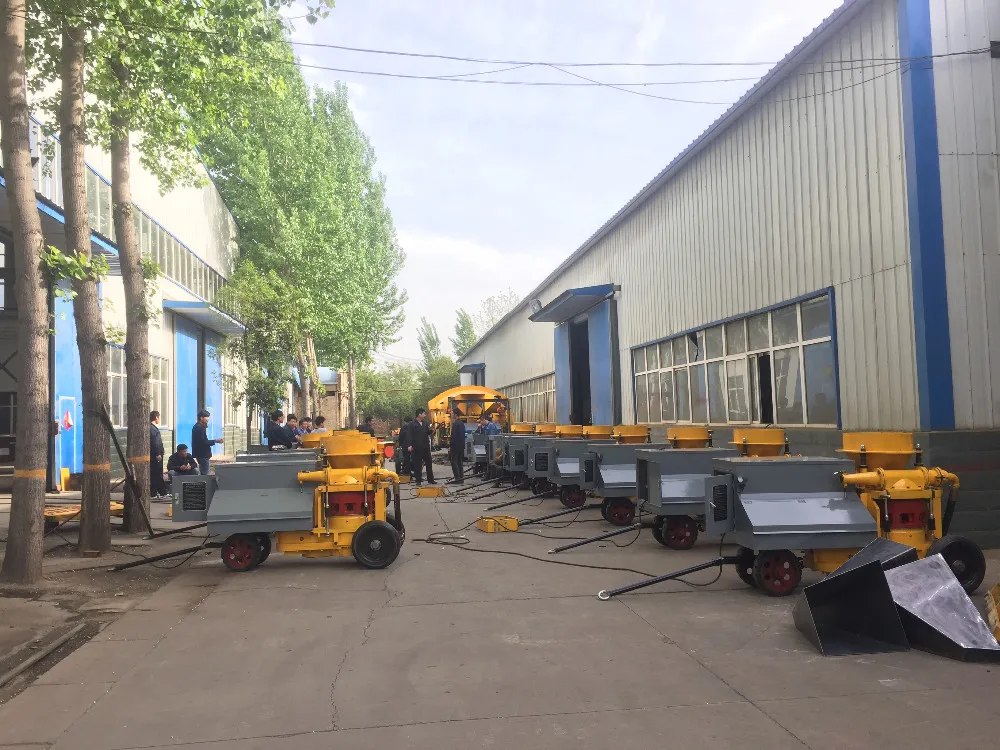

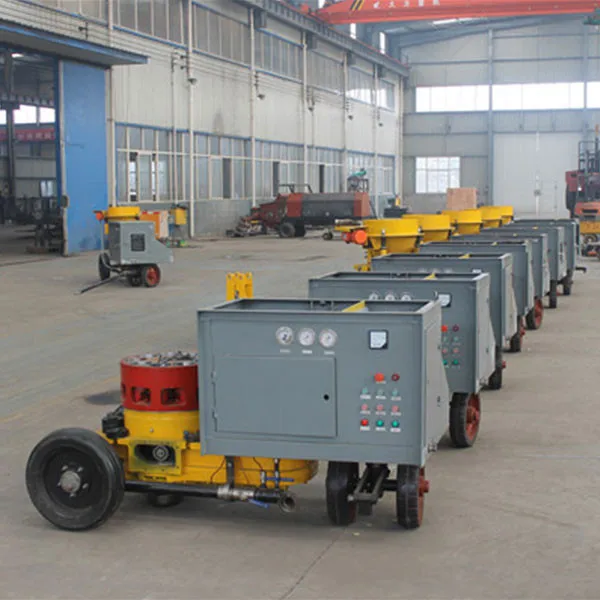

Workshop Images

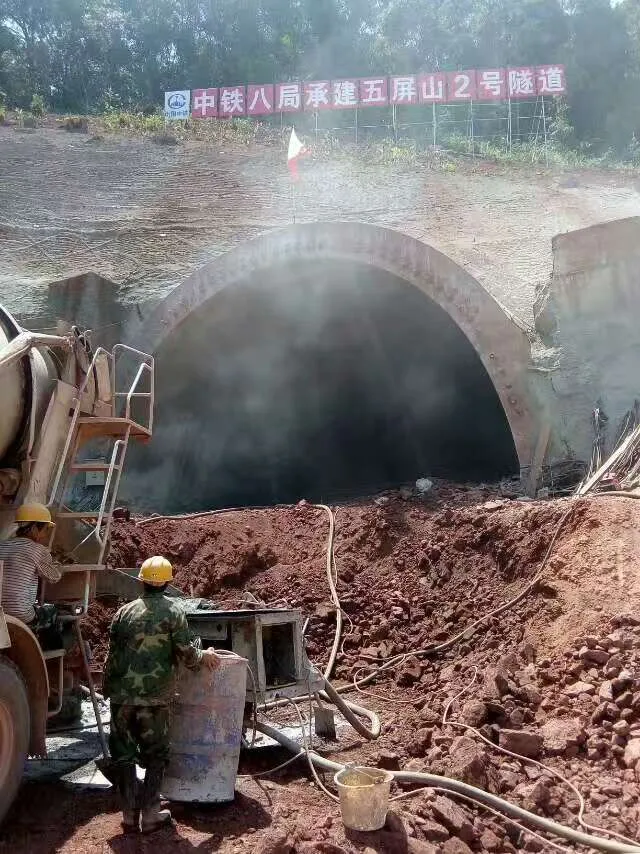

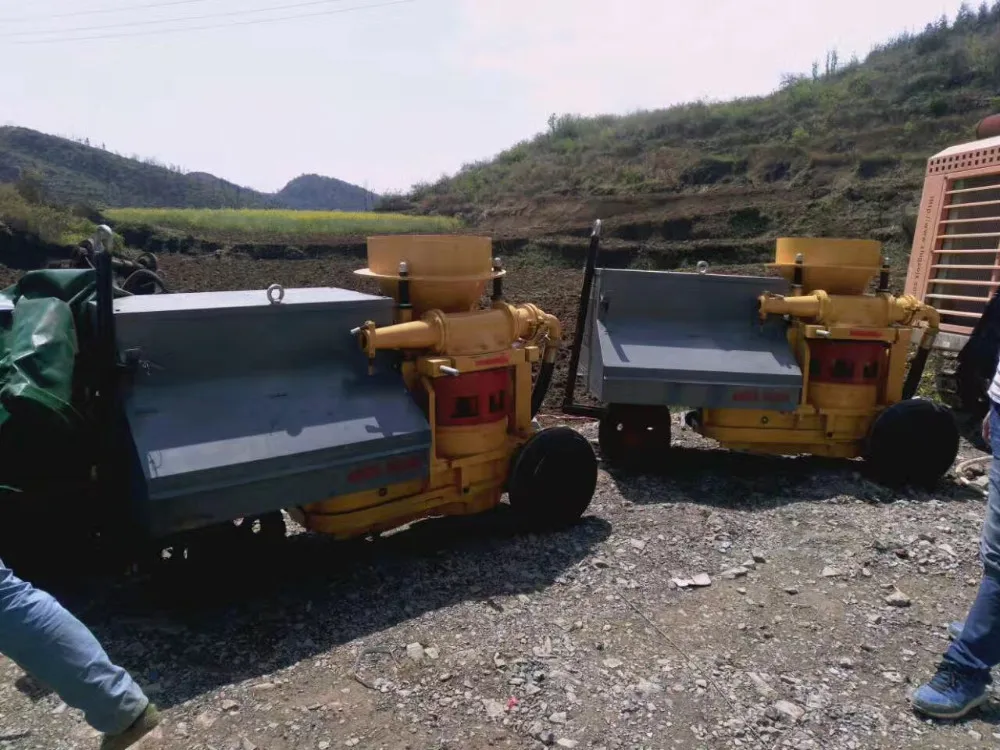

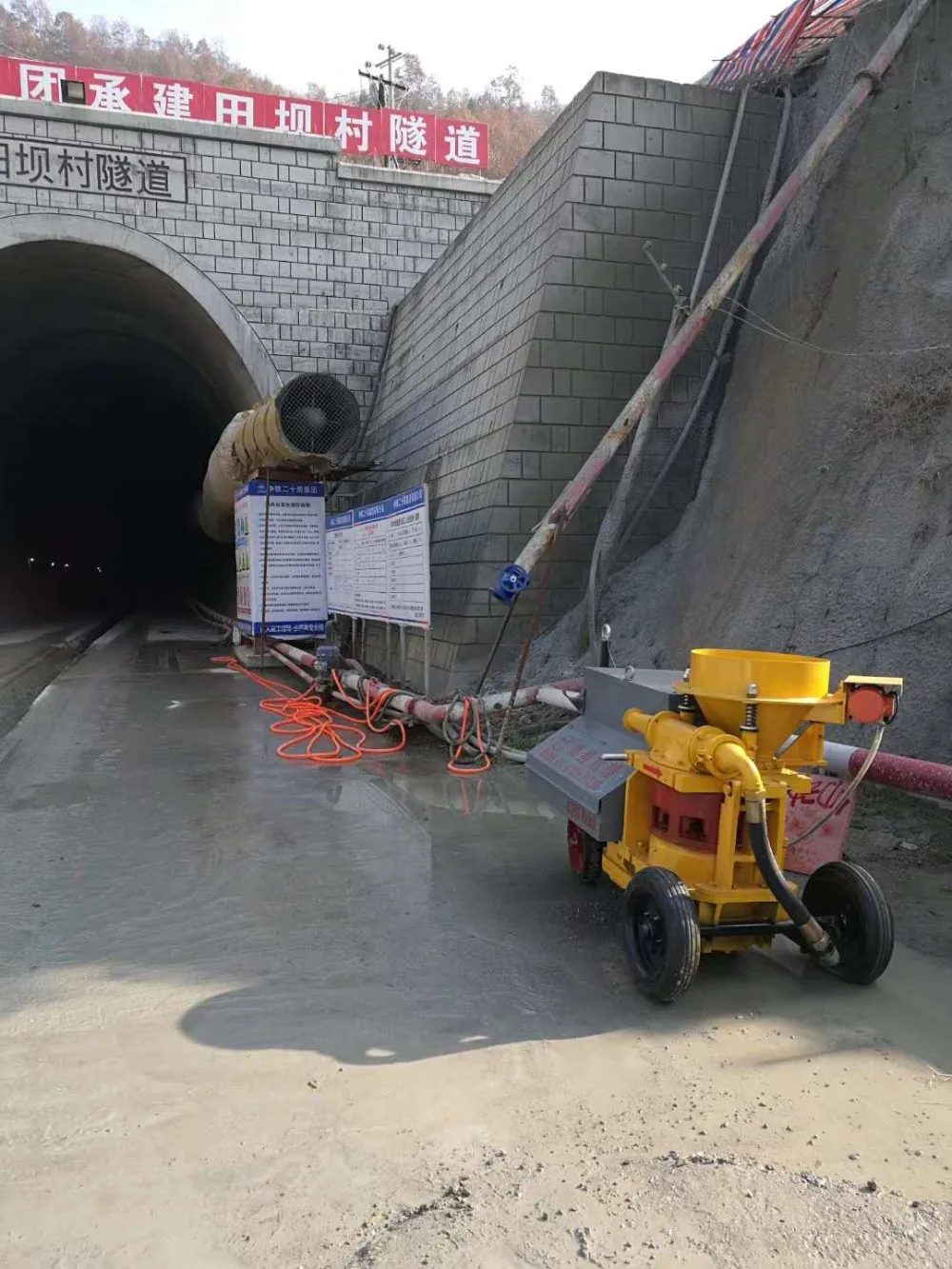

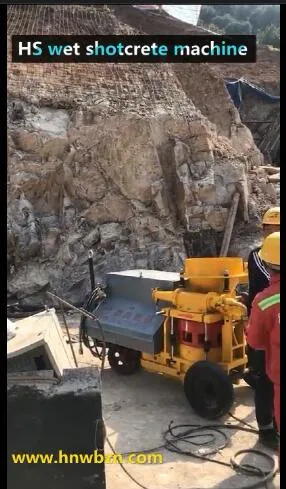

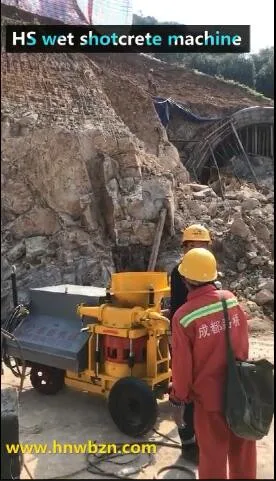

Job Site Images

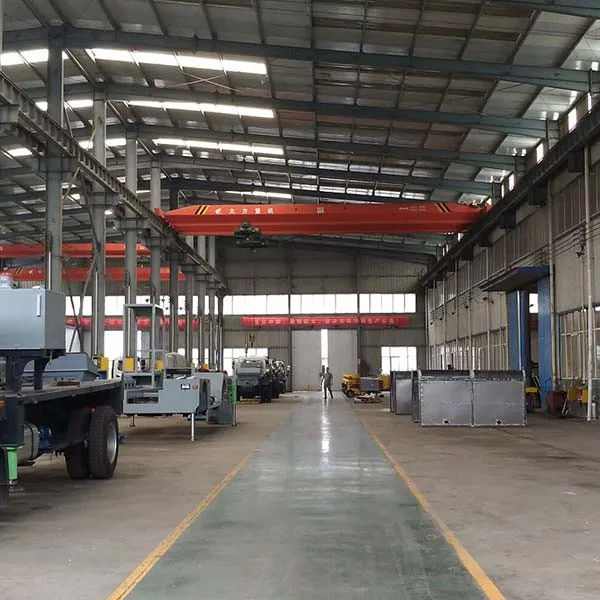

Our Factory
