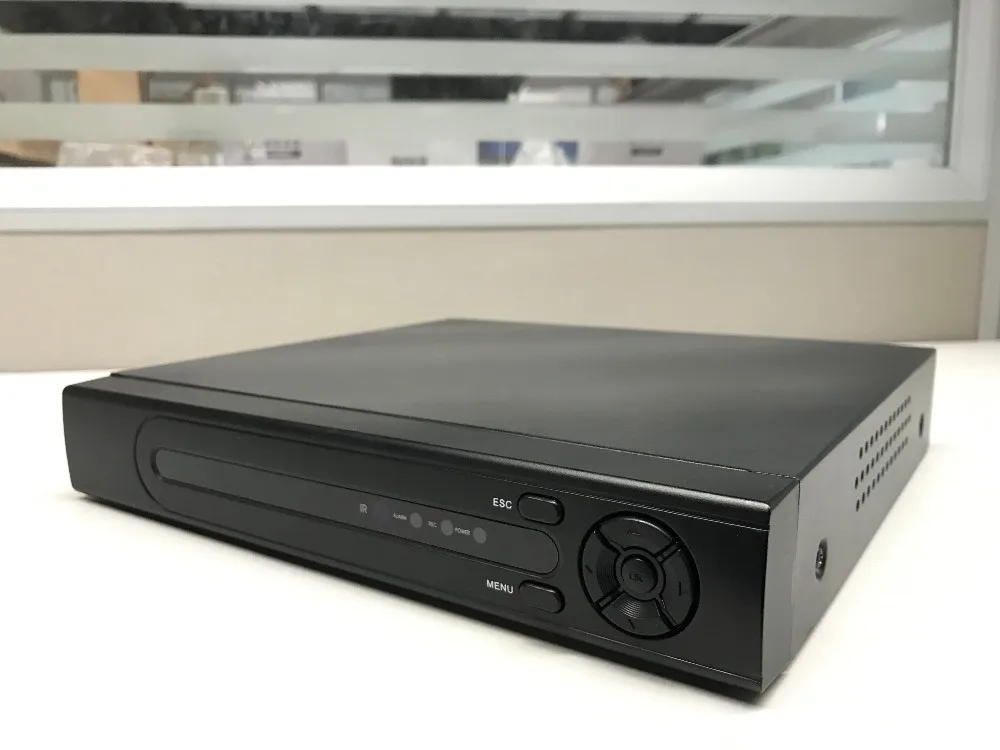

AHD/TVI/CVI/CVBS/IP 5 in 1 H.265 Analog CCTV XVI intelligent hybrid DVR

Share on (60807159689):


Price:RUB 4,013.67

Quantity:


Product Overview

Description

AHD TVI CVI CVBS IP 5 in 1 H.265 Analog CCTV XVI intelligent hybrid DVR

 Support 8ch 4K-N unreal-time encoding;

Support XVI,AHD,TVI,CVI, CVBS, IP video input;

 support VGA maximum 1080P output, HDMI up to 4K output;

 Mini 1U Case, 1SATA(Up to 8TB);

 1*10/100Mbps auto-sensing Ethernet port, RJ45 port;

 Automatic networking support, a key to add equipment;

 Support the Onvif protocol;

 Cloud services, P2P, alarm information push to phone;

 Support remote access, support ARSP;

 Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,3G, WIFI, IP search, Alarm center, etc ;

 Mobile phone remote monitoring (iOS, Android);

 Multi browser access (IE, Chrome, Firefox, Safari);

 Support for more than twenty languages;

 Perfect protection circuit,unique triple watchdog function

 Support WEB, CMS, VMS, MYEYE Platform;

 Support coaxial control


Support intelligent anaysis and human detection

Model
ADVR8008T-GS
System
processor
Hi3521D
Video
Codec
H.265+/H.265/H.265X
Encode
8*5M@6fps;8*4M@8fps;8*4K-N@7fps
Decode
2*5M@6fps;8*4M@8fps;2*4K-N@7fps
Preview
8*5M@12fps;8*4M@15fps;8*4K-N@15fps
Multi-mode
Analog:8*5M; 8*4M(default);8*4K-N (tick 8*5M mode)
Hybrid:4*4M(analog)+4*4M (IP);
8*4M(analog)+8*4M (IP)
IP:8*1080P+8*960P;4*3M;4*5M
Audio
Compression
G.711a
Intercom
Support
Management
Record mode
Manual>Alarm>Motion detection>Timing
Inquire mode
Inquire by Time/Calendar/Event/Channel
Storage mode
HDD Storage, Network Storage
Backup
Network, USB, SATA
Interface
Video input
8*BNC(Support Coaxial)
HDMI output
1*HDMI (MAX:4K)
VGA output
1*VGA (MAX:1080P)
Audio I/O
1/1
Alarm I/O
0/0
Ethernet port
1*10/100Mbps Ethernet port, RJ45 port
PTZ control
without RS485, Support for multiple PTZ protocol
USB Port
2*USB2.0 ports
HDD
1*SATA interface (Up to 8TB)
General
Temperature
0 ℃ - + 55 ℃
Humidity
10% -90% RH
Power supply
12V/2A
Consumption
<10W(Without HDD)
Weight
Around1KG
Dimension
255mm(L)* 236mm(W)* 44mm(H)
