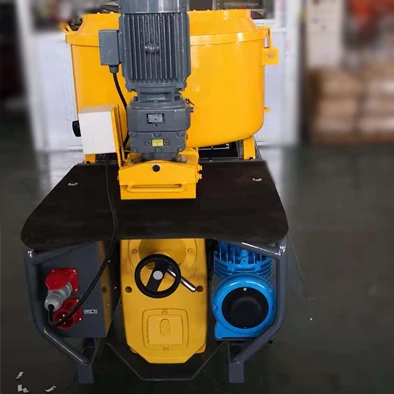

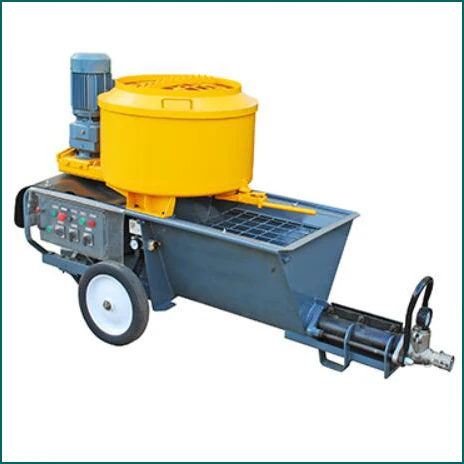

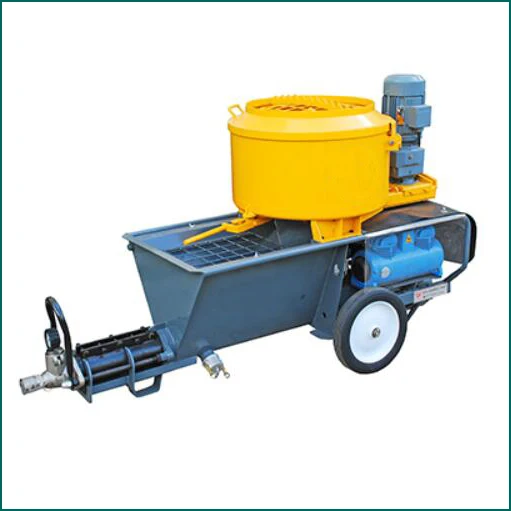

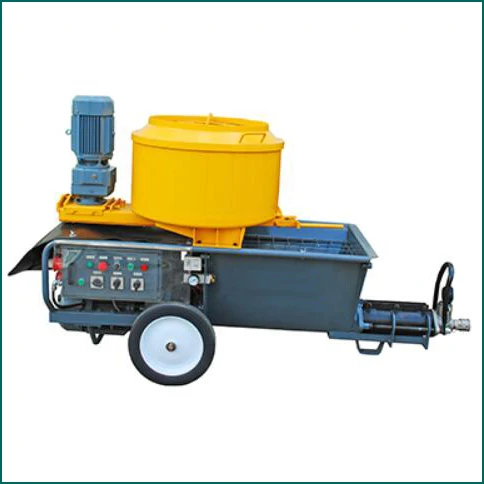

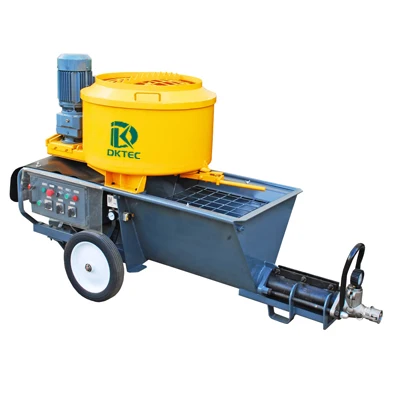

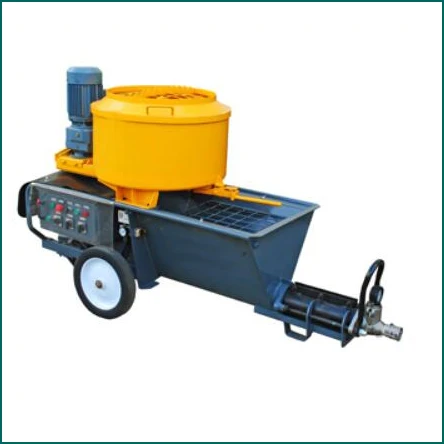

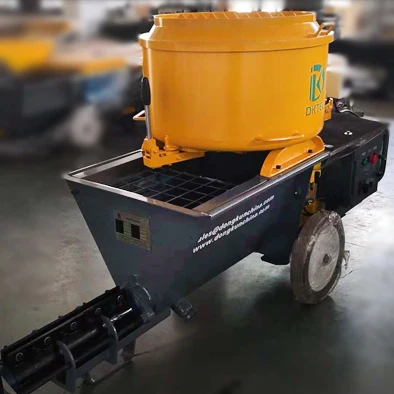

high quality concrete cement mortar plaster spraying machine

Product Overview

Description









PS70-M the cylinder mixer composed of the mixing barrel and the inner curved blade, which can produce a strong radial and axial flow, with larger displacement and circulating flow. The contact area of mixed parts increased, the size of the slurry micrometer reduced, so that the stirring effect is remarkable. It is easy to take apart, easy for delivery. Pressure sealed outlet could ensure that no leakage slurry. It’s applicable to all types of already-mixed mortar and normal mortar.



Technical parameters



Model	PS70-M
Supply power	380V 50Hz
Motor power	4.5kw/5.5kw(Continuously variable Motor optional)
Air compressor power	0.9kw
Maximum aggregate diameter	6mm
Output	70L/min   60L/min
Delivery pressure	30bar
Horizontal conveying distance	60m
Vertical conveying distance	30m
Mixer motor power	1.1kw
Mixer volume	160L
Hopper volume	100L
Net weight	350kg
Dimension (L × W × H)	2040mm×680mm×1270mm

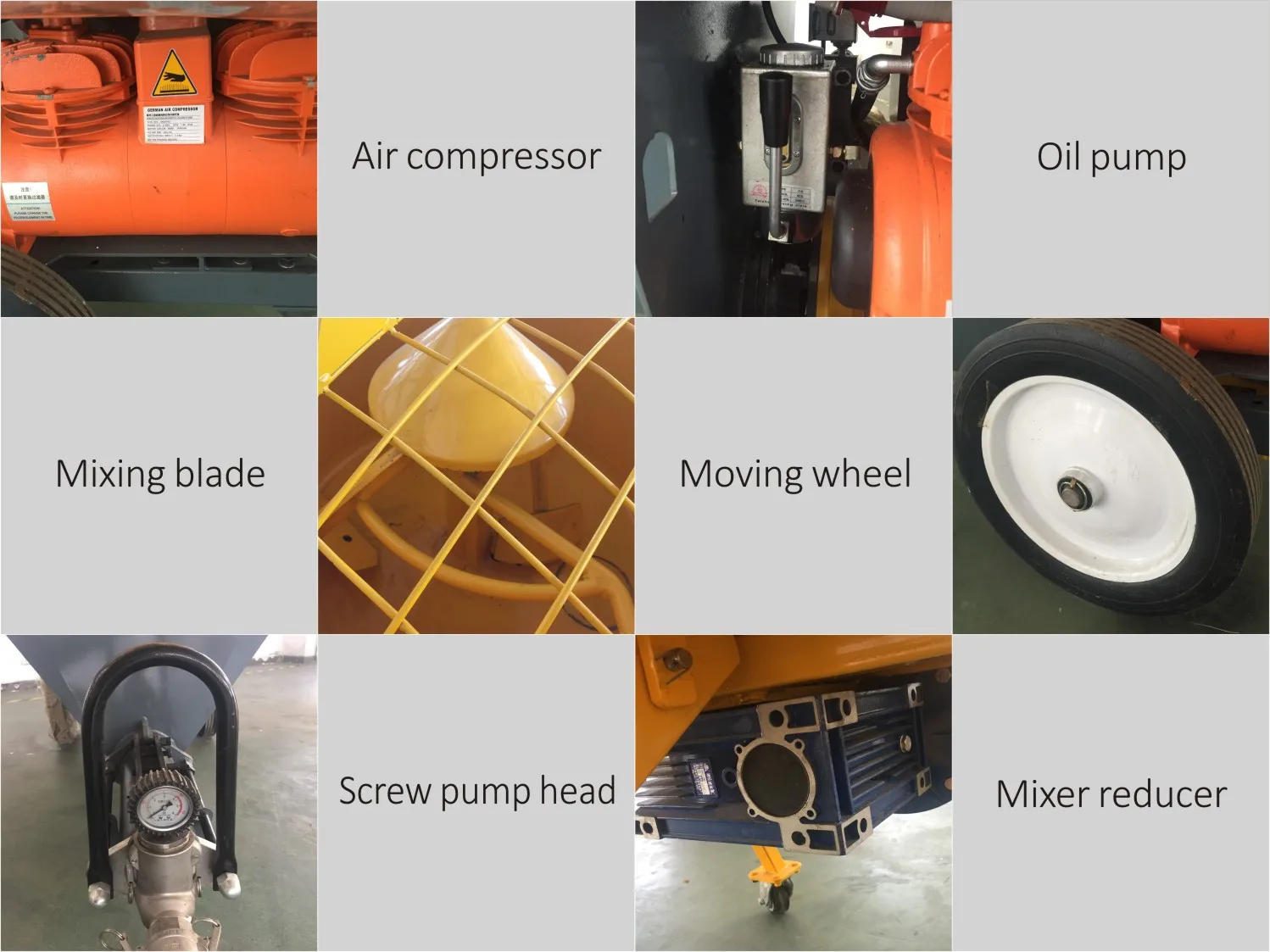

Details
