  • Морской круглый сетчатый изоляционный измерительный прибор, вспомогательная мощность, переменный ток 440В
Морской круглый сетчатый изоляционный измерительный прибор, вспомогательная мощность, переменный ток 440В
Морской круглый сетчатый изоляционный измерительный прибор, вспомогательная мощность, переменный ток 440В
Морской круглый сетчатый изоляционный измерительный прибор, вспомогательная мощность, переменный ток 440В

Морской круглый сетчатый изоляционный измерительный прибор, вспомогательная мощность, переменный ток 440В

Share on (60807232974):


Price:

Quantity:


Product Overview

Description


Application


WDLYCH series meter are direct acting indicating and analogue electrical measuring instruments. Measuring AC/DC current, voltage, frequency, power, power factor, phase sequence,synchroscope, position indication, network insulation monitoring, hours run meter and other non-electric measurements.


Mainly used on various AC/DC transmission and distribution system, power control panel and electrical  equipment for various industries such as marine, rail, aviation, chemical and explosive-proof, nuclear power, high-mid voltage equipment, power generator set and control engineering. It is high end meter, and suitbale for complicated environment to measure electric/non-electric energy.


Product Description
\t
Product Name
\t
AC Net Insulation Monitor
\t
Model No
\t

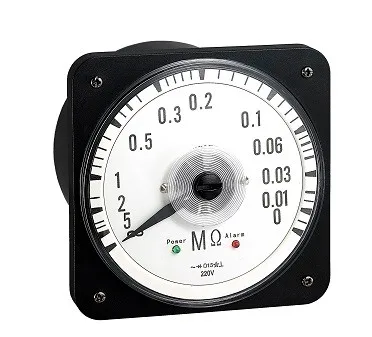

WDG110-BMΩ
\t
Dimension(mm)
\t
110*110-95
\t
Hole Size
\t
101
\t
Measurement
\t
220V
Basic Information

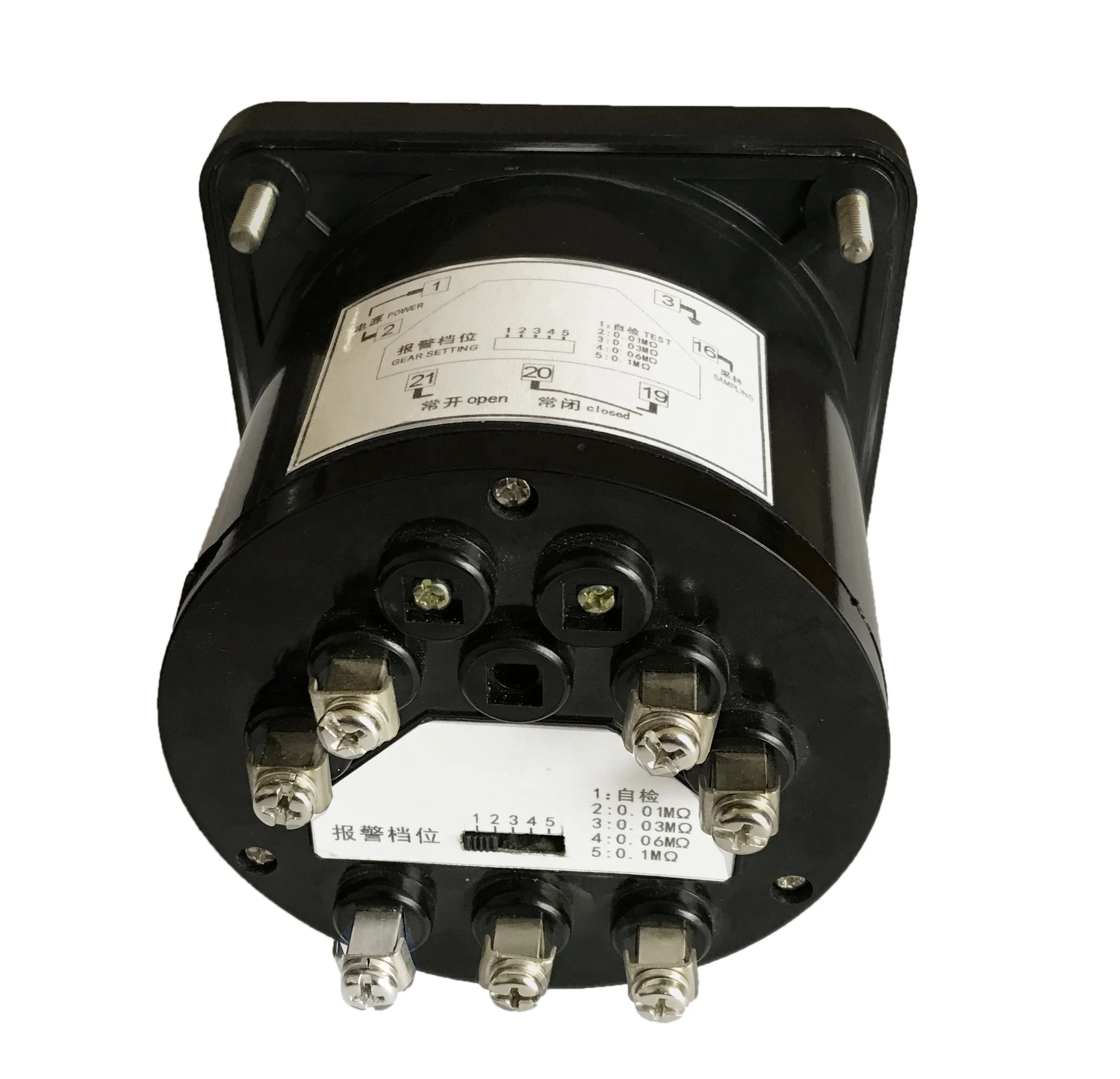

 1. AC net insulation which monitor integrate indicating & monitoring;

 2. Insulation resistance lower than preset value, alarm signal release;

 3. There are switches at back of meter, and alarm value be set as: 0.01MΩ, 0.03MΩ, 0.06MΩ, 0.1MΩ,1MΩ;

 4. Power supply: DC24V±20%, DC220V±20%(Tested power network);

 5. Consumption of power alarm: 10VA
Technical Parameters
\t
Item
\t
Technical Data
\t
International Standard
\t
Technical Standard
\t
GB/T7676-1998
\t
IEC60092-50
\t
Environment Standard
\t
GB8355-1987
\t
IEC92-504-74
\t
Safety Standard
\t
GB4793-20
\t
IEC61010
\t
Working Temperature
\t
-40℃-65℃
\t
\t
Temperature Influence
\t
-13-33℃, 100% comply with accuracy class
\t
Indicating Angle
\t
240-270° (Synchroscope meter:360°)
\t
Color of Shell
\t
Black/white , board frame , terminal plate : Black
\t
Color of Dial Plate
\t
Black/white, other colors are available on requests
\t
Mounting
\t
Vertical mounting
\t
\t

Dimension
\t
110*110mm,  80*80mm
\t
\t
96*96mm, 72*72mm, 48*48mm
\t
\t
Overshoot
\t
Less than 20% when scale reaches to 2/3
\t
Insulation Withstand
\t
Circuit & shell: AC2600V/1 minute(Water area)
\t
Vibration Resistance
\t
24.5m/s2
\t
\t
Impact Resistance
\t
147m/s2
\t
\t
Material
\t
Shell/terminal board: ABS;  Cover: Transparent Glass

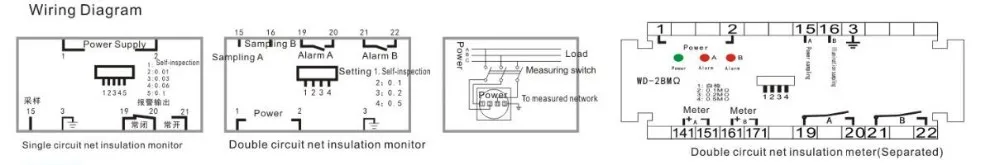

Wiring Diagram
Our Company

Factory Building

Our General Manager

Office First Sighting

Workshop

Assemble Line

Alnico Installation

Electrical Welding

Balanced adjustment

Meter adjusting

Our Service

Consultative Minute-by-minute Technology Support
