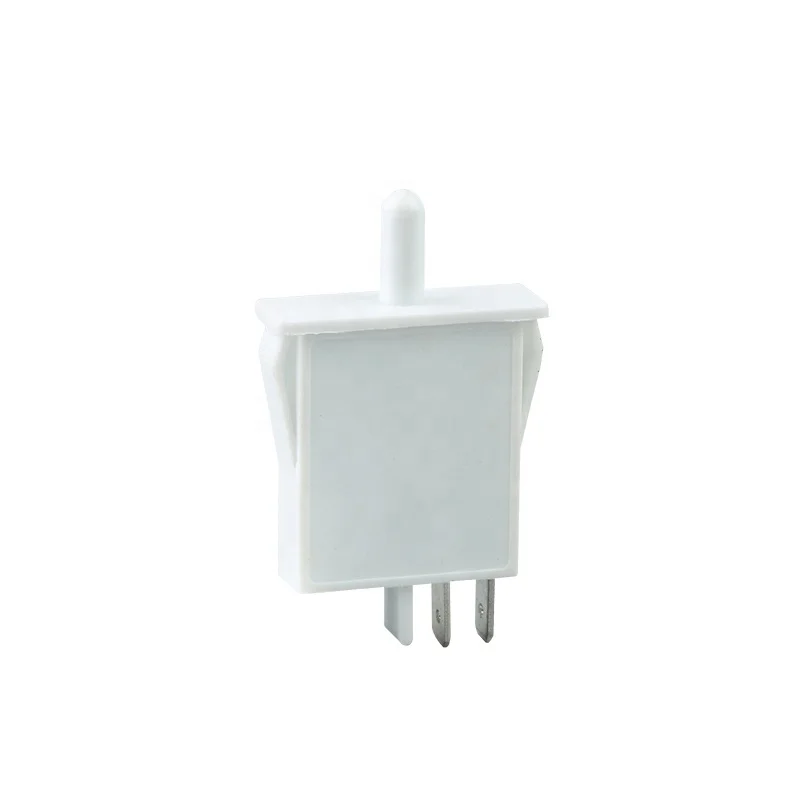

Refrigerator door lamp push button switch

Share on (60807296305):


Price:$0.50 - $0.60

Quantity:


Product Overview

Description


Refrigerator door lamp push button switch



Product Description















specifications




















































































ModelCX106 refrigerator door switch
Colorwhite
Current/Voltage5A/125V AC 2.5A 250VAC
push buttonpointed or round type
Switching Life10,000 cycles min.
Connection typeSoldering wire type
Fixing Holestandered panel amount
connect cale  (speclized service)depends on clients require
Functions2 pin/3pin normally open/normally closed
Material PartsBrass siliver-plated contacts
TempertureT20~85°C
contact resistance50mΩ
insulation resistance100mΩ
withstand voltage1500VAC
working life50000times
function

3pin on-off nomally closed,


2pin nomally closed and normally open

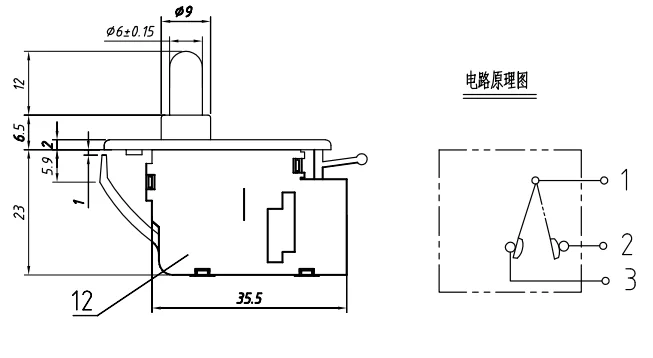

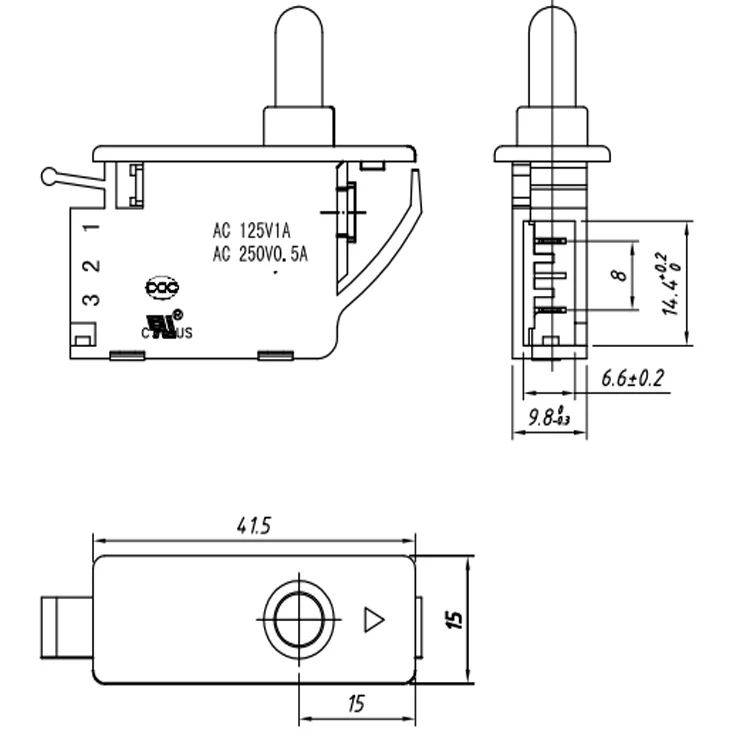

demensions29.8*25.8*41.4
used fridge,Air conditioning,Multimedia
material

 cover/case button shaft PA66  terminal:brass


contact:f Agni10/cu









2.About us




3 (4).jpg3 (3).jpg3 (5).jpg







Q1: Are you a factory or trader?


        we are a factory.





Q2: Why choose your company?


        1.more than ten years manufacture experience about more kinds of switch


        2.good quality,competitive price,fast delivery time


        3.more switch type choosed,such as keyboard switch,rotary switch,rocker switch, push                     button switch, slide switch,dip switch,micro switch,tact switch,ac/dc socket and connector.


         4.Design and Develop new mould depends on clients requirement


         5.The best after-sale service


         6.Anytime you need help ,please contact with us we keep online all the time.





Q3: How to get the samples and quote the best price soon?


        we need to know more details about the products you inquired,for example


        what functions?what size?what rating?where the type to be used?


        we free to offer the samples





Q4.How about the delivery time?


       Gernally speaking it is need 2 weeks if your quantity below 10K pcs or it depends on your               quantity to confirm the time.





Q5:How about the package of the goods?


      we often package the goods more safty, both inner box and outside cartons
