Excellent applicatoin PVC Window Sills Profile extrusion production machine line With Factory Direct Sale Price
- Category: >>>
- Supplier: Shenzhen HYPET Co. Ltd.
Share on (60807355958):
Product Overview
Description
Product Description

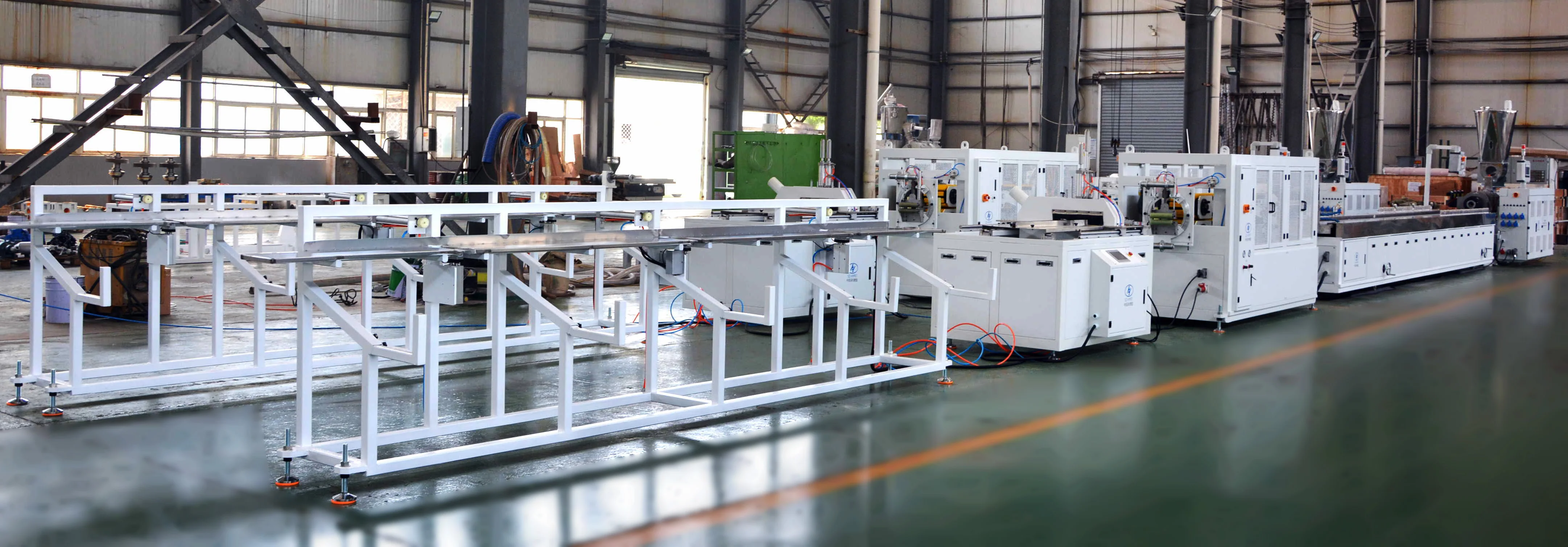

PVC SILL WINDOW PRODUCTION LINE
1. High output: Ensure you the highest output as compared with other supplier.
2. New technology gear box: High torque gear box, one body design, two cooling system.
3. Screw and barrel: Bi-metal material ensure longer working life, ensuring running non-stop 24 hours /day.
4. Energy saving heater: Heater on the barrel is energy saving type by 15%.
5. Electric elements and box: In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized.
6. HYPET PLC control system: With operation easy, management full, energy saving and counting, and intelligent control system.
7. Pipe brighten device: To make the pipe shining and smoothing.
8. Vacuum tank stainless steel 304: Water level and temperature controlled automatically.

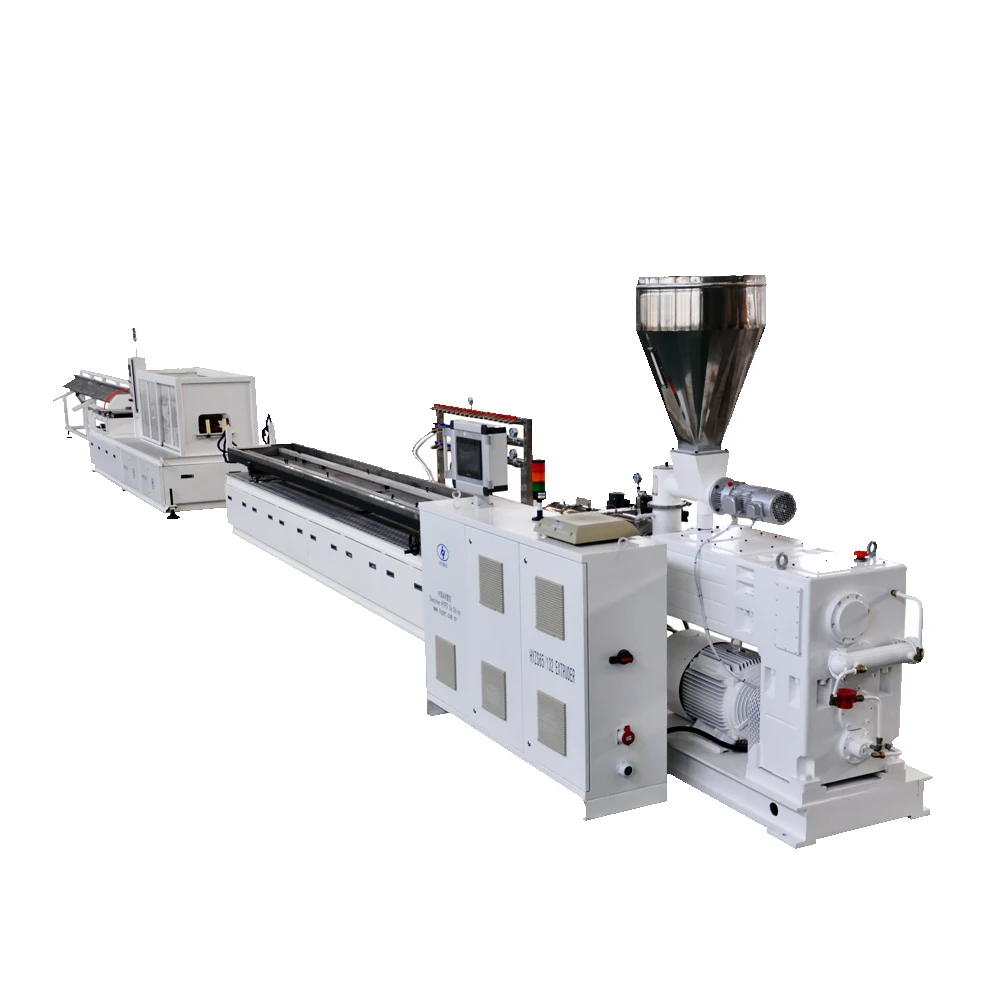

Conic Twin Screw Extruders
High output / High torque /High quality
Self owned gear box patent
Self designed screw
Dual cooling system
Anti blocking feeder
Super size touch screen
Energy saving heaters
Low noisy blower
Top brand inverter
Strong motor
Operating Screen
Super size operating screen to keep operation easily and well
Control system
Top brand Siemens PLC control sytem as operating heart
Heaters & blowers
Energy saving type heaters and low noisy blowers
Feeder
Special anti blocking design
Frequency inverter
ABB or Heavy type Delta
Gear box
Own patent with two cooling

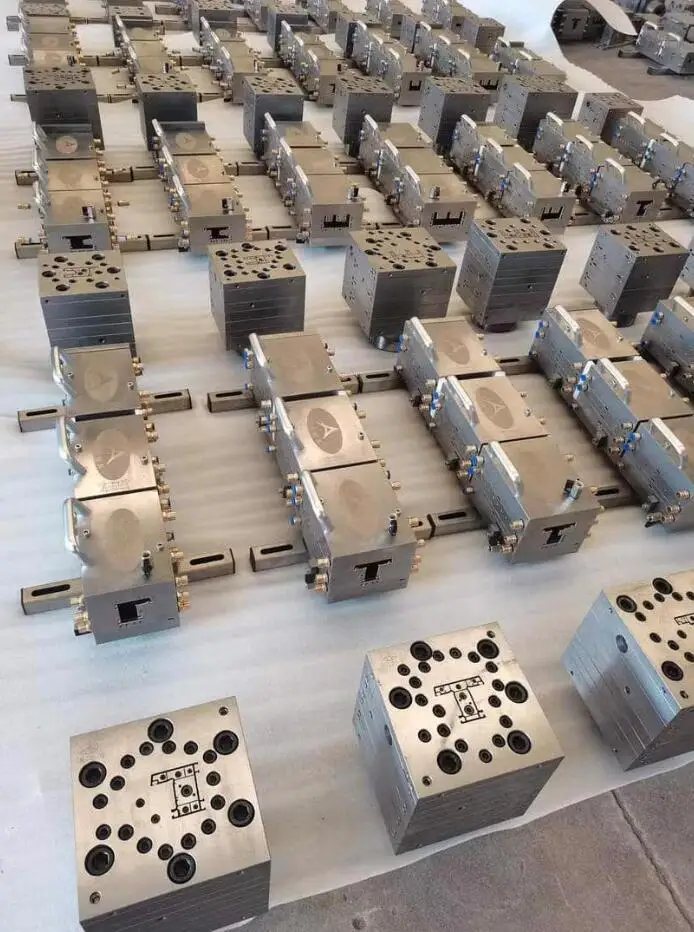

MOLDS
The pressure class and standard will be made according to the requirement.
Materials of construction, alloy steel with flow path hard chrome plated.
The flow path are milled and are highly polished.
Better material and design for longer time running and better surface.

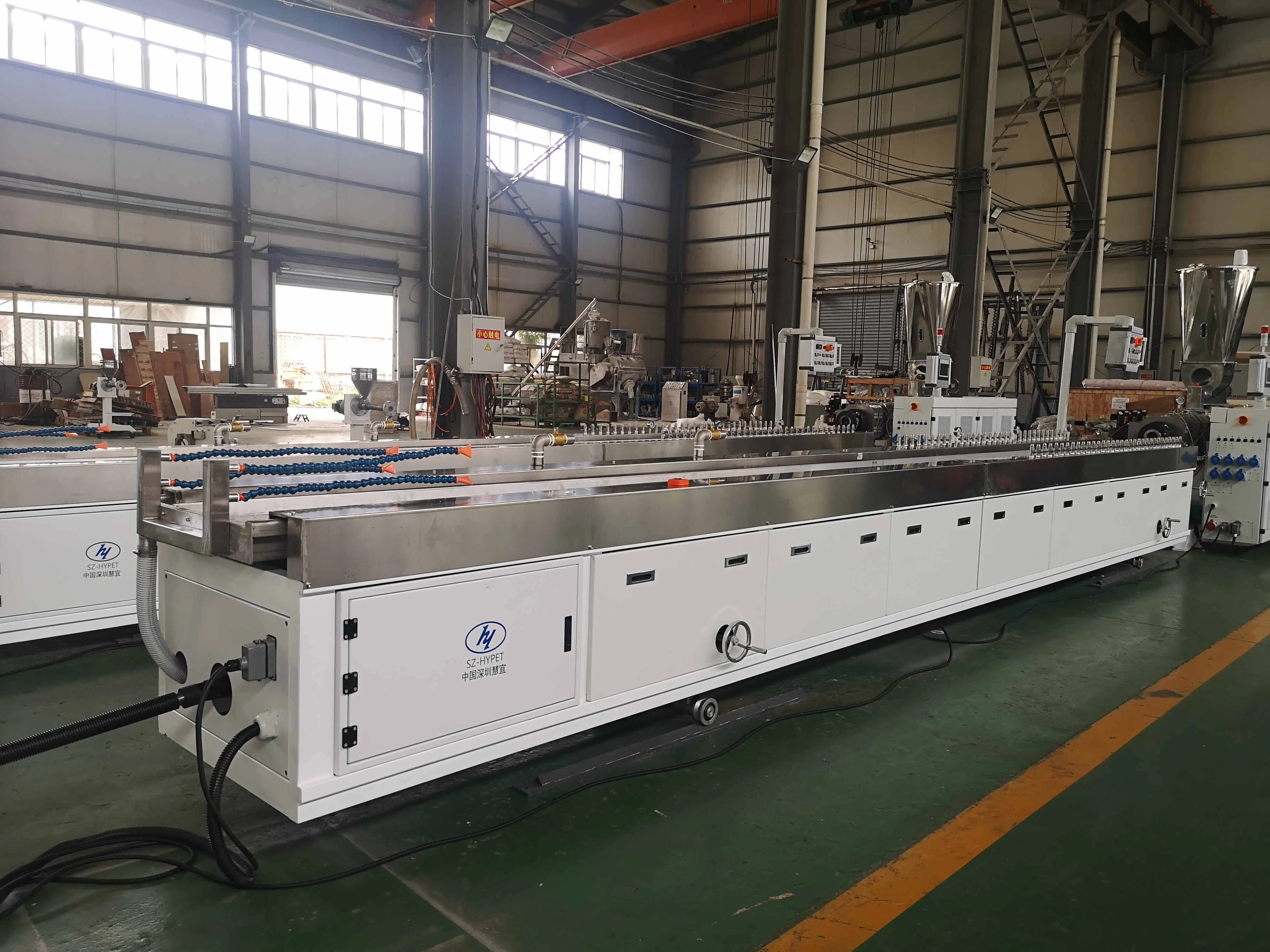

SHAPING TABLE
Vacuum Calibrator is with integrated leg & platform.
Screen water filter with bypass system, solenoid valve at entry & exit, float switch.
Visual inspection window is provided at the entry of the tank.
Height adjustment on wheels & Motorized longitudinal movement & manual cross adjustment.
Screen water filter with bypass system, solenoid valve at entry & exit, float switch.
Visual inspection window is provided at the entry of the tank.
Height adjustment on wheels & Motorized longitudinal movement & manual cross adjustment.

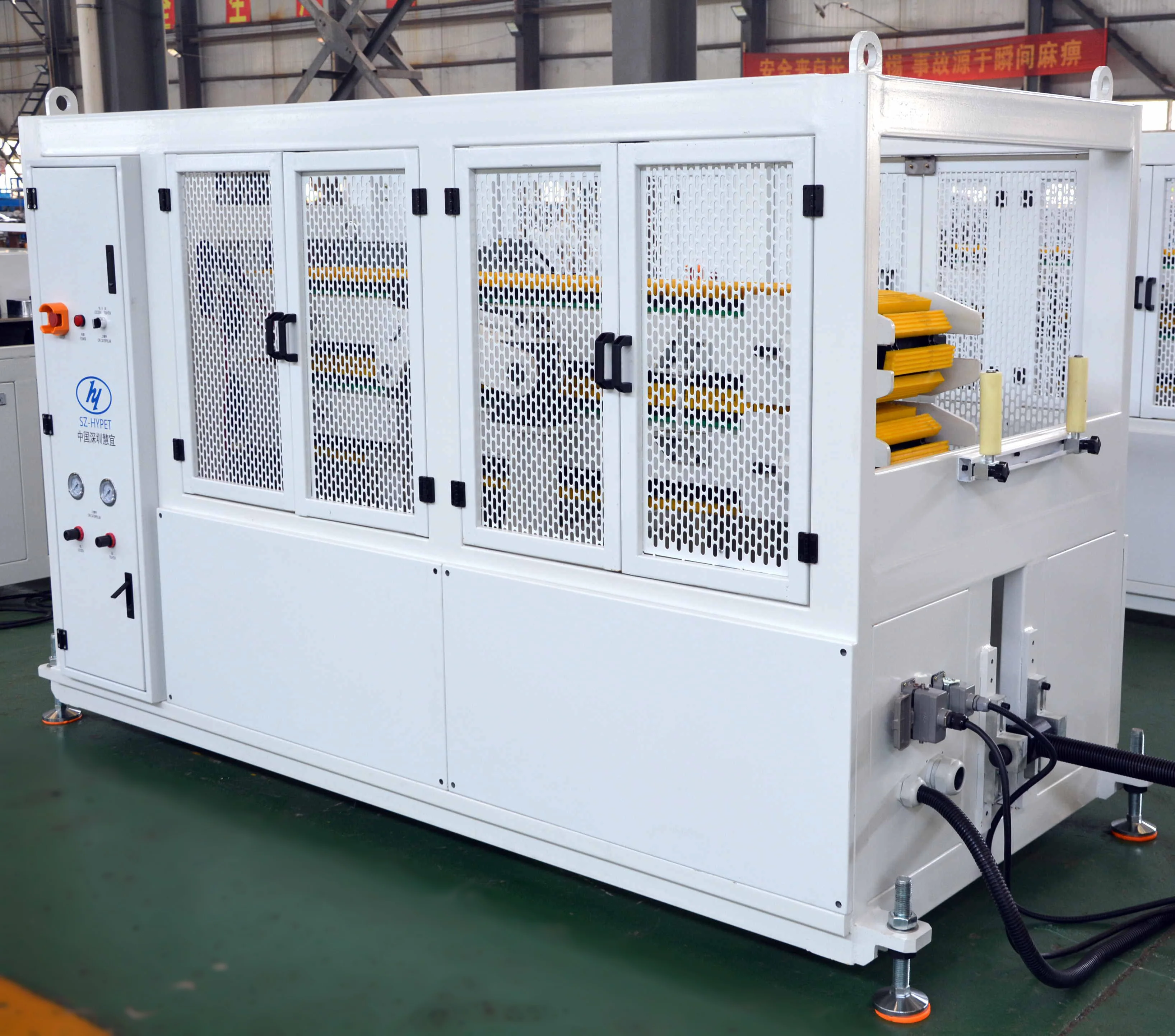

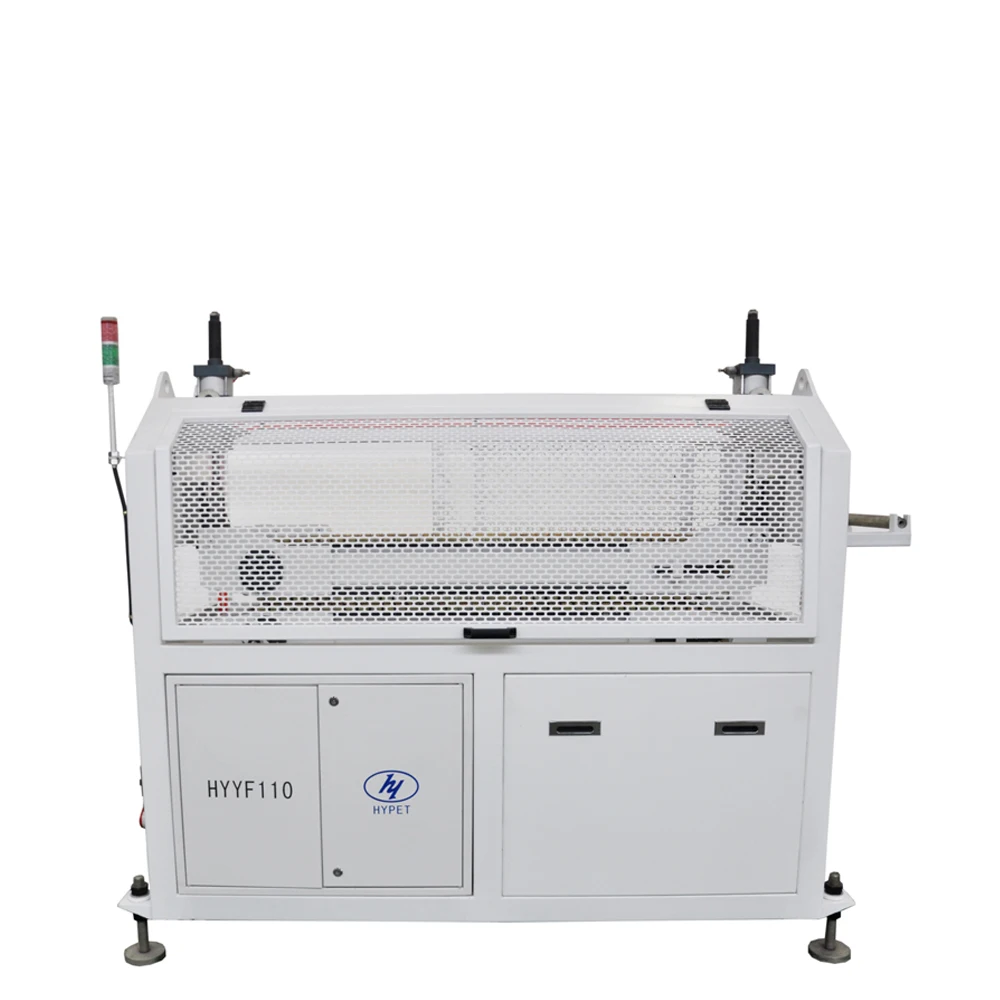

HAUL OFF MACHINE
Consists of top and bottom support which houses chain driven jaws with V- rubber profile.
Bottom support is fixed one and top support is pneumatically operated by two sets of cylinders on either side.
Independent special characteristic Vector AC strong Geared motor for each traction.
Bottom support is fixed one and top support is pneumatically operated by two sets of cylinders on either side.
Independent special characteristic Vector AC strong Geared motor for each traction.

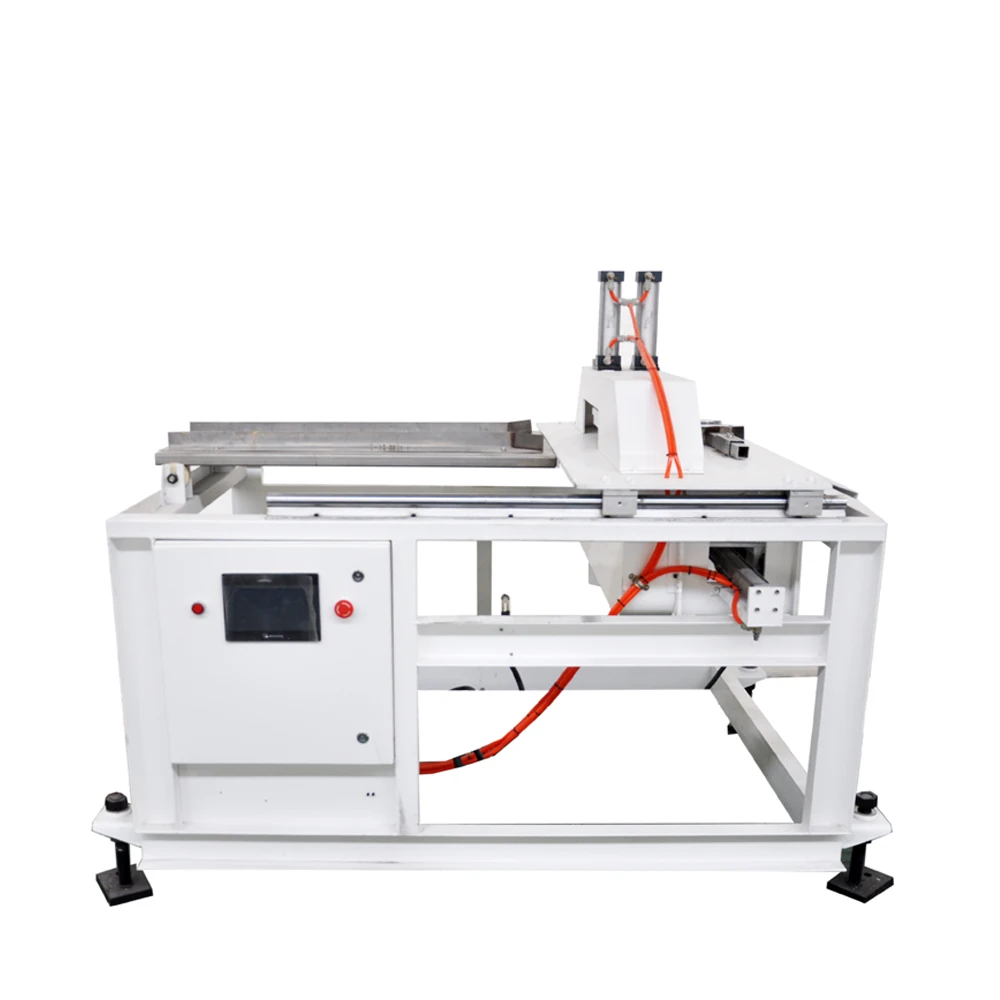

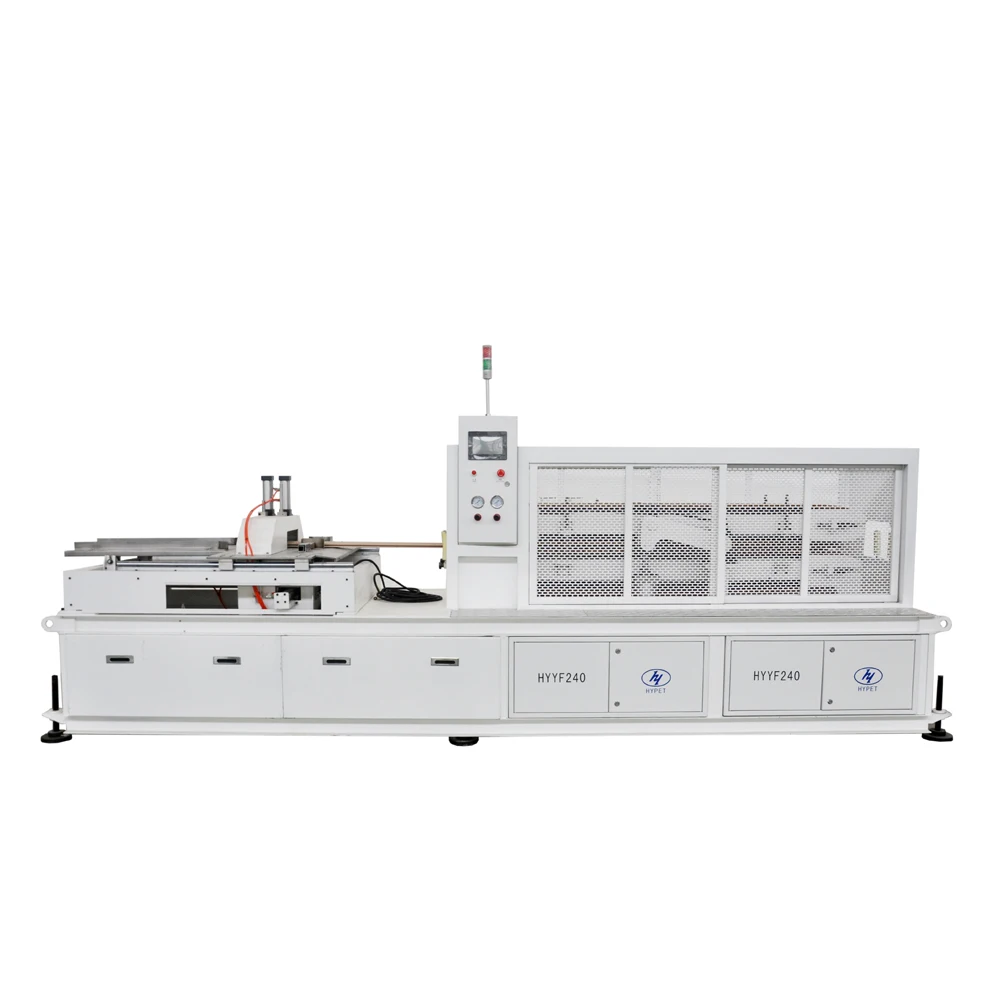

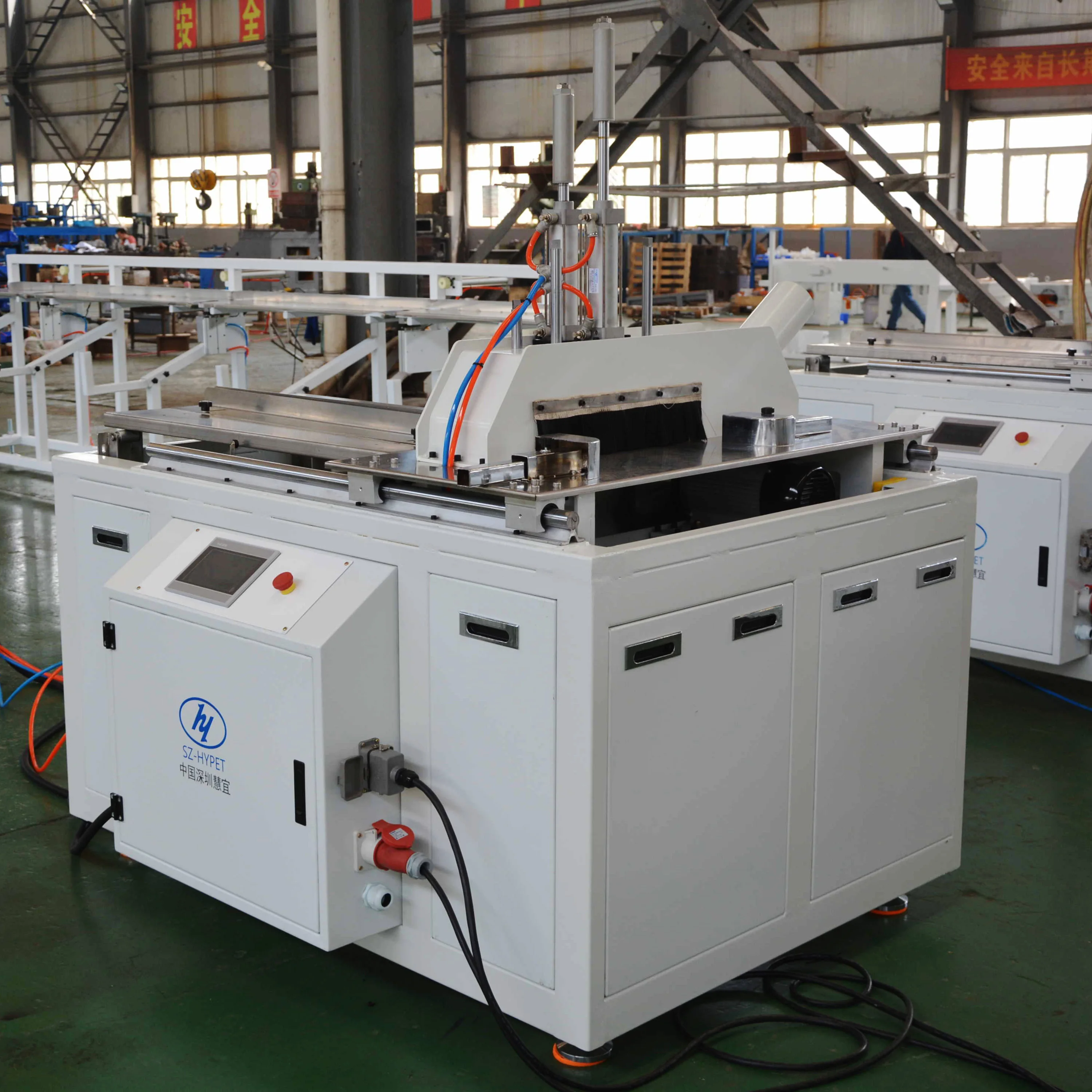

CUTTER
Dustless cutter to save the material and Environmental protection
Cut neatly bright
No noise and energy saving.
Cast aluminum blocks for Clamping pipe
Carriage made of Aluminum is mounted on hardened and hard chrome plated guide bar with linear motion bearings.
Cut neatly bright
No noise and energy saving.
Cast aluminum blocks for Clamping pipe
Carriage made of Aluminum is mounted on hardened and hard chrome plated guide bar with linear motion bearings.
STACKER
The tripping chute is made from MS rigid structural steel
Stainless Flat type Tilting table provided for smooth scratch less pipe moment.
Tilting table is Pneumatically operated2 Nos. Limit switches with adjustable bracket provided to cut various pipe length
Cooperative brands
Auxiliary machine for option
Puliverizer
Recycled scraps into powder
Mixer
Mixing PVC, filler, chemical agent
Crusher
Recycle the bad final product into scrap
Series Lines & Data
No. | Profile range | Extruders | Main Motor | Output |
1 | 75 | 35/80 | 11 | 50-70 |
2 | 110 | 51-110 | 22 | 70-110 |
3 | 240 | 55-120/65-132 | 30/37 | 100-150/150-250 |
4 | 300 | 65-132 | 37 | 150-250 |
5 | 450 | 65-132 | 37 | 150-250 |
6 | 600 | 80-156 | 55 | 250-350 |
