molex wire to wire 51191 0400 5102 5240 male female connector 2pin 3pin 4pin 5pin 6pin 8pin 9pin 10pin 11pin 12pin
- Category: >>>
- Supplier: Shenzhen Jun An De Connector Co. Ltd.
Share on (60807363576):
Product Overview
Description
Product Characteristics
Series name:5240 5102
Authentication: ROHS REACH ISO9001
Application:wire to board /wire to wire
Housing:5102 5240 Terminal :5240 5102(male/female)
Pitch:2.5mm Material:Phosphor Bronze
Poles:2pin-12pin Surface Treatment:Tin Plating
Material:Nylon UL94V-0 Packaging Type:Reel
Color:white,black Wire Size AWG:20 22 24
Packaging Type:bag Number:8000piece/reel
male Number:1000piece/bag
Electrical Parameters
Voltage rating: 250V
Current rating:2A
Withstand voltage:1000V AC/minute
Working Temperature:-25℃~+85℃
Insulation resistance:1000mΩ
Contact resistance:20mΩ

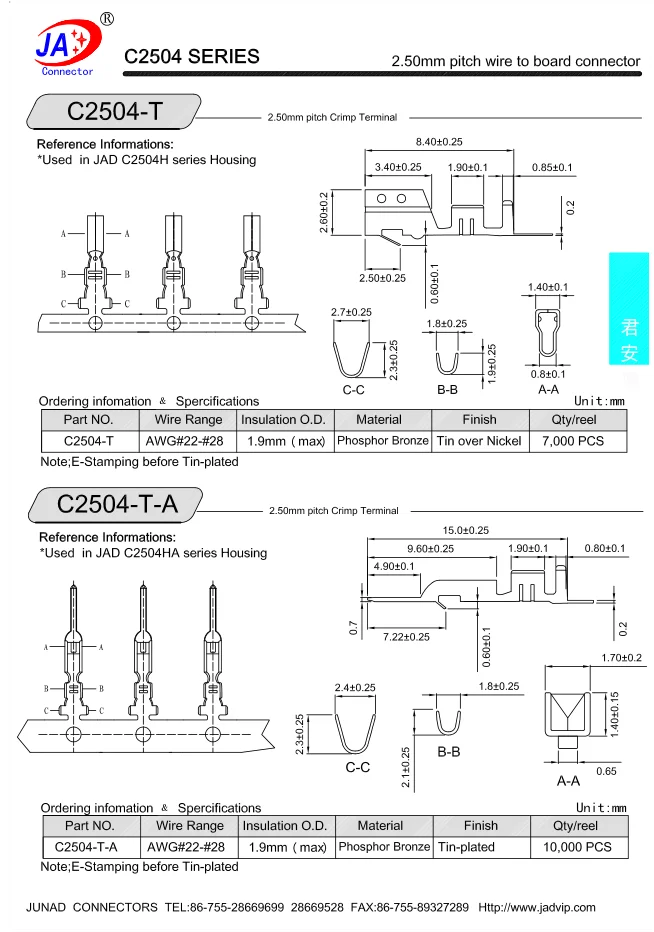

| Product drawings |
Our advantage
Related Products
Company Information
Certificate
Packaging & Shipping
FAQ
Q: What is your MOQ?
A: There is no MOQ for most of the products. Small orders also will be highly welcome.
Q: What’s the sample time and lead time for mass production?
A: Normally, sampling time is about 2-3 days upon receipt of request . Lead time for mass production is 7day after payment
Q: Is a sample available?
A: Yes, we could provide you free sample as your requirement
