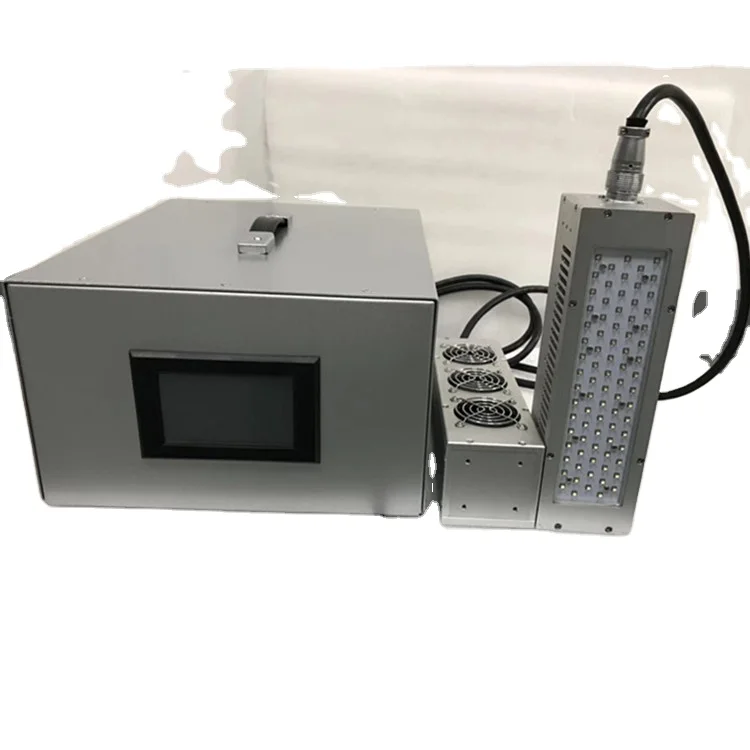

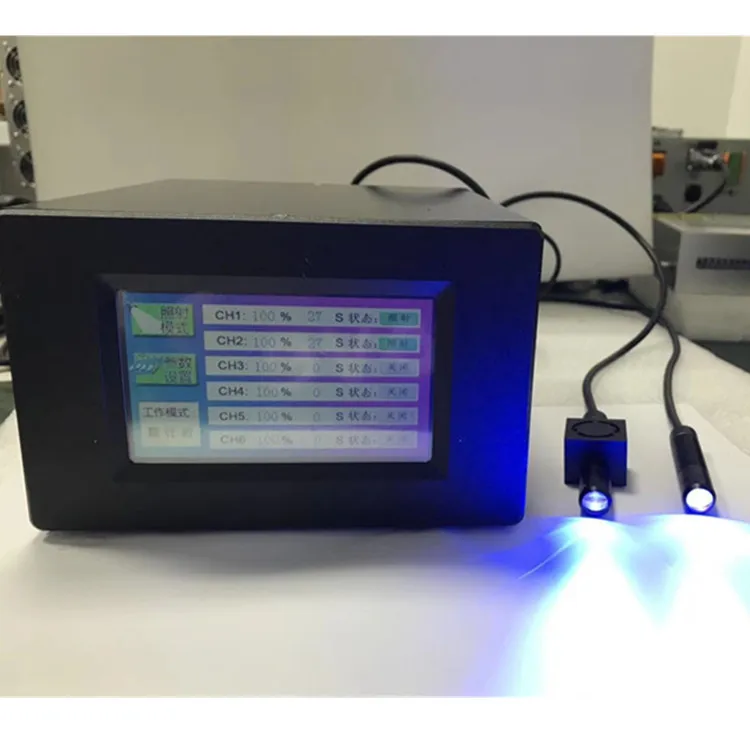

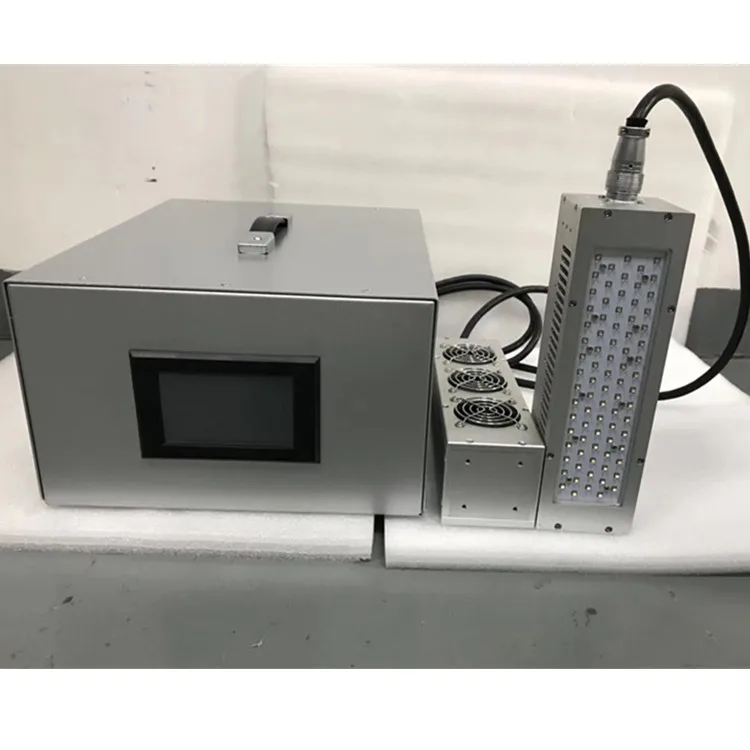

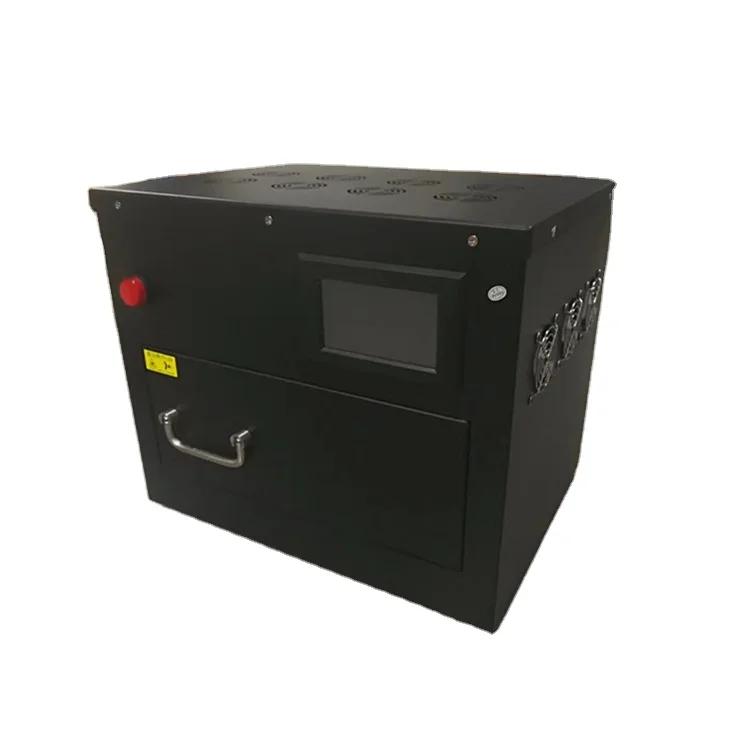

High Quality KRT_DOT Small UV Point Lamp Curing Drying Oven UV Drying Oven
- Category: >>>
- Supplier: Suzhou Baotailong Electronic Materials Co. Ltd.
Share on (60807365482):
Product Overview
Description
High quality Small uv Point Lamp Curing Drying Oven uv drying oven
Product Description
Maybe You Need

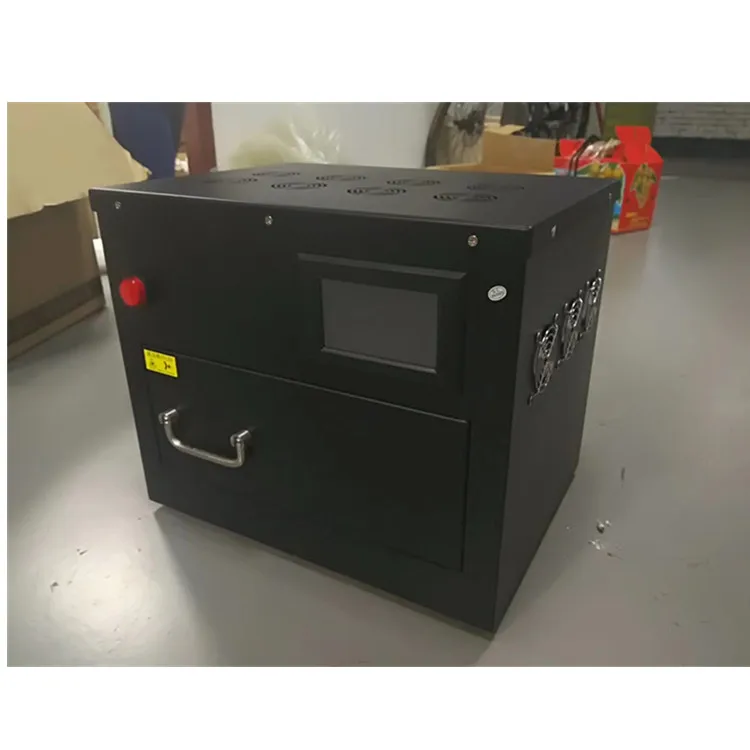

Our company has a variety of UV ovens, which we can customize to your needs.

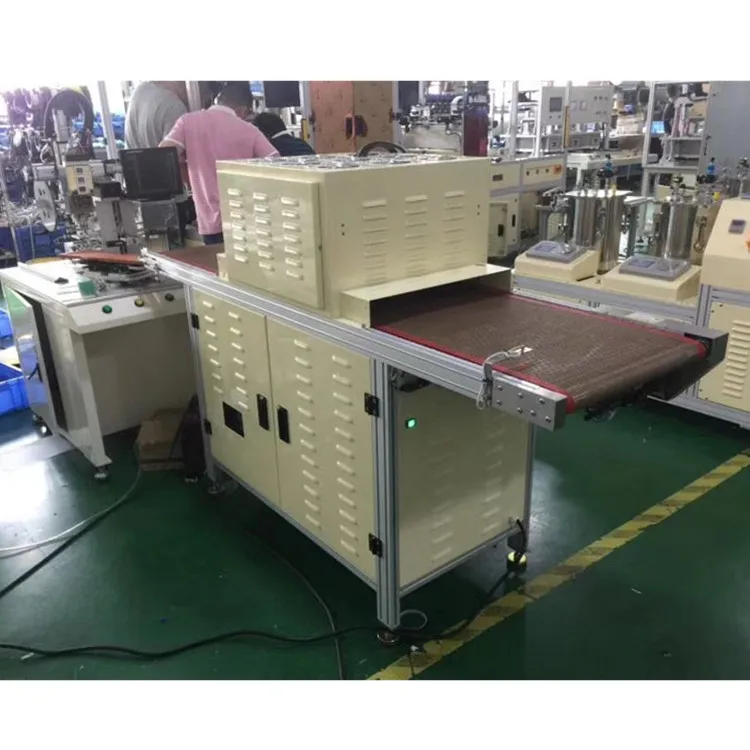

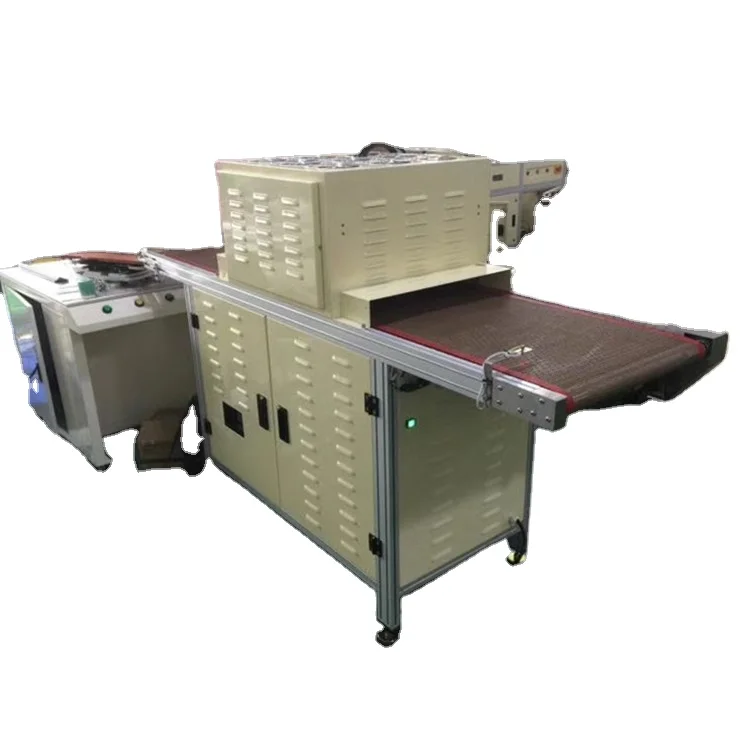

LED curing oven
| 1. American MAC double air valve control and valve core balance design, suitable for two-component fluid mixer. |
| 2.Good suction function to ensure quick and clean. |
| 3.The A / B component was transported separately before mixing, avoiding the possibility of mixing during the transportation process. |
| 4.In the process of mixing a single element through a mixing tube, the A / B component fluid uses the fluid to split, shear, rotate, and converge several times to achieve full mixing effect. |
| 5.The mixed head outlet adopts the standard interface of "TAH" mixing pipe, which ensures the reliability of installation. |

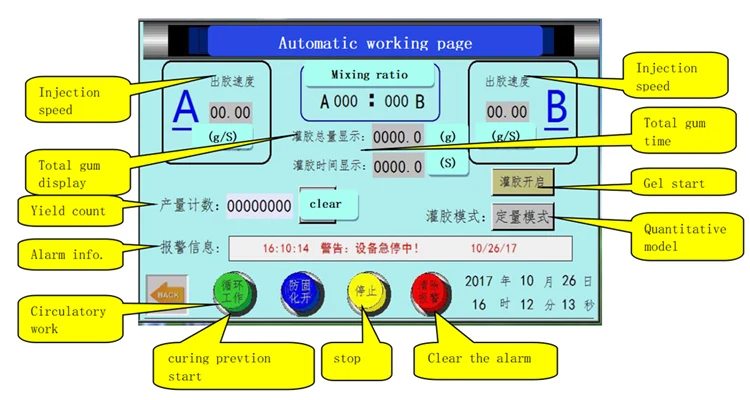

| Control method: | MITSUBISHI PLC control + nylon touch screen |
| Measurement method: | A component gear metering pump /B component gear metering pump |
| Hybrid mode: | Static mixing |
| Scope of dispensing: | 1g/sec~5g/sec |
| Proportional precision: | ≤±1%(Taking 5 seconds glue injection time as the benchmark) |
| Accuracy of dispensing: | ≤±1%(Taking 5 seconds glue injection time as the benchmark) |
| Single minimum amount of gum leakage: | ≥ 1 second injection time |
| Ratio: | The ratio of 1:1 to 10:1 can be achieved by configuring different metering pumps and mixing heads |
| Suitable for viscosity range: | 1~20 000mPa.s |
| Operation mode: | quantitative / automatic / continuous |
| Product technical parameters | |
| 1. Specification type: | WD—T050G |
| 2. Motor system: | Hybrid servo motor |
| 3. Operation mode: | Point movement and quantitative analysis. |
| 4. Applicable viscosity | :200~20000CPS. |
| 5. Matching accuracy: | ±1%(Taking 5 seconds glue injection time as the benchmark). |
| 6. Glue dispensing accuracy: | ±1%(Taking 5 seconds glue injection time as the benchmark). |
| 7. Mixing ratio: | 100:100 |
| 8. glue dispensing speed: | 1g/sec~5g/sec |
| 9. Operation system: | PLC+touch screen. |
| 10. Feeding mode: | Manual. |
| 11. Metering mode: | Precision gear pump / screw pump (according to the formula of glue). |
| 12. Operation mode: | Foot switch / start switch / online communication control |
| 13. Anti setting: | 0-9999Sec |
| 14. Size(cm): | 750 x 650 x750 |
| 15.Body weight: | 85g |
| 16.Related technical requirements | a) Ambient temperature 20℃~45℃,relative humidity≤80% working on the condition |
| b) Power:AC220V/50Hz/ 3.5KW | |
c) Gas source specification: ≥0.4~0.6Mpa, The gas source is stable and the error is not more than + 0.1 | |
