12v 24v 30a mini auto relay with 4pin

Share on:

Price in USD:Details


Product Overview

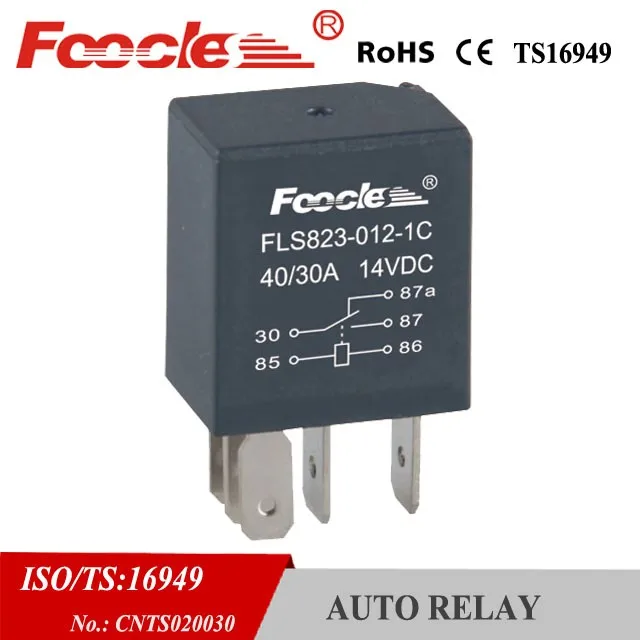

12v 24v 30a mini auto relay with 4pin



Product Description


Relay Features:


  • 40A switching capability

  • 1 form A, 1 form C contact form

  • Sealed IP67 and dust cover types available

  • Outline dimensions: 23.0 X15.5X25.4

Relay Specification:

Contact Form

1A, 1C
Contact Material


Max. Operating Current


Max. Operating Voltage


Insulation Resistance


Rated Load(Resistive load)

1A:40A 13.5VDC  20A 27VDC  1C:NO/NC 40A/30A 13.5VDC

Dielectric Strength(Coil and Contact)500VAC
Ambient Temperature


Operate/Release Time10ms/10ms
Mechanical Life

1 X106

Electrical Life(min)

1 X105

Terminal TypeTerminal



Coil Ratings:


Normal voltage(VDC)Pick-up voltage(VDC)Drop-out voltage(VDC)Coil resistance(Q±10%)Parallel resistance(Q±5%)Equivalent resistance(Q±10%)Power consumption(W)Max. allowable overdrive voltage(VDC)
128.41.290- - 1.6 20.2 15.7
128.41.280 680 79.5 1.8 20.2 15.7
2416.82.4360 - - 1.6 40.5 31.5
2416.82.4320 2700 317.6 1.8 40.5 31.5

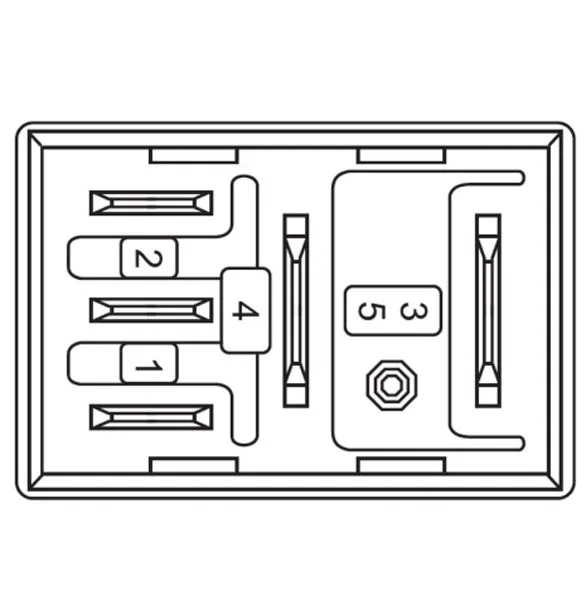

External Dimension:







Remark: (1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;

Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm,

tolerance should be ±0.4mm.

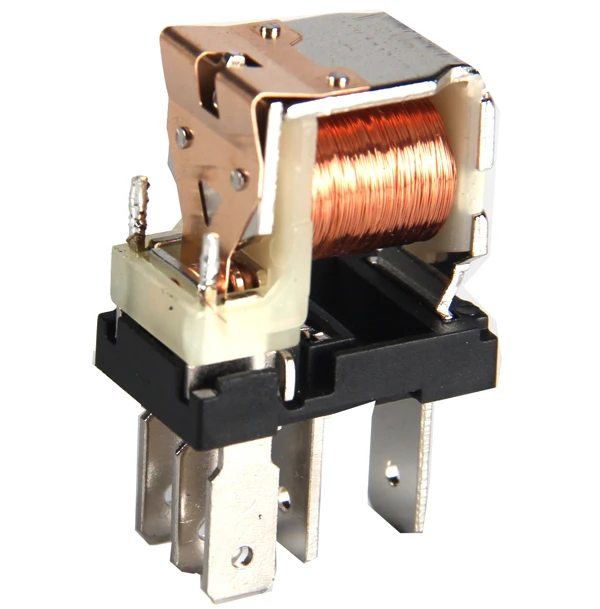

Relay Photos:
