Paper mill used paper machine spare parts for pulping hydropulper
- Category: >>>
- Supplier: Qinyang Nianhai Papermaking Mesh Industrial Co. Ltd.
Share on (60807417006):
Product Overview
Description
Paper pulping hydropulper
Advantage
1. Strong ability to disintegrate ;
2. Short pulping time ;
3. Easy operation and maintenance ;
4. Continuous, intermittent discharge ;
5. Only dissociation of the slurry without cutting ;
2. Short pulping time ;
3. Easy operation and maintenance ;
4. Continuous, intermittent discharge ;
5. Only dissociation of the slurry without cutting ;
Product Parameter
Model | NHD0 | NHD1 | NHD2 | NHD3 | NHD5 | NHD8 | NHD10 | NHD15 | |||||||
Volume (m³） | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | 15 | |||||||
Inner diameter of the tank (mm) | D1000 | D1200 | D1600 | D1800 | D2400 | D2500 | D2700 | D3500 | |||||||
Capacity (t/d) | 3-5 | 6-10 | 12-16 | 18-26 | 26-34 | 45-60 | 60-80 | 80-100 | |||||||
Rotor diameter (mm) | D360 | D450 | D500 | D540 | D700 | D800 | D1000 | D1250 | |||||||
Rotor speed (r/min) | 700 | 650 | 490 | 480 | 450 | 336 | 320 | 320 | |||||||
Slurry tube diameter (mm) | D80 | D100 | D125 | D150 | D200 | D250 | D250 | D325 | |||||||
Inlet pipe diameter (mm) | D50 | D50 | D65 | D60 | D80 | D80 | D80 | D100 | |||||||
Concentration（%） | 2.5-4.5 | ||||||||||||||
Motor (kw) | 4/11 | 4/22 | 4/37 | 6/45 | 6/55 | 6/75 | 9/90 | 6/160 | |||||||

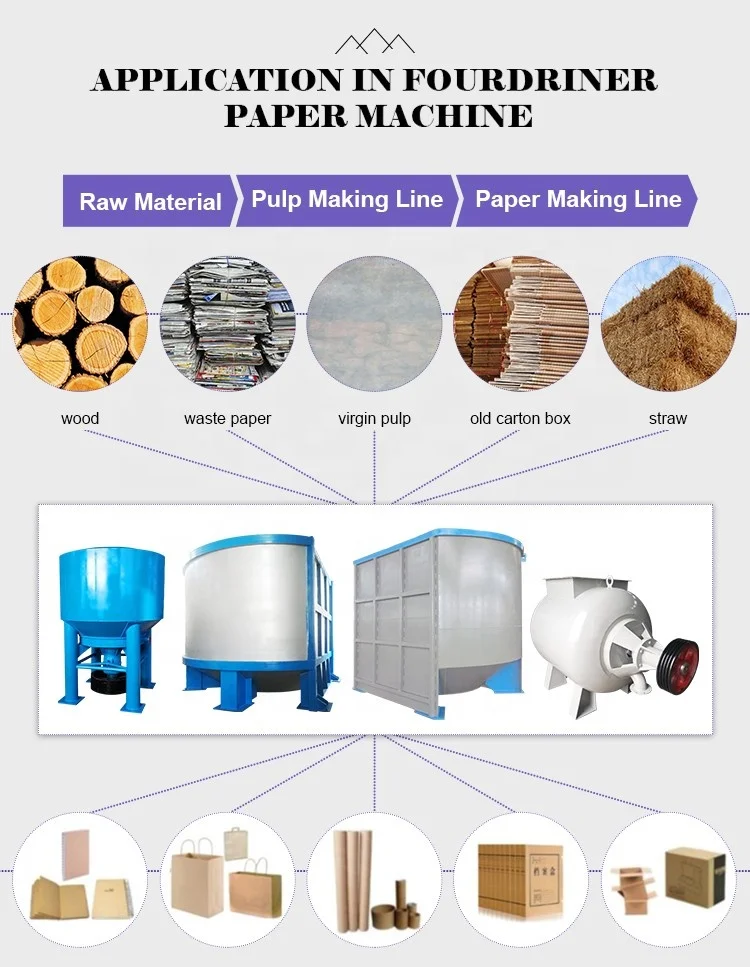

Application

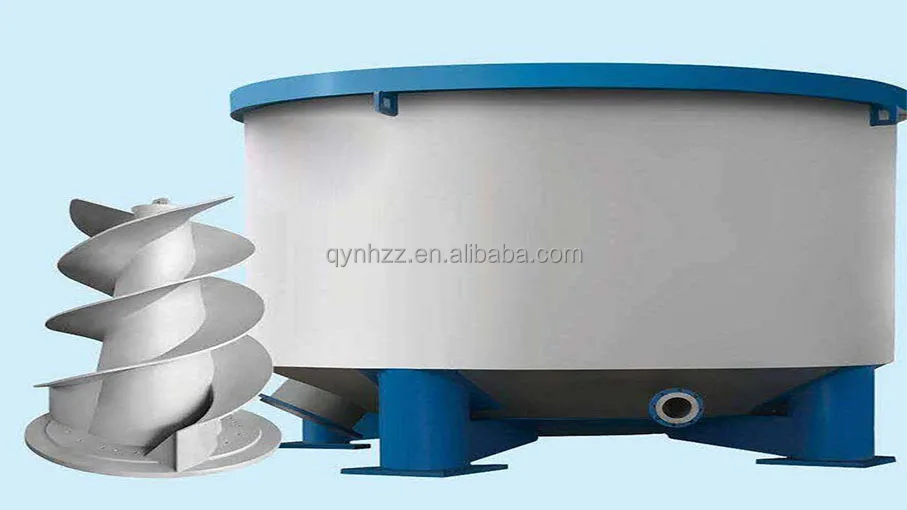

Product Structure
can maximum make the paper's fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity's shape and strength.
Product Detail

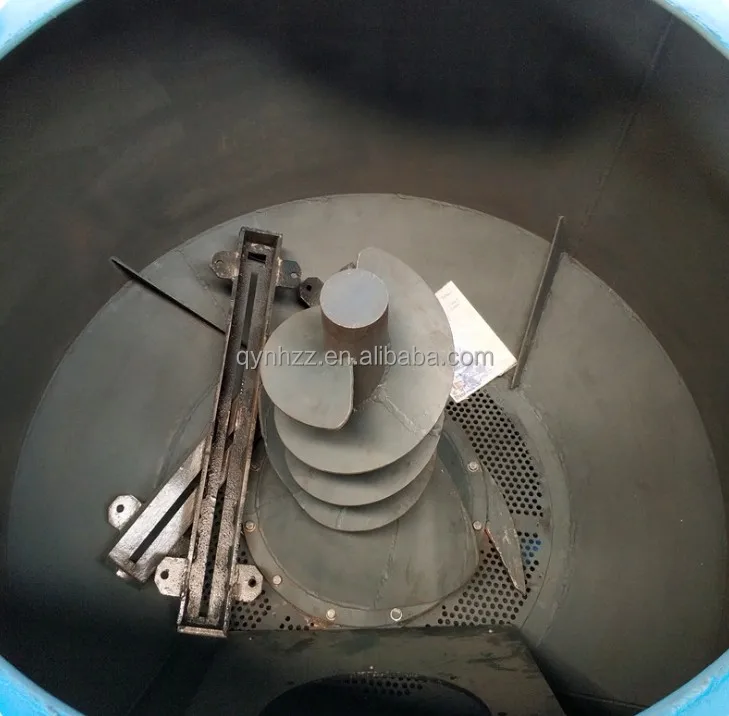

Tank
The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet."D" type
hydropulper has changed the way of flow ,make the material contact more quickly with the rotor ,and reduce bearing time greatly,and improve production capacity in the condition of without increasing the power and volume .
hydropulper has changed the way of flow ,make the material contact more quickly with the rotor ,and reduce bearing time greatly,and improve production capacity in the condition of without increasing the power and volume .

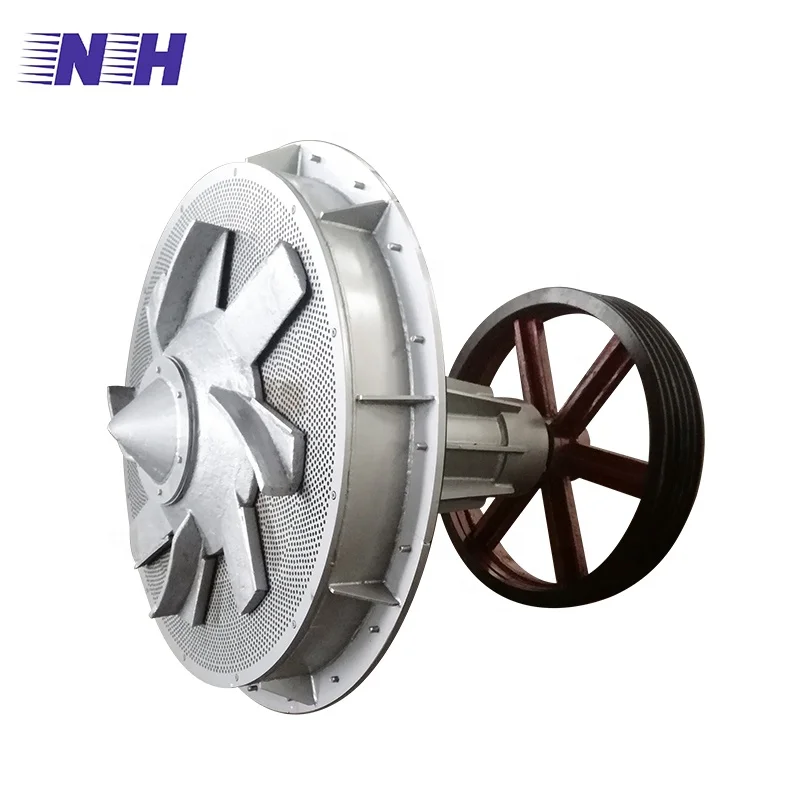

Outlet
Rotor and outflow pulp tray locate above the bottom of the tank ,forming a low pressure area around the outflow pulp tray,to reduce the contact between impurities and cutter or sieve plate ,and prolong the service life of the cutter and seive plate .

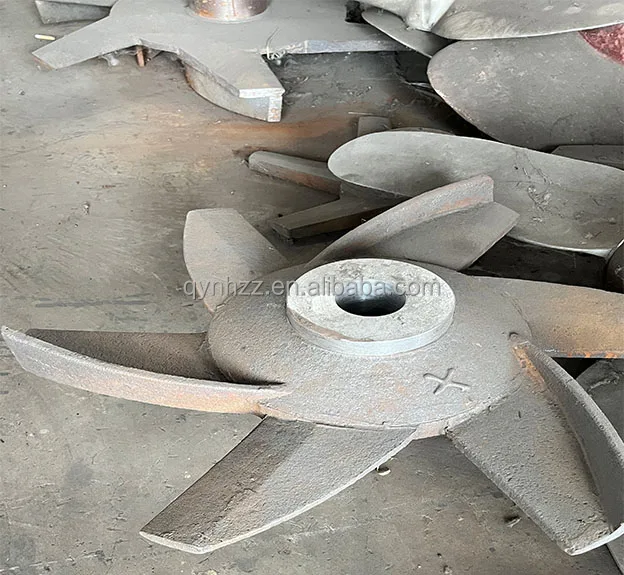

Cutter blade
The design of cutter blade between cutter and sieve plate prevents the twining of waste materials like wire and weaving,and reduce
running current.
running current.
Sieve plate
Sieve plate used for screening paper pulp.

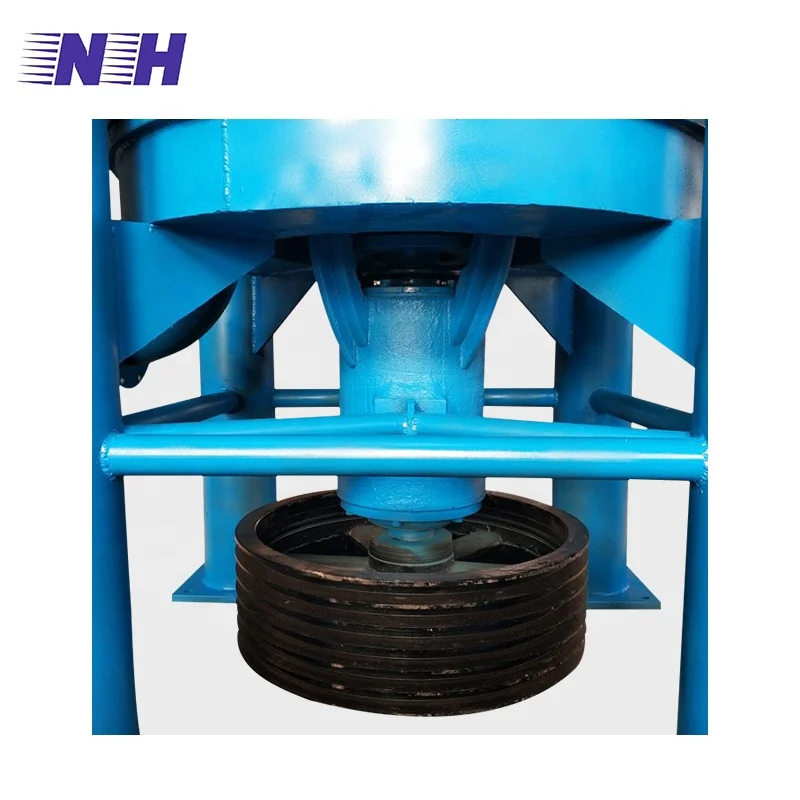

Belt wheel
A complete set of European standard belt wheel,can shorten maintenance time,improve work efficiency ,reduce operating costs.

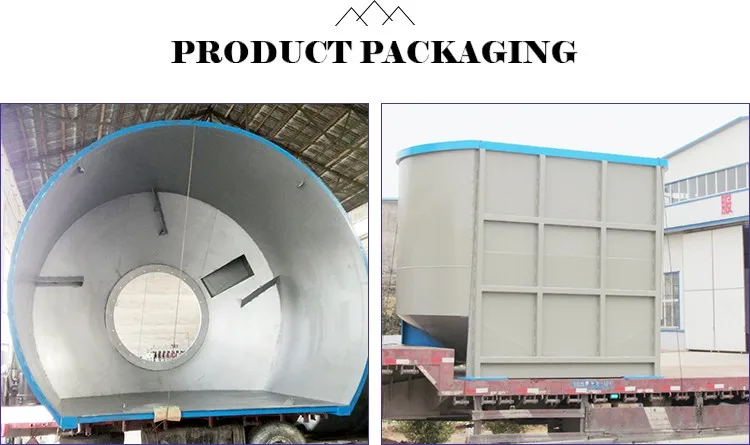

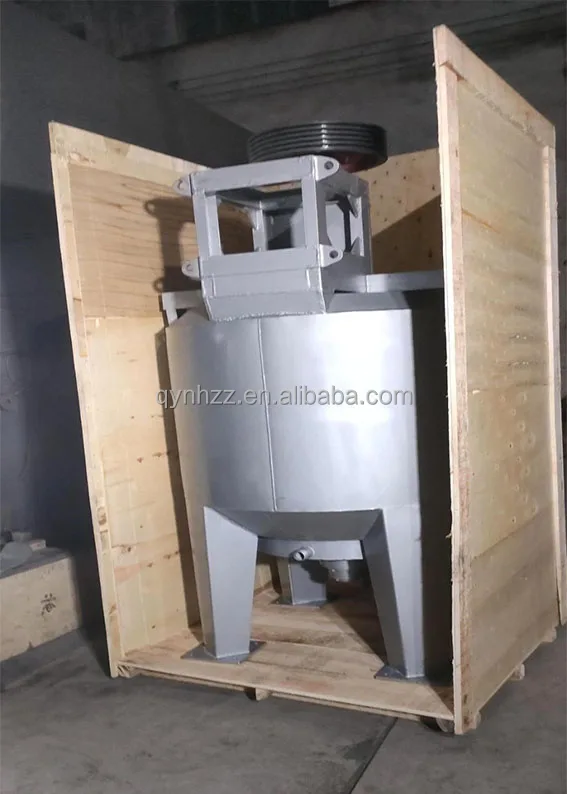

Packing&Delivery
Related Product
Company Introduction
NH Paper Machinery Industrial Group is a leading professional paper machine manufacturer in China, which specializes in making machine, paper making machine and all kinds of paper machine components manufacturing. Based on the development of local market ,we are growing to professional paper mill solution provider. NH Paper Machinery Industrial Group fully implement the guideline in business-"survival depends on quality and service ,market rely on price and brand."
Our main products are a full set of new and second hand paper making equipment with a maximum net with of 6000mm and a working speed of 700m/min.It mainly includes a packaging paper production line with an annual output of 200,000-200,000 tons, a cultural paper production line with an annual output of 1-10 million tons, a tissue paper production line with an annual output of 20,000 tons and various special paper production lines.
Look forward to hearing from you sooner and establishing a long friendly business relationship with you . We promise we will do our best to help you .Besides ,welcome you to visit our factory at anytime.
Our main products are a full set of new and second hand paper making equipment with a maximum net with of 6000mm and a working speed of 700m/min.It mainly includes a packaging paper production line with an annual output of 200,000-200,000 tons, a cultural paper production line with an annual output of 1-10 million tons, a tissue paper production line with an annual output of 20,000 tons and various special paper production lines.
Look forward to hearing from you sooner and establishing a long friendly business relationship with you . We promise we will do our best to help you .Besides ,welcome you to visit our factory at anytime.

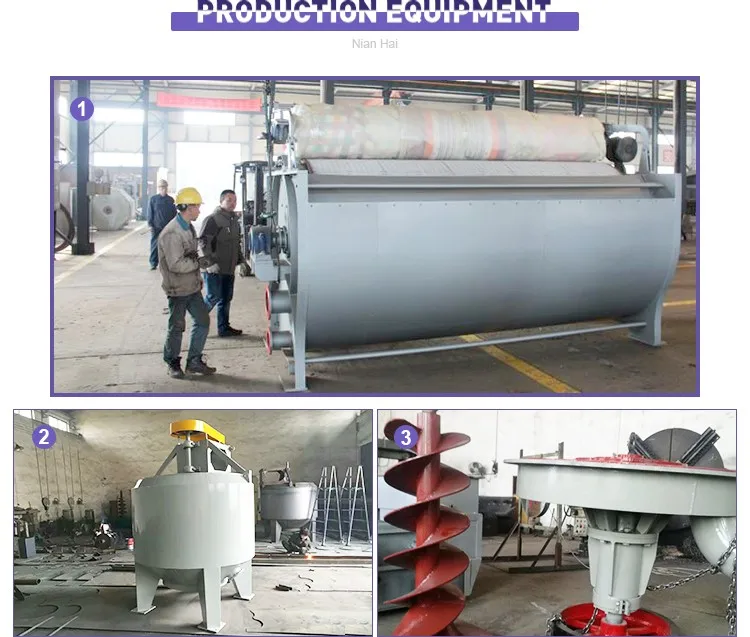

According to the process, divided into different workshop .With strict quality control system to ensure the finished product quality .
