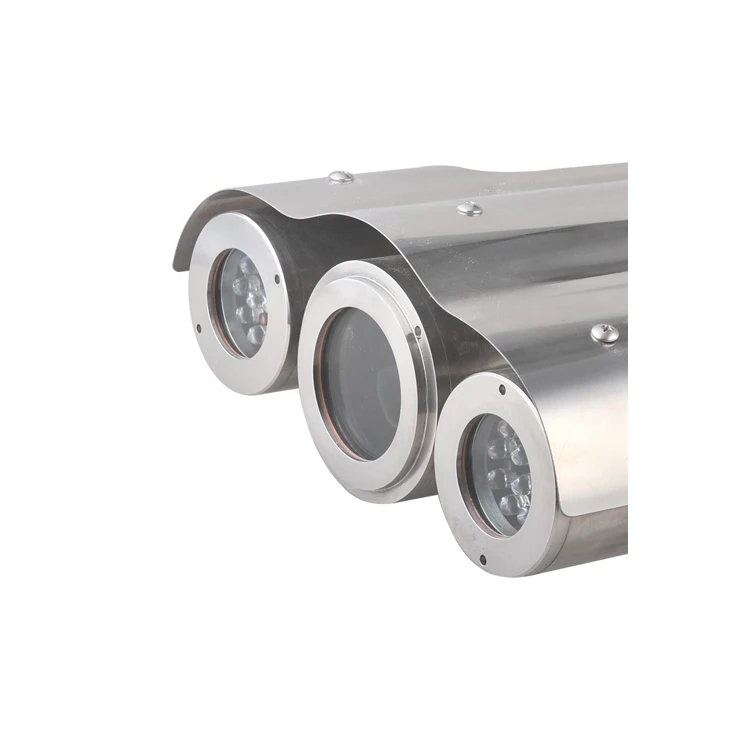

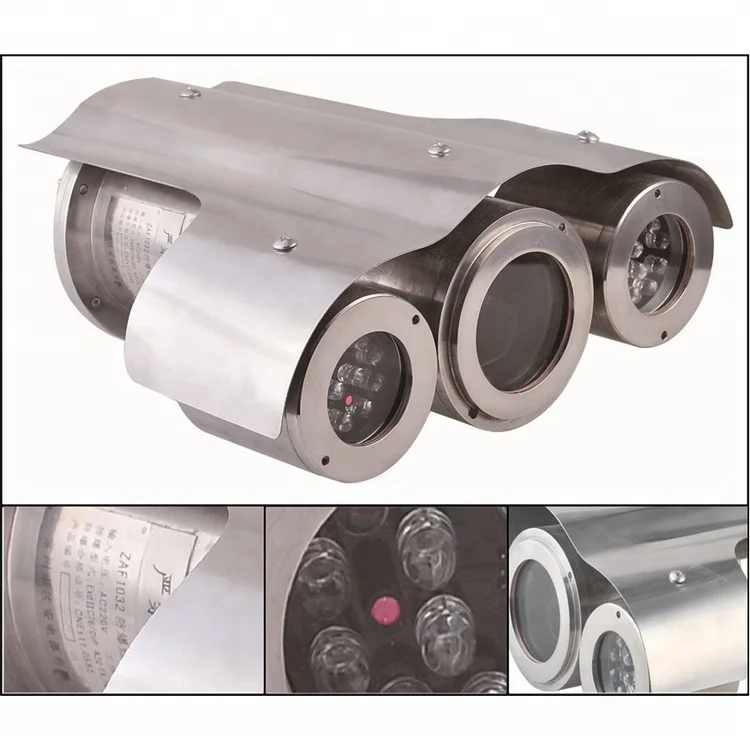

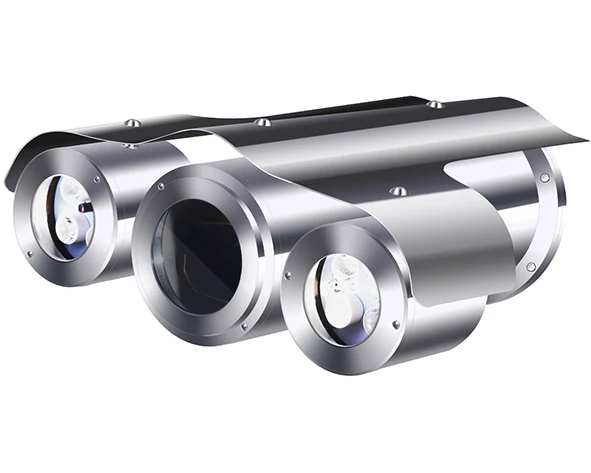

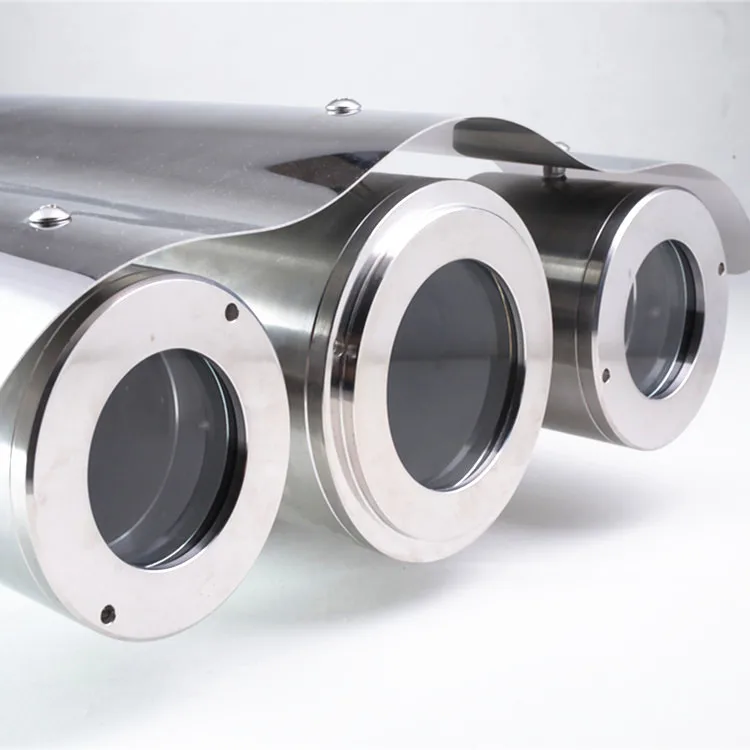

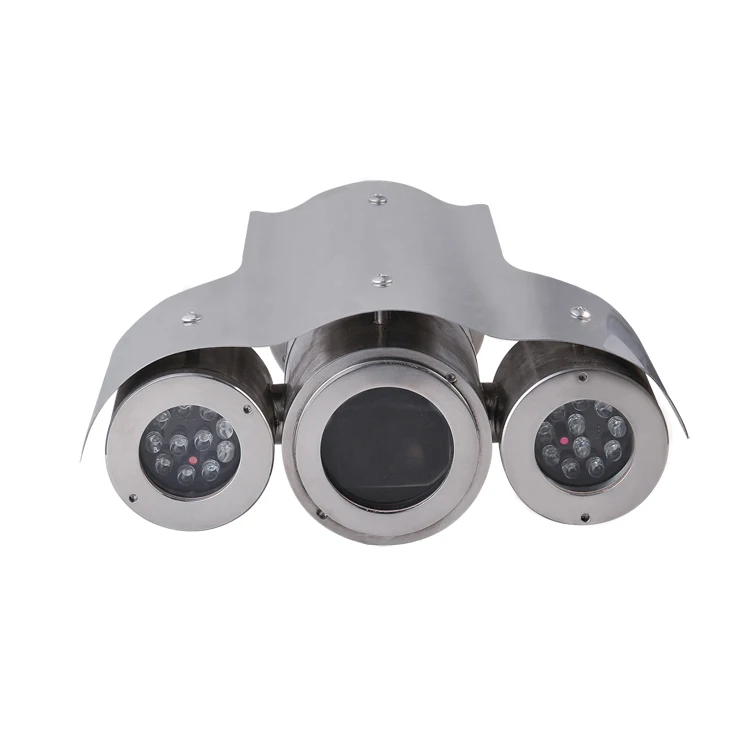

zuoan ip68 explosion proof cctv camera housing with IR

Certificate
Certificate Mark | ExdⅡC T6 Gb / Ext D A21 IP68 T80℃ |
Certificate No | CNEx16.0708 |
Standards | Q/320412ZAF032-2016 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 2pcs G3/4 or NPT3/4 |
Sun-shield | Yes |
Electrical
Voltage | AC85V~AC265V or DC24Vor AC24V |
Power | 15W/25W (with thermostat) |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Ambient
Ambient temperature | -25 to +60℃ / -45 to +80℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | 95% (no condensation) |
Lights
Lights | 30m infrared lights |
Lights Control | Support |
General
Cable | integrated cable |
Size | 367*335*170mm |
Weight | 13.9kg |
Mounted | wall, pole |
Wall bracket | ZAZ100B |
Explosion proof camera enclosure approved with certificates.

Explosion proof cameras and explosion proof camera enclosure used in

Changzhou Zuoan Electronics Co., Ltd. is an industry-leading manufacturer of explosion proof CCTV camera and security system started from 2005. The company is committed to offer explosion proof video surveillance products and solutions. With a win-win vision, we are devoted to providing top quality products and services to the world.
