Screw Type Expansion Wedge Anchor Bolts

Product Overview

Description



Product Description:

1.Name	Wedge Anchor
2.Thread Type	Metric, American, Unified
3.Material	Carbon steel, Stainless steel
4.Grade	4.8 5.8 6.8 8.8
5.Finish	Electro Galvanized
6.Size	M6-M24
7.Supply Ability	50 tons per month
Appearance	Three Points, Double Clips, Stainless Steel Clip, Round Clip, Hilti Clip
8.Certificate	ISO9001
9.Packing	natural color, electro-galvanized, hot-dip galvanized, dacromet.
10.Delivery	Our delivery time should be according to your order

 Technical Data



This product has longer threads and is easier to install. It is often used in heavy-duty installations.

To obtain a reliable and huge tightening force, it is necessary to ensure that the clamp ring fixed on the gecko is fully expanded. And the expansion clamp must not fall off the rod or twist or deform in the hole.

The calibrated tensile force values are all tested under the conditions of cement strength of 260 ~ 300 kgs/cm², and the maximum value of the safety load must not exceed 25% of the calibrated value.

Application Area

Suitable for concrete and dense natural stone, metal structures, metal profiles, floor plates, support plates, brackets, railings, windows, curtain walls, machines, beams, beams, brackets, etc.

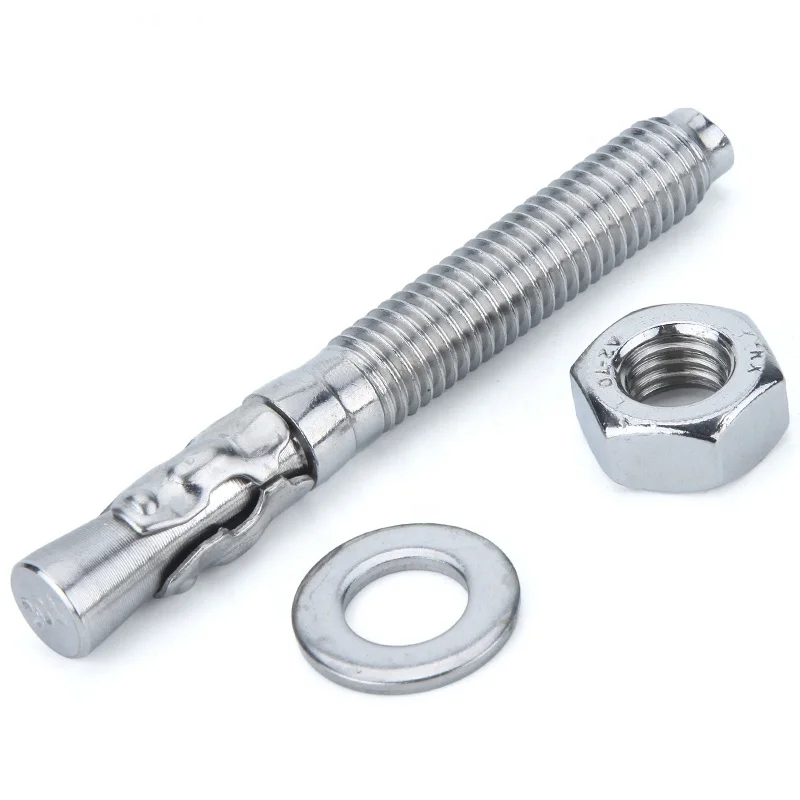

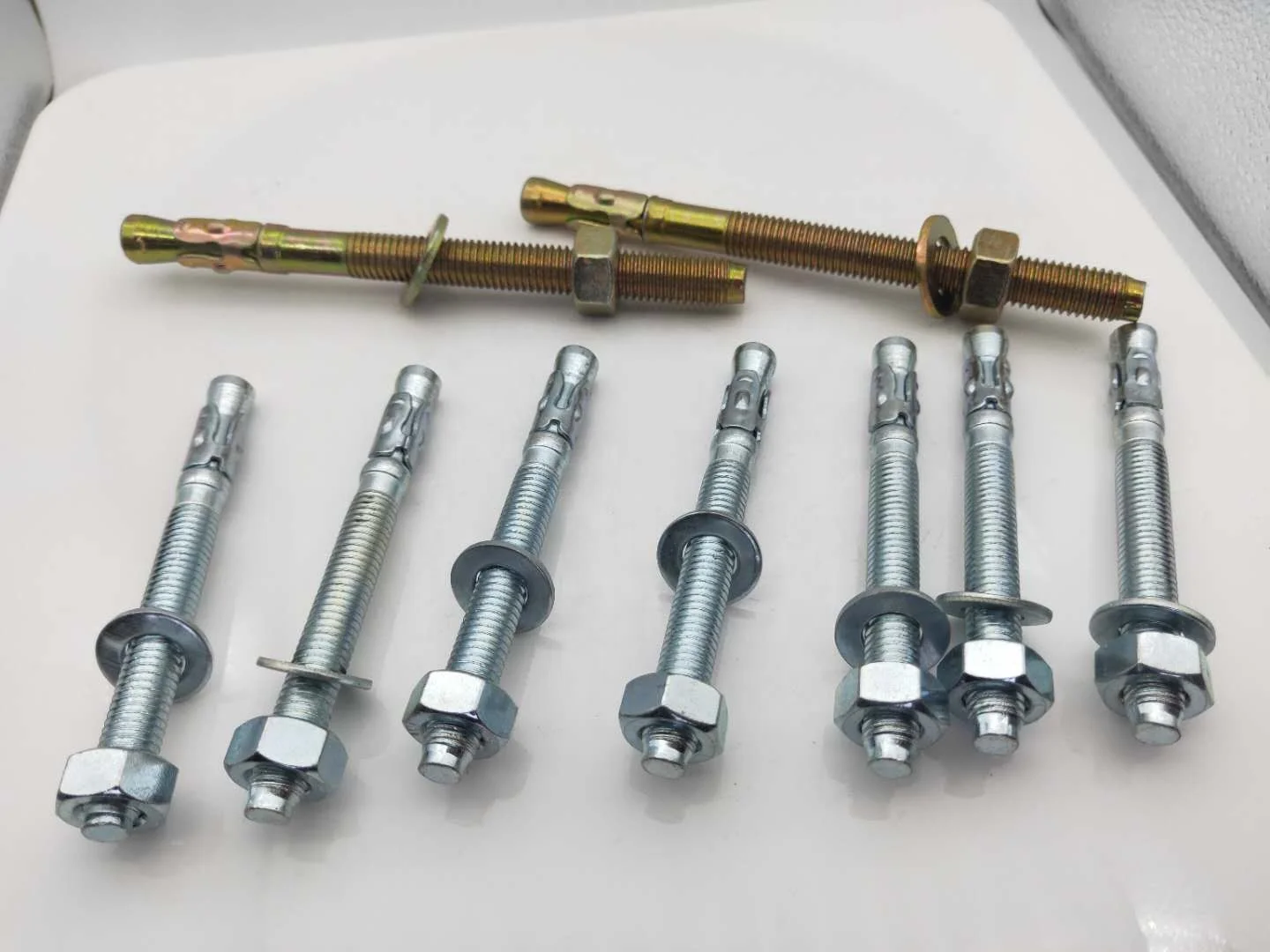

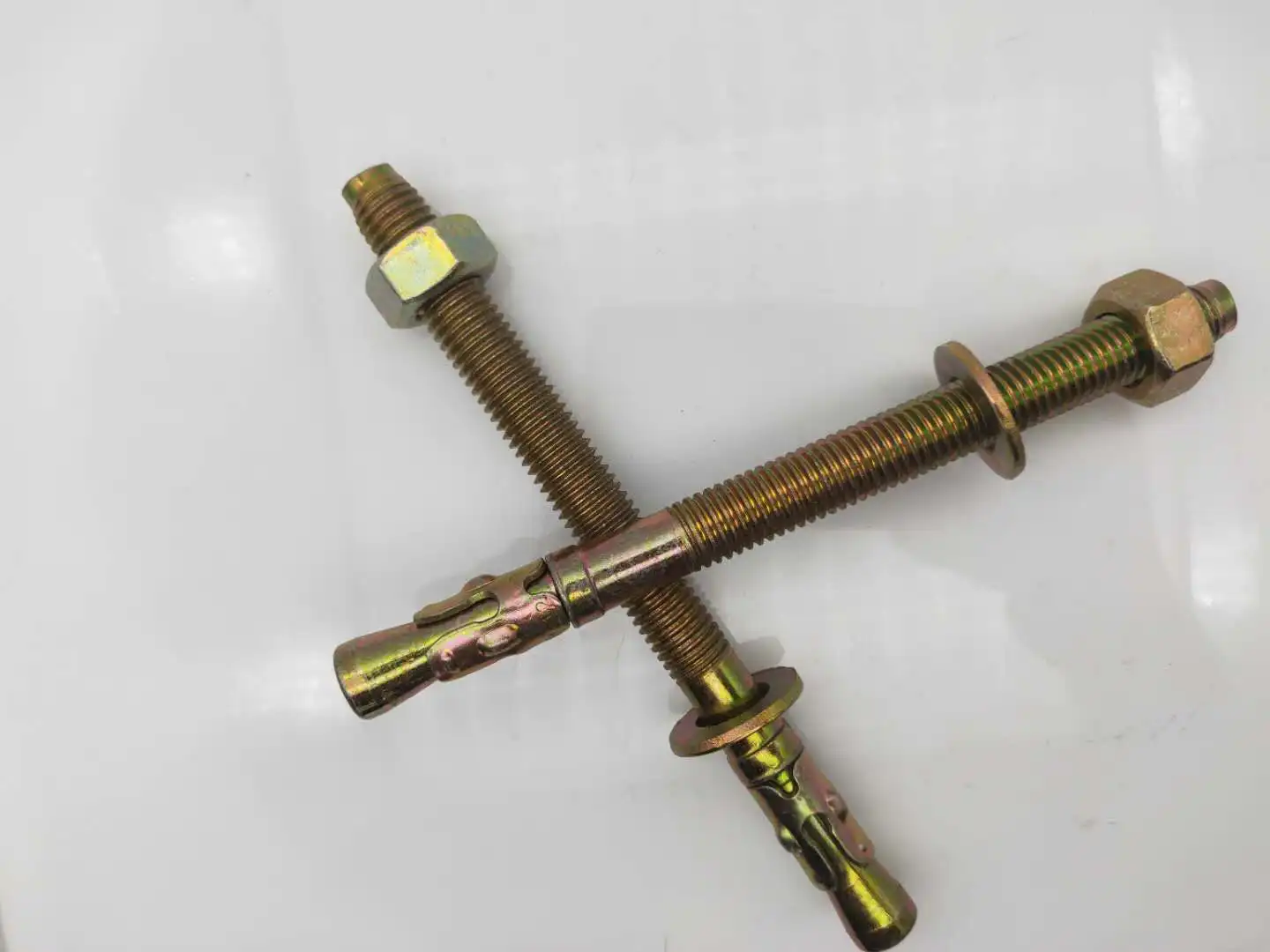

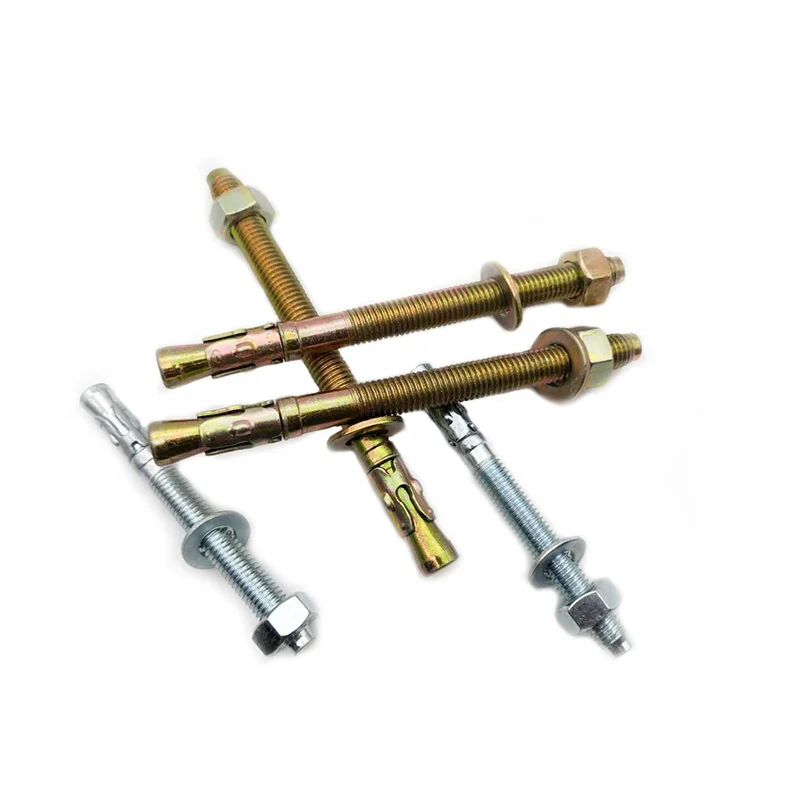

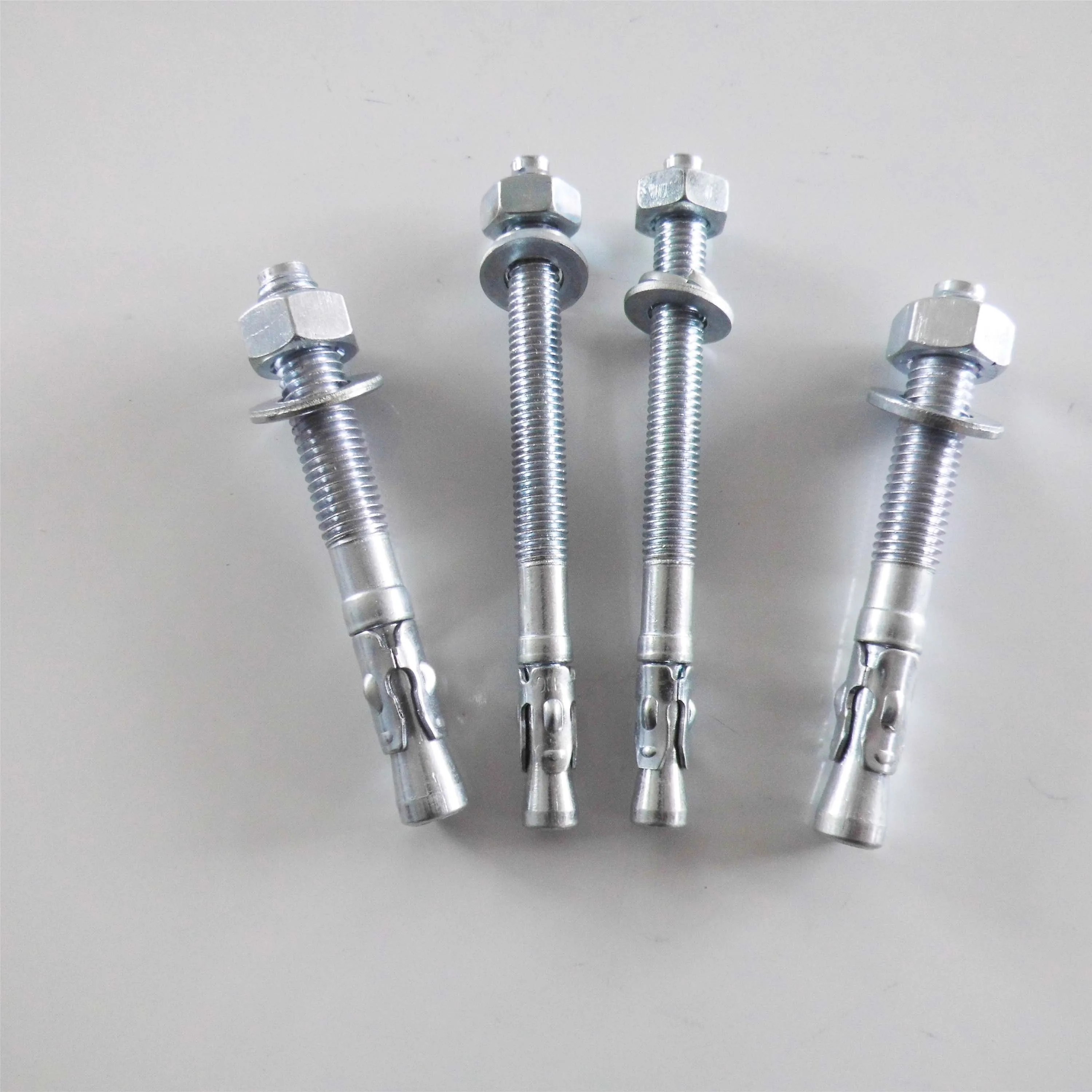

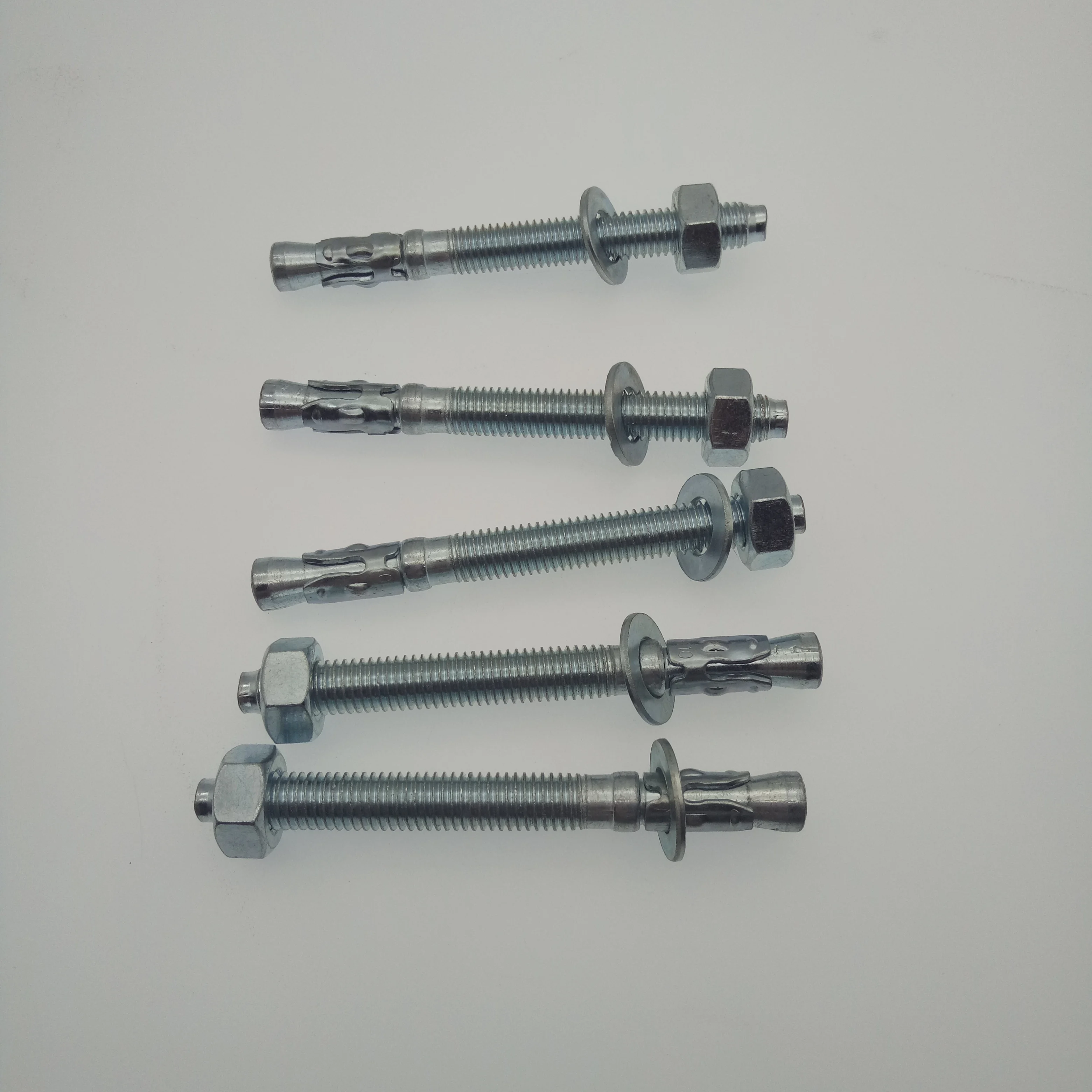

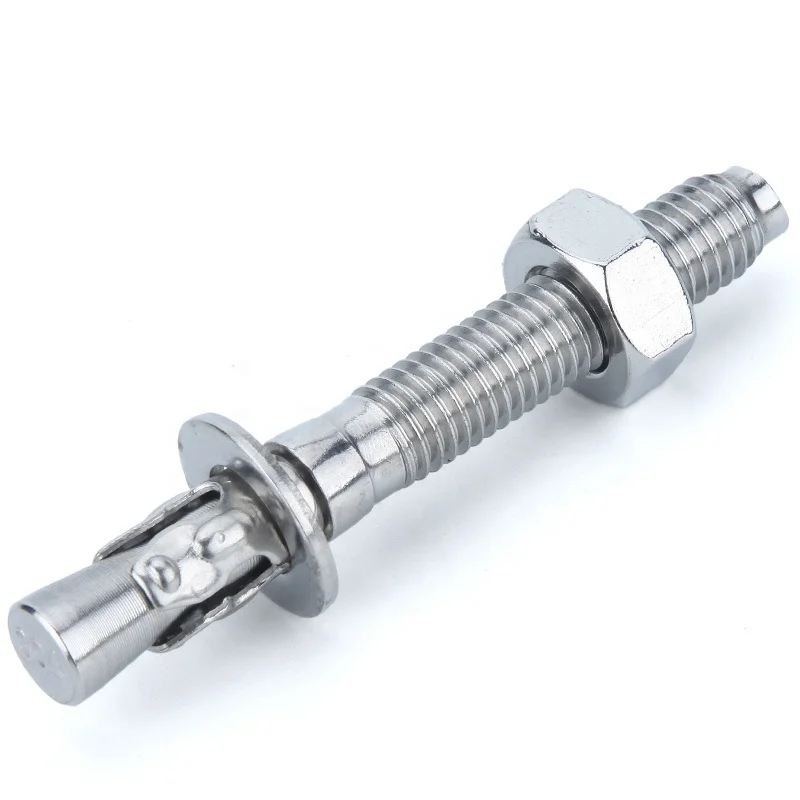

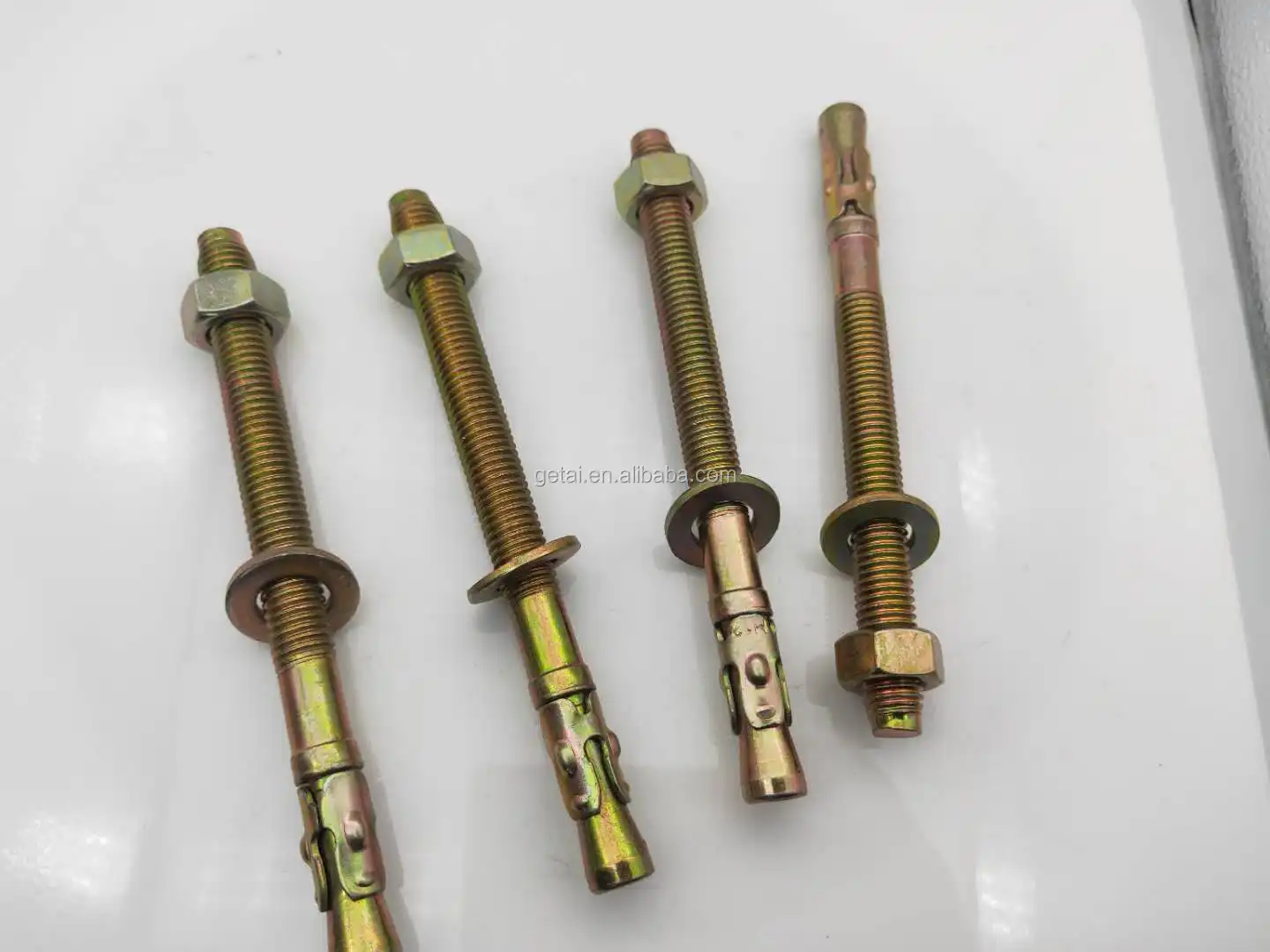

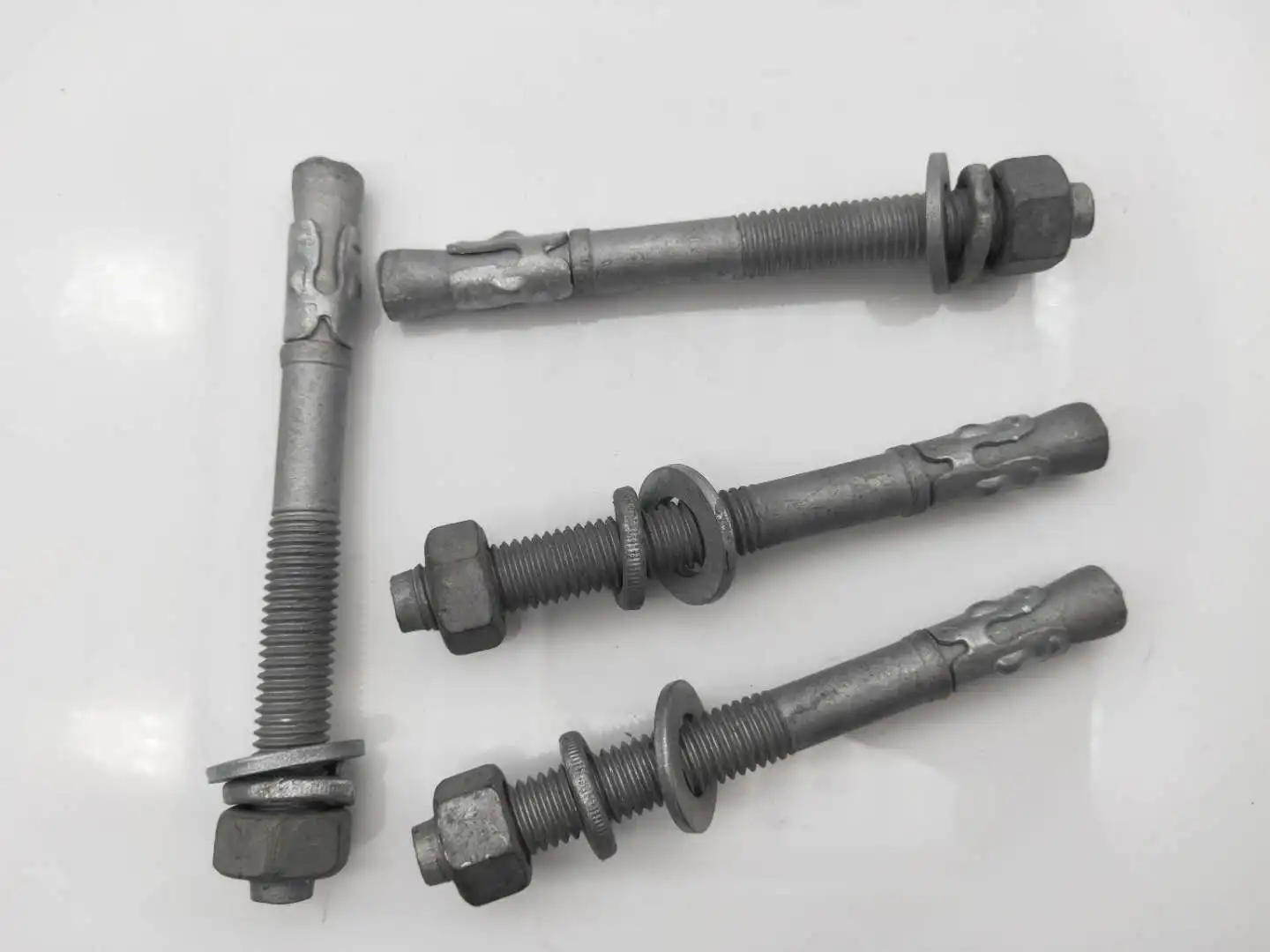

              Product photos
