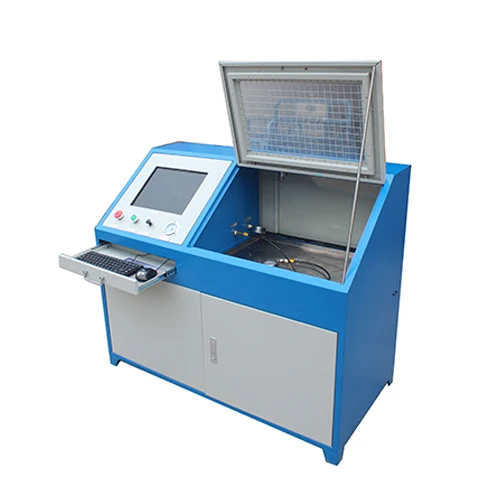

computer control air hydraulic pressure test bench for pipe pressure test

Product Overview

Description

computer control air hydraulic pressure test bench for pipe pressure test

Main Feature

The machine is used for the determination of compressive time and instantaneous blasting pressure of various non-metallic tubes at constant temperature, and the host adopts microprocessor full closed-loop control system to realize the whole system closed-loop control. Widely used in factories, construction engineering quality testing stations, product quality inspection institutes, scientific research institutions and other types of pipe production inspection, development and research and other fields.

Technical Parameters

1.The maximum test pressure: 0.5~10mpa

2. Sample diameter: φ12-φ630mm (Other pipe diameter special custom)

3.At the same time Test pipeline: 1 road (can be expanded according to user needs, independent pressure, independent control)

4, Pressure accuracy: ≤±1%

5.Constant pressure accuracy: -1%-+2%

6.Constant temperature range: 20℃-95℃

8.Temperature fluctuation: ≤±1℃

9.Temperature uniformity: ≤±1℃

10.Timing Range: 0-10000h 11, time display accuracy: ≤0.1%

12.Pressure sensor: test pressure sampling frequency 0.02 sec

13, power supply voltage: three-phase 380V

14.Dimensions Control cabinets: 700mm x600mmx1800mm

 Media thermostat: (Stainless steel tank.

Dimensions can be tailored according to the actual situation of users)



Certificate



Our advantage



Our partners



We are here



FAQ

1.Are you factory of trade company?

  We are factory + trade company.



2.Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 12-month warranty after you received. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or Skype video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



3. What’s the delivery term?

Standard machines	In stock
Customized machines	We can negotiate ( 7-60 days )
In urgent need	We can consider making a special arrangement for you



4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.



5.How to install and use the product?

We will send you operating instructions, English video by Email. Most of our machines are shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.



6.How can I believe that after payment the goods to me?

We are honest and trust worthy supplier. we’re a member of alibaba trade assurance . It will guarantee of all of your payment.
