Professional Stainless Steel Pneumatic Frozen Refrigerant Booster Pump for R 134a R 404A R 410A
- Category: >>>
- Supplier: Dongguan Suncenter Fluid Control Equipment Co. Ltd.
Share on (60807546511):
Product Overview
Description

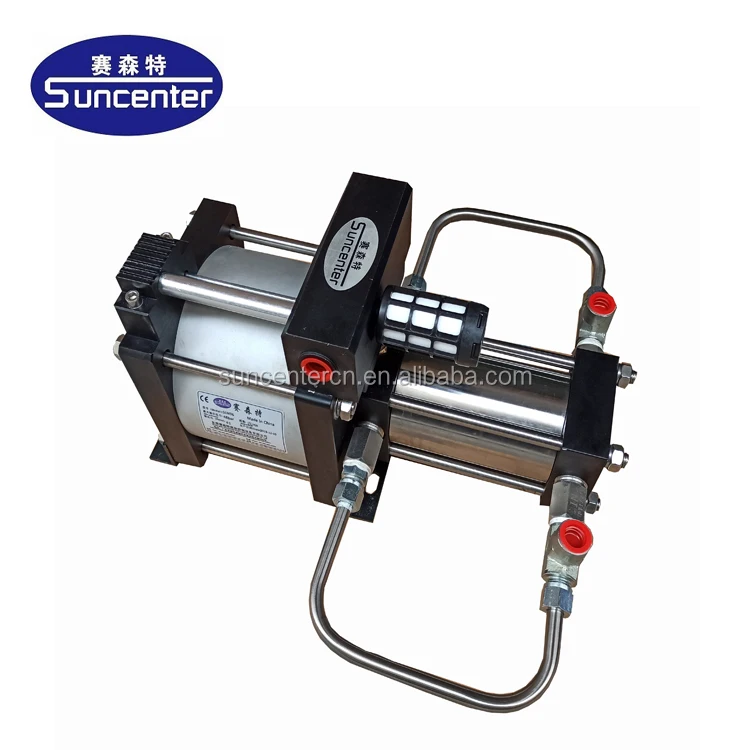

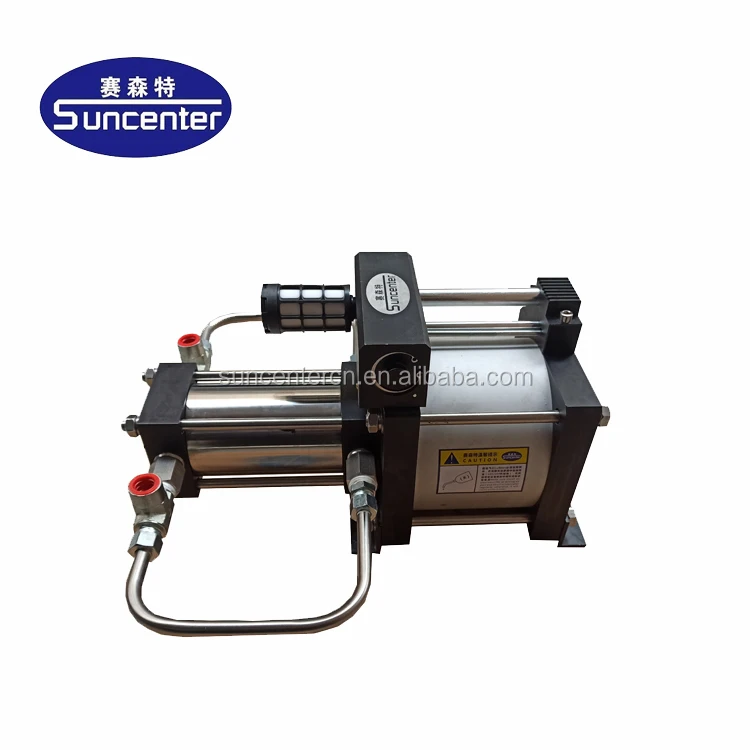

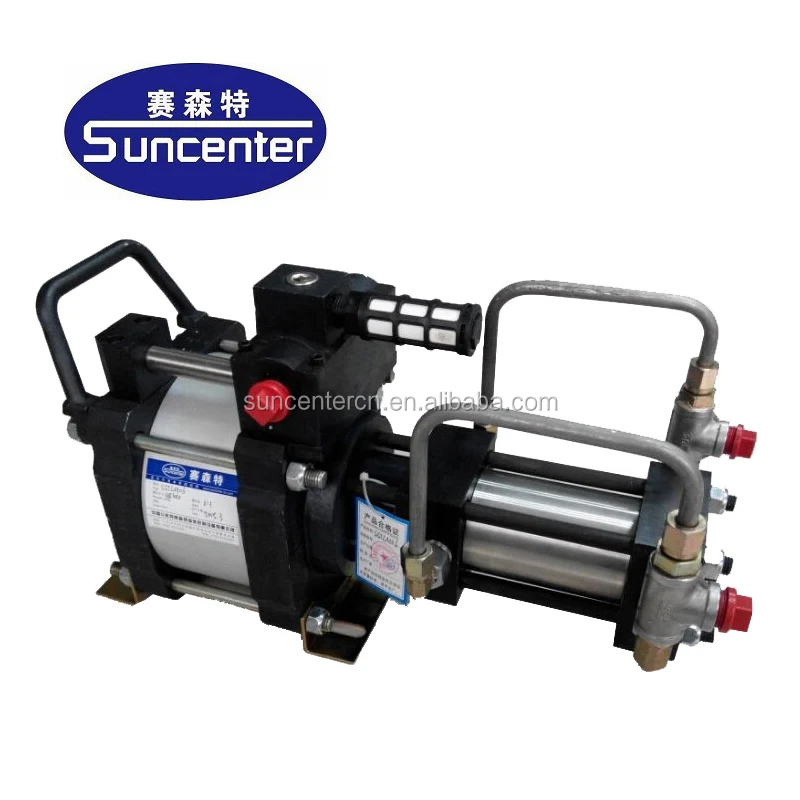

SLM06 Model Refrigerant Pump
Air driven refrigerant booster pump-SLM06
Driving air need | 2-8bar | Pressure range | 0-48bar |
Pressure ratio | 6:1 | Flow rate | 15L/min |
Driving air size | ZG1/2 | Increasing cylinder diameter | 63mm |
Inlet size | ZG1/2 | stroke | 60mm |
Outlet size | ZG1/2 | noise | <75dB |

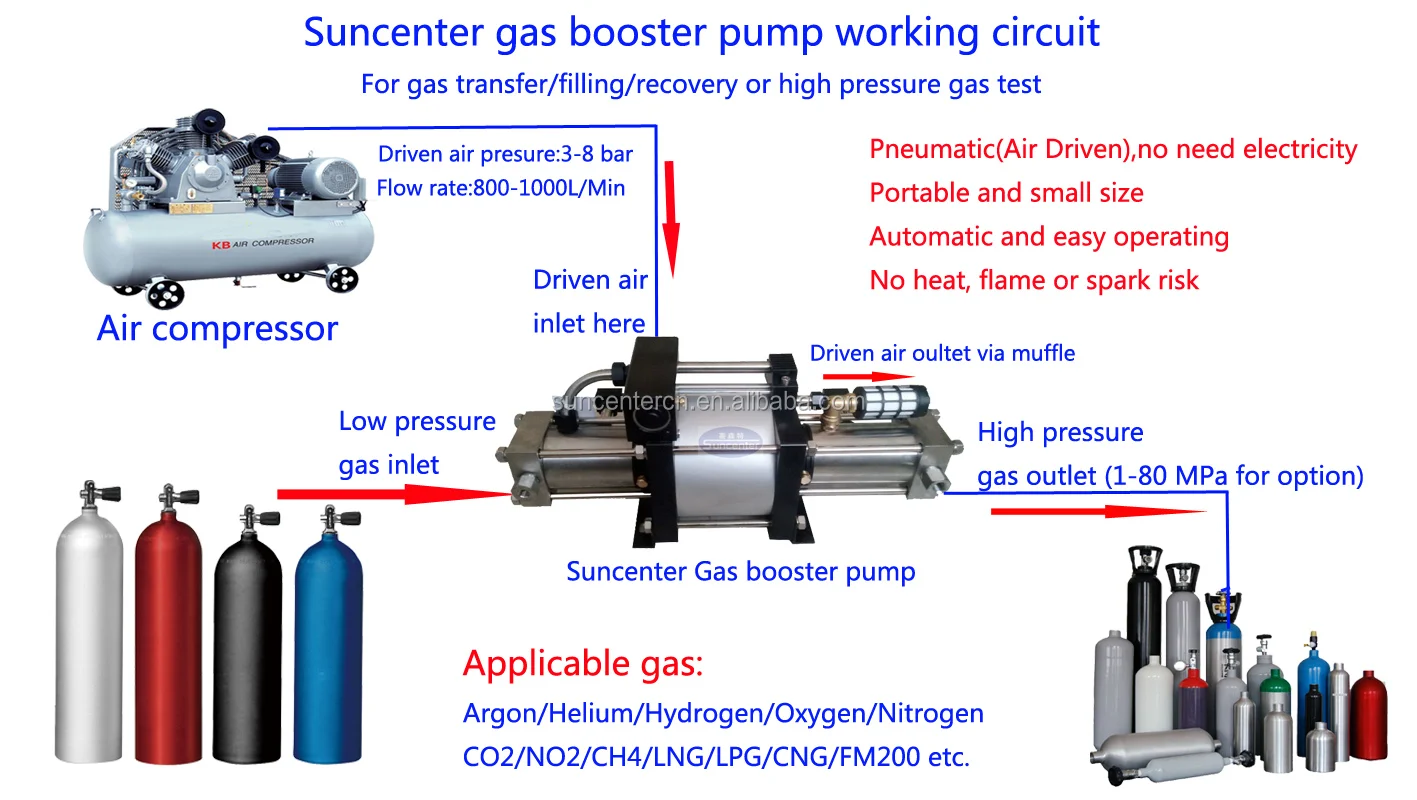

It's such a device that uses compressed air as power source, air driven refrigerant pump as pressure source and refrigerant as working medium, to get the corresponding high pressure value through regulating air drive pressure; and the ratio of output pressure to air drive pressure is 6:1. When air drive pressure and outlet pressure reach balance, the refrigerant pump will stop pressurizing, and output pressure will be stable at the preset pressure, so it has such features: explosion-proof, output pressure adjustable, small volume, light weight, easy to operate, reliable performance, wide application range etc.
Cool operation—No heat generated during liquid transfer. Minor warming during vapor transfer. No refrigerant heating from the motor.
Safety—Pneumatically driven. Operates from air hose like an air tool. No electrical hazard.
Cool operation—No heat generated during liquid transfer. Minor warming during vapor transfer. No refrigerant heating from the motor.
Safety—Pneumatically driven. Operates from air hose like an air tool. No electrical hazard.
2. Application:
1. The pump is suitable for transferring R22, R134a, R407C, R410A etc refrigerant.
2. The pump can be also used for the recovery and perfusion of new type environment-friendly refrigerant, liquefied gas (CO2, SF6, Freon etc).
3. Pump configuration:
The refrigerant pump mainly consists of air drive chamber, pressurizing chamber, auto reversing valve, inlet check valve, outlet check valve, imported seal kits, air drive piston, pressurizing piston etc.
2. The pump can be also used for the recovery and perfusion of new type environment-friendly refrigerant, liquefied gas (CO2, SF6, Freon etc).
3. Pump configuration:
The refrigerant pump mainly consists of air drive chamber, pressurizing chamber, auto reversing valve, inlet check valve, outlet check valve, imported seal kits, air drive piston, pressurizing piston etc.

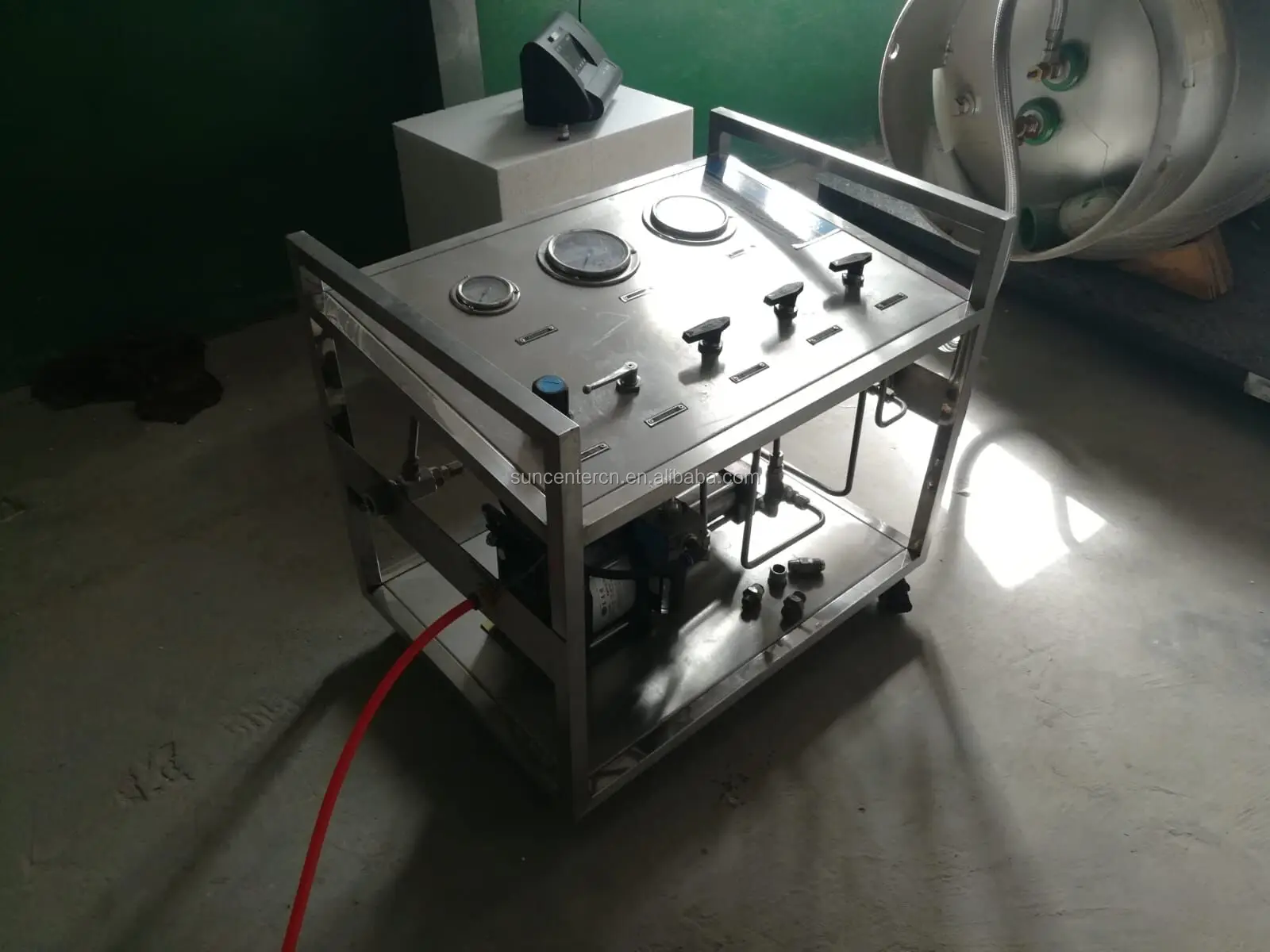

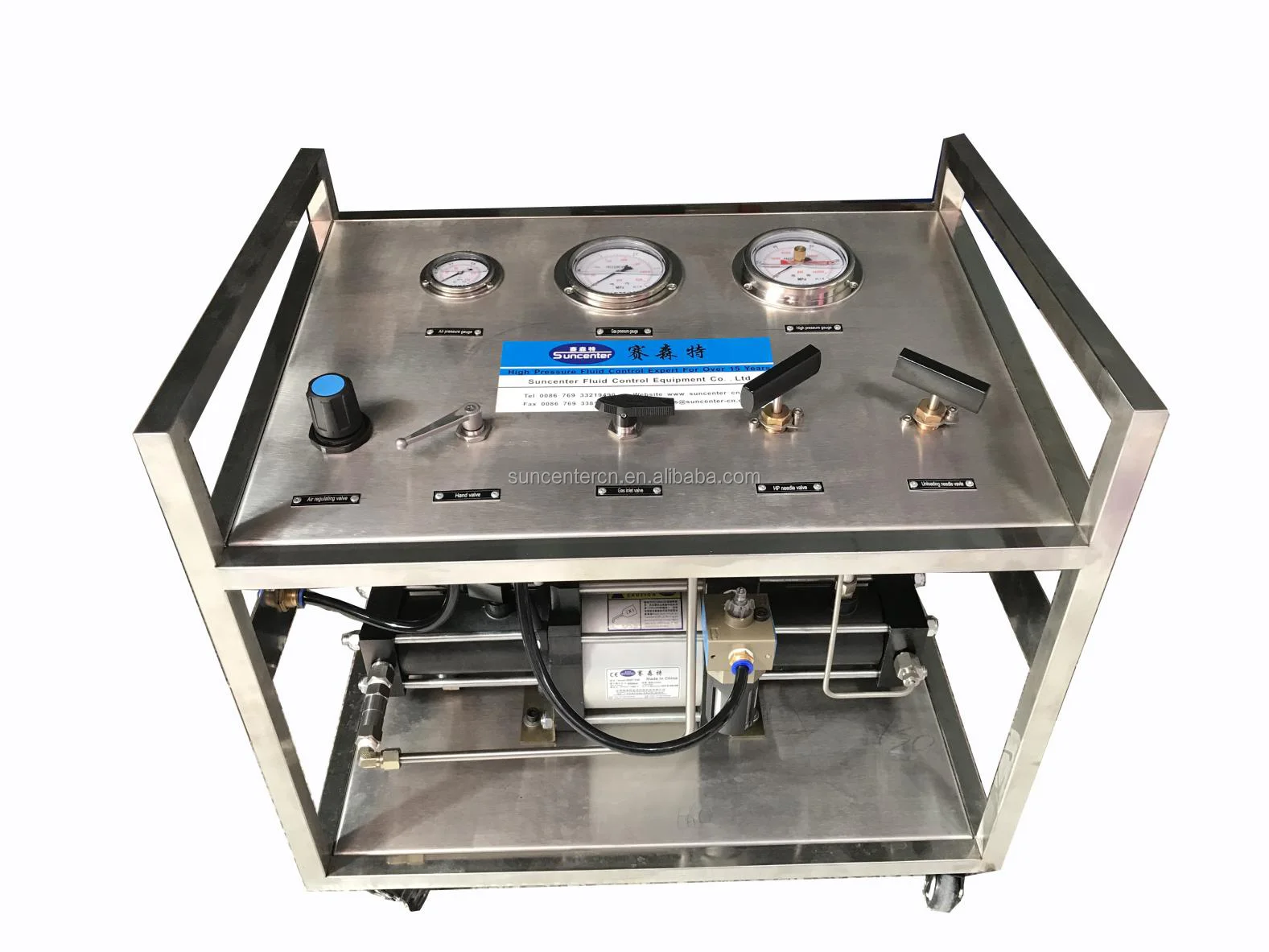

DGS- SLM06 model refrigerant pump system
The standard system including following parts:
SLM06 model refrigerant pump
Stainless steel frame cabinet
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.
Stainless steel frame cabinet
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.

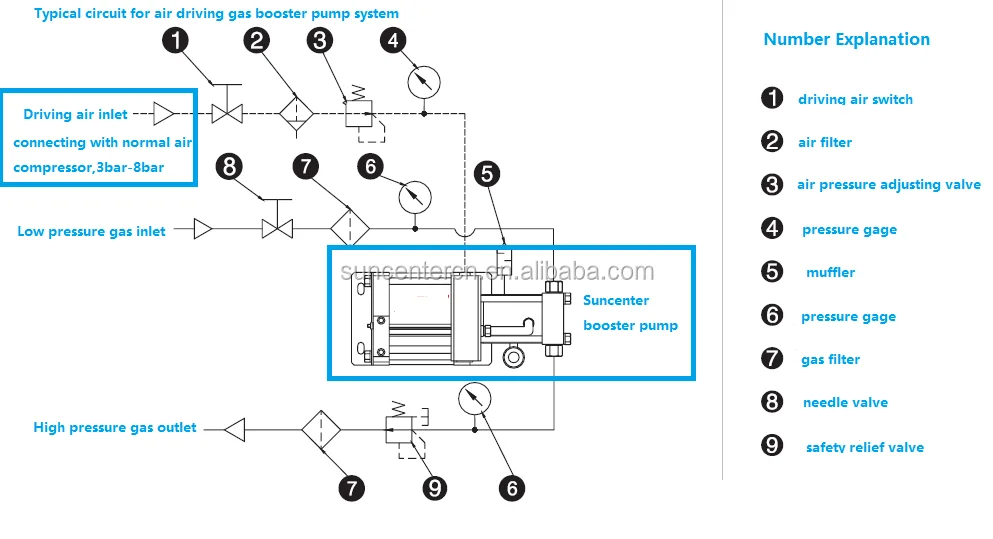

DGS- SLM06 system = SLM06 booster pump+ following valves, gages, and parts

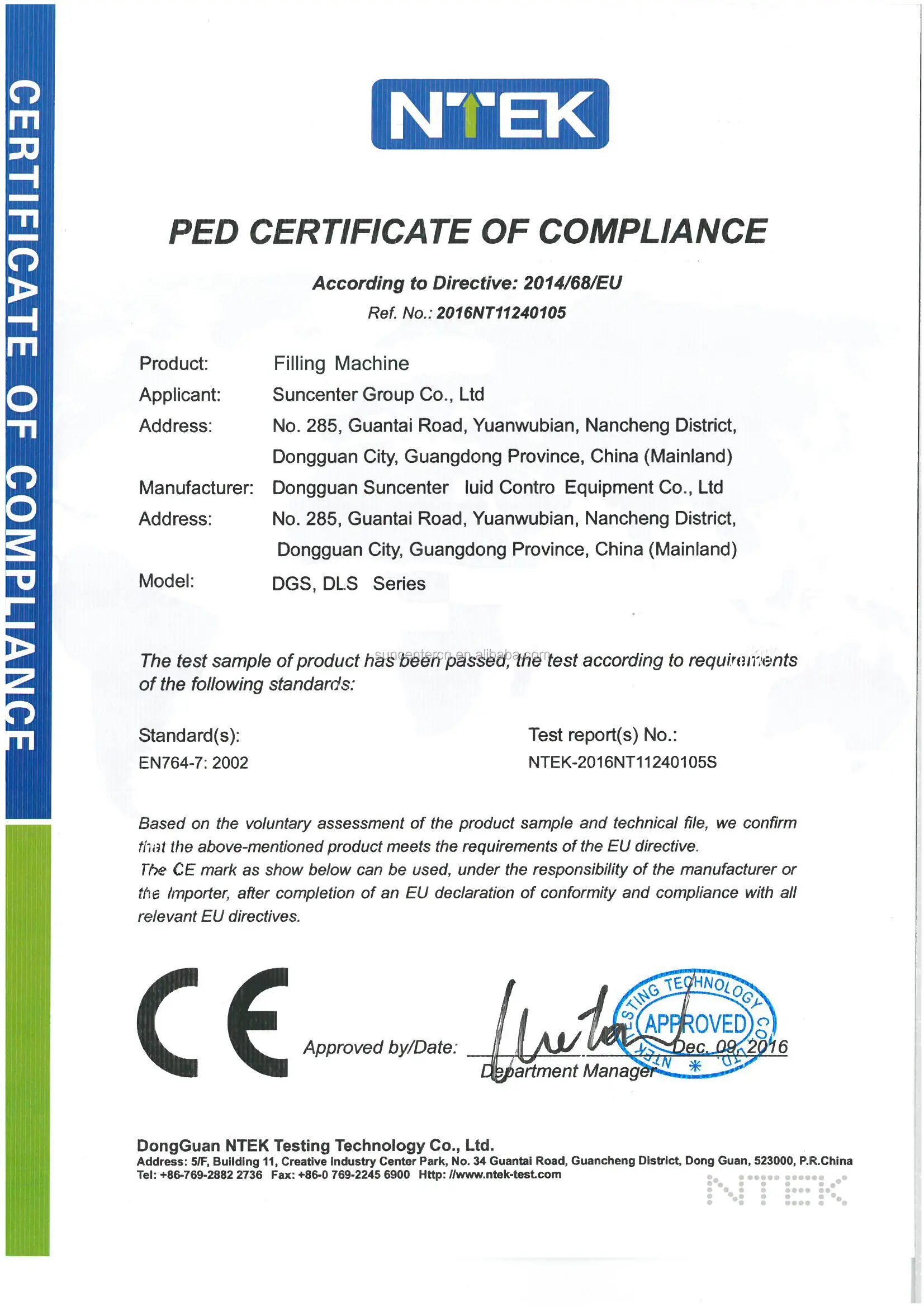

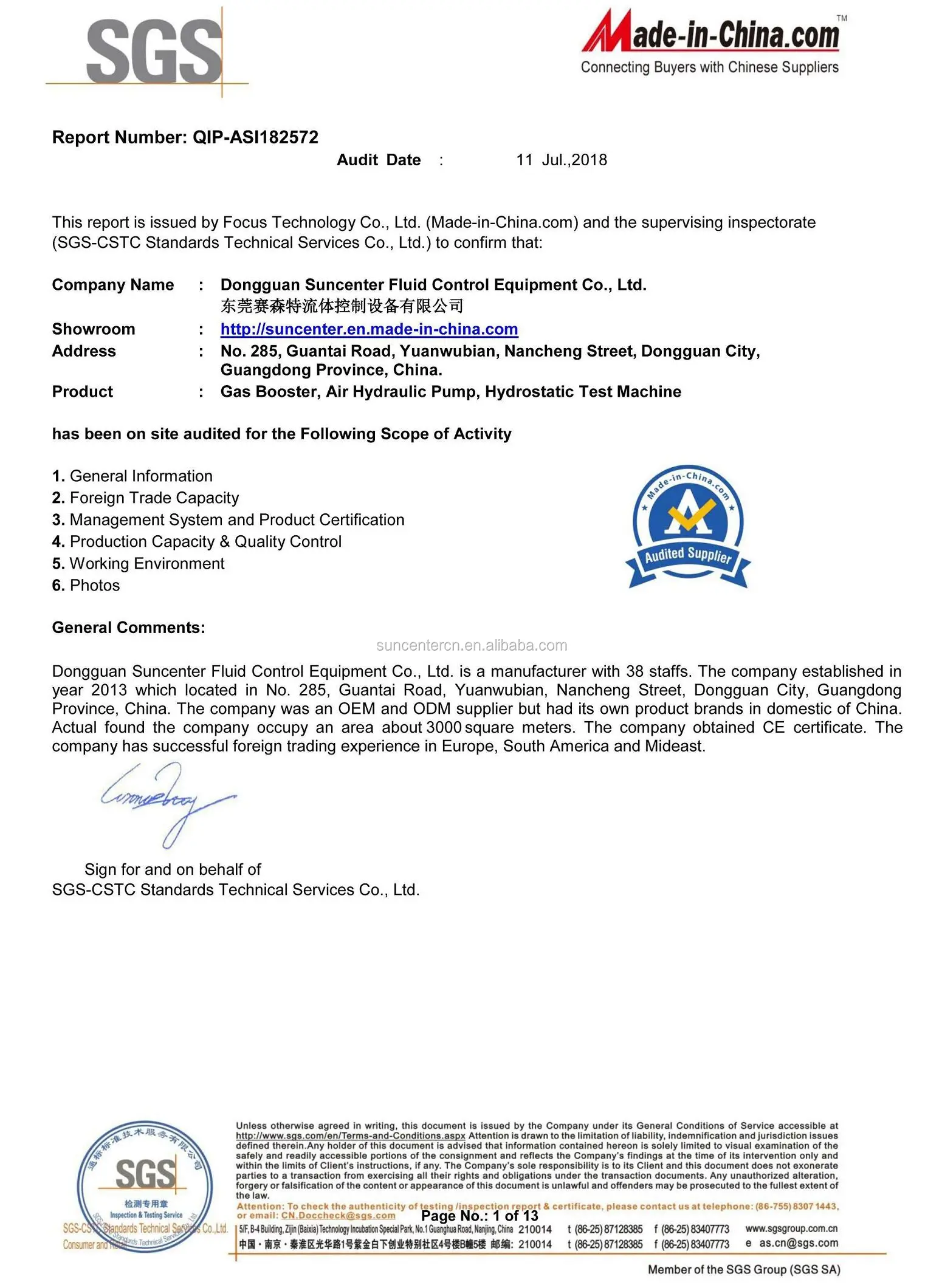

Certification
Our Advantages
-1. 15 years of manufacturing experience history.
-2. faster lead time, the fastest delivery is about 5-10 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in Maximator.
-2. faster lead time, the fastest delivery is about 5-10 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in Maximator.
Packing&Shipping
Package: pack in plywood case Shipment: by air/sea/express

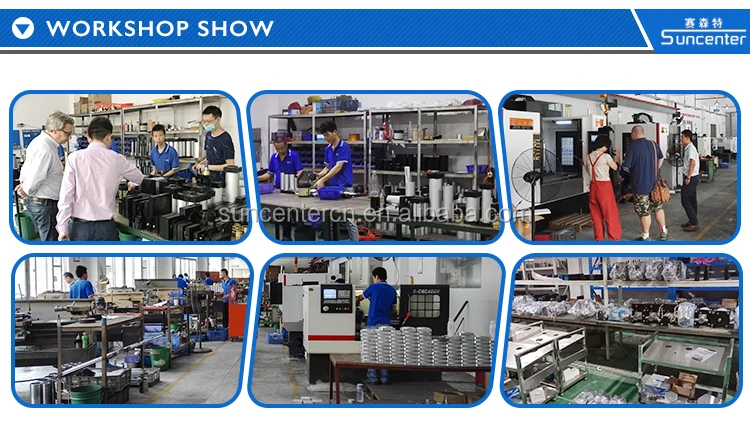

Company Introduction
Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Our main products including:
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)

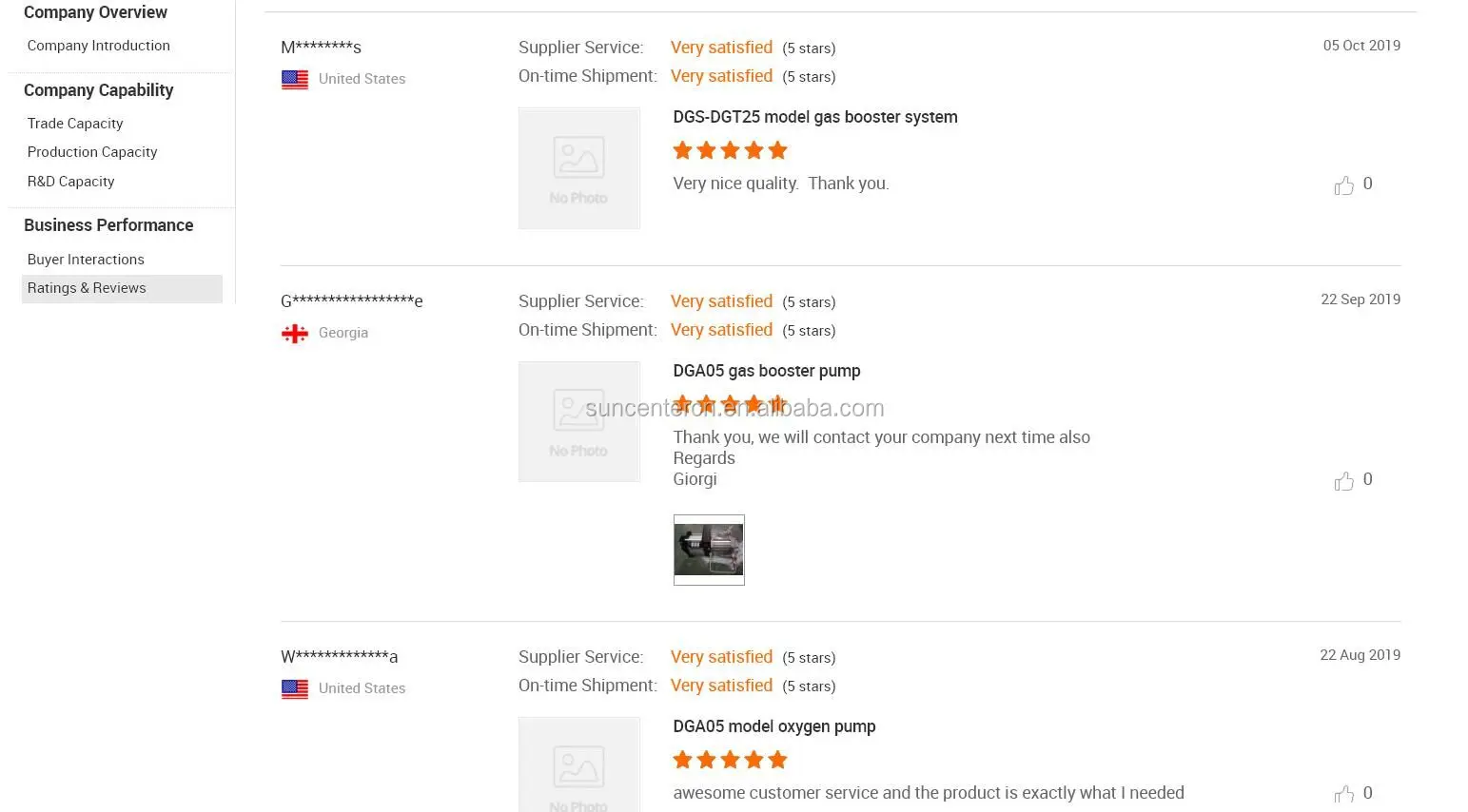

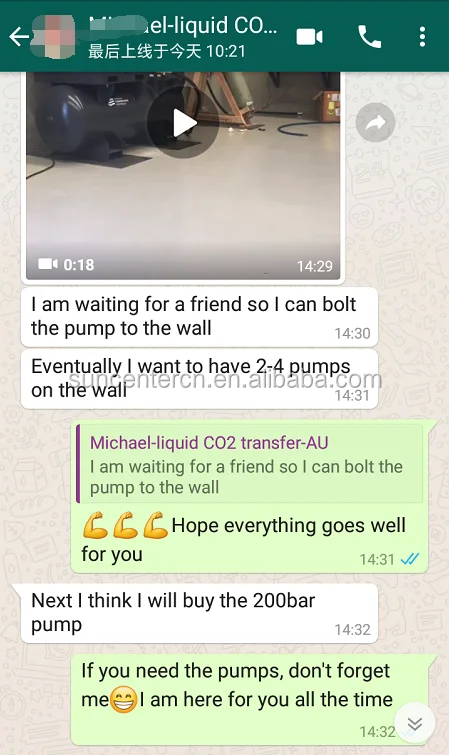

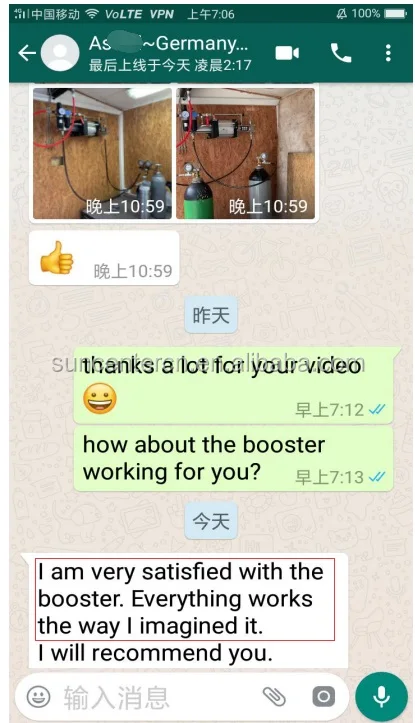

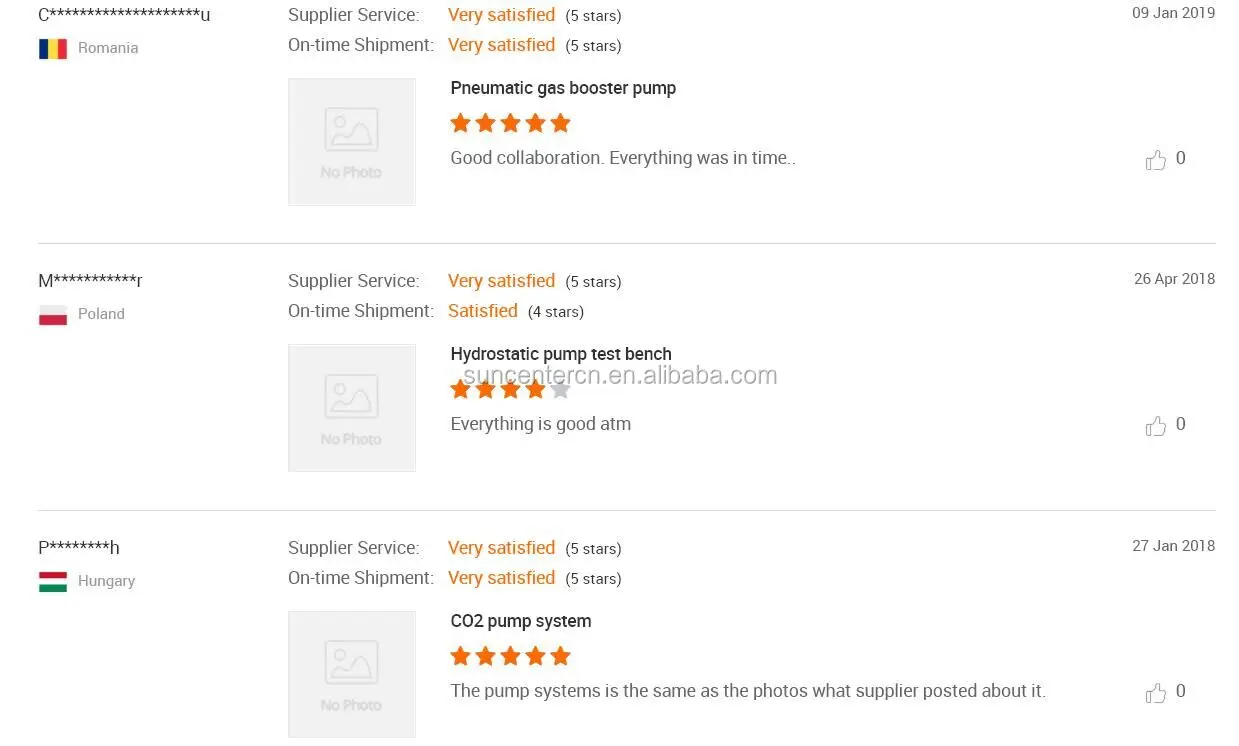

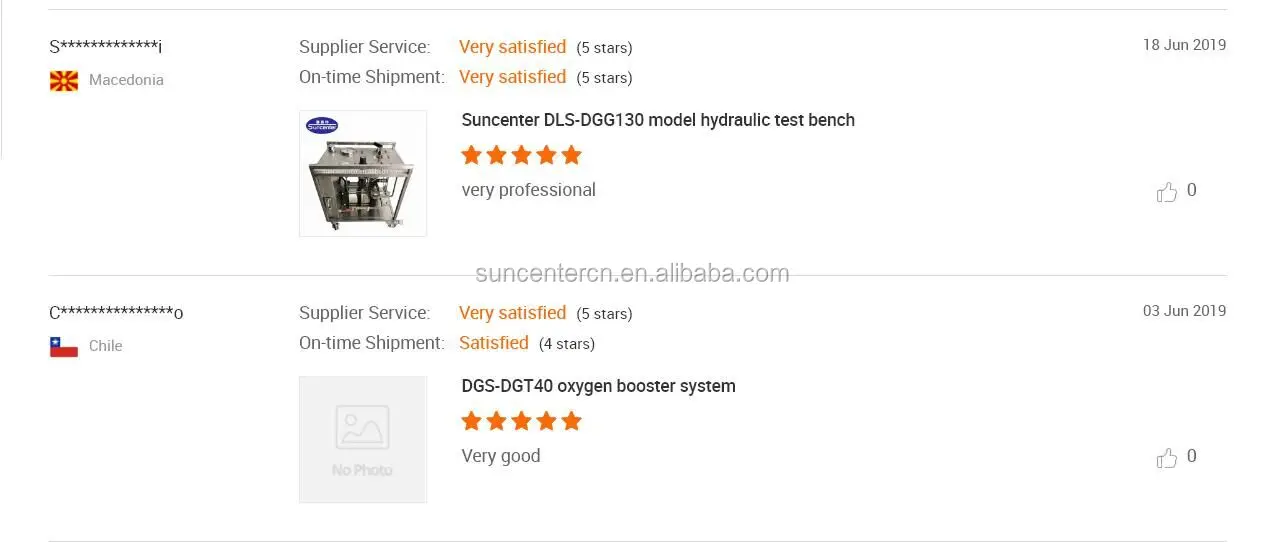

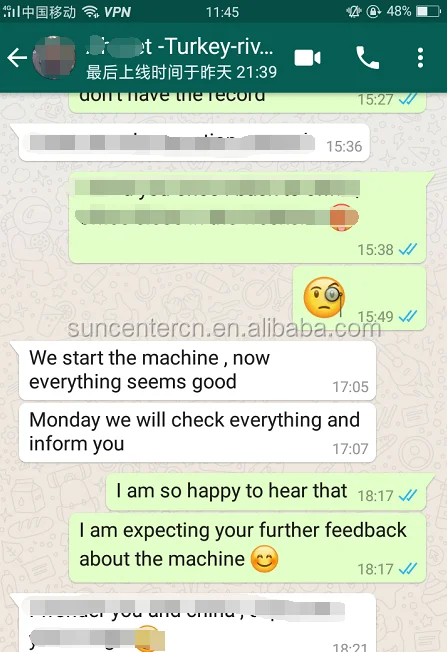

Customer review
Alibaba trade assurance online order comments
FAQ
Q: Are you factory?
A: Yes, we have more than 15 years experiences in high pressure fluid exchange and controlling field,we provide various kinds of pneumatic and hydraulic boosters,systems and solutions.
Q: Where's your location? can I visit you?
A: Welcome to visit Suncenter, we are in Dongguan City, Guangdong province, China.
Q: How to operate the machine?
A: After you get the machine, we will send you the working video to teach you for maintenance and
operating.
Q: How long is your warranty?
A: 13 months.
A: Yes, we have more than 15 years experiences in high pressure fluid exchange and controlling field,we provide various kinds of pneumatic and hydraulic boosters,systems and solutions.
Q: Where's your location? can I visit you?
A: Welcome to visit Suncenter, we are in Dongguan City, Guangdong province, China.
Q: How to operate the machine?
A: After you get the machine, we will send you the working video to teach you for maintenance and
operating.
Q: How long is your warranty?
A: 13 months.
