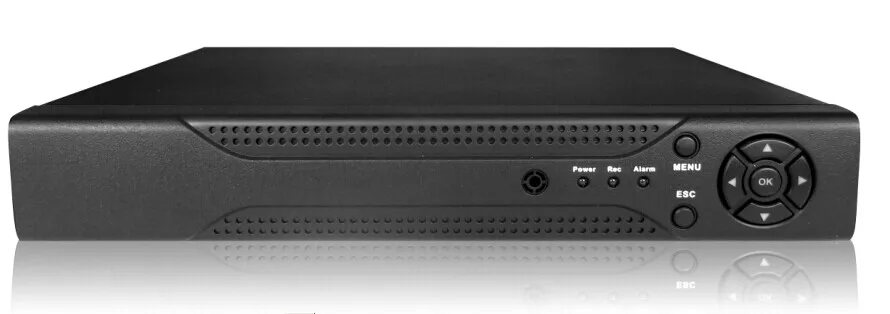

Hi3531D hybrid 8ch mobile dvr unreal time encoding
Hi3531D hybrid 8ch mobile dvr unreal-time encoding
Hi3531D hybrid 8ch mobile dvr unreal-time encoding
Hi3531D hybrid 8ch mobile dvr unreal-time encoding

Hi3531D hybrid 8ch mobile dvr unreal time encoding

Share on (60807717062):


Price:

Quantity:


Product Overview

Description



Product Description


Hi3531D Mobile App Remote Control With Intercom 8BNC Video Input 8MP Hybrid 8ch DVR

Support 8ch 8M unreal-time encoding;

Support XVI,AHD, TVI,CVI, CVBS, IP video input;

support VGA maximum 1080P output, HDMI up to 4K output;

Mini 1U Case, 1SATA(Up to 8TB);

1*10/100Mbps auto-sensing Ethernet port, RJ45 port;

Automatic networking support, a key to add equipment;

Support the Onvif protocol;

Support GB28181 (Optional);

 Cloud services, P2P, alarm information push to phone;

Support remote access, support ARSP;

Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,

3G, WIFI, IP search, Alarm center, etc ;

Mobile phone remote monitoring (iOS, Android);

Multi browser access (IE, Chrome, Firefox, Safari);

Support for more than twenty languages;

Perfect protection circuit,unique triple watchdog function

Support WEB, CMS, VMS, MYEYE Platform;

Support coaxial control






Model
ADVR8008T-GL
System
processor
Hi3531D
Video
Codec
H.265+
Encode
8*8M@8fps(AHD);8*5M@14fps(6 in 1);8*4M@18fps(6 in 1);8*3M@21fps(6 in 1);8*1080P(6 in 1)
Decode
8*8M@8fps(AHD);8*5M@14fps(6 in 1);8*4M@18fps(6 in 1);8*3M@21fps(6 in 1);8*1080P(6 in 1)
Playback
8ch
Multi-mode
Analog:8*8M;8*5M;
Hybird:4*5M@20fps(analog)+4*5M(network)
IP: 8*3M ;4*5M
Audio
Compression
G.711a
Intercom
Support
Management
Record mode
Manual>Alarm>Motion detection>Timing
Inquire mode
Inquire by Time/Calendar/Event/Channel
Storage mode
HDD Storage, Network Storage
Backup
Network, USB, SATA
Interface
Video input
8*BNC(Support Coaxitron)
HDMI output
1*HDMI (MAX:4K)
VGA output
1*VGA (MAX:1080P)
Audio I/O
2/1
Alarm I/O
0/0
Ethernet port
1*10/100Mbps Ethernet port, RJ45 port
PTZ control
1*RS485, Support for multiple PTZ protocol
USB Port
2*USB2.0 ports
HDD
1*SATA interface (Up to 8TB)
General
Temperature
0 - + 55
Humidity
10% -90% RH
Power supply
12V/2A
Consumption
<10W(Without HDD)
Weight
Around1KG
Dimension
255mm(L)* 236mm(W)* 44mm(H)
