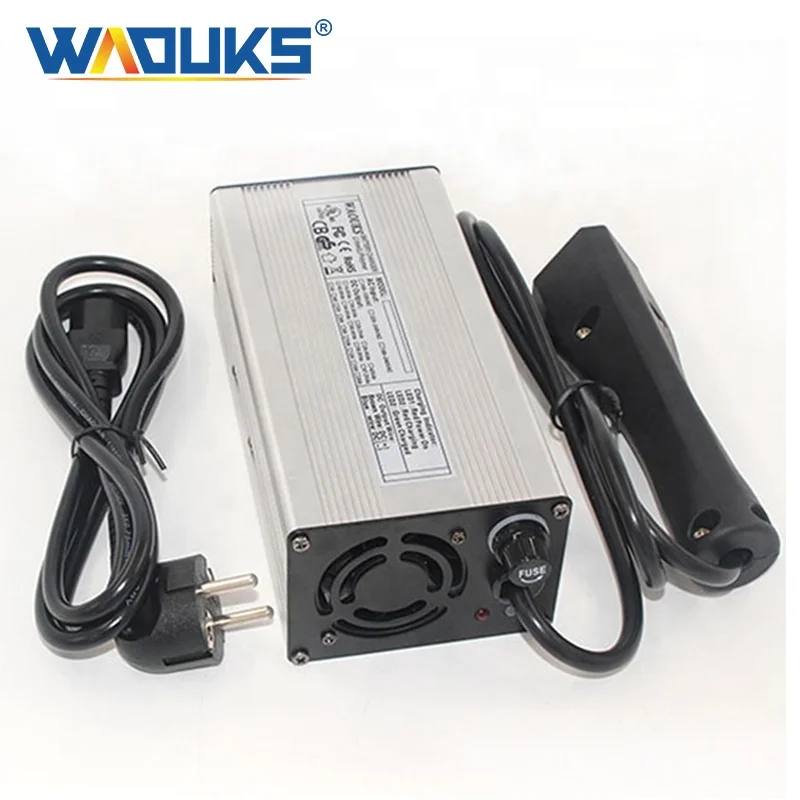

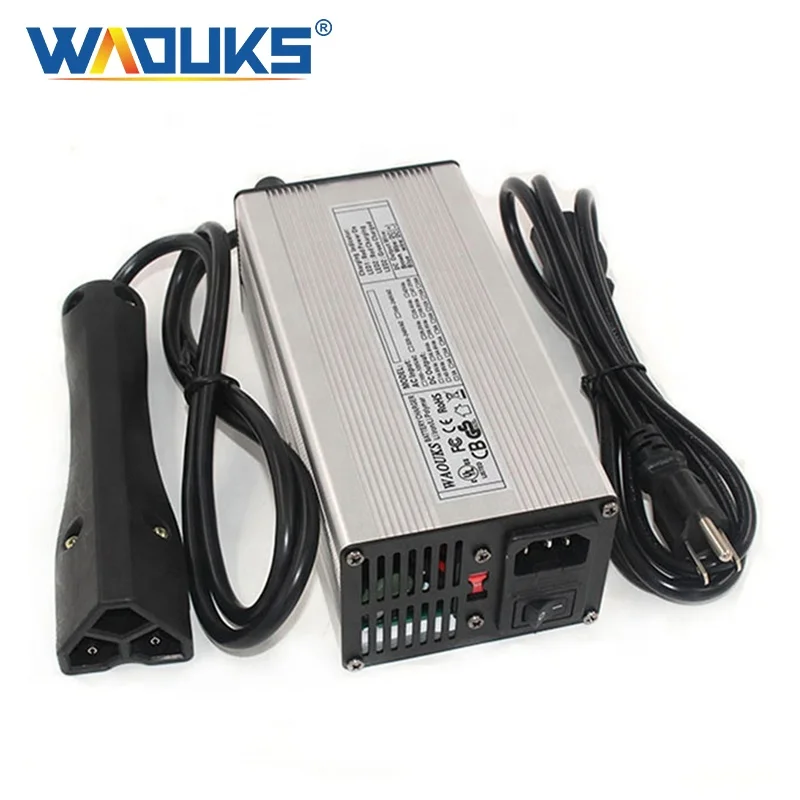

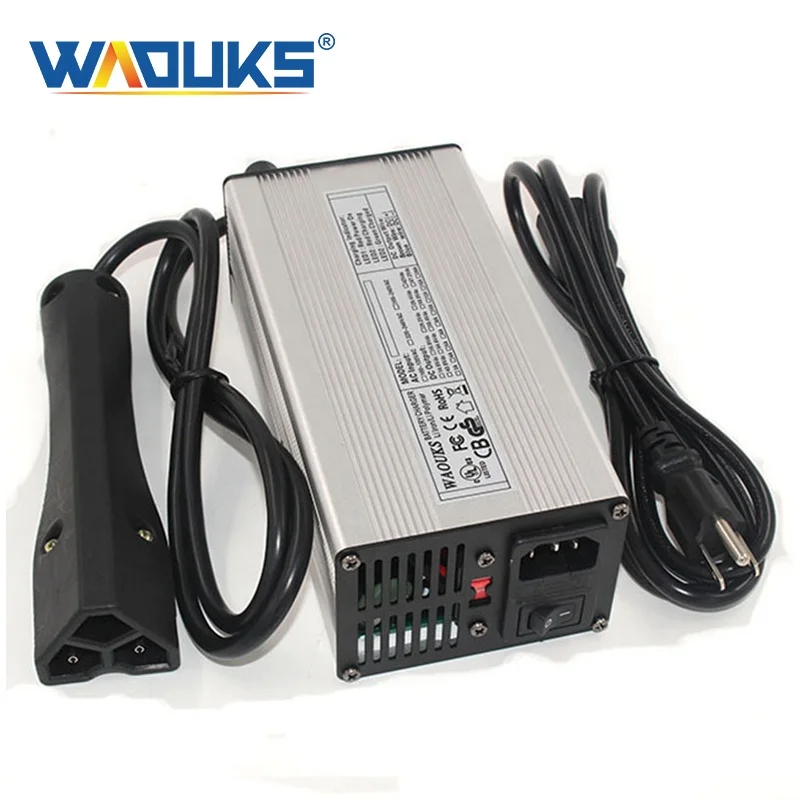

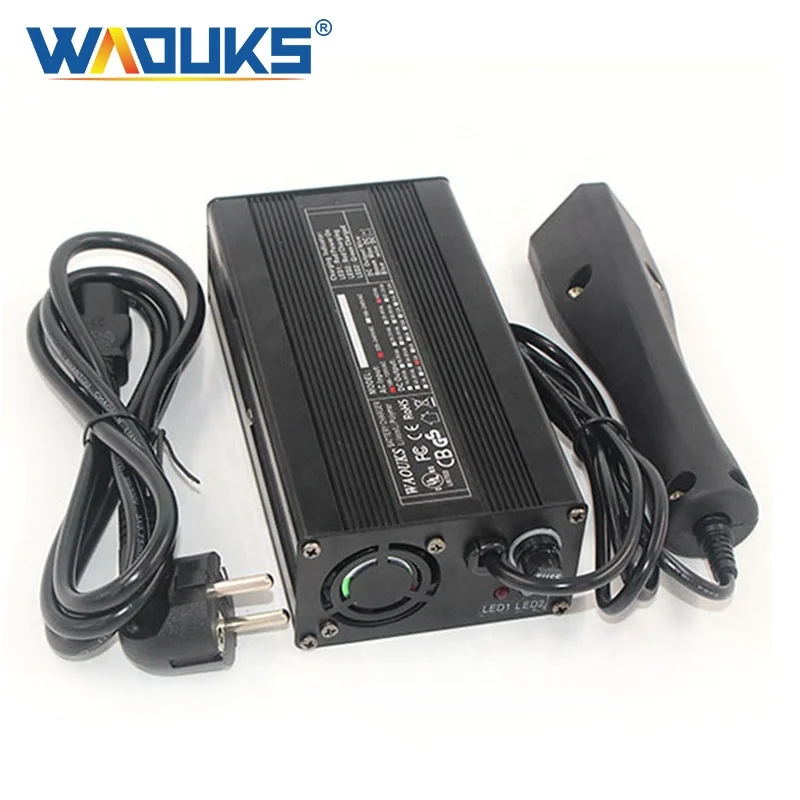

48V 5 Lead Acid Battery Charger 55.2V For Electric Car Motorcycle Scooter and other tools
- Category: >>>
- Supplier: Dongguan Wali Electronic Co. Ltd.
Share on (60807731748):
Product Overview
Description
Item No.: | WA360 |
Input: | 100-120V/220-240V |
Specification: | DC 48V 5A |
Output: | 55.2V 5A |
Float Chaerger Voltage: | 58.8V |
Constant charging Current: | 5A |
Charging Mode: | 3 Stages, CC, CV, Trickle |
Material: | Aluminum alloy with Fan |
Dimension: | 180*90*63mm |
Net Weight: | 1.4kg |
Shelf life: | 2 years |
Application: | Li-ion/LiFePO4/Lead Acid/Electric Vehicles & Tools |
Various Protection: | Over current, Over Voltage, Over Temperature, Short Circuit and reverse polarity. |
Remarks | Porduct can be Customized! |
No. | Spec | Constant oltage | Constant Current | Transition | Weight | Size | ||||||||||||
Cut-off | ||||||||||||||||||
Lead Acid | Li-ion | LiFePO4 | Max(A) | Lead Acid | Li | KG | MM | |||||||||||
1 | 12V | 14.7V | 16.8V | 14.6V | 20 | 4 | 1.0 | 1.4 | 180*90*63 | |||||||||
2 | 24V | 29.4V | 29.4V | 29.2V | 12 | 2.4 | 0.6 | |||||||||||
3 | 36V | 44.1V | 42.0V | 43.8V | 8 | 1.6 | 0.4 | |||||||||||
4 | 48V | 58.8V | 54.6V | 58.4V | 6 | 1.2 | 0.3 | |||||||||||
5 | 60V | 73.5V | 75.6V | 73.0V | 5 | 1.0 | 0.25 | |||||||||||
6 | 72V | 88.2V | 84.0V | 87.6V | 4 | 0.8 | 0.2 | |||||||||||
1 | Full automatic Transition of CC.CV And Float/cut-off | |||||||||||||||||
2 | Limit pressure and current. Fully charged. Avoid overcharging. | |||||||||||||||||
3 | Overcurrent, overvoltage, short circuit and reverse polarity protection. | |||||||||||||||||
4 | Efficiency: 95% to 98%. PFC: 0.96, environment-friendly. | |||||||||||||||||
5 | Double LED indicator, aluminum case, beautiful and reliable. | |||||||||||||||||
6 | CE, FCC,ROHS certification. Safety and quality | |||||||||||||||||
Note: the cut-off point of lithium battery is 5% of CC, which can be set between 5% and 10%. | ||||||||||||||||||
AC INPUT PLUGS
Our products can support direct orders. When you choose to input the plug, please leave a message in the order note or contact us.

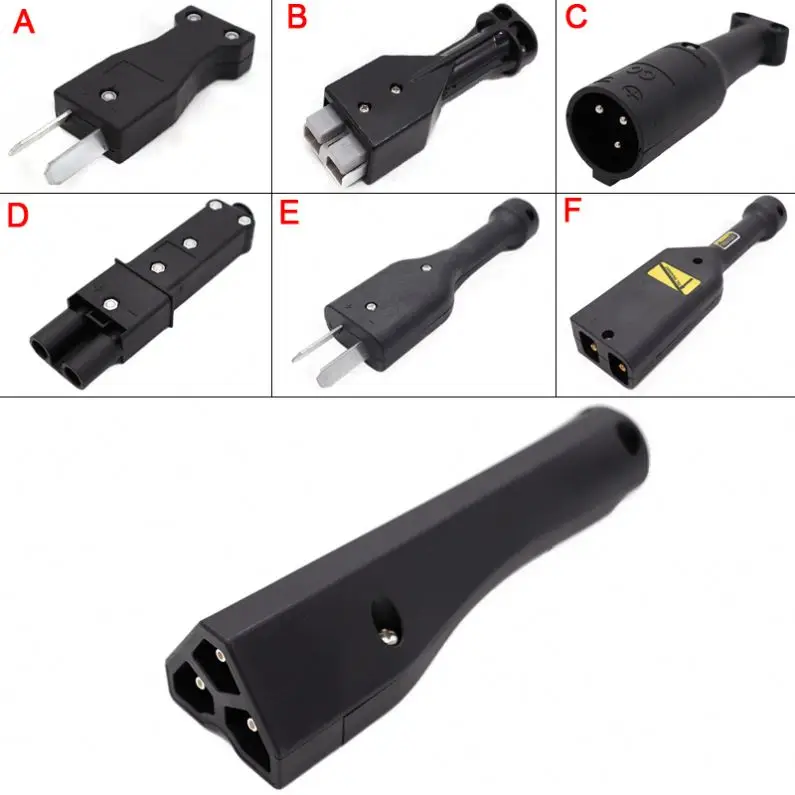

DC OUTPUT PLUGS
Our products can support direct orders. When you are selecting the output connector, please leave a message in the order note or contact us.
Product Description
Product performance description
Input: EU/US/UK/AU
Output: DC / 20 connectors are optional
1. Intelligent automatic refrigeration system.
2. Fully automatic intelligent power-off system.
3. Automatically change the dual LID display light.
4. Aluminum shell / high strength seismic and compression resistance.
Output: DC / 20 connectors are optional
1. Intelligent automatic refrigeration system.
2. Fully automatic intelligent power-off system.
3. Automatically change the dual LID display light.
4. Aluminum shell / high strength seismic and compression resistance.
Details Images
In order to better serve our customers, we have prepared 8 input plugs. Here are three commonly used
Three input plugs: EU/US/AU。The following is a detailed introduction
Three input plugs: EU/US/AU。The following is a detailed introduction
The manufacturing standards for the European standard plug (two circles) are implemented in accordance with CE standards. European standard plugs are used in most European countries such as Germany, Austria, the Netherlands, Sweden, Norway, Finland, and Russia.
The ground wire of the American standard socket has a cylindrical hole instead of a gap like the domestic one. The live and neutral wires are respectively composed of two plugs that are parallel to each other, instead of the two plugs having a 120 degree angle with each other like the domestic three plugs.
British plugs are available in assembly and injection molding. The assembled British plugs are detachable and can be customized. The injection molding is generally integrated and cannot be removed. The three-pin copper feet of the British plug have the same pitch, and the L-pole and N-pole pins are encapsulated for safety protection.
Product Usage
Product usage introduction
Note: Please check whether the voltage is normal before use and whether the charger matches the actual voltage. Whether the intelligent fan cooling system is working properly. Whether the vents are unobstructed. The input and output are seamlessly connected. Keep the flammable and explosive materials around when the charger is working.
If you have any questions, please contact us.
If you have any questions, please contact us.
Description of product use effect
220V AC is suppressed by T0 bidirectional filter, D1 rectifier is pulsating DC, and then C11 filter is used to form stable 300V DC. U1 is a TL3842 pulse width modulation integrated circuit. Its five legs are negative poles, seven legs are positive poles, six legs are pulse output direct drive field effect transistor Q1 (K1358) and three legs are maximum current limit. Adjusting the resistance of R25 (2.5 ohms) can adjust the maximum current of charger.
Principle Diagram of Charger for Electric Vehicle
Electric vehicle charger schematic diagram (2)
Two feet are voltage feedback, which can adjust the output voltage of the charger. Four pins external oscillating resistance R1 and oscillating capacitor C1. T1 is a high frequency pulse transformer with three functions.
Principle Diagram of Charger for Electric Vehicle
Electric vehicle charger schematic diagram (2)
Two feet are voltage feedback, which can adjust the output voltage of the charger. Four pins external oscillating resistance R1 and oscillating capacitor C1. T1 is a high frequency pulse transformer with three functions.
Related Products
Packing&Shipping
1.WA360battery * 1pcs
2.Fuse * 1 pcs
3. User Manual* 1pcs
4.AC input connector * 1pcs
Company Introduction
Dongguan WaLi Electronic Co.,Ltd.
is one old company, which is established in 2000, DongGuan,China. Our main products are rechargeable battery chargers include lead acid battery charger, Li-ion battery charger, Lifepo4 battery charger, smart nimh battery chargers.Based on our continuous effort, this company has grown quickly with about 200 employees and more than 10 engineers to support the design and keep high quality on products. we have attained ISO9001:2000 to control the quality of each product and do best management , besides all of our products have got CE FCC UL SAA PSE KC GS certificate approval. Our mission is to serve your purchase needs with enthusiasm and professionalism, to provide best offer solution to save your cost, to share profit with premium clients, to create win-win business mode, and boost your business as a result. If you are looking for supplier with top quality products at competitive prices, WaLi is the best option for you forever.
is one old company, which is established in 2000, DongGuan,China. Our main products are rechargeable battery chargers include lead acid battery charger, Li-ion battery charger, Lifepo4 battery charger, smart nimh battery chargers.Based on our continuous effort, this company has grown quickly with about 200 employees and more than 10 engineers to support the design and keep high quality on products. we have attained ISO9001:2000 to control the quality of each product and do best management , besides all of our products have got CE FCC UL SAA PSE KC GS certificate approval. Our mission is to serve your purchase needs with enthusiasm and professionalism, to provide best offer solution to save your cost, to share profit with premium clients, to create win-win business mode, and boost your business as a result. If you are looking for supplier with top quality products at competitive prices, WaLi is the best option for you forever.
Our Services & Strength
We are Dongguan Wali Electronics Co., Ltd. (charger manufacturer).
Any voltage and current charger products can be produced.
If you are in need of purchasing a charger, please contact us.
We will give you the best service and price.
looking forward to your cooperation.
Any voltage and current charger products can be produced.
If you are in need of purchasing a charger, please contact us.
We will give you the best service and price.
looking forward to your cooperation.
FAQ
1.Are you a factory or trading company?
A:We are a factory.
2.What certificate do you have?
A:We have CE,ROHS and FCC cetiflcate.
3.Do you accept OEM?
A:Yes,we accept OEM,We have three engineers in our company!
4.Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
please call us or tell us in your email so that we'll regard your inquiry priority.
5.How to get samples for testing at first cooperation?
A:After price confirmation, you can require for samples to check
our quality.
6.How does our factory do regarding quality control?
A:Yes,we have a special QC department in charge of products'quality
7.How long is the warranty period?
A:All of our products have one year warranty
8.How long will the products delivery?
A:for samples order will 3-10days,big orders are from 30-45days.
9.Why choose us?
A:High quality and good price,Good service and professional team,Choose us is to choose success!
10.What is Accepted Payment Currency?
A:We accept USD,EUR,HKD,GBP,CNY
11.What is your terms of payment?
A:We accept Paypal,Cash,Trade Assurance,Secure Payment,western union ect.
