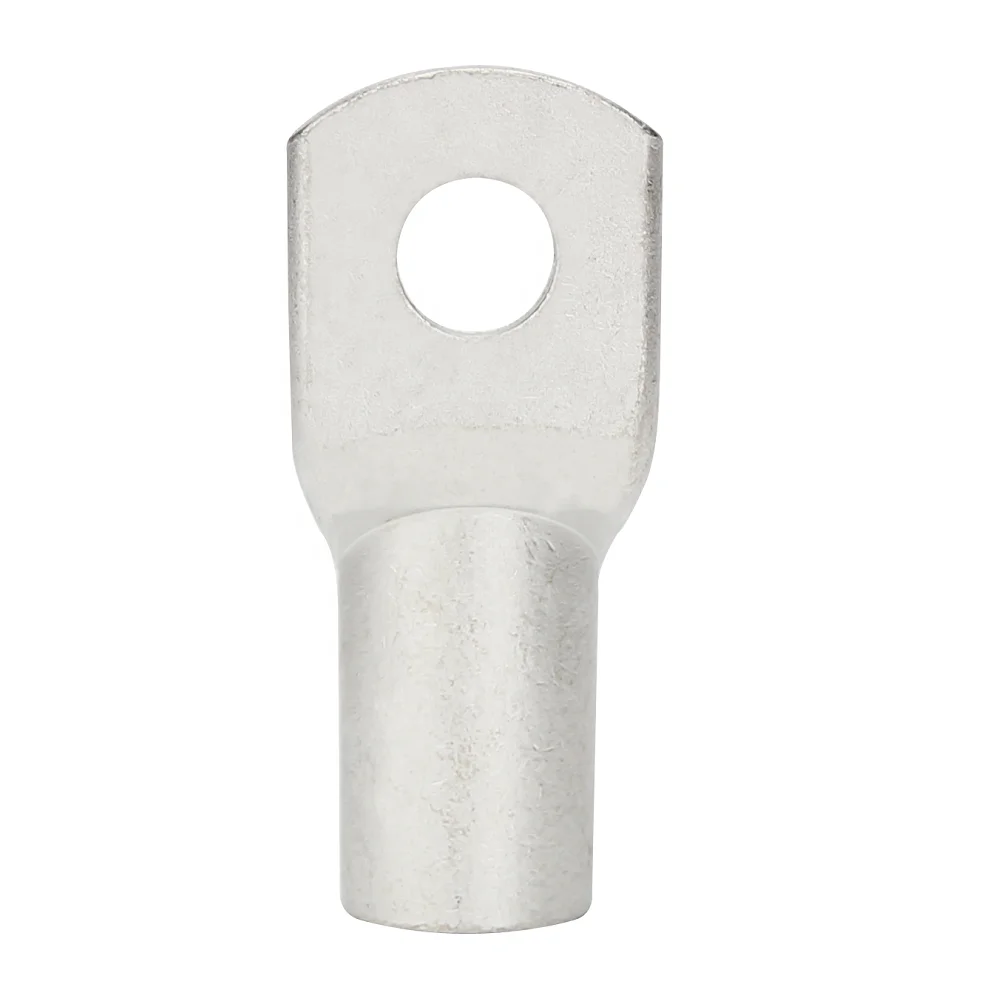

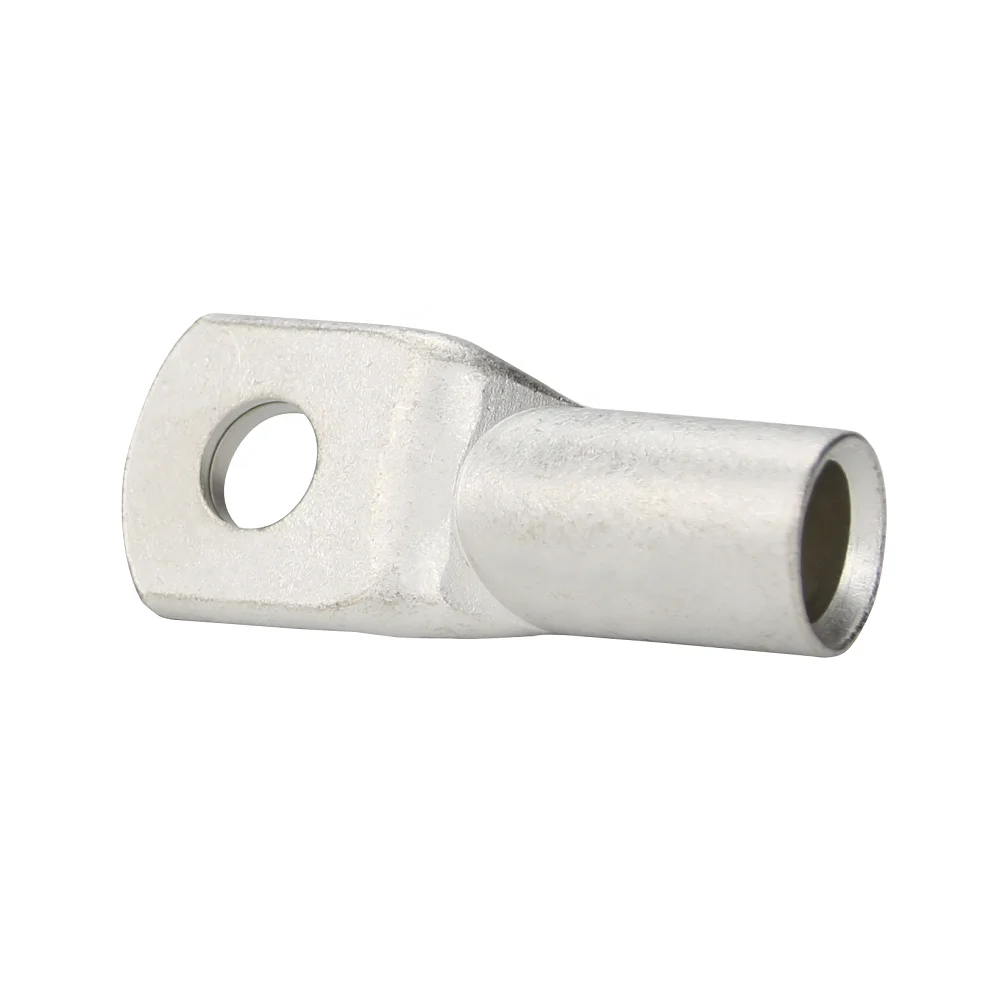

One hole copper tubular cable lugs / standard barrel / 600V to 35KV / high quality standard manufacturer
- Category: Terminals >>>
- Supplier: Zhejiang,Wubai,Power,Fitting,Co.,Ltd.,[Zhejiang,China]Zhejiang
Share on:
Product Overview
Description
Product Description
1. Wire size : AWG 12 - 750 or 6 mm² - 400 mm²
2. Stud size : inch #8 - 3/4'' or 4.0mm - 20mm
3. Standard : DIN EN 61373 class 1B vibration-tested
4. Certification : ISO9001,SGS,CE,ROHS
| Product Name | WB series Cable lug |
| Material | C11000,C1100,CU-ETP,E-CU58 for high conductivity |
| Surface | Tin-plated to protect against corrosion for Salt spray experiment 48H |
| Hardness | HV: 120 - 70 |
| Maching acuuracy class | High |
| Pullout test | Conform to UL486 standard |
| Contact resistance | Conform to UL486 standard |
| Flammability rating of material | Conform to UL486 standard |
| Specific test date | Please mail us |
Product Parameter as following :
| PART NO | ITEM NO. | Dimension(mm) | |||||
| Φd2 | B | L | ΦD | Φd | E | ||
| WB0009-0001 | WB6-5 | 5.5 | 10 | 27.5 | 6.5 | 3.5 | 9 |
| WB0009-0002 | WB6-6 | 6.5 | 12 | 27.5 | |||
| WB0009-0003 | WB6-8 | 8.4 | 15 | 33 | |||
| WB0009-0004 | WB6-10 | 10.5 | 17 | 37 | |||
| WB0009-0005 | WB6-12 | 13 | 19 | 41 | |||
| WB0009-0006 | WB10-5 | 5.5 | 12 | 28.5 | 7 | 4.6 | 10 |
| WB0009-0007 | WB10-6 | 6.5 | 12 | 28.5 | |||
| WB0009-0008 | WB10-8 | 8.4 | 15 | 35 | |||
| WB0009-0009 | WB10-10 | 10.5 | 17 | 39 | |||
| WB0009-0010 | WB10-12 | 13 | 19 | 42 | |||
| WB0009-0011 | WB16-5 | 5.5 | 12 | 31.5 | 8.5 | 5.5 | 13 |
| WB0009-0012 | WB16-6 | 6.5 | 12 | 33.3 | |||
| WB0009-0013 | WB16-8 | 8.4 | 15 | 37.5 | |||
| WB0009-0014 | WB16-10 | 10.5 | 17 | 41.5 | |||
| WB0009-0015 | WB16-12 | 13 | 19 | 45 | |||
| WB0009-0016 | WB25-5 | 5.5 | 14 | 37.5 | 10 | 7 | 15 |
| WB0009-0017 | WB25-6 | 6.5 | 14 | 37.5 | |||
| WB0009-0018 | WB25-8 | 8.4 | 16 | 42 | |||
| WB0009-0019 | WB25-10 | 10.5 | 18 | 46 | |||
| WB0009-0020 | WB25-12 | 13 | 19 | 48 | |||
| WB0009-0021 | WB25-14 | 15 | 21 | 52.5 | |||
| WB0009-0022 | WB35-6 | 6.5 | 17 | 39.5 | 12 | 8.5 | 17 |
| WB0009-0023 | WB35-8 | 8.4 | 17 | 44 | |||
| WB0009-0024 | WB35-10 | 10.5 | 19 | 49 | |||
| WB0009-0025 | WB35-12 | 13 | 21 | 51 | |||
| WB0009-0026 | WB35-14 | 15 | 21 | 54.5 | |||
| WB0009-0027 | WB35-16 | 17 | 26 | 58 | |||
| WB0009-0028 | WB50-6 | 6.5 | 20 | 47 | 14 | 10 | 19 |
| WB0009-0029 | WB50-8 | 8.4 | 20 | 47 | |||
| WB0009-0030 | WB50-10 | 10.5 | 20 | 51 | |||
| WB0009-0031 | WB50-12 | 13 | 23 | 56 | |||
| WB0009-0032 | WB50-14 | 15 | 23 | 59.5 | |||
| WB0009-0033 | WB50-16 | 17 | 28 | 62 | |||
| WB0009-0034 | WB50-20 | 21 | 30 | 67 | |||
| WB0009-0035 | WB70-6 | 6.5 | 23 | 53 | 16.5 | 12 | 21 |
| WB0009-0036 | WB70-8 | 8.4 | 23 | 53 | |||
| WB0009-0037 | WB70-10 | 10.5 | 23 | 56 | |||
| WB0009-0038 | WB70-12 | 13 | 23 | 59 | |||
| WB0009-0039 | WB70-14 | 15 | 23 | 62.5 | |||
| WB0009-0040 | WB70-16 | 17 | 28 | 66 | |||
| WB0009-0041 | WB70-20 | 21 | 30 | 72 | |||
| WB0009-0042 | WB95-8 | 8.4 | 26 | 60 | 18 | 13.5 | 25 |
| WB0009-0043 | WB95-10 | 10.5 | 26 | 60 | |||
| WB0009-0044 | WB95-12 | 13 | 26 | 62 | |||
| WB0009-0045 | WB95-14 | 15 | 26 | 65.5 | |||
| WB0009-0046 | WB95-16 | 17 | 28 | 70 | |||
| WB0009-0047 | WB95-20 | 21 | 36 | 82 | |||
| WB0009-0048 | WB120-8 | 8.4 | 28 | 65 | 19.5 | 15 | 26 |
| WB0009-0049 | WB120-10 | 10.5 | 28 | 65 | |||
| WB0009-0050 | WB120-12 | 13 | 28 | 65 | |||
| WB0009-0051 | WB120-14 | 15 | 28 | 67 | |||
| WB0009-0052 | WB120-16 | 17 | 30 | 70 | |||
| WB0009-0053 | WB120-20 | 21 | 36 | 85 | |||
| WB0009-0054 | WB150-8 | 8.4 | 31 | 70 | 21 | 16.5 | 30 |
| WB0009-0055 | WB150-10 | 10.5 | 31 | 70 | |||
| WB0009-0056 | WB150-12 | 13 | 31 | 72 | |||
| WB0009-0057 | WB150-14 | 15 | 31 | 72 | |||
| WB0009-0058 | WB150-16 | 17 | 31 | 74 | |||
| WB0009-0059 | WB150-20 | 21 | 36 | 88 | |||
| WB0009-0060 | WB185-10 | 10.5 | 35 | 83 | 24 | 19 | 30 |
| WB0009-0061 | WB185-12 | 13 | 35 | 83 | |||
| WB0009-0062 | WB185-14 | 15 | 35 | 83 | |||
| WB0009-0063 | WB185-16 | 17 | 35 | 83 | |||
| WB0009-0064 | WB185-20 | 21 | 39 | 91 | |||
| WB0009-0065 | WB240-10 | 10.5 | 39 | 93.5 | 26 | 21 | 35 |
| WB0009-0066 | WB240-12 | 13 | 39 | 93.5 | |||
| WB0009-0067 | WB240-14 | 15 | 39 | 93.5 | |||
| WB0009-0068 | WB240-16 | 17 | 39 | 93.5 | |||
| WB0009-0069 | WB240-20 | 21 | 39 | 93.5 | |||
| WB0009-0070 | WB300-12 | 13 | 43 | 111 | 29.5 | 23.5 | 44 |
| WB0009-0071 | WB300-14 | 15 | 43 | 111 | |||
| WB0009-0072 | WB300-16 | 17 | 43 | 111 | |||
| WB0009-0073 | WB300-20 | 21 | 43 | 111 | |||
| WB0009-0074 | WB400-12 | 13 | 49 | 114 | 34 | 27 | 44 |
| WB0009-0075 | WB400-14 | 15 | 49 | 114 | |||
| WB0009-0076 | WB400-16 | 17 | 49 | 114 | |||
| WB0009-0077 | WB400-20 | 21 | 49 | 114 | |||
Product Effects
When you see this picture, do you want to know why ?
There are two main reasons:
1. the quality problem of a product itself.
2. the quality problem of product crimping .
We have a strong datebase on the quality and crimping of cable lug .
If you are interested in these date , please mail us and discuss them together .we look forward to your consultation .
Our Services
If you have drawings,we can produce for you;
If you have sampels, we can research for you;
If you have requirements, we can customize for you;
We would be your reliable partner and will work out the best solution for you !
Welcome to inquire from us !
Best regards
Company Information
20 years manufacturing experience
Advanced development and design capabilities
First class production capacity
Certifications
UL certification and CE certification of the United States
Exhibition Photo
Packaging & Shipping
FAQ
60807757139
1.Q: Which certifications or test reports do you have?
A: We have UL and RoHS tested by SGS.
2.Q : How to ship my order ? Is it safe?
"A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery."
3.Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you."
4.Q: Can you provide samples ? Are the samples free ?
"A: Yes,we can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
5.Q:Could I put my own logo on it?
A:Sure,of course,we are a professional manufacturer and have over 10 years OEM experience.
