Product Overview

Description





Product Description







Series name:XH


Authentication: ROHS REACH ISO9001 UL  CUL


Application:wire to board


Housing:XH-nP          Terminal :XH-T

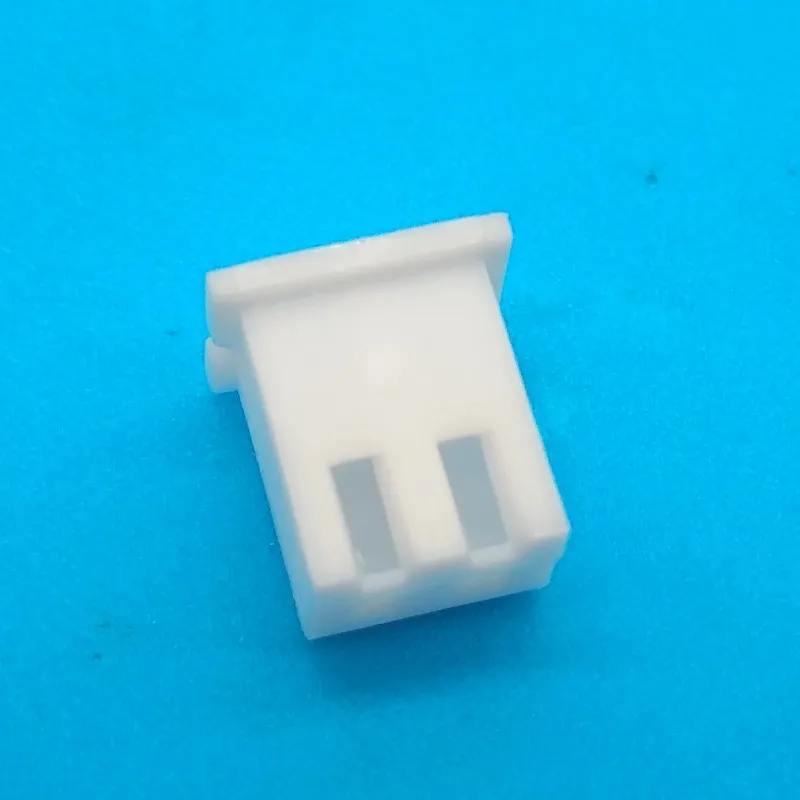

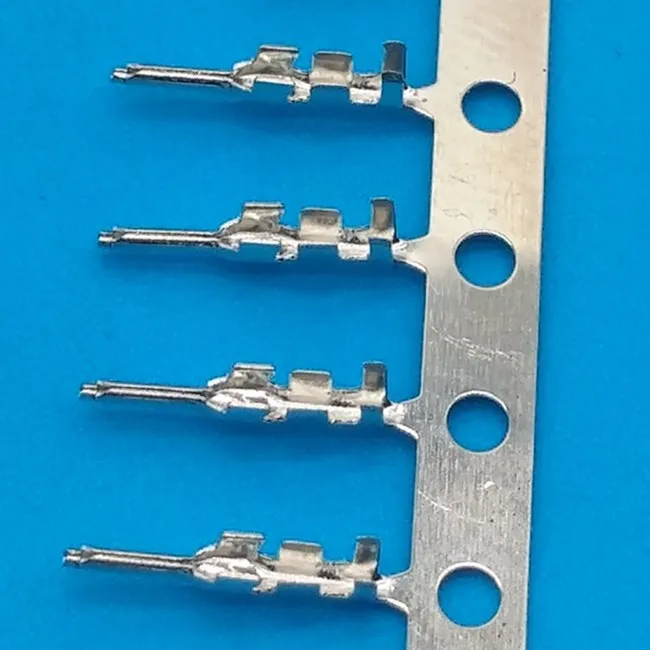

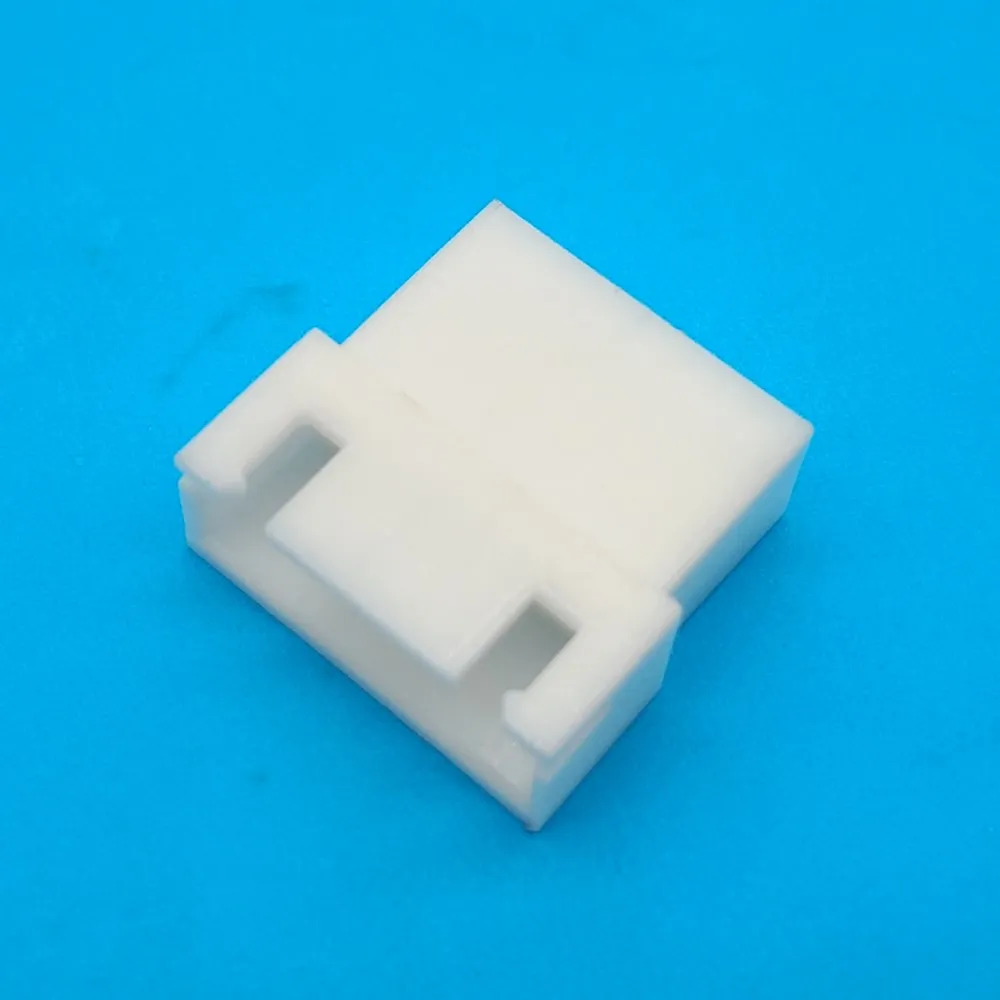

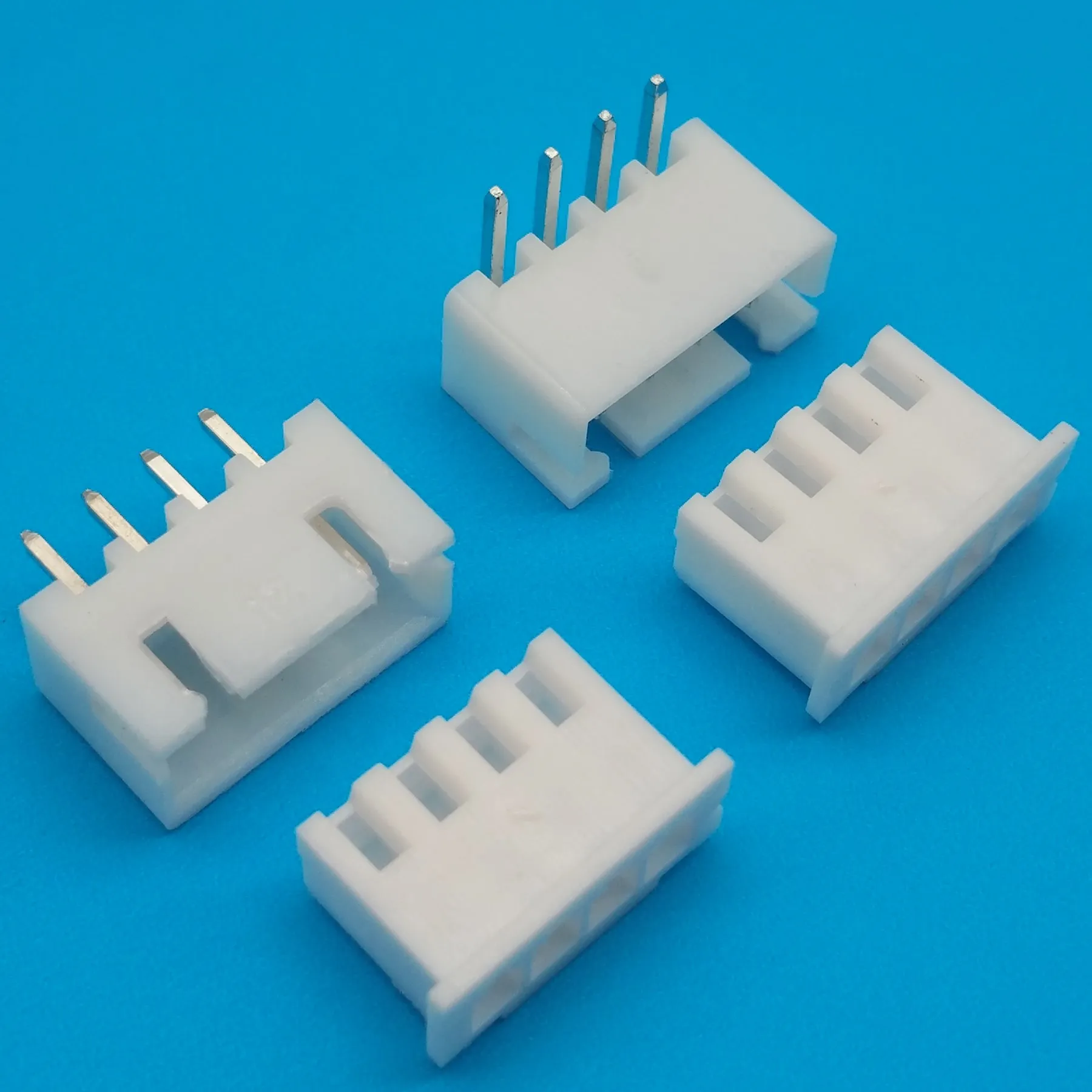

IMG_20180830_084643.jpgIMG_20180904_110308.jpg        IMG_20180904_110713.jpgIMG_20180705_172005.jpg


Pitch:2.5mm                              Material:Phosphor Bronze


Poles:2pin~18pin                      Surface Treatment:Tin Plating


Material:Nylon UL94V-0            Packaging Type:Reel


Color:white                                Wire Size AWG:20 22 24 26 28


Packaging Type:bag                 male Number:6000piece/reel


male Number:1000piece/bag


DIP Wafer:XH-nA 180° XH-AW 90°     SMT:XH-nALT 180° XH-nAWT  90°

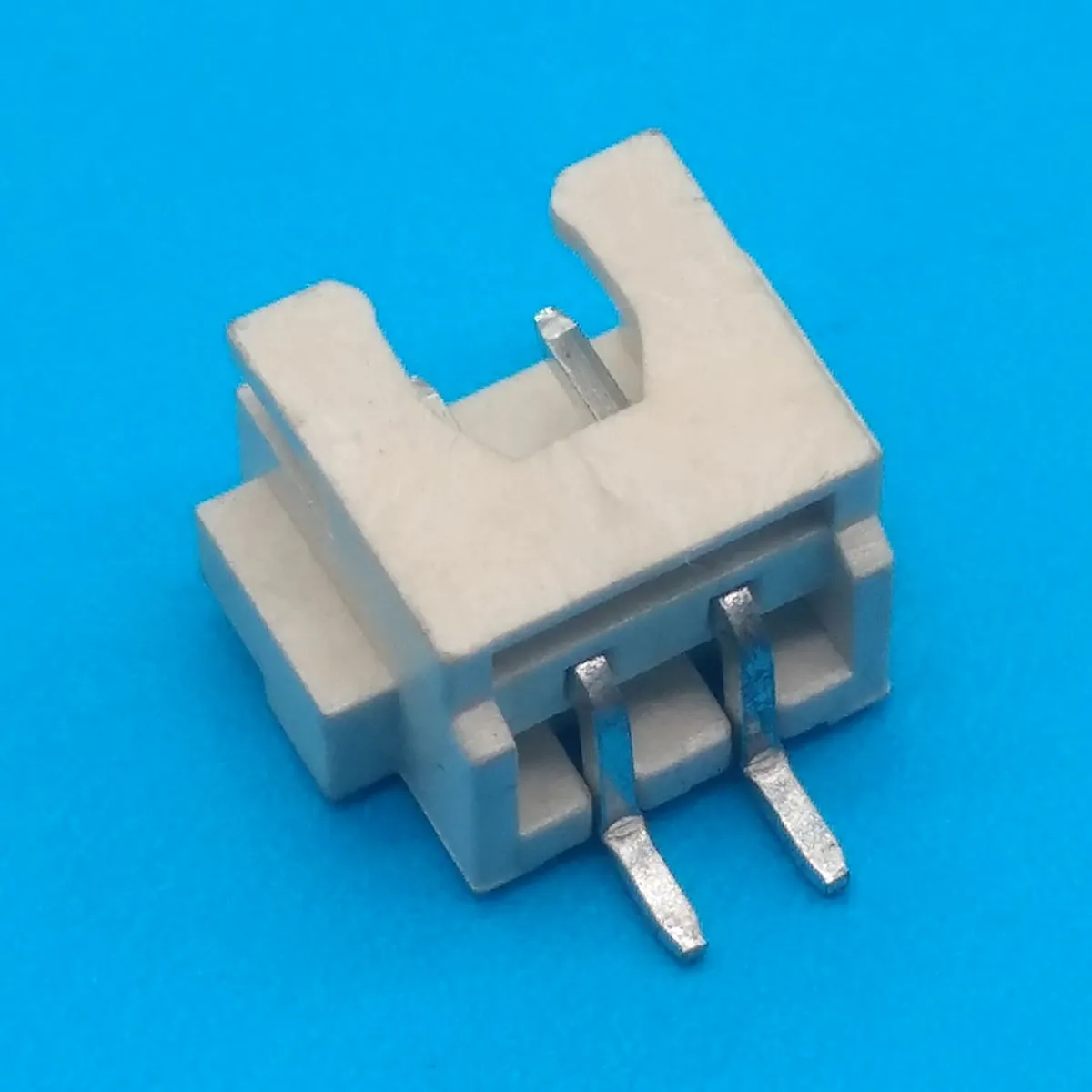

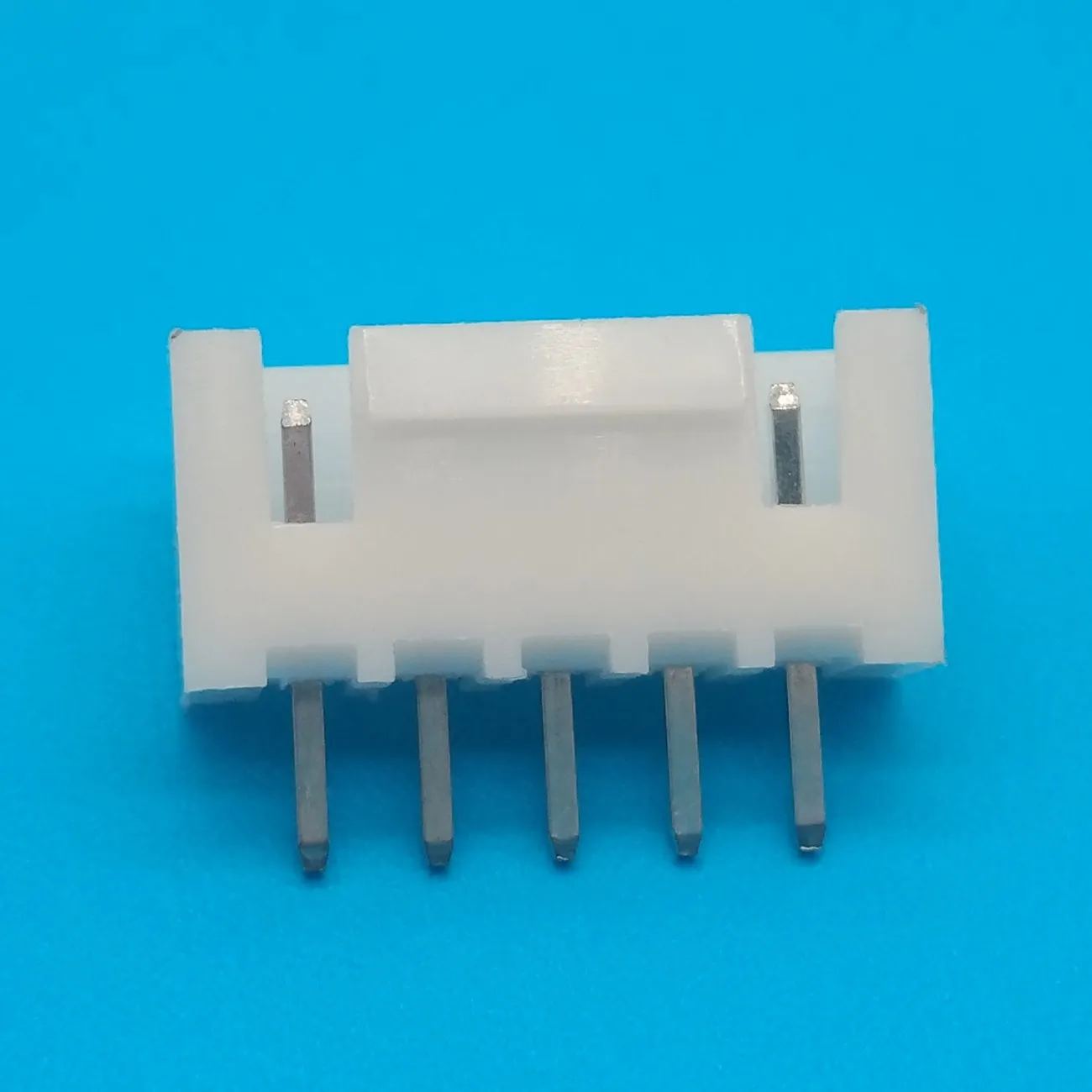

IMG_20180706_152923.jpg                                                                                                           IMG_20180716_155035.jpg


Material:Plastic shell--Nylon/Pins:Brass Tin Plating   Material:Plastic shell--LCP/Pins:Brass Tin Plating


Poles:2pin~18pin                                                        Poles:2pin~18pin


Packaging Type:bag                                                   Packaging Type:Reel


Number:1000piece/bag                                              Number:1000piece/reel


Color:white,beige                                                       Color:beige


Electrical Parameters


Voltage rating:250V


Current rating:3A


Withstand voltage:1000V AC/minute


Working Temperature:-25℃~+85℃


Insulation resistance:1000mΩ


Contact resistance:10mΩ

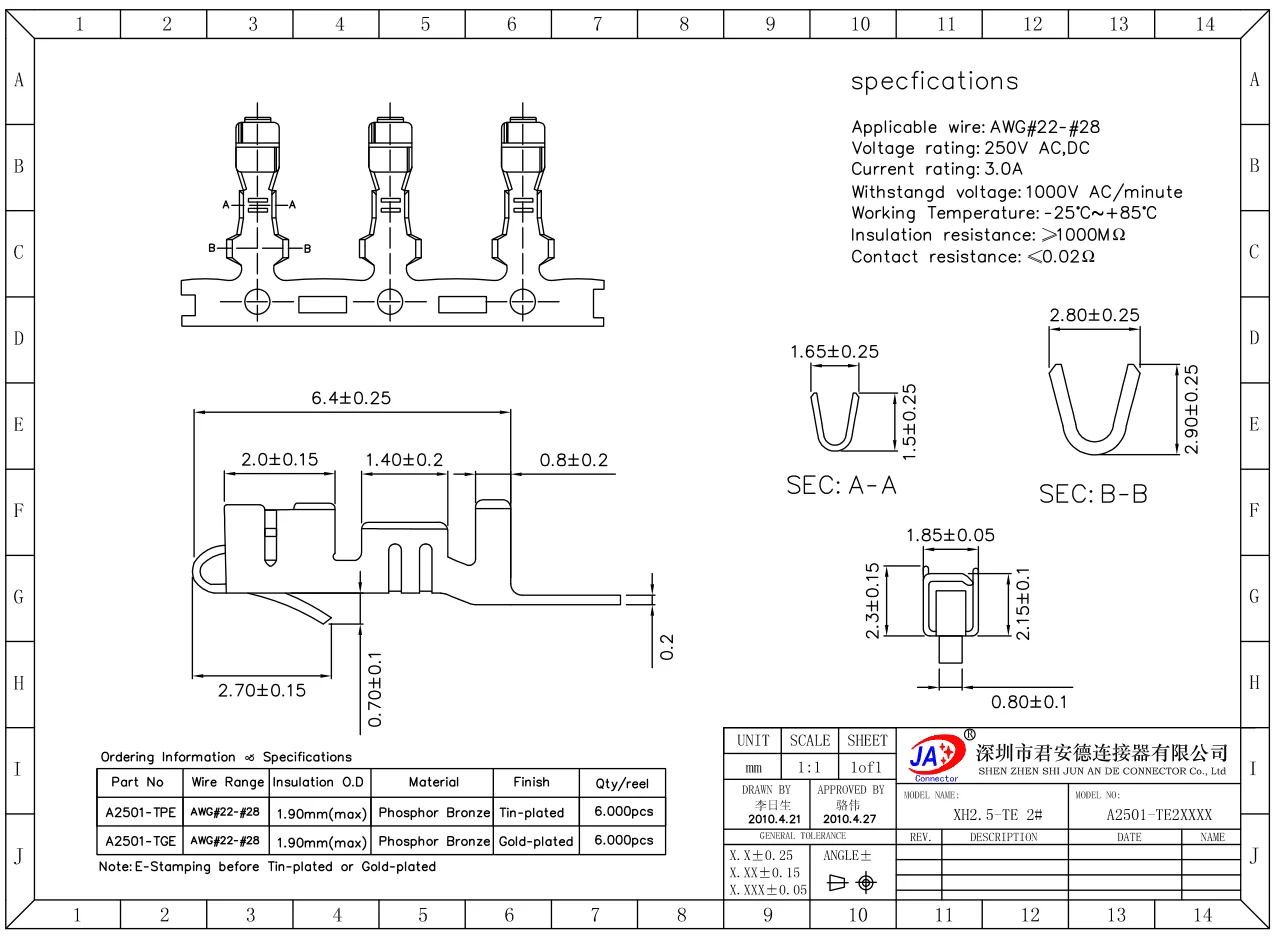

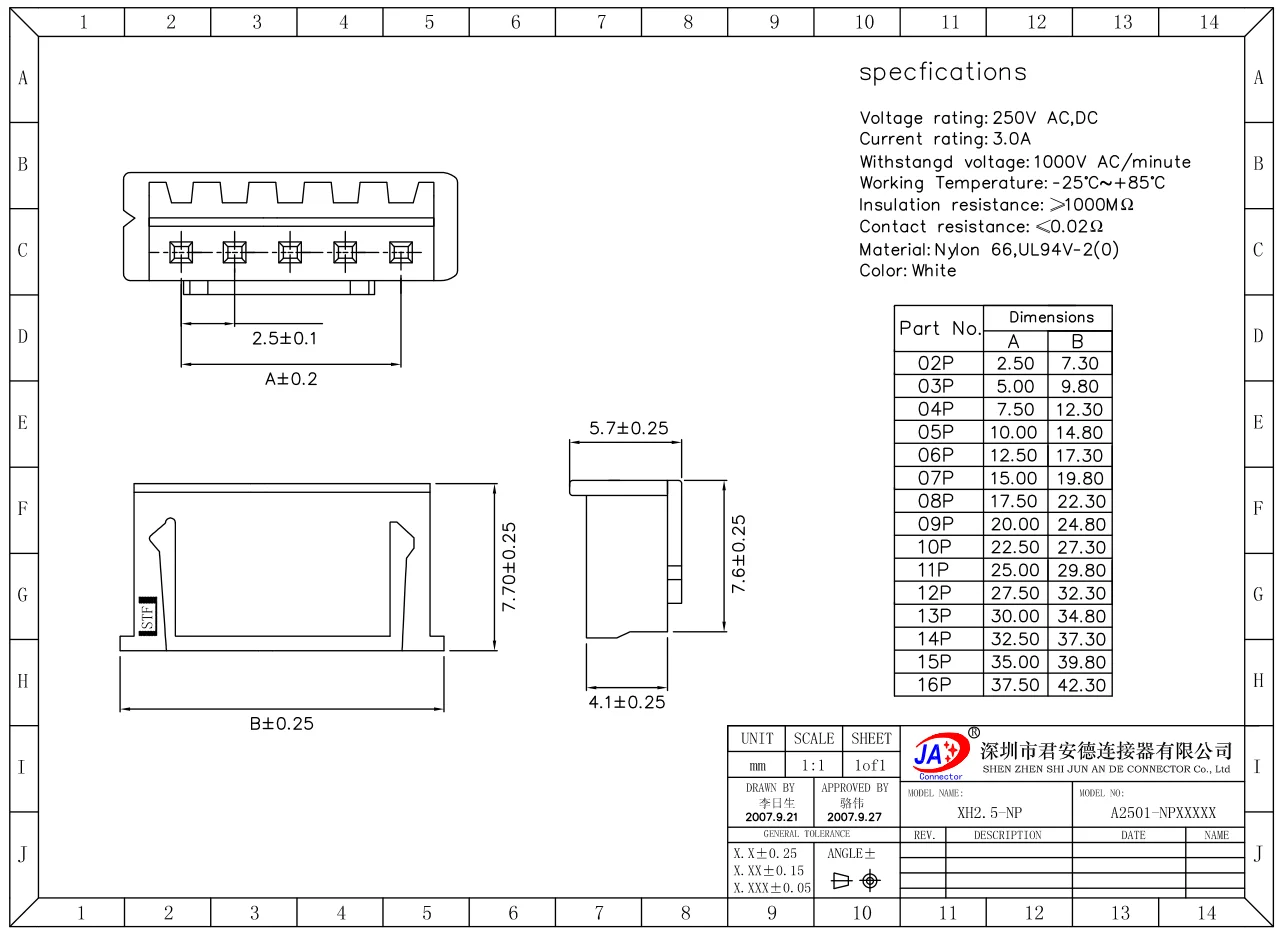

 Product drawings
