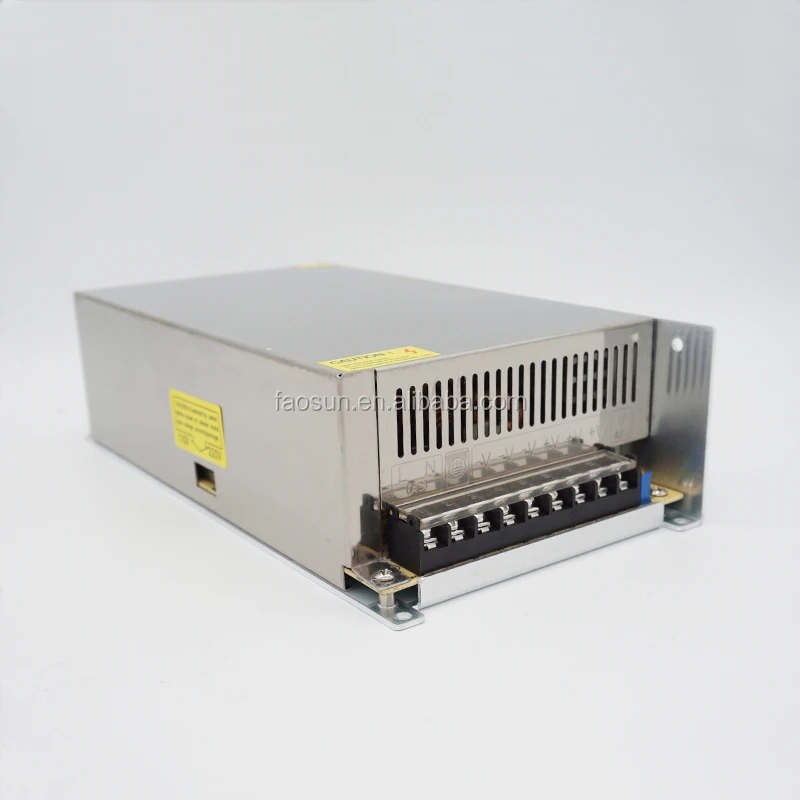

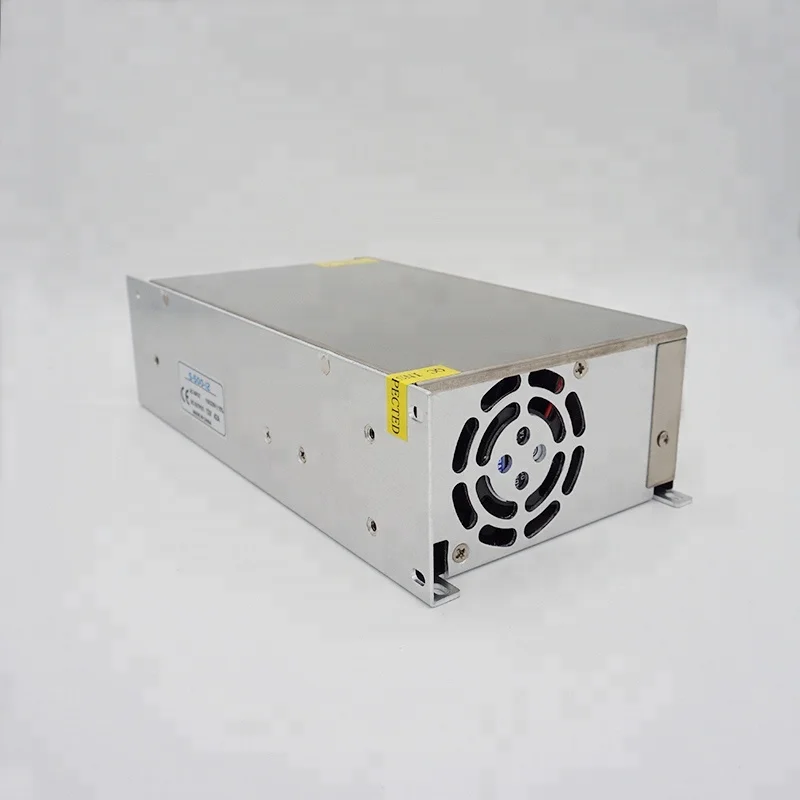

Led Switching Power Supply 24V 21A 500W LED Driver PSUs LED Transformer S 500 24
- Category: >>>
- Supplier: Shenzhen Fangsheng Lighting Co. Ltd.
Share on (60807844079):
Product Overview
Description
Product Description

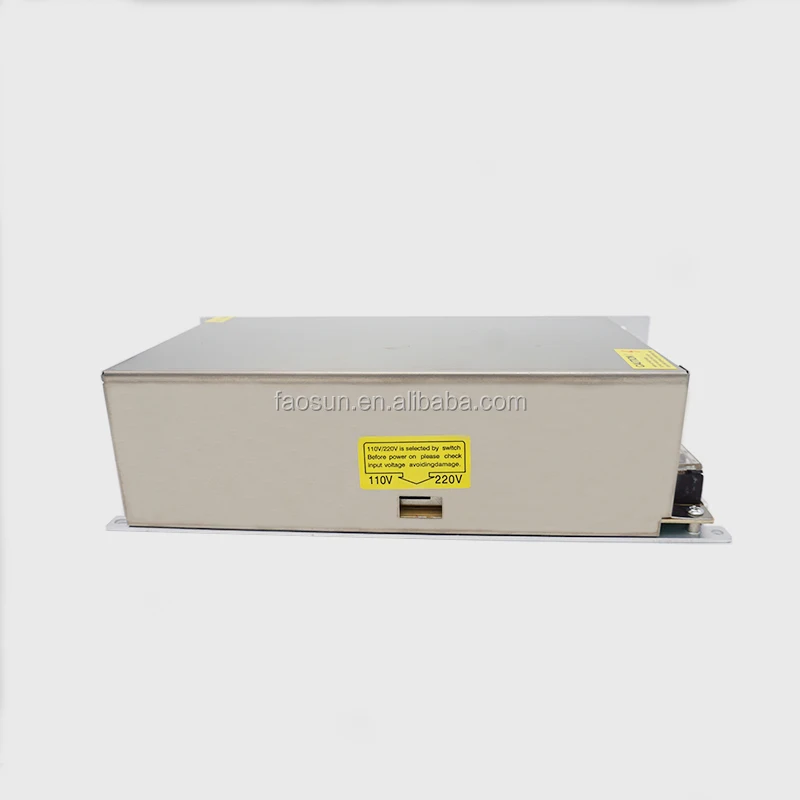

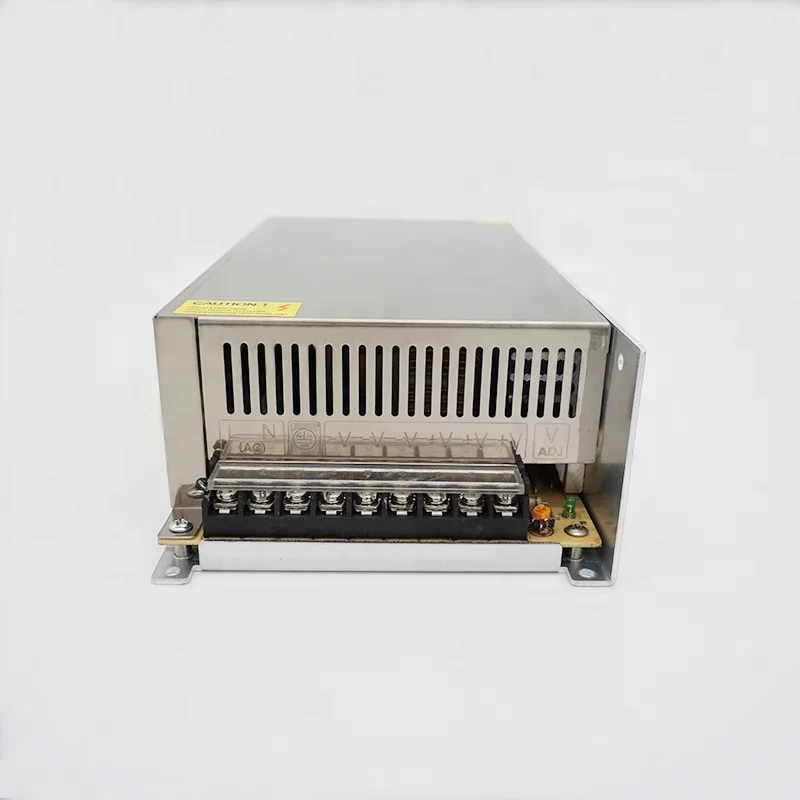

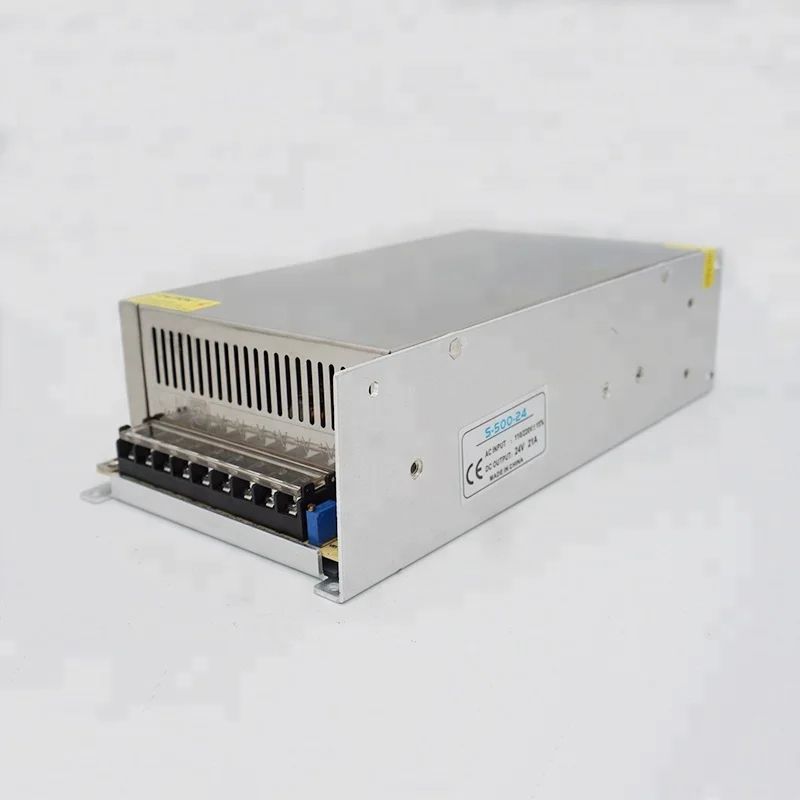

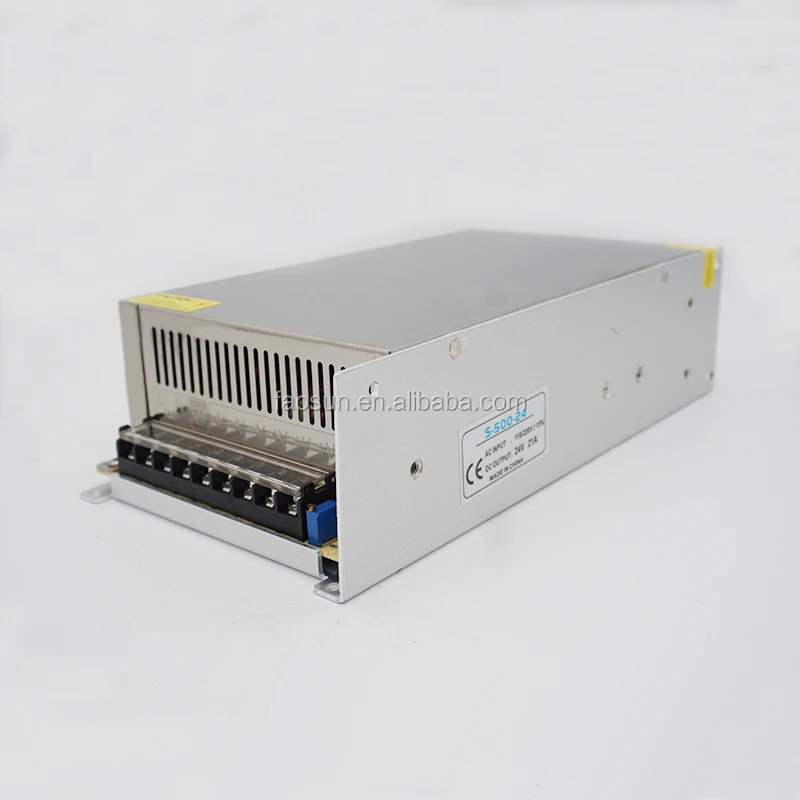

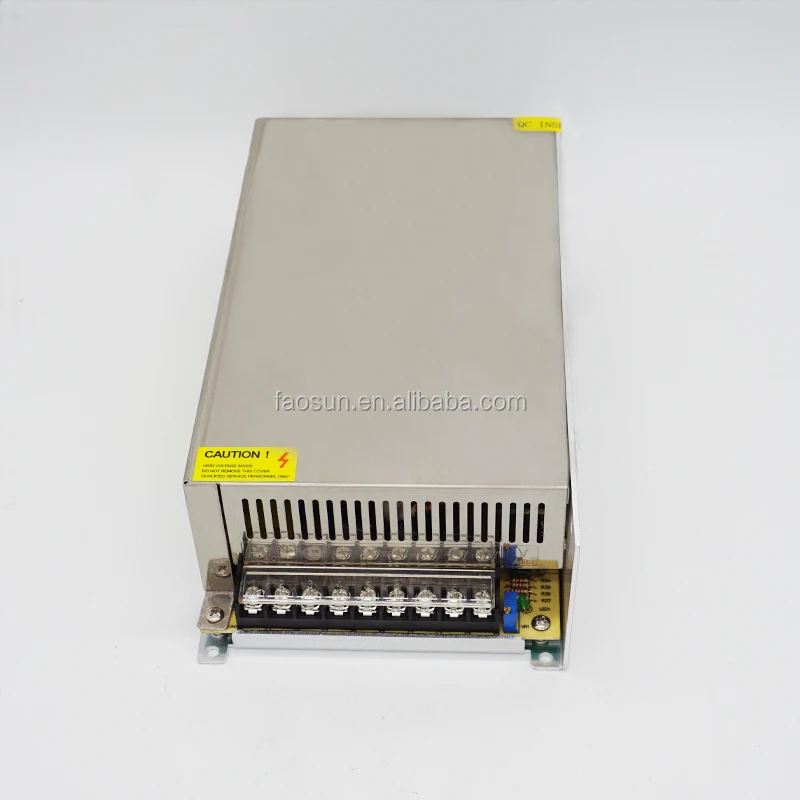

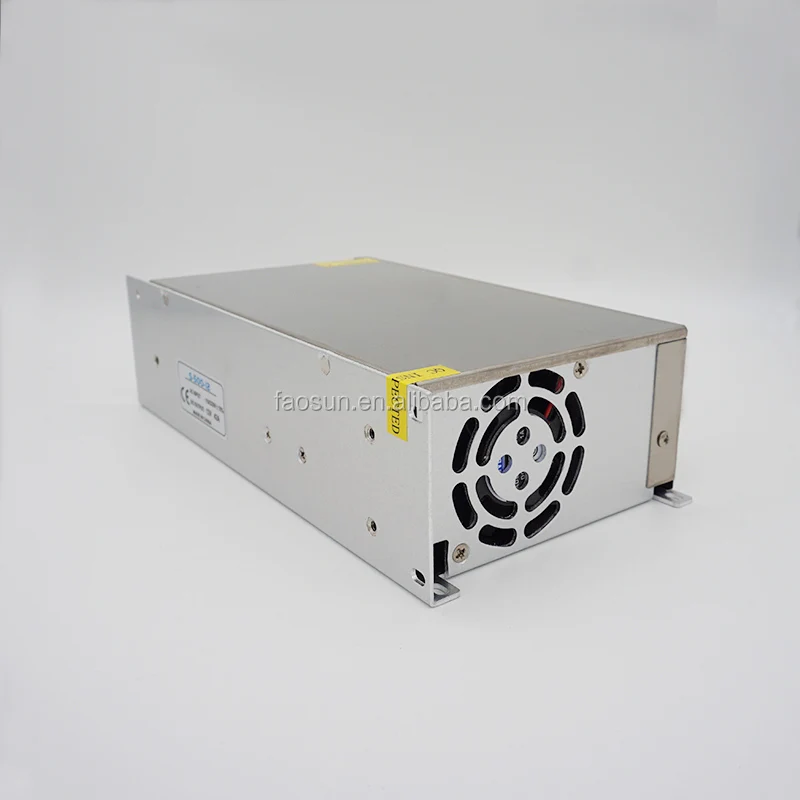

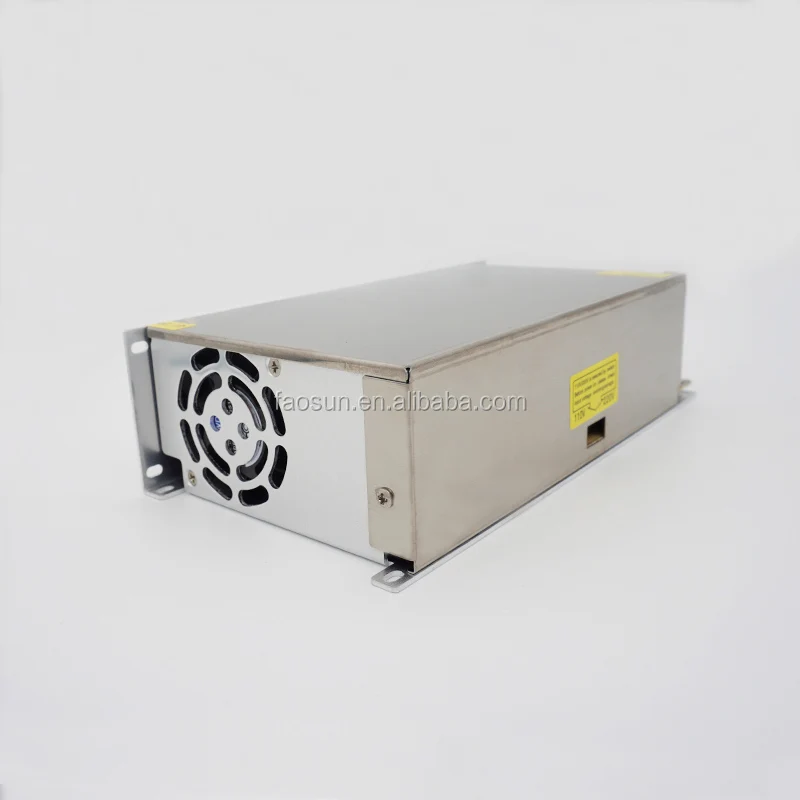

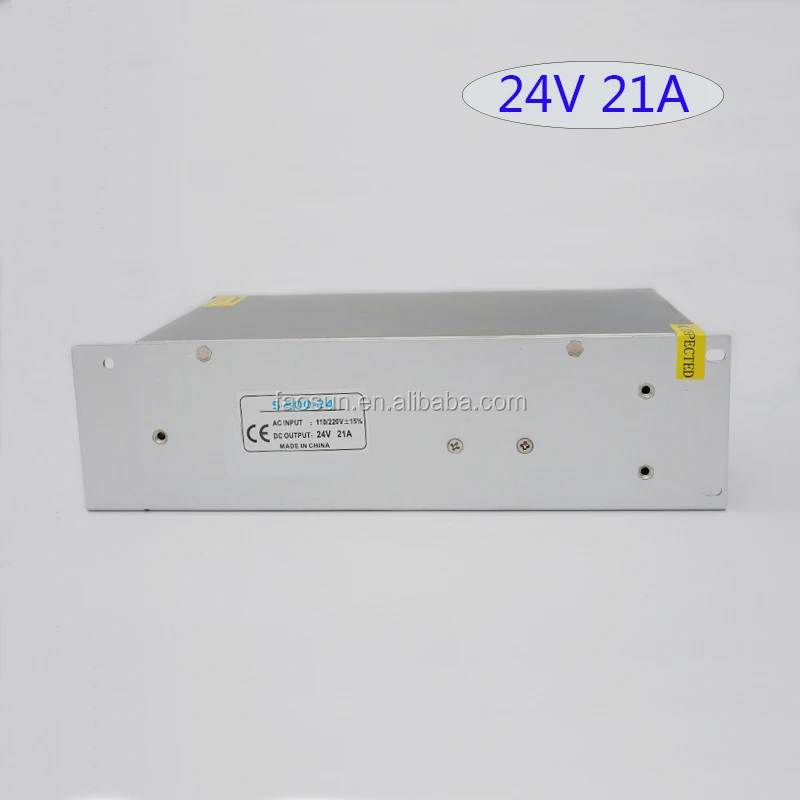

Led Switching Power Supply 24V 21A 500W LED Driver PSUs LED Transformer S-500-24
| Model | S-500-24(with fan) |
| Specification | 24V 21A 500W(with fan) |
| DC output voltage | 24V |
| Output voltage error | ±5% |
| Rated output current | 21A |
| Output current rage | 0-21A |
| Wave and noise | 120mVp-p |
| Inlet stability | ±0.5% |
| Load stablity | ±1% |
| DC output power | 500W(with fan) |
| Efficiency | 72% |
| Adjustable range for DC voltage | +10,-5% |
| AC input voltage range | 85-264VAC 47-63Hz |
| Input current | 0-21A |
| Leakage current | <3.5mA/240VAC |
| Overload proctection | 105%~150% Tpye pulsing hiccp shutdown Reset:auto recovery |
| Over-voltage protection | 115%~135% |
| High-temperature protection | 65℃ |
| Temperature coefficient | ±0.03%/°C(0~50%) |
| Setup rise hold up time | 800ms,50ms,10ms/115V 300ms,50ms,80ms/230VAC |
| Vibration | 10-500HZ,2G 10min,/1cycle,Period for 60min,Each axes |
| Withstand voltage | Input and output internal ,1.5KVAC,Input and enclosure,.5KVAC,Output and enclosure,0.5KVAC |
| Isolation resistance | Input and output internal,Input and enclosure,Output and enclosure,500VDC/100MΩ |
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH |
| Store temperature and humidity | -20°C~+85°C,10%~95%RH |
| Overall dimension | 240*125*65 |
| Weight(g) | 1190 |
| Application | LED strip light,LED down light,led panel light, Indoor etc. |
Packaging & Shipping
White box for single item, 21 pieces per ourter carton. 25.9kg/ctn. 53*26*43cm. DHL/UPS/EMS/TNT/SEA Shipment
