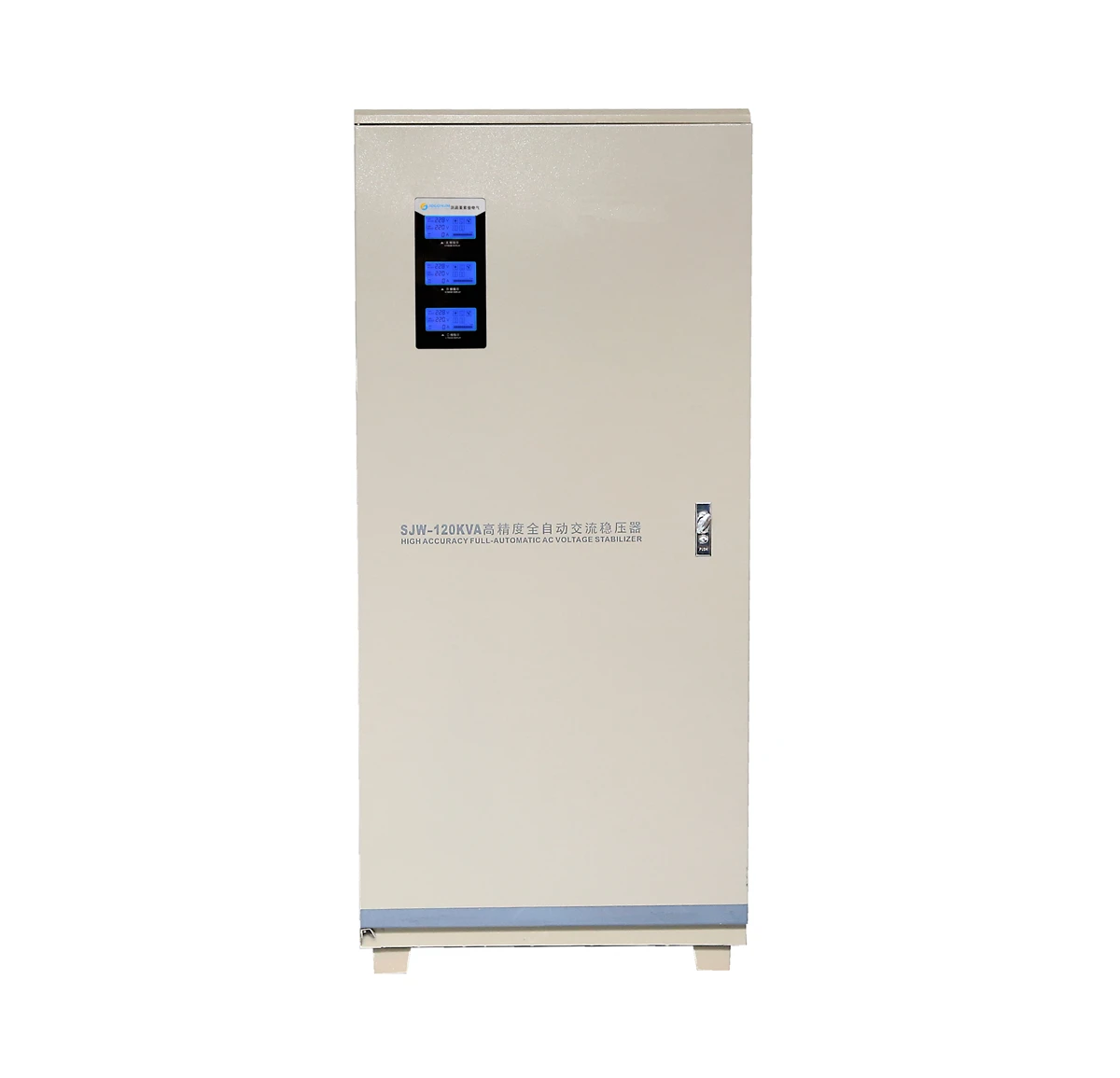

Electronic STABILIZER SJW 120KVA, Automatic Voltage Regulator Stac Stabilizer

Product Overview

Description

Electronic STABILIZER SJW-120KVA, Automatic Voltage Regulator Stac Stabilizer

SJW ,Independent control(Split Control) ,SOLID STATE,ELECTRONIC TYPE

AC AUTOMATIC VOLTAGE REGULATORS

Only do Good quality with CE



Power:

(Notice:1KVA=1000VA=800Watt)

10KVA,20KVA,30KVA,40KVA,50KVA,60KVA,

80KVA,100KVA,120KVA,150KVA,180KVA,200KVA,

250KVA,300KVA,350KVA,400KVA,450KVA,500KVA



SJW Three-phase Separately-regulating Electronic Voltage Stabilizersuitable for the electric network with unbalanced three-phase voltage input.

It can balance three-phase output automatically and keep the network operating in good condition during fluctuation of electrified wire netting and transformation of load current.



Widely used in the fields of post office, store, elevator, hospital, school, publishing house and stock exchange where normal voltage is in need, and also can be used in the factories of large and middle-scale industrial and mining corp. It is very much suitable for some important devices and supporting single machine.



Input Voltage:	3P+N+G(3P+N for option)	Ambient temp:	-10 +45C
	1),380V±20%
	2),380V±30%, +/-35%
Output voltage:	1),380V/400V/420V for option	Insulating resistance:	≥2MΩ
Output precision:	1.5%-3%(adjustable) 50Hz/60Hz	Electric intensity:	Power frequency sine voltage 2000V
			without puncture or flashover in 1 min
Efficiency ratio:	≥95%	Over-load capacity	Duple rated current in 1 min.
Response speed:	≤1.5S( outside voltage changes within 10%)	Waveform distortion:	No additional waveform distortion
Protective function:	over-voltage/over-current	POWER:	100%(STRONG QUALITY)
	phase sequence/phase drop
	mechanical failure alarm

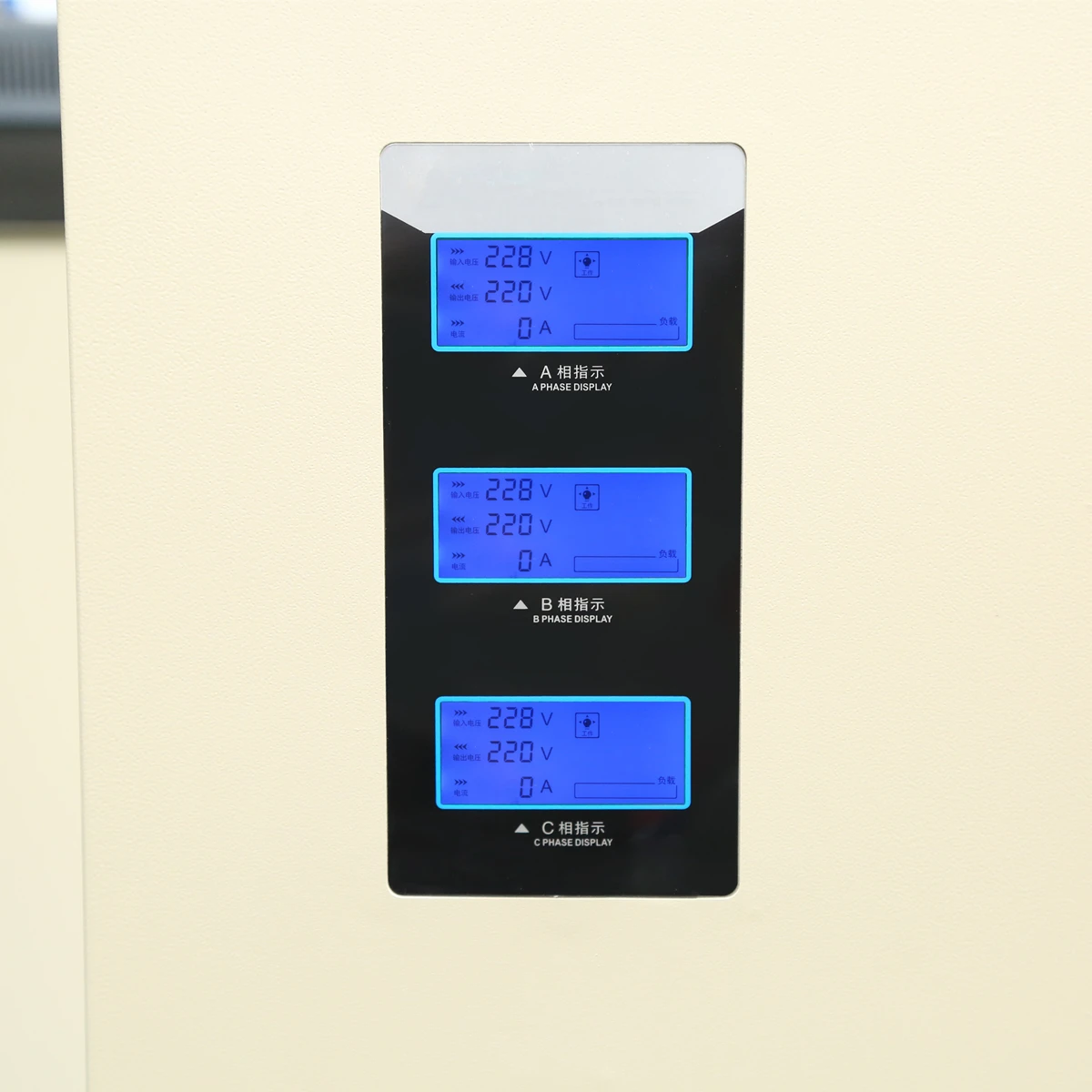

Contactless,no noise, no machinery and carbon brush abrasion with the function of protection against overVoltage, under voltage and phase failure, fault diagnosis, signal display as well as alarming.
