OCR MRZ Desktop ID card Reader and D document scanner with ocr technology

Share on (60807869897):


Price:$1,115.00

Quantity:


Product Overview

Description


Product Details

SINOSECU OCR MRZ Desktop Passport Reader


The Sinosecu 24 bits mrz ocr passport reader is a full page, multi-illumination ePassport reader. It captures ultraviolet and infrared images as well the full page of a passport in color. In a simultaneous single action the reader also decodes the machine readable zone (MRZ) and processes RFID data – including the holder's image – from the chip.

The Sinosecu 24 bits mrz ocr passport reader automatically detects when a document with machine readable data has been presented. Additionally, it's able to compensate for out-of-position MRZ data, so that the advanced recognition engine reliably provides highly accurate and very fast document reading ability, allowing large volumes of documents and smart cards to be processed quickly and efficiently. The Sinosecu passport reader has a compact, robust design and is designed for years of heavy-duty, frontline use.


The Workflow of Sinosecu Passport Reader

Applications


Embassy


Airport Check In Kiosk

Hotel


Travel Agency

Bank

Duty free shop

Border Control

Trade Fair

Access Control


Product Feature

√ Ideal for integrating into conters, kiosks and gates

√ Flatbed reader ideal for identification at kiosks requiring MRZ

√ Support for ICAO compliant and non compliant travel documents

√ High quality document reader for accurate ID/ driver license validation and authentication

√ Entry level compact document reader designed for fast, whole page and barcode data capture

√ For fast image processing and document authentication specifically for kiosk and egate document checking

Accuary

Speed

Multi-function

Specification
\t
Supported Documents
\t
Machine Readable Zone
\t
ICAO 9303 standard compliant documents:
ID-1 (Identity card)
ID-2 (Passport, Visa)
ID-3 (Passport)
\t
Visual Inspection Zone
\t
Customized OCR Service for local documents
\t
RFID
\t
Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)
Read smart card according to ISO/IEC 7816
Support e-Passport Basic Access Control (BAC) & Extended Access Control (EAC)
Support active/Passive authentication
\t
Barcode
\t
1D: Code 128, Code 39, Interleaved 2 of 5
2D: PDF 417, QR Code, Data Matrix, Aztec Code
\t
Resolution
\t
500 DPI
\t
Illumination
\t
Visible, IR (850NM) and UV (365nm)
\t
Color Depth
\t
24 bits/pixels
\t
Sensor
\t
CMOS, 5.0 Megapixels (2592*1944)
\t
Image Format
\t
JPG, BMP, PNG
\t
Field of View
\t
127mm*88mm
\t
Supported Operation System
\t
Window 7,8,10,Visita, XP (32/64 bit WHQL certified)
Window Server 2003 & 2008 (32/64 bit)
Linux Ubuntu, CentOS, RedHat, Android
\t
Development Kit
\t
Complete OCR SDK including DLLs, OCXs, WebSocket, Samples and Demo program
\t
Programming Languages
\t
C#, C/C++, JAVA, Delphi, Visual Basic 6.0, VB.NET
\t

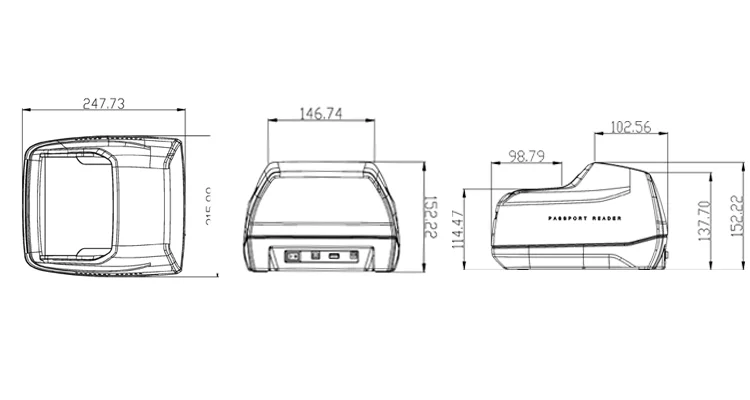

Dimension
\t
166*190*103.3mm(without cover)
166*190*142.8mm(with cover)
\t
Interface
\t
USB 2.0
\t
Status LEDs
\t
Power, Ready, Error and Warning.
\t
Buzzer
\t
Build in Buzzer
\t
Power
\t
Input: AC 100-240V, 50-60Hz, 0.8a
Output: DC 12V, 2A
\t
Warranty
\t
1 year warranty, extensible
Demo Application
About US

Sinosecu Technology Corporation


Sinosecu Technology Corporation develops, manufactures and sells intelligent software and device based on OCR (Character Optical Recognition) technology. Our worldwide customer's network is over 100 countries, which covers bank& financial institutions, transportation, hospitality and tourism, access control, gated community, government sector, telecoms, retailers, insurance company and other service oriented companies.


Our main offerings include Passport Reader, Bank Card Reader and Kiosk Reader. OCR SDK and web service API is available for our customer to build on their custom applications. We strive to make business processes easier and more flexible with our full site of desktop, mobile and cloud solution.

Certificates

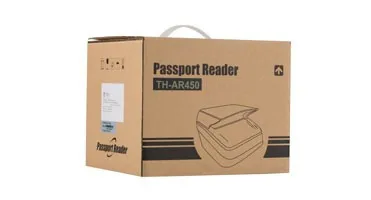

Package

Fully wrapped

The Sinosecu boarding passes reader is full wrapped with cystosepiment in carton. No damage risk.

Fast delivery

After recieving the payment, we will send the product from our stock immediately via express such as Fedex and DHL.

Why Choose US

High Performance

World leading OCR algorithm
Support MRZ, FRID, 1D/2D barcode reading
Fast OCR processing speed
High reading accurac

Best Value

Best price guaranteed
Timely after-sales and technical support
One-year warranty
Free product exchange within warranty

High Flexibility

Accept small quantity orders
Open SDK/API to be integrated
Customizable functionality based on needs
Low-cost module developing for new documents
