Product Overview

Description

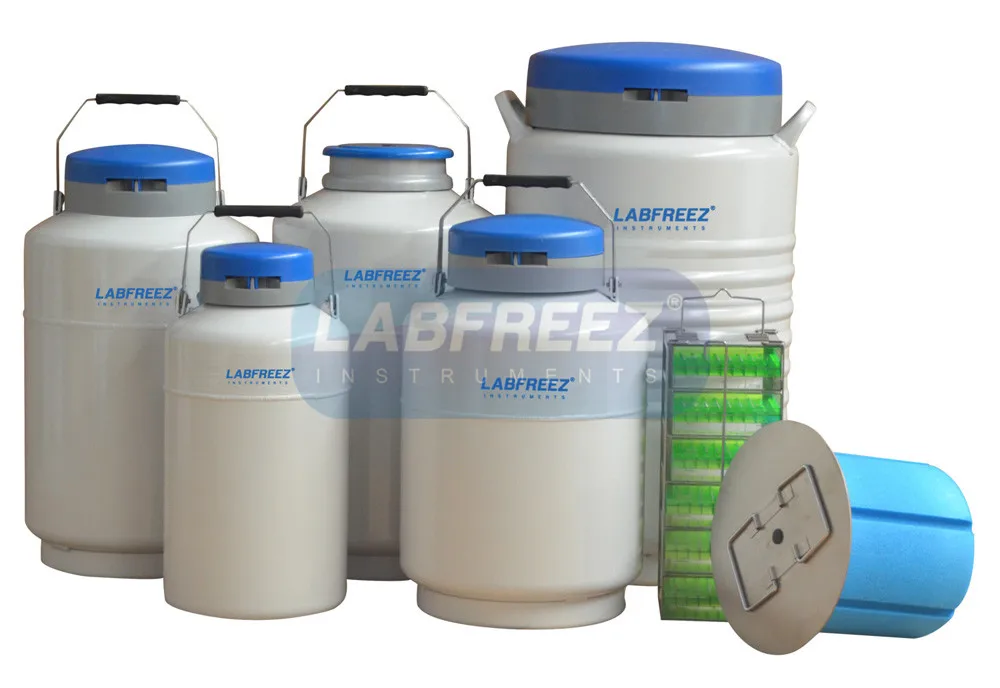

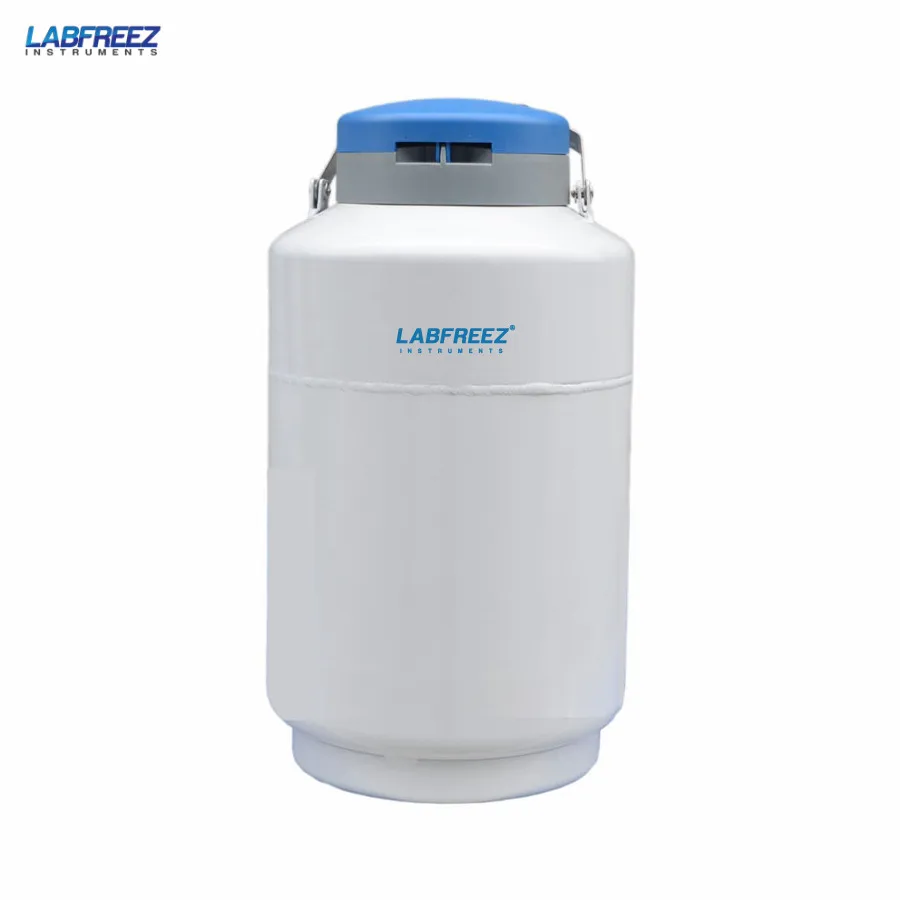

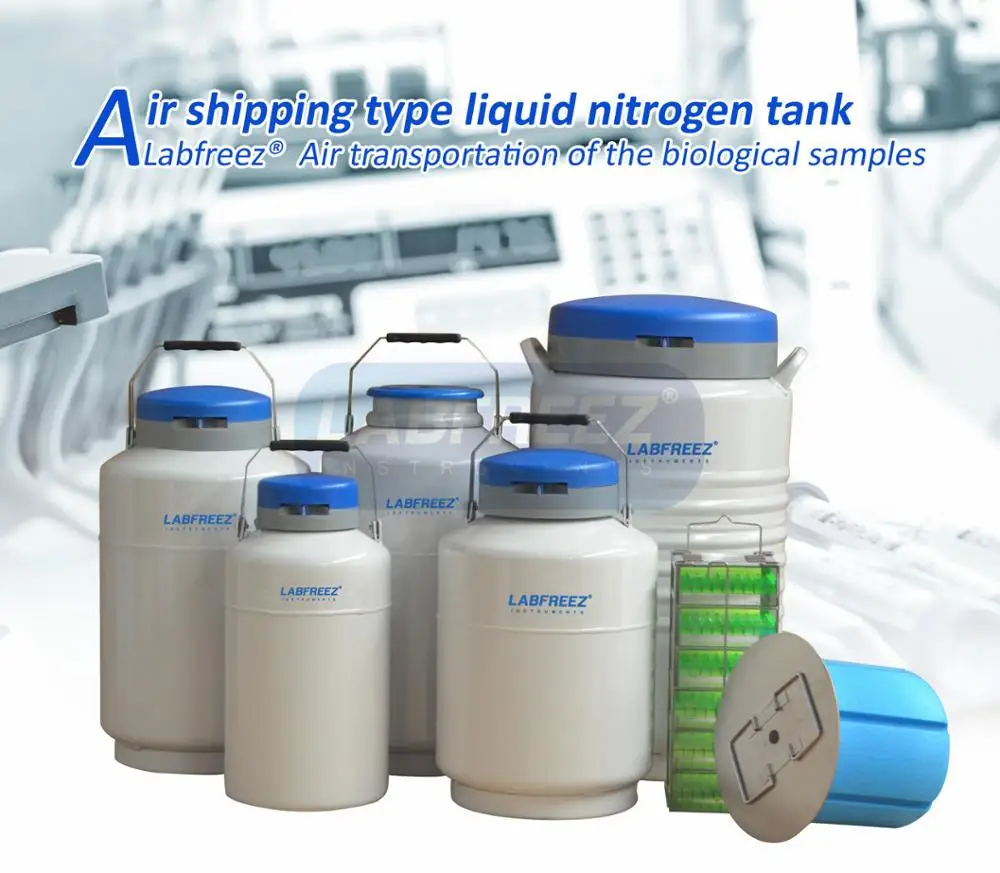

Liquid nitrogen container tank for air shipping transportation









Dry shipper series is designed for delivery of biological samples on aircraft. There is special adsorption material inside the container to absorb and save liquid nitrogen, preventing liquid nitrogen overflow during delivery. It uses special stainless steel mesh to separate storage space and absorption material, to avoid liquid nitrogen absorption material mixed into the sample.

Dry shipper series is suitable for cryogenic environment (vapor storage at temperatures below -190 °C) transportation for samples. It could avoid the risk of the liquid nitrogen releasing during transportation, especially designed for short-term air transport. The internal liquid nitrogen adsorbent, can absorb and save liquid nitrogen, even if the container falls down, liquid nitrogen would not pour out. It uses special stainless steel mesh to separate storage space and absorption material, to avoid liquid nitrogen absorption material mixed into the sample. Mainly used for laboratory users and short-term delivery of small number samples.

APPLICATION RANGE:
BNC-A Series Air transportation type biologic liquid nitrogen container/tank is mainly used for air shipping of the biological samples

Product Features:

• Vapor cryogenic storage;


• Fast liquid nitrogen filling;


• High strength aluminum construction;


• Lockable lid;


• No liquid nitrogen overflow;


• Straws or vails storage is optional;


• CE certified;


• Three years vacuum warranty;

SPECIFICATIONS:

Air transportation type Liquid nitrogen container tank for air shipping transportation
Model			BNC-A3H-50	BNC-A6H-80	BNC-A8H-80	BNC-A10H-125
Capacity (L)			3	6	8	10
Empty Weight (KG)			3.5	5	5.8	6.9
Neck (mm)			50	80	80	125
Outer Diameter (mm)			224	300	300	300
Height (mm)			428	481	581	546
Static evaporation loss rate (L/day)			0.21	0.40	0.40	1.25
Static holding time (day)			14	15	20	8
Round pail	Canister outer diameter (mm)		38	63	63	97
	Canister height (mm)		120	120	120	276
	Number of canisters (ea)		1	1	1	1
	Straw holding  capacity (ea)	0.5ml	214	820	820	1508
		0.25ml	472	1780	1780	3324
Racks and vials boxes	Number of racks (ea)		——	——	——	1
	Measurement of boxes (mm)		——	——	——	76×76
	Number of layers per rack (ea)		——	——	——	3
	Number of vials (ea)		——	——	——	75
25ml	Number of racks (ea)		——	——	——	1
	Number of layers per rack (ea)		——	——	——	2
	Number of boxes per layer (ea)		——	——	——	3
	Number of blood bags (ea)		——	——	——	6
50ml	Number of racks (ea)		——	——	——	1
	Number of layers per rack (ea)		——	——	——	1
	Number of boxes per layer (ea)		——	——	——	3
	Number of blood bags (ea)		——	——	——	3
Lockable lid is optional (ea)			√	√	√	——
Intelligent monitor is optional (ea)			√	√	√	√

Configuration

Model	Canister	Rack	Lid	Lock cover	Smart Monitor	Protective jacket	Tray cart
BNC-A3H	•φ38×1	——	•1	°1	°1	°1	——
BNC-A3H-L	•φ38L×1	——	•1	°1	°1	°1	——
BNC-A6H-80	•φ63×1	——	•1	°1	°1	°1	——
BNC-A8H-80	•φ63×1	——	•1	°1	°1	°1	——
BNC-A10H-125-L	•φ97L×1	——	•1	°1	°1	°1	——
BNC-A15H-216	——	•9*9×1	•1	°1	°1	°1	——
BNC-A20H-216	——	•9*9×1	•1	°1	°1	°1	——
BNC-A25H-216	——	•9*9×1	•1	°1	°1	°1	——

• Standard       °Optional         ——None
• φ38L×1 comes standard with a double-diameter 38mm round lifting tube
• φ97L×1 comes standard with a double circular cylinder with a diameter of 97mm
• 9*9×1 comes standard with a 9*9 square lifting tube
