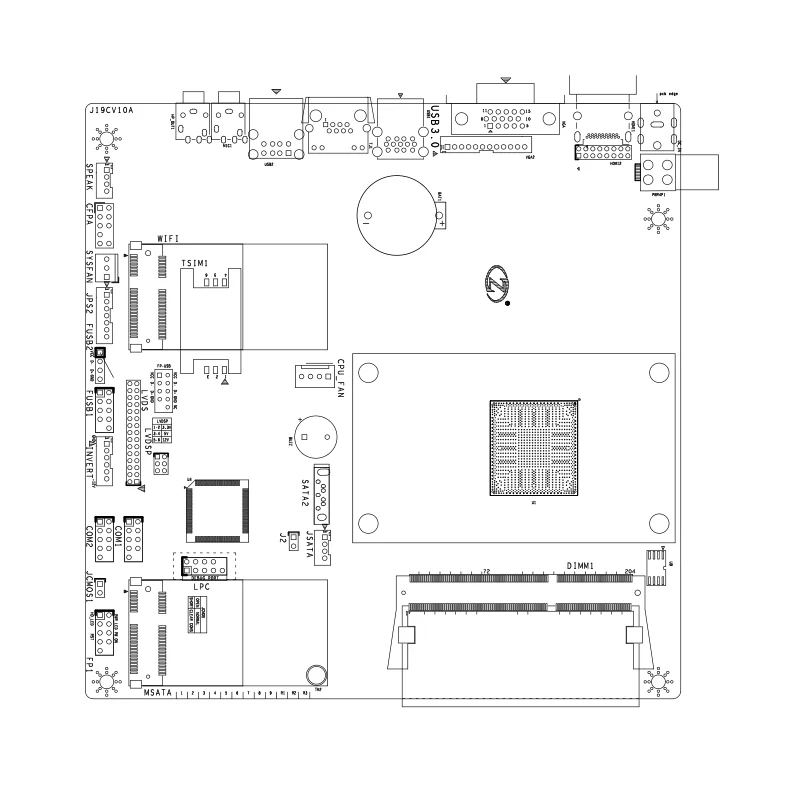

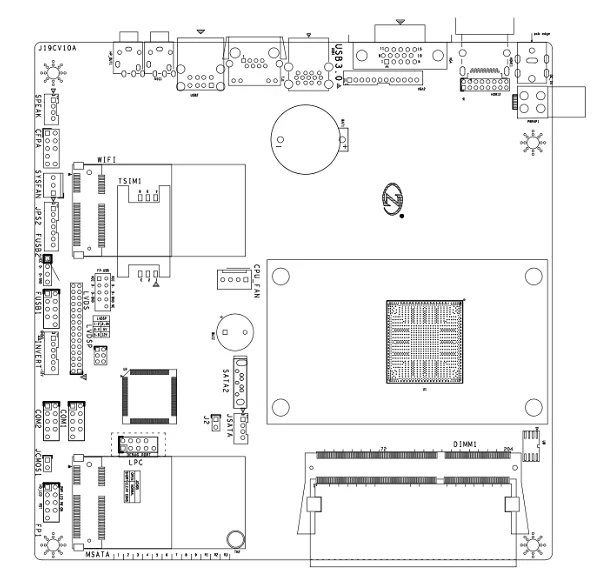

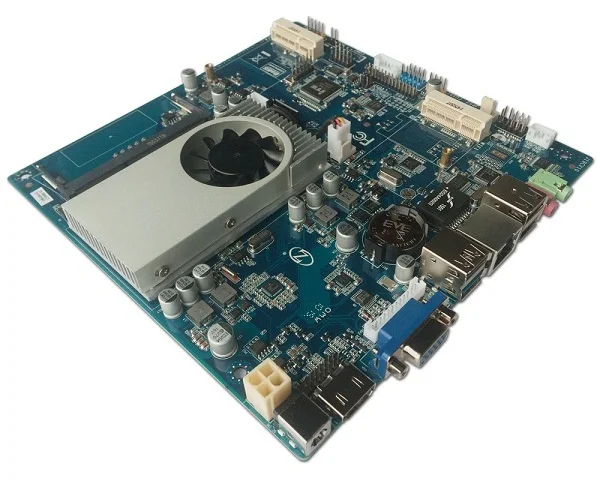

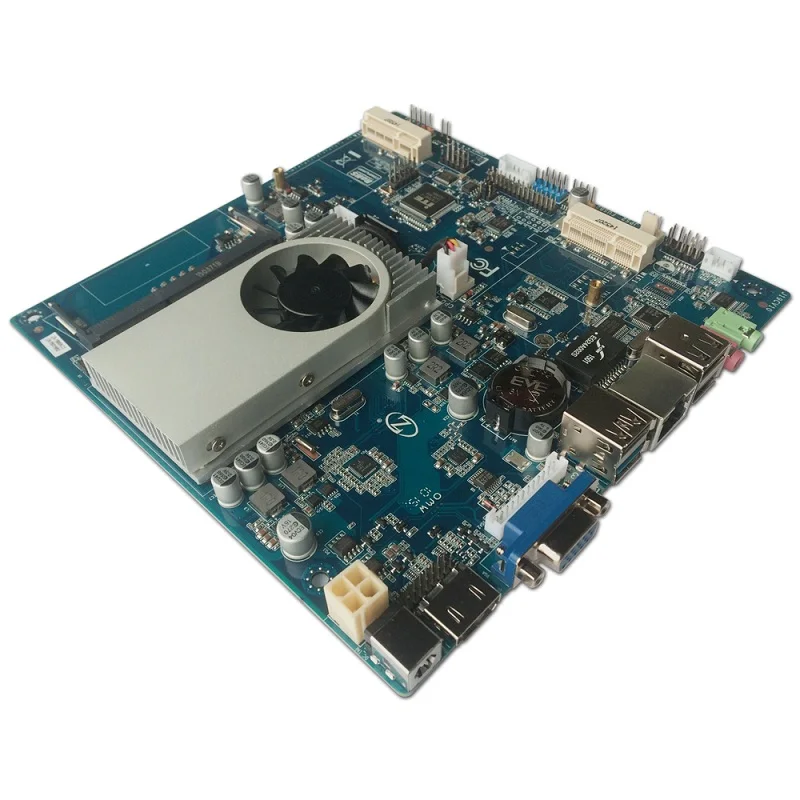

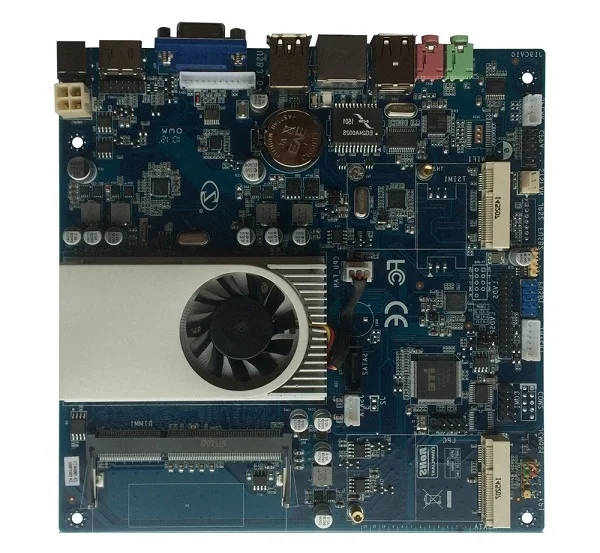

Embedded Mini ITX DDR3 motherboard with Intel J1900 onboard support HD/ VGA display

Model NO.

ZA-1900AC1

Size

170mm x 170mm

CPU

Intel J1900 Quad core 2.0GHz Processor

Memory

1* DDR3,1333/1066 MHz,Up to 8GB

Graphics

Intel HD Graphics

Chipset

J1900 (Single)

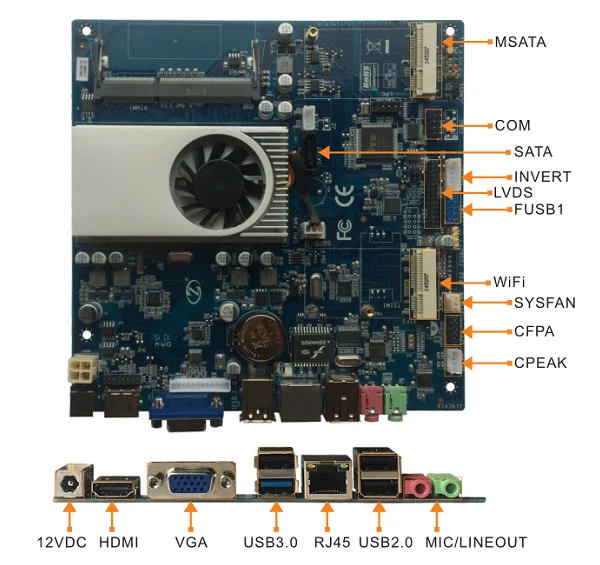

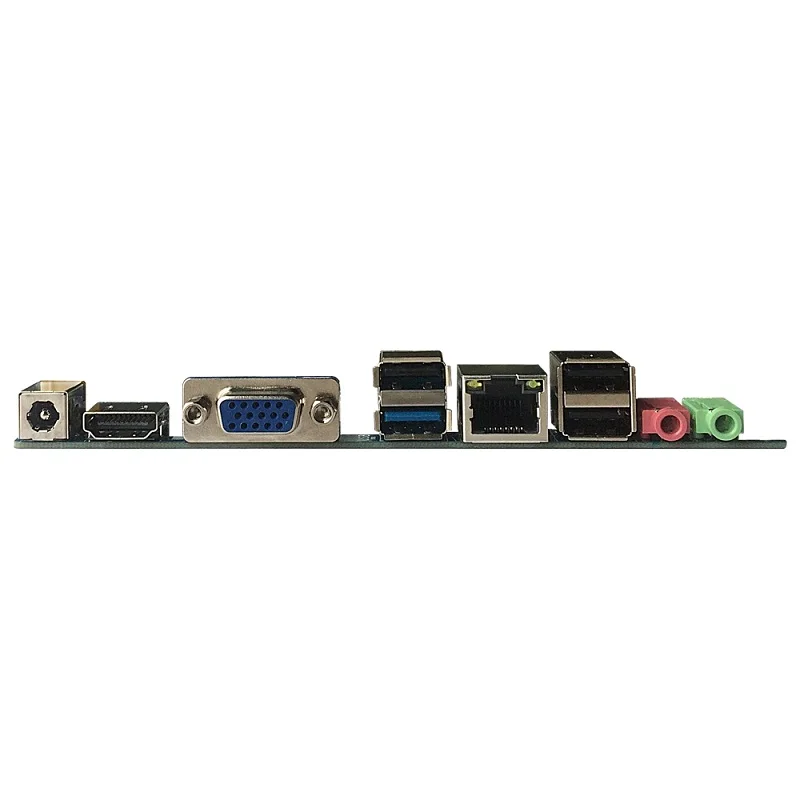

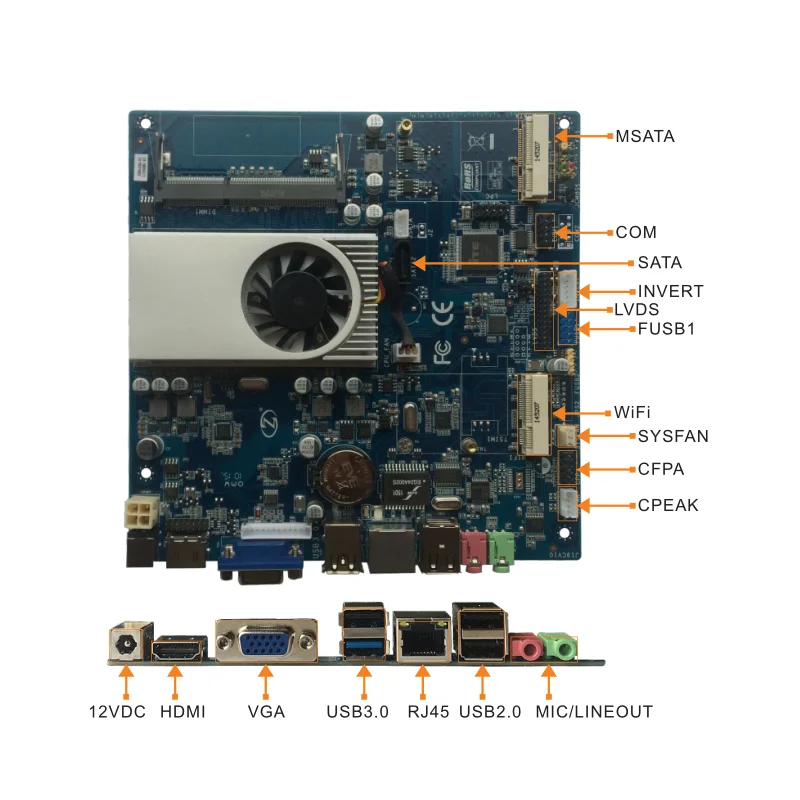

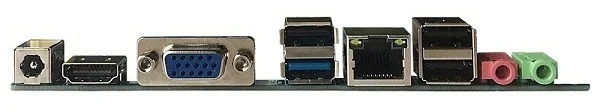

Rear I/O

1* DC Power Input (12V)

1* VGA

1* HD

3* USB2.0 And 1*USB 3.0

1* LAN

1* Mic-in/Lin-out

Internal I/O

2* Group USB PIN,Support 3* USB2. 0

2* CPU Fan And SYS Fan

1* SATA

1* COM PIN

1*4 Pin Power Input Port

1*Audio Pin

Storage

1* SATA ,1* MSATA Slot

BIOS

AMIBIOS,32M bit Flash Memory

H/W Monitoring

Temperature Management ,Voltage Management ,System Power Management

Audio

ALC662 Dual Channel Output

Operating System

Windows7, Windows 8,Windows10,Linux

Temp.

-10° C ~ 55° C

Humidity

0% ~ 95% (Relative Humidity ,No Condensation)
