Y31125E Gear Hobbing Machine Cutting Metal

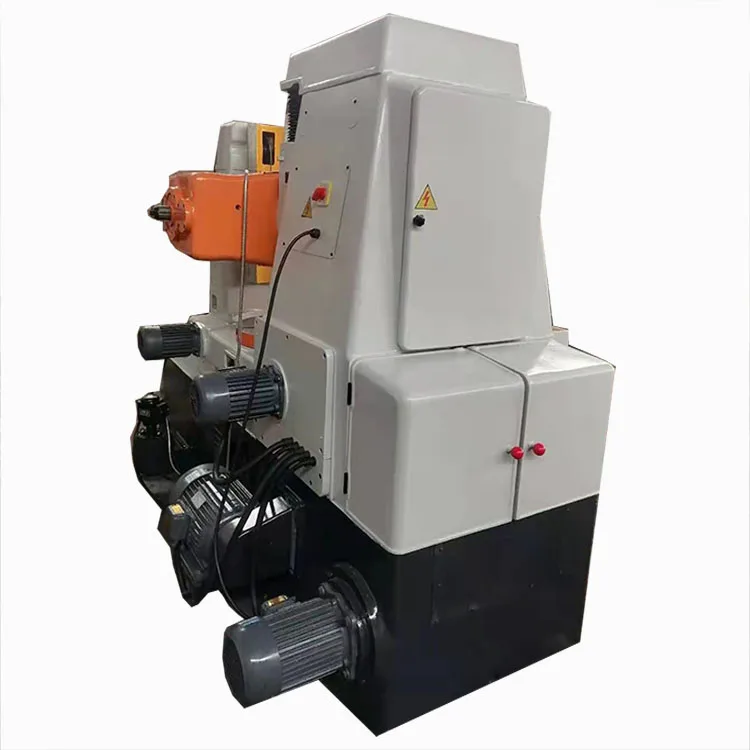

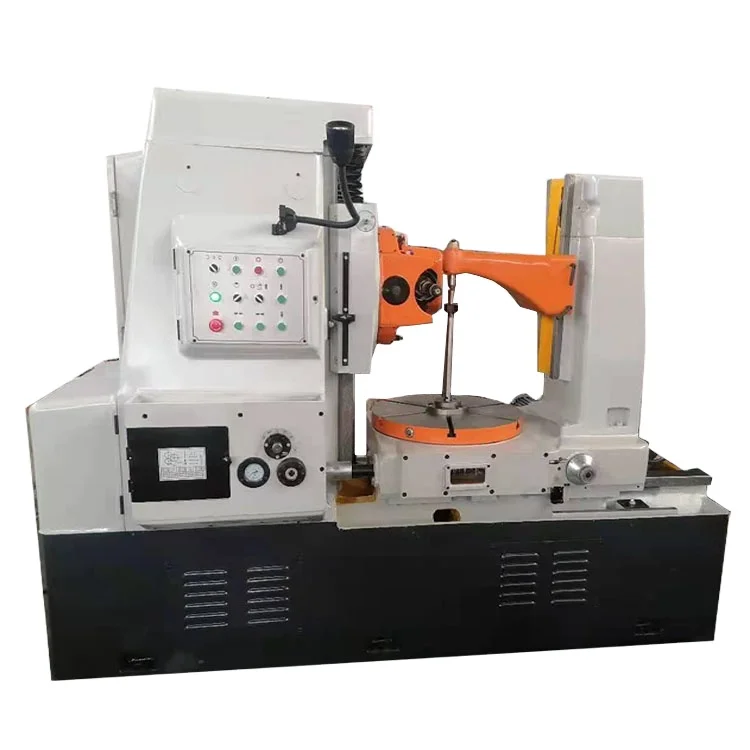

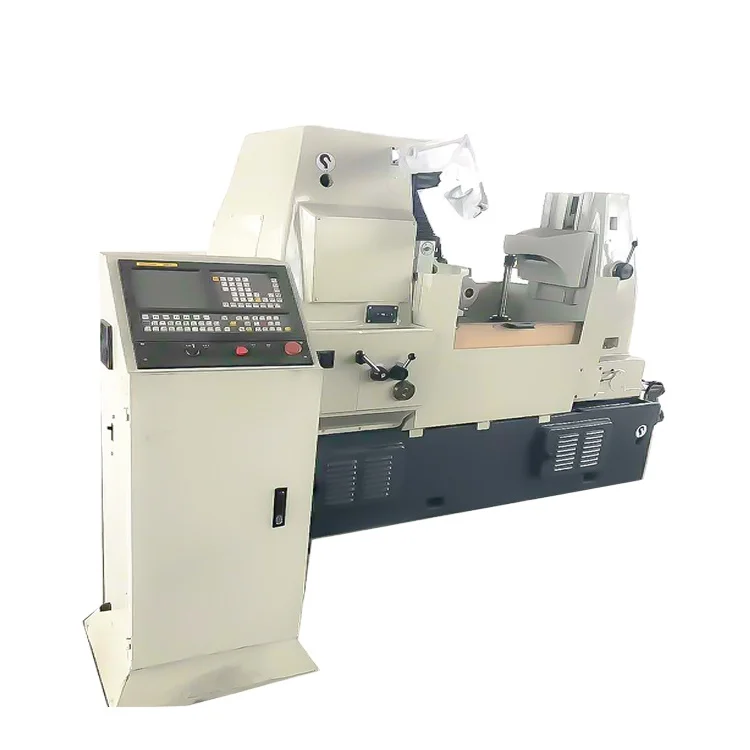

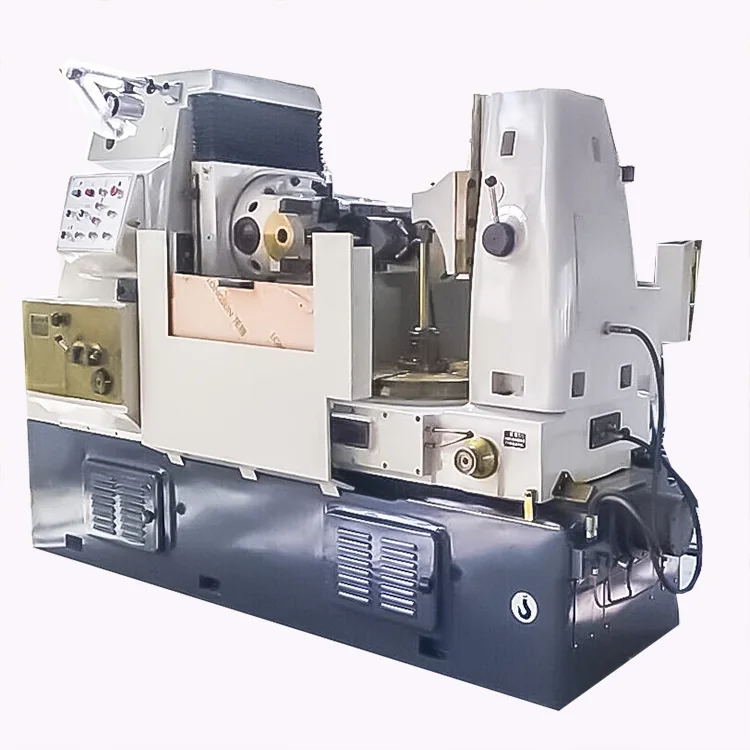

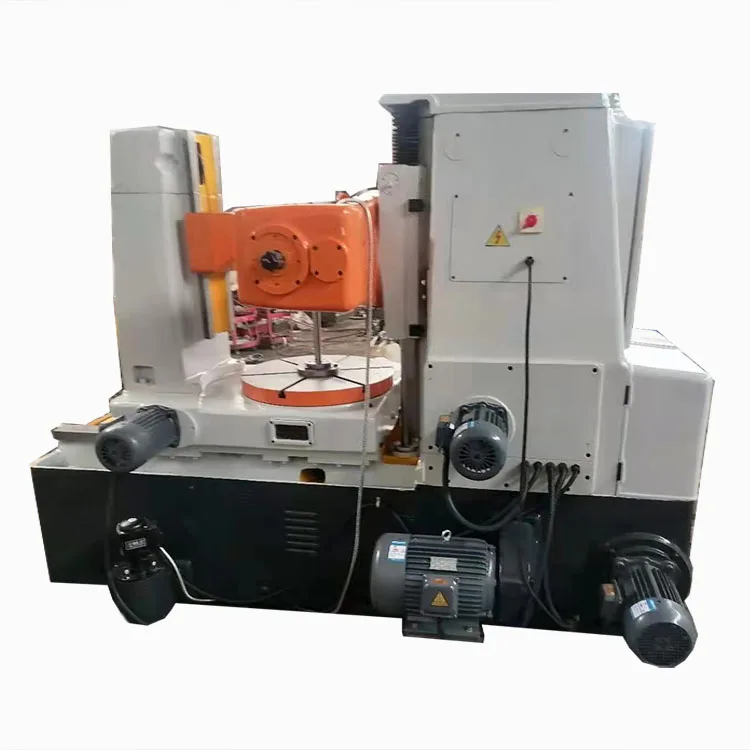

Detailed Images
gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece. The machine has the following characteristics:
1.Raised height for vertical column and increased stroke: The vertical column is made higher to enable processing of larger tooth width.
2.Service life of cutting tools is increased by electric tool leap. The longest stroke, such electric tool leap takes longer hob and greatly increases life the hob.
3.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
4.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
5.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
6.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
1.Raised height for vertical column and increased stroke: The vertical column is made higher to enable processing of larger tooth width.
2.Service life of cutting tools is increased by electric tool leap. The longest stroke, such electric tool leap takes longer hob and greatly increases life the hob.
3.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
4.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
5.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
6.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
Size Information
Main technical parameters | Y3150E | |||||
Max working module | steel (mm) | 6 | ||||
Cast iron(mm) | 8 | |||||
Max diameter of workpieces | With rear column (mm) | 350 | ||||
Without rear column (mm) | 500 | |||||
Machining width | 250 mm | |||||
Max diameter and length of hob | 160/160mm | |||||
The diameter of worktable | 510mm | |||||
Speed of main spindle | Grade | 9 | ||||
Range (r/min) | 40-250RPM | |||||
maximum axial movement of hob | 55mm | |||||
Main motor power | 4kw/1500rpm | |||||
Main spindle taper hole | Morse No.5 | |||||
The distance from hob center to worktable | 200-535mm | |||||
The distance from hob center to worktable center | 20-330mm | |||||
The distance from out support end face to worktable surface | 380-700mm | |||||
Worktable hole | 80mm | |||||
Max.swing over cross slide | 60° | |||||
Diameter of cutter arbor | 22 27 32 mm | |||||
Workpiece mandrel diameter | 30mm | |||||
Machine size | 2450*1272*1790mm | |||||
Gross weight/net weight | 5300/4500 kg | |||||
