Vertical MDP small tea bag sealing multi packaging machines herbal tea packaging machine
- Category: >>>
- Supplier: Sichuan KST Automatic Equipment Co. Ltd.
Share on (60808012978):
Product Overview
Description
Products Description

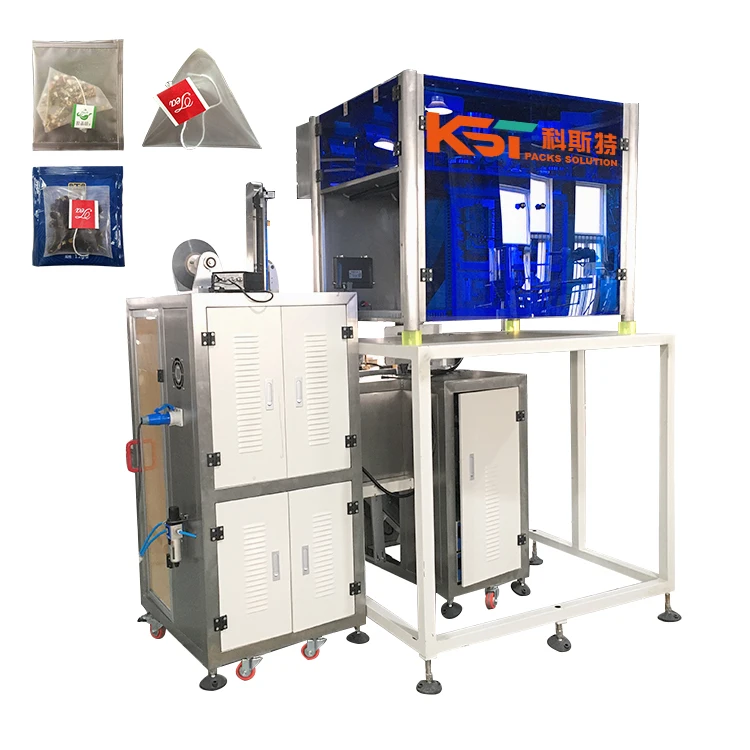

KST-FC16 Automatic Vertical Small Granule Pyramids Triangle Nylon Biodegradable Filter Tea Bag Sealing Packing Machine Price
Model | MD-FC16 | ||||||
Working Speed | 30-50 bags/min | ||||||
Sealing Method (Inner Parts) | Ultrasonic sealing | ||||||

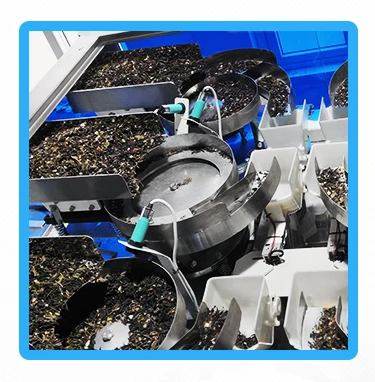

Filling System | 4 or 6 Vibrator Scales or Linear Scales | ||||||
Inner Film Width | 120, 140, 160mm or customized | ||||||
Filling range | 2~10g/bag | ||||||

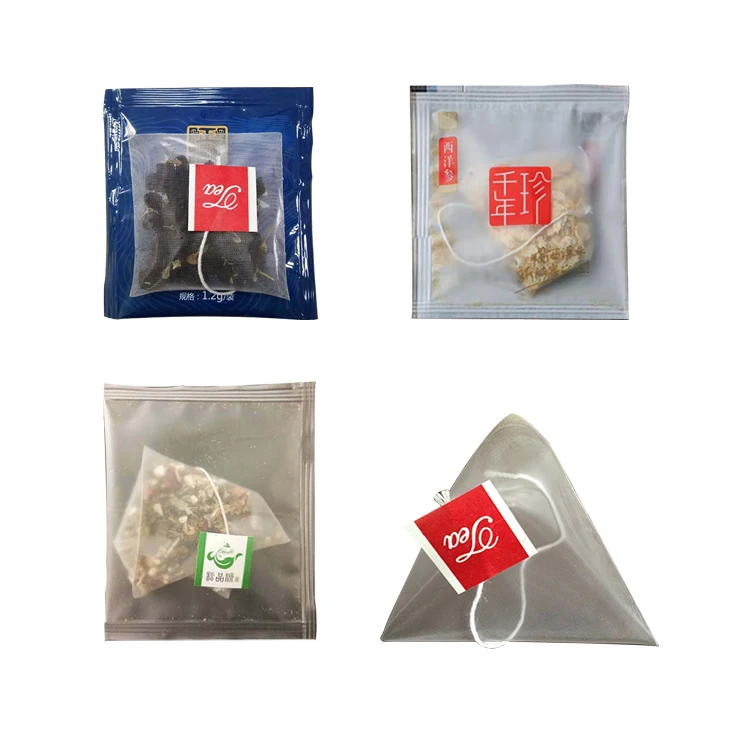

Bag Type | Inner pyramial tea bag with envelope; or Inner pyramid/fat tea bag only | ||||||
Air Comsumpion | ≥0.8Mpa | ||||||
Power | 220V Single phase 50/60Hz | ||||||
Weight | 550kg | ||||||
Overall Denmensions | 2120 * 1600 * 2400mm | ||||||
MD-FC16, the INTEGRATED multifunctional packing machine, specially design for pyramid drip coffee bag packing with outer envelop.
Adopts the FULL ULTRASONIC SEALING and OPTIONAL ELECTRONIC SCALE, the accuracy reaches at ±0.2grams per bag.
Besides, it can be also applied to different kinds of herbal teas, tea leaves, flower teas and blending tea.

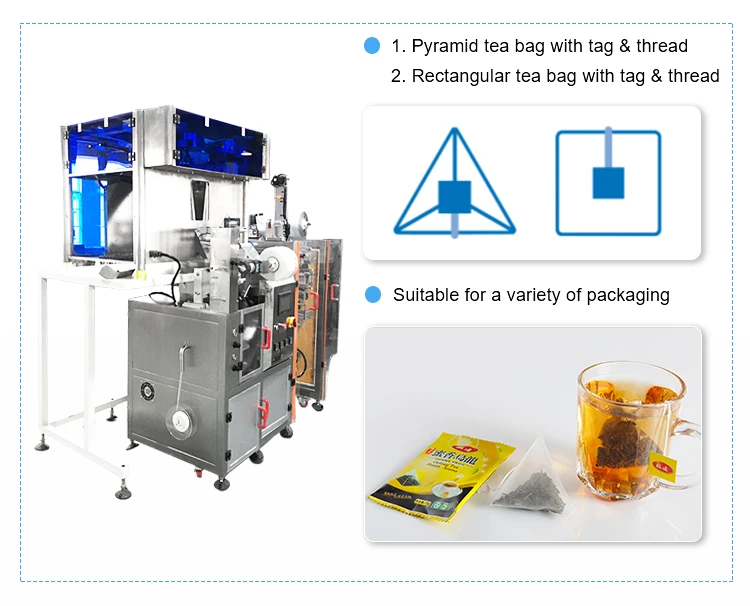

Rectangular and pyramid bag with easy shift on touch screen.

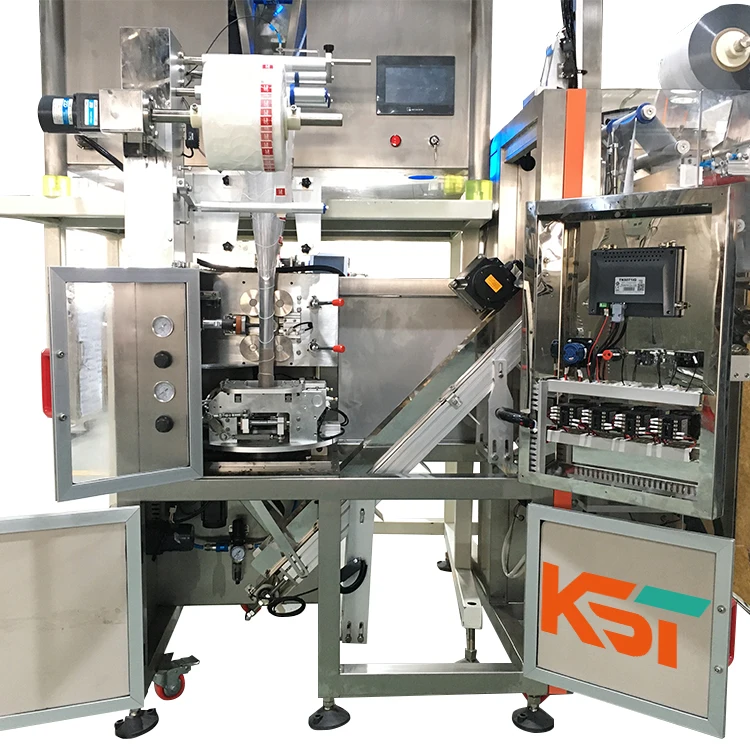

The machine can automatically complete feeding, measuring, bag-making, sealing, cutting off counting,
Precise control system is adopted to adjust the movement of the whole machine, with compact structure,
The bag length is driven by servo motor, the bag length is stable, the positioning is accurate, the
Automatic alarm and shutdown function in case of failure.
The machine can automatically complete feeding, measuring, bag-making, sealing, cutting off counting,
finished product transportation and other functions.
Precise control system is adopted to adjust the movement of the whole machine, with compact structure,
human-machine interface design and convenient operation. Easy to adjust and maintain.
The bag length is driven by servo motor, the bag length is stable, the positioning is accurate, the
adjustment is convenient.
Automatic tension control device for packaging materials.
Automatic alarm and shutdown function in case of failure.
01丨Control System
Touch Screen + PLC
02丨Sealing System
Ultrasonic Sealing
03丨Data Coding System
Ribbon Coder / Thermal Transfer
Overprinter
04丨Conveyer System
304 Stainless Steel and Stepping Motor Controlling Assured Stability
