Смарт карта SLE5542, Заводская контактная чиповая карта 2k SLE5542, индивидуальный логотип CMYK, офсетная/шелковая/Цифровая печать
- Category: Access Control Systems & Products >>>
- Supplier: Shenzhen Mingwah Aohan Internet Of Thing Technology Corporation Ltd.
Share on (60808088739):
Product Overview
Description

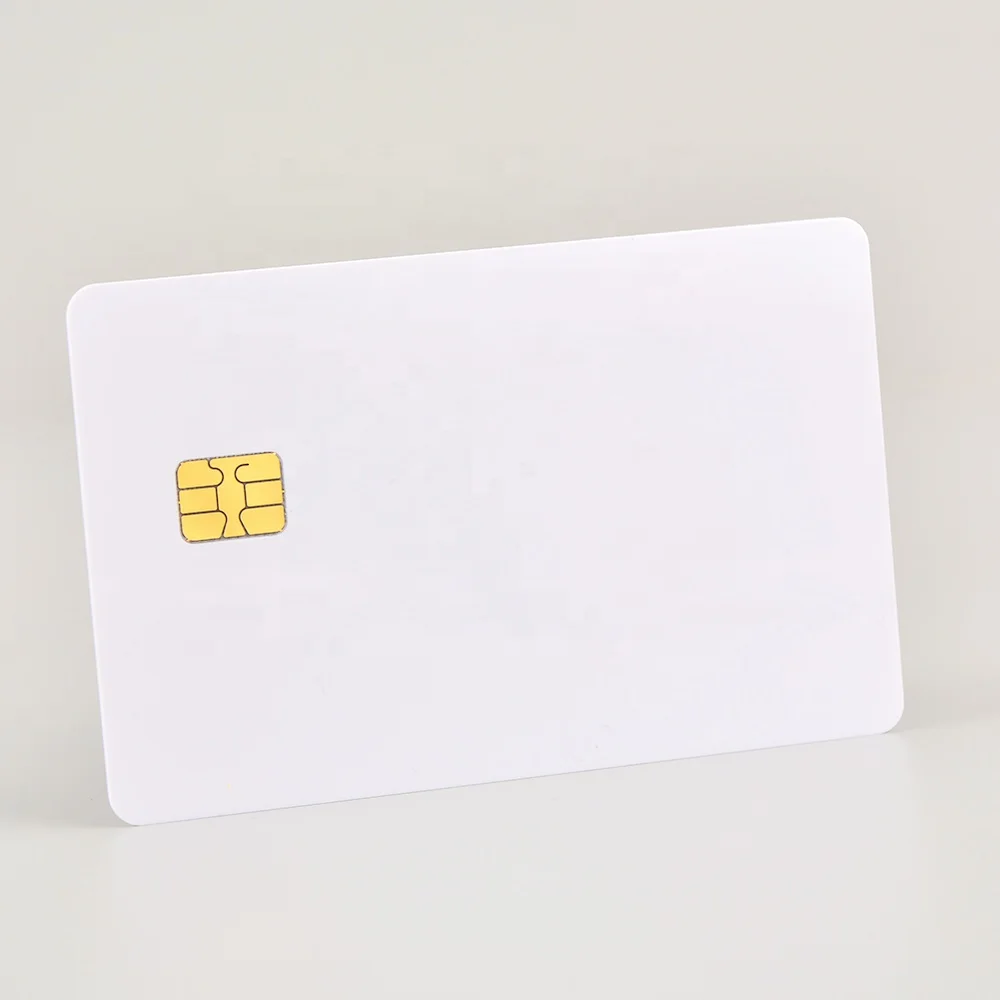

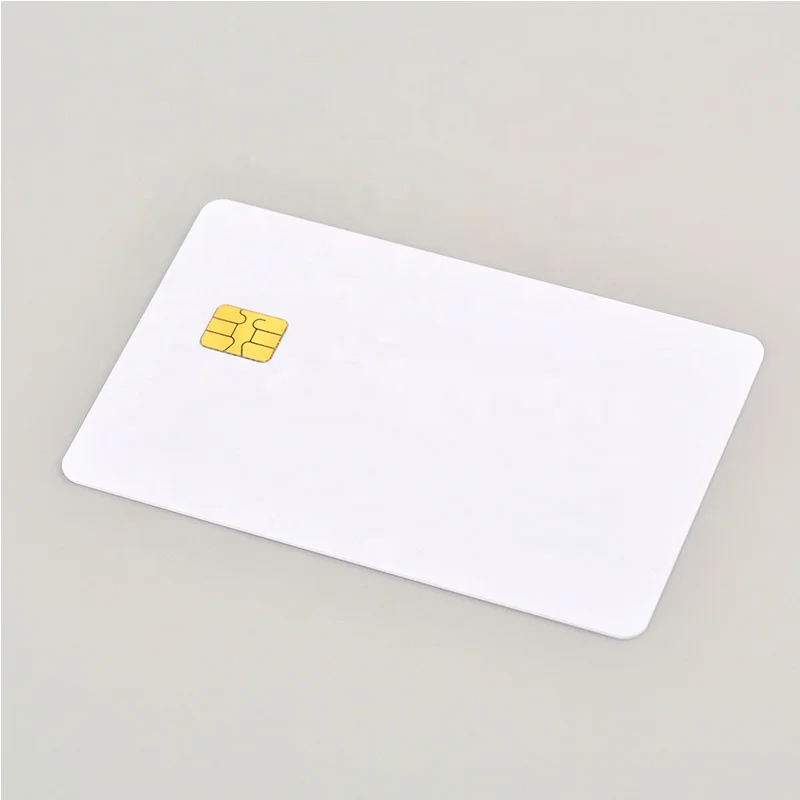

Smart Card Factory Contact Chip Card 2k SLE5542
The SLE5542 is a standard, low-cost memory smartcard. It has 256 bytes EEPROM memory plus 32 x 1 bit protection memory. The SLE5542 is a fully-compatible, upgraded version of the SLE4442. Infineon has migrated the data carrier family to the IMEM CMOS technology. IMEM is conceived for security applications and offers unsurpassed physical and electrical protection schemes.
Product Description
Specification
Special Features | Waterproof / Weatherproof |
Customized support | Customized logo |
Brand Name | M&W |
Material | Superior/Graphic Quality PVC/PET Cards |
Chip | 4442, FM4442; SLE5542; ISSI4442 |
Standard | ISO7816 |
Size | 85.5*54mm, International standard size or Customized |
Type | Contact IC card |
Surface | Glossy, matte, frosting, ect |
Printing | CMYK Offset Printing; Silk printing; Digital printing etc |
Craft | Signature Panel; Magnetic stripe; Embossing; Laser etc |
4442/5542 IC card is a logical encryption card that also belongs contact IC card, it’s been successfully applied in various industries with its small memory and stable performance.
Main index: 256bytes EEPROM 32bits protection memory
At least 100,000 rewritable times
At least 10 years data storage
Size: 86*54 mm, can be customized
3bytes user password, allow able password mistakes: 3 times
Security features:
1. Every byte in write protection area (the first 2bytes) can run write protection individually, the content cannot be changed
(data solidification) after write protection.
2. All data can be read before password is proved, the data can be encrypted if necessary.
3. Can be written or changed after password is proved
4. User password of 3 bytes can be changed after being proved, it will be valid until the battery is out.
5. The initial value of incorrect password calculator is 3, 1 will be less if the password is proved wrong for 1 time. If the
value of calculator is 0, the card will be locked,which means the data can be read only, cannot be written, changed or continue to prove the password; if it is not 0, it can go back to initial value as long as the password is proved right just for once.
6. Byte address 21-26 is the user code, we canset the global unique code for big users to issue conveniently(all the cards cannot be changed after release)
7. Byte address 0-5, 6-7 have been set before release and cannot be changed.
At least 100,000 rewritable times
At least 10 years data storage
Size: 86*54 mm, can be customized
3bytes user password, allow able password mistakes: 3 times
Security features:
1. Every byte in write protection area (the first 2bytes) can run write protection individually, the content cannot be changed
(data solidification) after write protection.
2. All data can be read before password is proved, the data can be encrypted if necessary.
3. Can be written or changed after password is proved
4. User password of 3 bytes can be changed after being proved, it will be valid until the battery is out.
5. The initial value of incorrect password calculator is 3, 1 will be less if the password is proved wrong for 1 time. If the
value of calculator is 0, the card will be locked,which means the data can be read only, cannot be written, changed or continue to prove the password; if it is not 0, it can go back to initial value as long as the password is proved right just for once.
6. Byte address 21-26 is the user code, we canset the global unique code for big users to issue conveniently(all the cards cannot be changed after release)
7. Byte address 0-5, 6-7 have been set before release and cannot be changed.
Surface production process
Product packaging
1. Plastic seal the cards
The single sheet weight is about 0.0065 kg.
2. Boxed (200pcs)
Weight is about 1.3 kg.
3. Plastic seal the box
Size of the box: 22.5cm * 10cm * 6cm
4. In carton (1000/2000/3000pcs)
5. Packed in carton
6.Pallet loading
Our factory
FAQ
1.Why does the price has a wide range on your listing? How can i get the appropriate price?
The price of product is based on IC to use since same application has different options availlable, and customized crafts on cardbody have different cost as well.Please send your inquiry details to us via email or ask for more information from onlineTrade Messager. Our customer service will give you appropriate advice and send you quote ASAP.
2. Do you provide customized card size?
2. Do you provide customized card size?
Yes, we are providing customized card size from 0.3mm to 1.2mm in thickness, and indifferent length and width. We also provide the international standard size:''85.5mm*54mm*0.76m, also known as CR-80, just exactly the same size as a credit card.
3. May I have some free samples?
Yes, we are so glad to send you some current samples for your reference. The samples are free, you just need to handle the delivery cost.
4. Is there color difference between the original design and actual cards?
The fact is that the colors shown on the monitor we saw and the color printed in actual products have differences. For the best quality effect, you may provide us a match sample or the specify Pantone colors. We match the colour over 90% which is much more above the industry average of 80%
5. How long will I get my cards?
It depends on the shipping method chose, the craft and the number of cards produced. Normally,the cards will be sent out with in 7~15 days after payment is completed.
6. Which method of payment shall I use?
The trade assurance order is recommended. Alibaba platform will protect your orders from payment to delivery.
7. Is delivery cost included?
Since delivery costs are varies for different regions, customers are advised to handle their own delivery.
3. May I have some free samples?
Yes, we are so glad to send you some current samples for your reference. The samples are free, you just need to handle the delivery cost.
4. Is there color difference between the original design and actual cards?
The fact is that the colors shown on the monitor we saw and the color printed in actual products have differences. For the best quality effect, you may provide us a match sample or the specify Pantone colors. We match the colour over 90% which is much more above the industry average of 80%
5. How long will I get my cards?
It depends on the shipping method chose, the craft and the number of cards produced. Normally,the cards will be sent out with in 7~15 days after payment is completed.
6. Which method of payment shall I use?
The trade assurance order is recommended. Alibaba platform will protect your orders from payment to delivery.
7. Is delivery cost included?
Since delivery costs are varies for different regions, customers are advised to handle their own delivery.
Company Profile
Since its foundation in 1992, Shenzhen Mingwah Aohan has now grown into a Hi-Tech entity with smart card as its core technology
and become one of the biggest, most advanced, and best run manufacturers of IC cards in China through 28-years painstaking
efforts.
In 1995, it introduced the first IC cards assembly line in China and became the first to manufacture IC cards by adopting the
technique integrating printing, filming with packaging. In another word, every 5 Chinese owns one M&W card.
and become one of the biggest, most advanced, and best run manufacturers of IC cards in China through 28-years painstaking
efforts.
In 1995, it introduced the first IC cards assembly line in China and became the first to manufacture IC cards by adopting the
technique integrating printing, filming with packaging. In another word, every 5 Chinese owns one M&W card.
At present, it employs more than 500 staff members and establishes the biggest nationwide service network, consisting of 21 branches, in the field of IC cards.
The Corporation has set up R&D centers in Beijing, Shenzhen, and Wuhan successively. focusing on developing three series products of 5 projects including SmartCOS for smart card operating system, eKey, IC card readers (including radio frequency), IC card terminals and key management system.
Mingwah has remained a remarkable market share and stable clients for years.
The Corporation has set up R&D centers in Beijing, Shenzhen, and Wuhan successively. focusing on developing three series products of 5 projects including SmartCOS for smart card operating system, eKey, IC card readers (including radio frequency), IC card terminals and key management system.
Mingwah has remained a remarkable market share and stable clients for years.
