Product Overview
Description
Product Description

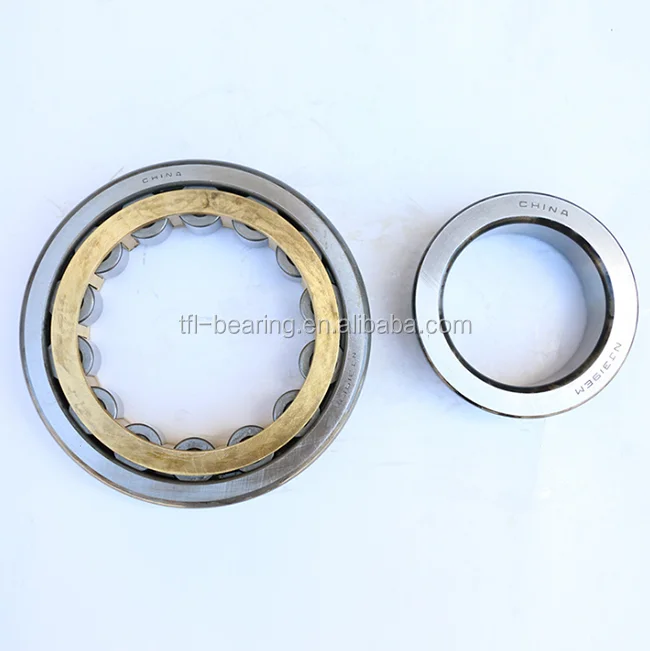

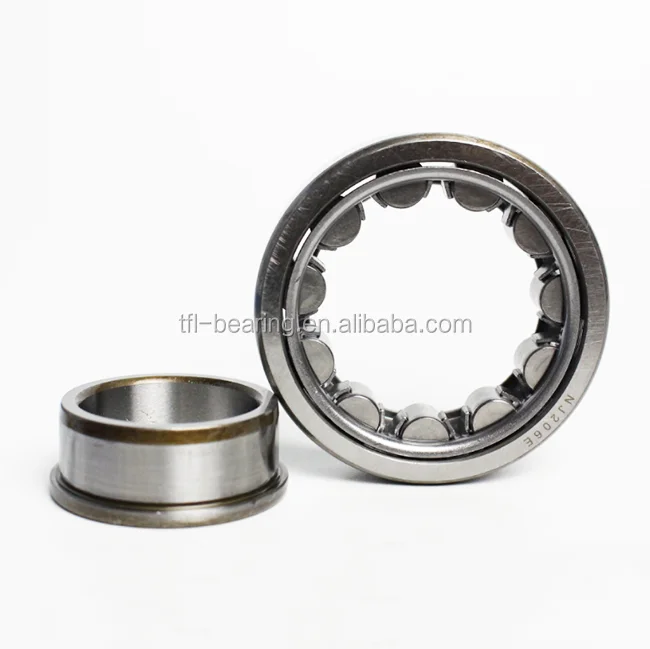

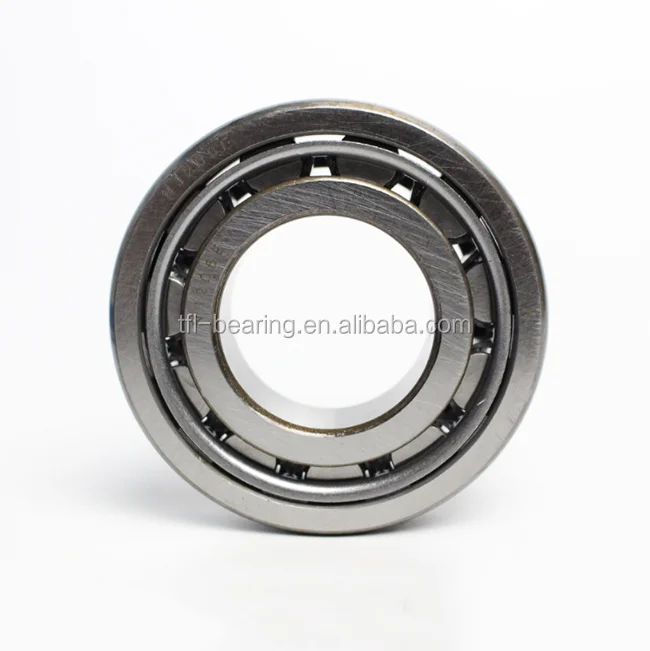

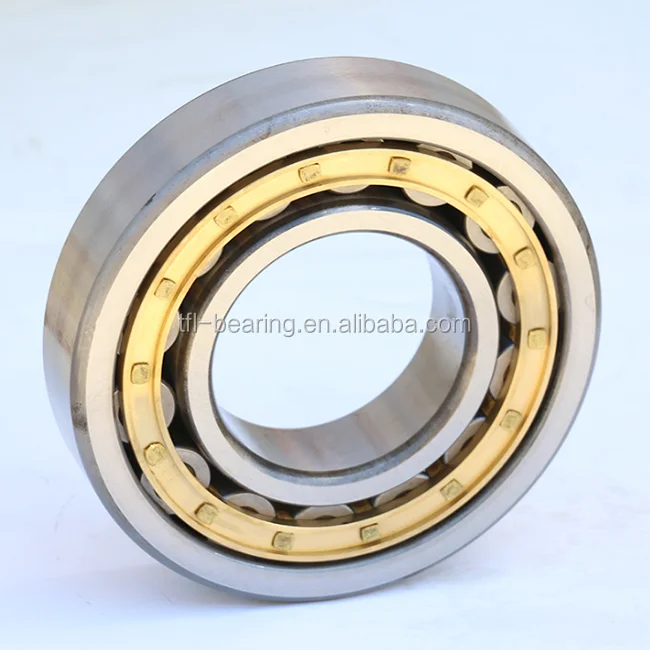

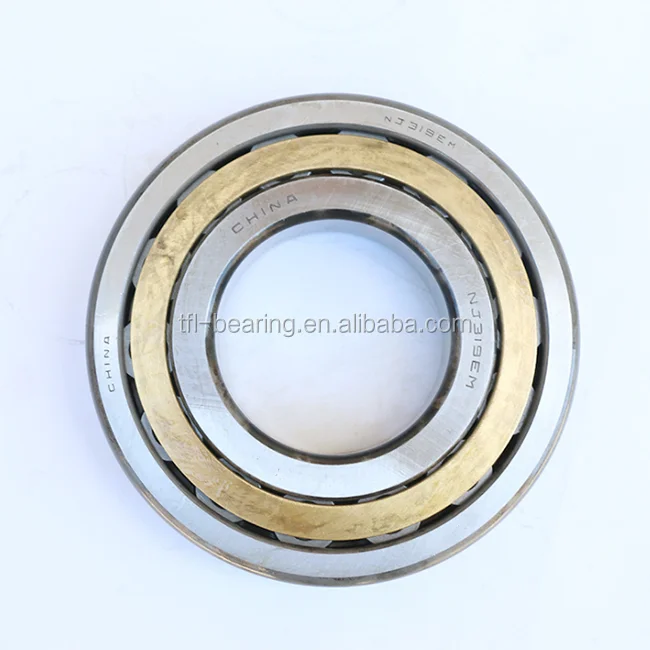

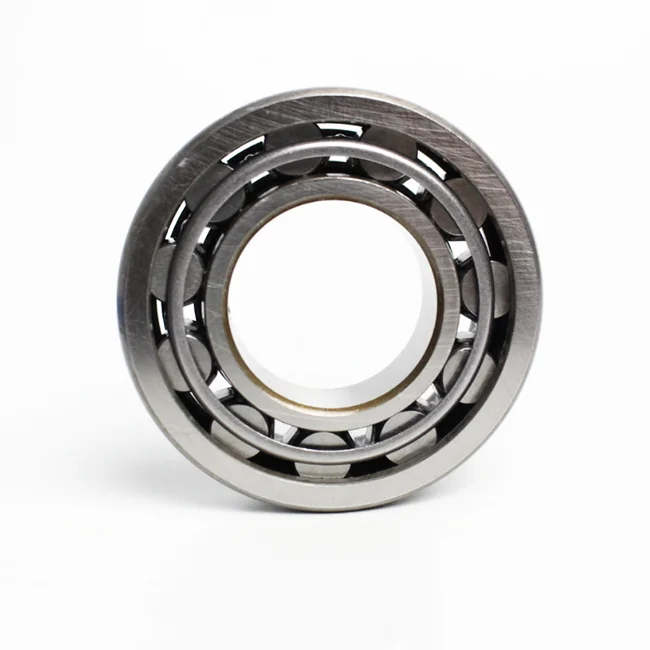

Chrome steel ABEC3 Z2 V2 Cylindrical Roller Bearing NJ206 NJ206E
TFL Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements.This kind bearing are generally only used to bear radial load, compared with the same size deep groove ball bearings, have a greater radial load capacity, speed close to the deep groove ball bearings, but with such a bearing with the shaft higher processing requirements shell holes, allowing the inner ring and outer ring axis tilt axis is small as beyond the limits of the two axis tilted roller in contact with the ring raceway situation will deteriorate severely impact of load bearing capacity, reduce bearing life. Therefore, these bearings need to be installed, such as the role of the host axial load component, only the simultaneous use of other types of bearings to withstand axial load premise before use.

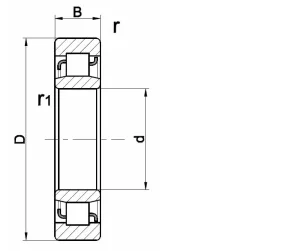

| Bearing Type | Inside Diameter(mm) | Outer Diameter(mm) | Width(mm) | Net Weight(kg) |
| NJ202 | 15 | 35 | 11 | 0.06 |
| NJ203 | 17 | 40 | 12 | 0.07 |
| NJ204 | 20 | 47 | 14 | 0.14 |
| NJ205 | 25 | 52 | 15 | 0.16 |
| NJ206 | 30 | 62 | 16 | 0.24 |
| NJ207 | 35 | 72 | 17 | 0.30 |
| NJ208 | 40 | 80 | 18 | 0.35 |
| NJ209 | 45 | 85 | 19 | 0.52 |
| NJ210 | 50 | 90 | 20 | 0.587 |
| NJ211 | 55 | 100 | 21 | 0.69 |
| NJ212 | 60 | 110 | 22 | 0.90 |
| NJ214 | 70 | 125 | 24 | 1.36 |
| NJ215 | 75 | 130 | 25 | 1.40 |
| NJ216 | 80 | 140 | 26 | 1.53 |
| NJ217 | 85 | 150 | 28 | 2.17 |
| NJ218 | 90 | 160 | 30 | 2.72 |
| NJ219 | 95 | 170 | 32 | 2.90 |
| NJ220 | 100 | 180 | 34 | 3.50 |
Packaging & Shipping
Shipment:
1. By FedEx /DHL /UPS /TNT /EMS door to door services.
2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.
3. Customers specifying freight forwarders or negotiable shipping methods are available.
Payment:
A:100% L/C at sight
B:30% T/T in advance,70%T/T balance or 70% against copy of B/L
C:Western Union
D:Paypal and so on
Our Services
1) Full technical support from concept design to final product delivery
2) On-time delivery with no compromise on quality
3) High-quality product making with advanced equipment and techniques
4) Any questions to be sent will get response within 24 hours
Company Information
Shandong Tefule Bearing Co.,Ltd
is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 10 years and made international trade of bearing import and export for more than 8 years.We have our own brand "TFL" and applied ISO9001:2000 certificate for certification authority.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
Our company is specialized in ball bearing,roller bearing,housing units, wheel hub bearing,bearing parts and accessories, cross roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.
About Factory
FAQ
Q: Are you trading company or manufacturer?
A: We are factory. Shandong Tefule Bearing Co.,Ltd integrates production, trade, investment and sales.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods out of stock, depends on order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could provide free samples, but freight collect.
Welcome to contact me anytime~
