Hsinda Factory Low Price Plastic Hobby Lab Portable Test System Powder Coating Manual Spray Machine Cup Gun
- Category: Building Coating >>>
- Supplier: Chengdu Hsinda Polymer Materials Co. Ltd.
Share on (60808093036):
Product Overview
Description
Product Overviews

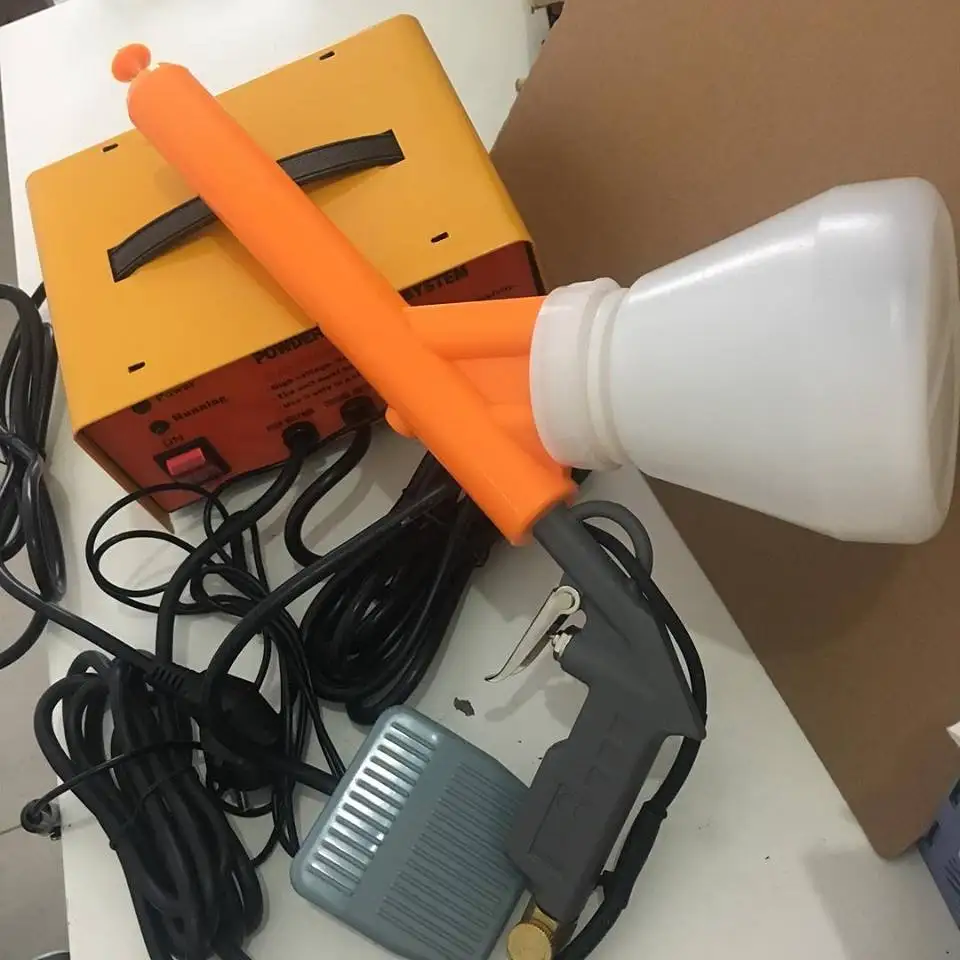

Hsinda Factory Low Price Plastic Hobby Lab Portable Test System Powder Coating Manual Spray Machine Cup Gun
√It is suitable for plastic coating on the surface of all kinds of metal parts. Characteristics: The surface treatment is beautiful ,with high and quick coating finishing rate. It also has overload protection. Performance is consistent, operation is simple and safe.
Product Description
• System provides a minimum 80% transfer efficiency
• 1/4 NPS air inlet
• 10-30 PSI input air pressure
1. Supply Voltage:120-240VAC 50-60HZ
2. Output high pressure:8-30KV
3. Air joint:1/4Inch
4. Powder spraying speed:1.2m²/min
5. Weight:3kg
6.dimensions (L*W*H):42cm*30.5cm*26.5cm
SPECIFICATIONS
Item | Description |
Power Consumption | 120 -240VAC,50-60HZ |
Output high pressure | 15-30KV |
Line Cord | 6 feet long,16 AWG,3-prong grounded plug |
Air Supply Pressure | 10 to 30 PSI |
Cubic Feet Per Minute | 3.5 CFM at 30 PSI |
Air Inlet Size | 1/4 inch |
Remote Activation Switch | 10 feet long |
Gun Power Lead | 8 feet ,high voltage lead |
Grounding Cable | 8 feet long with ground clamp |
Control Box Fuse | 0.5 amps |
Paint Curing Temperature | 400 degrees F. for 15 minutes(recommended) |
Weight | 6.35 lbs |

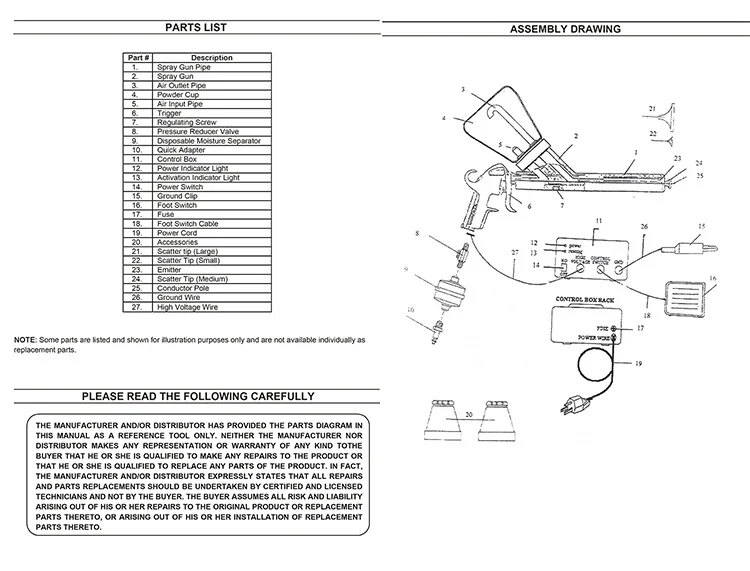

PARTS LIST AND ASSEMBLY DIAGRAM
Part | Description | Q’ty |
1 | Control Box | 1 |
2 | Spray Gun | 1 |
3 | Scatter Tips | 3(Small,Medium,Large) |
4 | Powder Cups | 2 |
5 | Pressure Reducer Valve | 1 |
6 | Disposable Moisture Separator | 1 |
7 | Quick Adapter | 1 |
8 | Foot Switch | 1 |
9 | Power Cord | 1 |
10 | Ground Wire and Clip | 1 |
