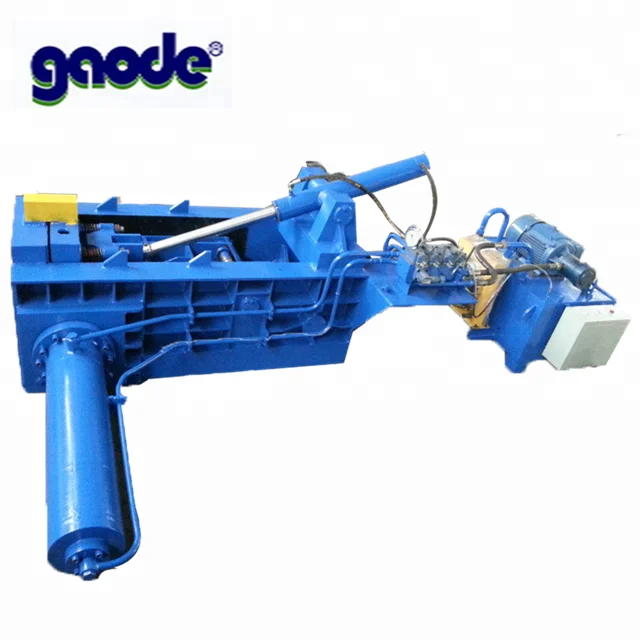

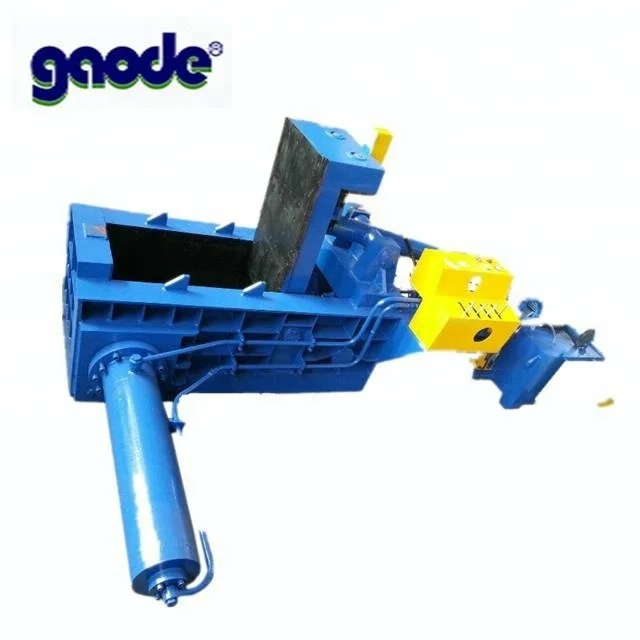

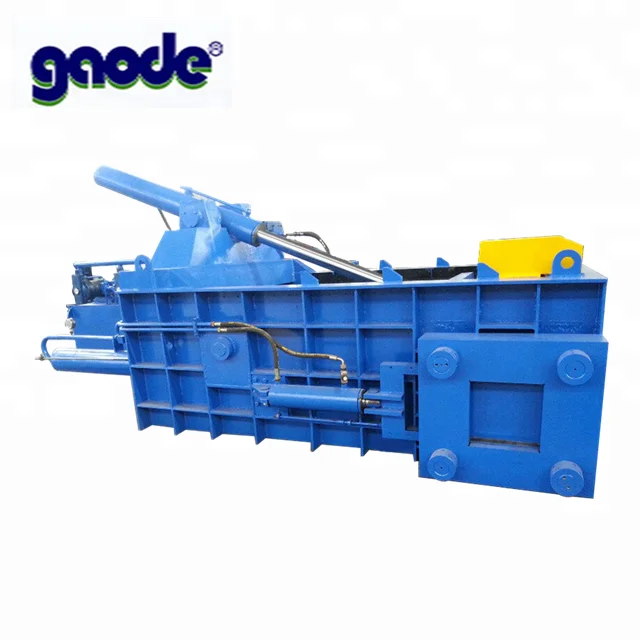

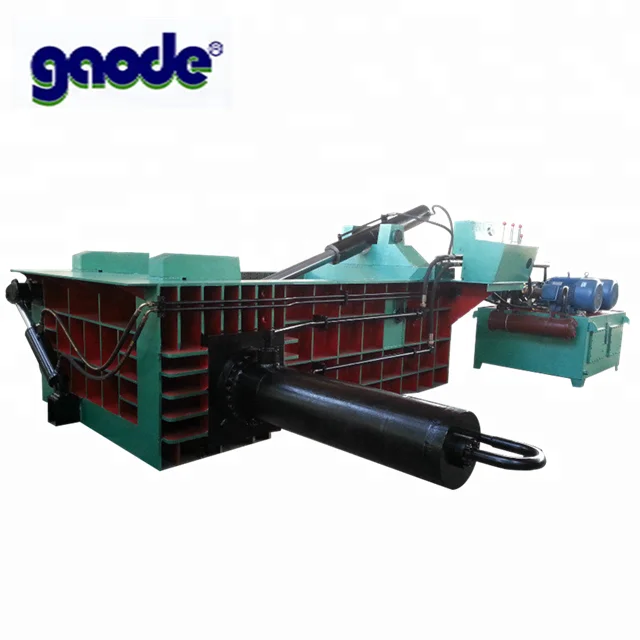

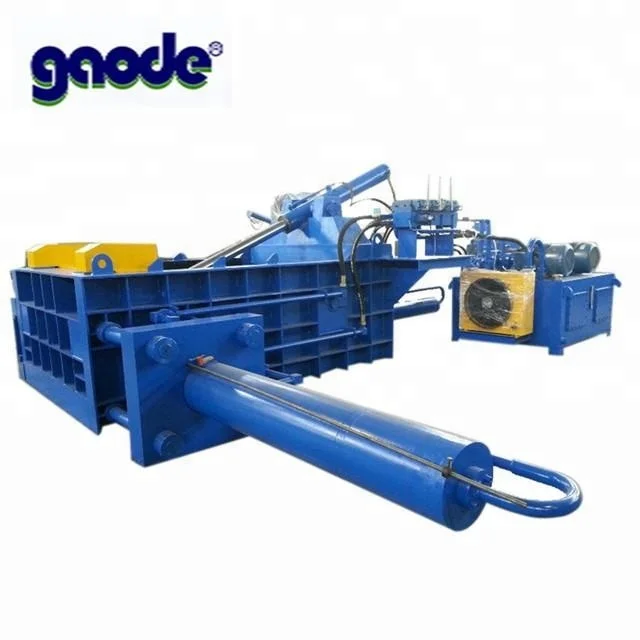

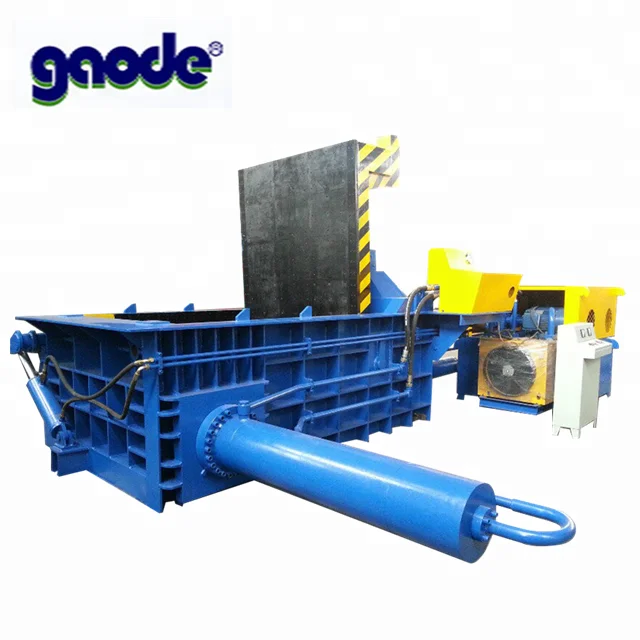

Recycling equipment for scrap metal cutting processing machine
Product Description
Specifications:
(1)HC81T-1600 is with hydraulic driver and manual valve
(2) easy installation
(3)can be customized with sample size
Application:
HC81 Series of hydraulic metal balers are applicable in steel plants. recycling companies. ferrous&non. ferrous smelting industry to press metal scraps(steel,cooper, aluminum,stainless steel,discarded automobiles) into acceptable furnace charges(shapes:cuboid,cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Features:
1.Hydraulic driver for all machine types,manual valve control or PLC control.
2.Bale-discharging: "turn-out", "push-out“ or manual discharging.
3.No footing bolts needed in installation:diesel engine can be equipped for power.
4.Baling force 10 grades from 63 to 400 tons. productivity from 4 to 40 tons per shift( 8hours)
5.Press box size, bale size& bale shape can be customized.
Technical parameter :
Main Cylinder
Model
YG220/160-405
Quantity
1 Set
Nominal Force
1000KN
Stroke
405MM
Side Cylinder
Model
YG200/140-830
Quantity
Nominal Force
800KN
Stroke
830mm
Lid Cylinder
Model
YG110/75-795
Quantity
1 PCS
Nominal Force
250KN
Stroke
795mm
Turn-out Cylinder
Model
YG100/65-340
Quantity
1 PCS
Nominal Force
80KN
Stroke
340mm
Hydraulic System Pressure
21.5MPa
Press Box Size(L*W*H)
1000*600*500mm
Bale Size(W*H)
200*200mm
Cycle Length
App. 130 Sec
Hydraulic Pump
Model
40YCY14-1B
Quantity
1 set
Nominal Outflow
40ml/r
Nominal Pressure
31.5MPa
Motor
Model
Y160M-4
Quantity
1 set
Nominal Power
11KW
Nominal Speed
1470rpm
Company Information
Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
Our Exhibition
Our Certification
Welcome To Our Factory
Our Services
6months guarantee for whole machine.
24hours technical support by email.
Calling or door to door service.
User manual and detailed video.
FAQ
1,Q;Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory. Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
