Portable Light weigh Digital Ultrasonic Flaw Detector Industrial Leveled TFT display
- Category: >>>
- Supplier: Guangdong Shantou Goworld Electronic Co. Ltd.
Share on (60808207280):
Product Overview
Description
Product Description
The CTS-1002plus is a light-weight instrument with excellent performance which accumulates the experiences of 50 years for making ultrasonic instruments. This instrument is EN12668-1:2010 compliance and has an industrial-leveled TFT display with full WVGA(800*480) resolution providing superior visibility in all lighting conditions, including direct sunshine.
CTS-1002/1002plus Specification Comparison
| Specs | CTS-1002 | CTS-1002plus |
| RF | × | √ |
| A-scan Memory(sets) | 500 | 1000 |
| Curvature Consideration | × | √ |
| Indices Test | × | √ |
| Pulse Width | 50-800ns | 30-1000ns |
| PRF Adatation | Auto | Auto/Manual |
| Spotting | Peak | Peak/Flank |
| Waterproof Grade | Ip54 | Ip54 |
Specification:
| Transmitter Pulse | -Ve Square Wave Pulse,Transmitter Pulse Voltage:25~250V, |
| Test Modes | Pulse echo and dual transmission |
| Damping | 400,80 Ohm |
| Frequency | Broadband/narrowband optional.Broadband:0.5~20MHz. Narrowband:1.5~3MHz |
| Gain | 0.0~110.0dB.Steps as 0.1/1.0/2.0/6.0dB |
| Material Velocity | 1000~15000m/s continuously adjustable.Set-in 30 common material velocities selectable |
| Test Range | 0.0~10000mm longitudinal wave at steel velocity. |
| Rectification | Positive halfwave, negative halfwave, full wave, RF |
| Alarm | Real-time alarm signal, positive and negative thresholds, minimum depth, DAC alarm optional |
| Measuring Mode:Select front edge or peak of pulse wave in gate | |
| Display | 4.3" industrial-leveled TFT color LCD with 800×480 WVGA resolution |
| Pulse Shift | -7.5~3000μs |
| Probe Zero | 0~999.9μs |
| Pulse Repetition Frequency | 25~800Hz, auto adjustment mode |
| Vertical Linearity Accuracy | ≤3% |
| Horizontal Linearity Accuracy | ≤0.2% |
| Surplus Sensitivity | ≥60dB(200 diameter 2 FBH) |
| Resolutions | ≥36dB(5P14) |
| Dynamic Range | ≥32dB |
| Reject | (0~90)% |
| Electric Noise Level | <10% |
| Interface | Q9 transducer cable connectors |
| USB HOST | |
| Power Supply | Large-capacity lithium battery without memory effect; Battery Life: More than 8 hours |
| Built-in charger, AC Mains 220V | |
| Dust/Splash /Water-proof | meets IP54 standard |
| Standards | EN12668-1 compliance |
| Conform to JB/T 10061-1999 standard | |
| Environmental Temperature | -30~50℃ |
| Relative Humidity | 20%~95%RH |
| Weight | 0.9Kg(with battery and built-in charger) |
| Dimension | TOP:215mm×126mm×53mm |
| bottom:215mm×104mm×42mm |
Feature:
- Circuitry of advanced design and sampling frequency up to 640MHz ensure instant and accurate display and analysis of flaw signals even when they're weak.
- State-of-the-art square wave drive technique
- Weighing only 0.9kg, convenient for operation and taking it along
- TG, full WVGA TFT display
- 8+ hour battery life premises consecutive working, inbuilt smart-type battery charger, auto-switching between the status of charging and that of powering.
- External USB port for software upgrading, data transferring and printing, graftable to mouse, keyboard and USB disc.
- EN12668:2000 compatible

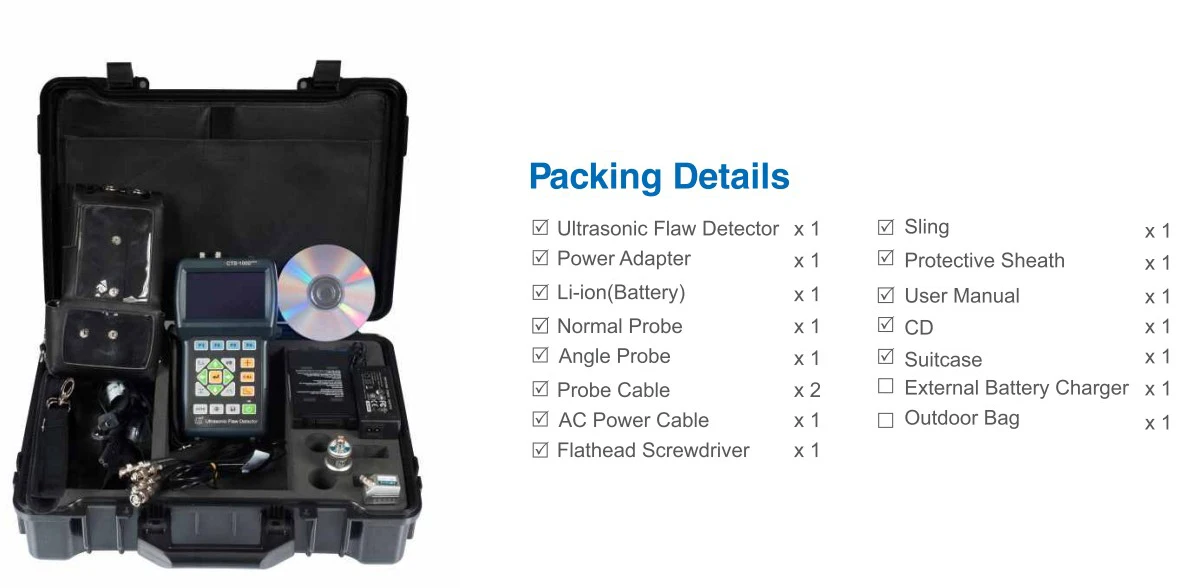

Packaging & Shipping
