—use&feature—

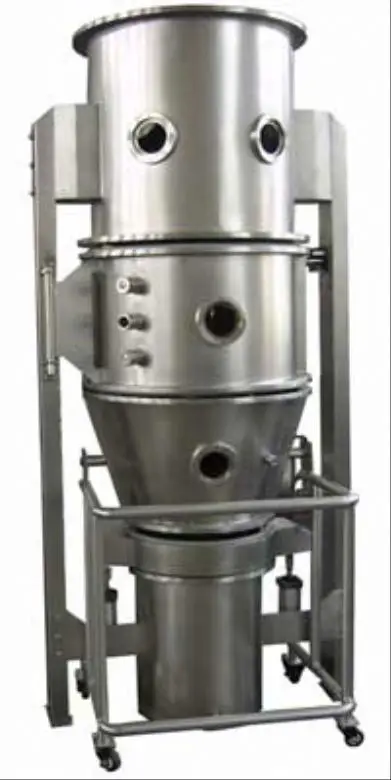

The method of boiling and granulating is a comprehensive fruit of spraying and fluidizing technology. It makes traditional mixing ,granulating and drying processes finish in the same closed container. So it is called as "one step granulator".

This machine has simple structure and is easy to clean and maintain .Not only it can make granule but also dry quickly. The process of mixing ,granulating ,drying will be finished in the same closed container at the same time. So it can prevent from pollution caused by contacting with environment and guarantee that the quality of medical granule is conformity with the requirement of "GMP".
The parts contacted with raw material are made of 316L stainless steel. The heating of machine can be divided into electricity or steam and the control part can be divided into ordinary form or computer form .Customer can choose it freely

—feature—

•.Improve its fluidity and reduce powder dust to fly through powder granulating.

Improve its solving property through powder granulating

•.Mixing, granulating and drying can be finished in the same machine, i.e .one step to granulate.

Being adapted anti-static electricity filtering cloth, the operation of equipment is safe.

Being set discharge hole of pressure, if explosion were taken place, the equipment and personal can not be

damaged.

Automatic operation, or hand operation.

•.There is a bleed hole, once explosion, this machine can’t be damaged.

•.Guard against electrostatic generation, adopt the cloth bag without electrostatic.

The equipment has no dead corner. The loading and unloading is quick and convenient. It can be washed

Clean .It is in conformity with the normal of GMP

—technical parameters—

l  Medicine granulating Granulating ; granulator of tablet, quick solved drink, granule used for capsule.

l  Foodstuff granulating and coating: Sugar, coffee ,cocoa ,powder, cream ,powder syrup, amino acid, favoring,

puffed food.

l  Granulating for pesiticide ,pigment , dyertuff.

l  Drying for powder ,granule, block raw materials.

l  Coating: granulate, pill protection layer ,formulated color ,slow release ,film ,coating for intesting solving.

—Technical Specifications—

•Main machine is made of 316L stainless steel, 3 mm in thickness, inside surface adopts mirror polish, no dead corner, cleaning is very easy; outside surface adopts matte finishing.

 Hopper capacity: 12 liters

A charging wagons is equipped, material: 316L stainless steel

 Production capacity for main machine: 1 – 5 kg/batch

 Granulating time: 60 – 90 minutes/batch, 4 batchs/8 hours

 Working temperature: 50 -  120 °C

Heating type :  electric heating, SUS 304 stainless steel tube with 18 x 2 stainless steel fin,  Power : 9 KW

 Noise snubber is equipped in the centrifugal fan.

Bag filter, 2 sets ; vibrating cylinder, 2 sets ; valve for air adjusting, 2 sets.

 Peristaltic pump, 1 unit, BT-50S

 Spray gun, 1 pc ;  base of spray gun, 2 pcs ;  3 fluid type, the height of spray gun can be adjusted.

 Ventilating system adopts primary effect, middle effect and sub-high effect filters, ensure hundreds of clean air.

Air filter box, 1 unit, with primary effect, middle effect and sub-high effect filters.

Air drive fast valve at the air inlet, avoid the heat loss.

 Control cabinet, Material :  304# stainless steel, PLC control, touch screen operation.

                       Main electrical components: Siemens, Germany

 Overall size: 2800 mm x  700 x 2200 mm

Equipped Electrical Apparatus Components List
