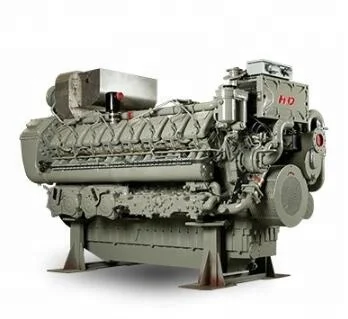

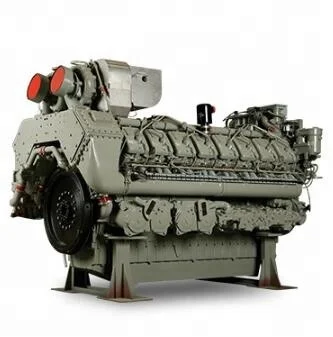

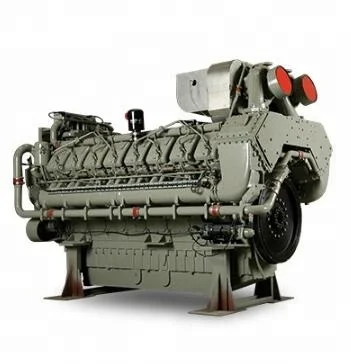

1600kw 2200KW TBD620 V16 Chinese Deutz MWM Inboard Marine Diesel Engine with Factory Price
- Category: >>>
- Supplier: Xiamen Sitaiqi Industry & Trade Co. Ltd.
Share on (60808268875):
Product Overview
Description
2000KW TBD620 V16 Chinese Deutz MWM Inboard Marine Diesel Engine with Factory Price
Product Description
All engine type is accessed to IMO Tier Ⅱ and can be provided classification certificate of CCS,ABS,RS,BV,GL,LR and DNV.
introduce the technology from DEUTZ,MWM Germany.
compact structure, small size, light weight.
widely used in main power of ship.
Main Technical Data
Deutz-MWM TBD620V16 Marine Diesel Engine | ||||
Power code | Rated power (kw) | Rotation Speed (rpm) | Fuel consumption (g/kw.h) | Emission |
MCFN(A) | 1658 | 1500 | 194 | Tier II |
MCFN(A) | 1740 | 1650 | 198 | Tier II |
MCFN(A) | 1840 | 1800 | 204 | Tier II |
MCFN(B) | 1830 | 1500 | - | Tier II |
MCFN(B) | 1920 | 1650 | - | Tier II |
MCFN(B) | 2032 | 1800 | - | Tier II |
MFN(C) | 2240 | 1880 | - | Tier II |
Bore/stroke | 170/195mm |
Cylinder arrangement | V-90 |
Number of cylinder | 16 |
Unit cylinder volume | 4.43dm3 |
Compression ratio | 13.5:1 |
Max. combustion pressure | 17Mpa |
Min. steady speed | 650r/min |
(20℃)ignition speed | 150r/min |
Direction | Anti-clockwise rotation(from flywheel end) |
Fuel combustion | ≤205g/kw.h |
Lub.oil combustion | ≤1.3g/kw.h |
Certificates
Packaging & Shipping
Our Services
High Performance Products
Competitive and Reasonable Price
Professional Technical Adviser
10-years experience in this field
1 Year Or 1000 Running Hours Guaranty
Effective After-sales Service
Prompt reply for your inquiry and feedback
