High quality double head beer keg filler beer filling machine for microbrewery

Product Overview

Description

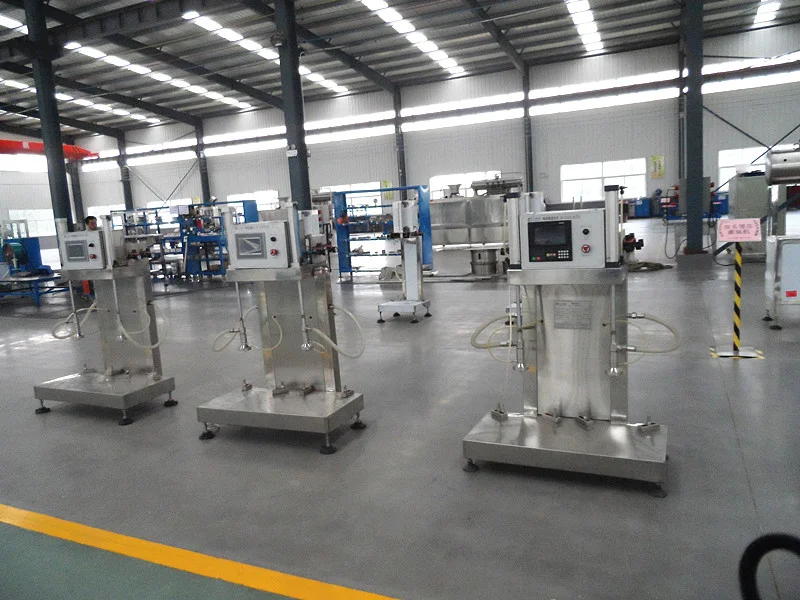

High quality double-head beer keg filler beer filling machine for microbrewery



Equipment Introduction

Beer Keg Filler (Screen Touch)

This machine adopts the patent technology of the isopiestic pressure filling. All process is manual operation, easy to control. The machine is stainless steel.

Working principle

Firstly you put the keg on platform and press the keg tightly using filling head. Before filling beer, you need to fill CO2 to the empty keg so that the beer foam can be largely decreased and keep beer stable when beer is filled. When the keg is full, the filling will stop automatically.

Besides, it can wash the pipeline automatically after you finish the filling work.

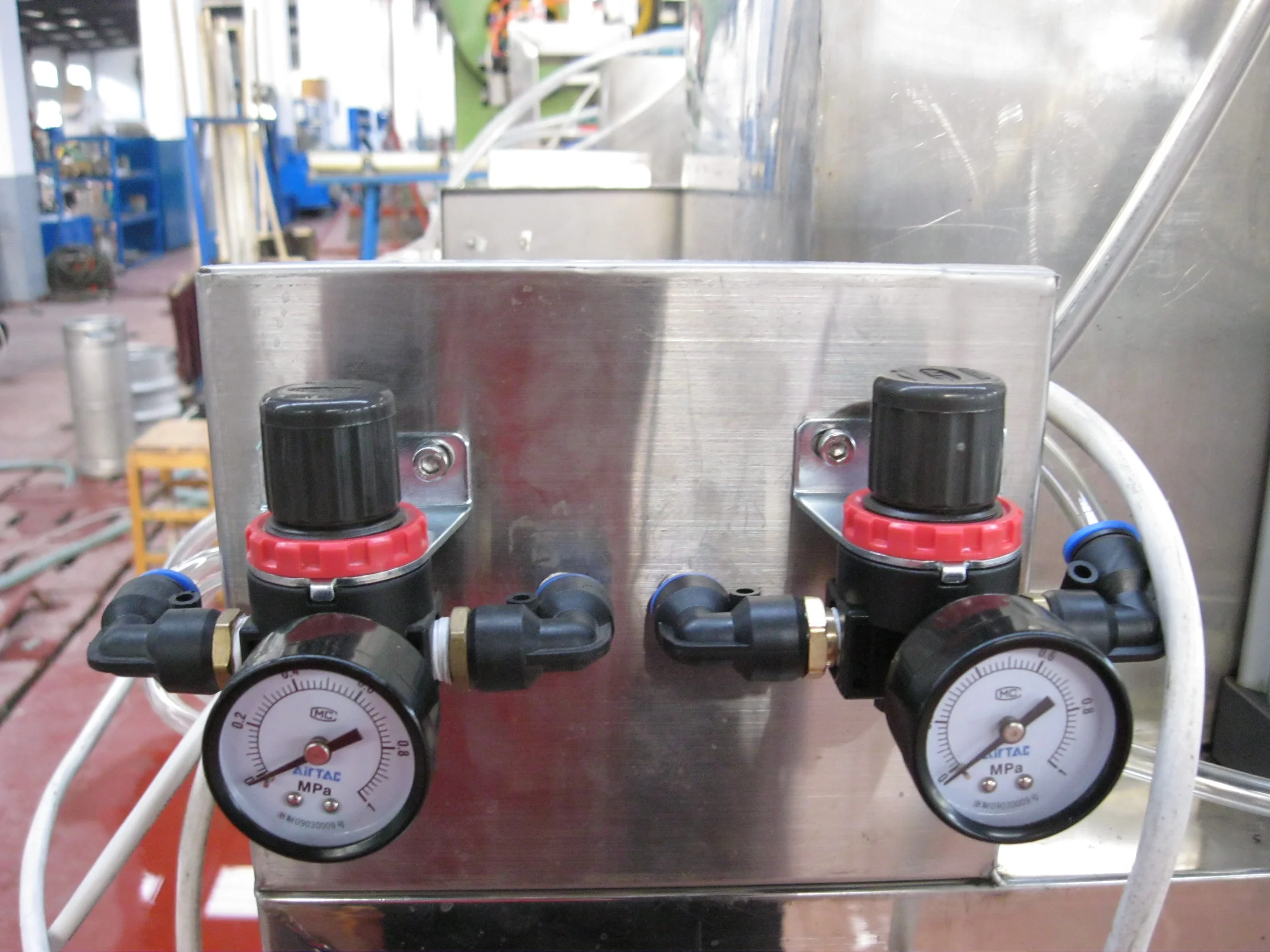

Pls look at the Pressure parameter as follows:

Pressure of beer	0.2-0.3 Mpa
Pressure of the air	0.6-0.8 Mpa
Pressure of CO2	0.1-0.2 Mpa
Pressure of Cylinder	0.35-0.4Mpa

Specification

Filling heads	2  heads
Size of plat form	480mm×960mm
Height of the plat form	160mm
Size of the machine	560mm×960mm×1460mm
Weight	106kg
Production capacity	20-50kegs per hour
Rate of beer waste	<1%
