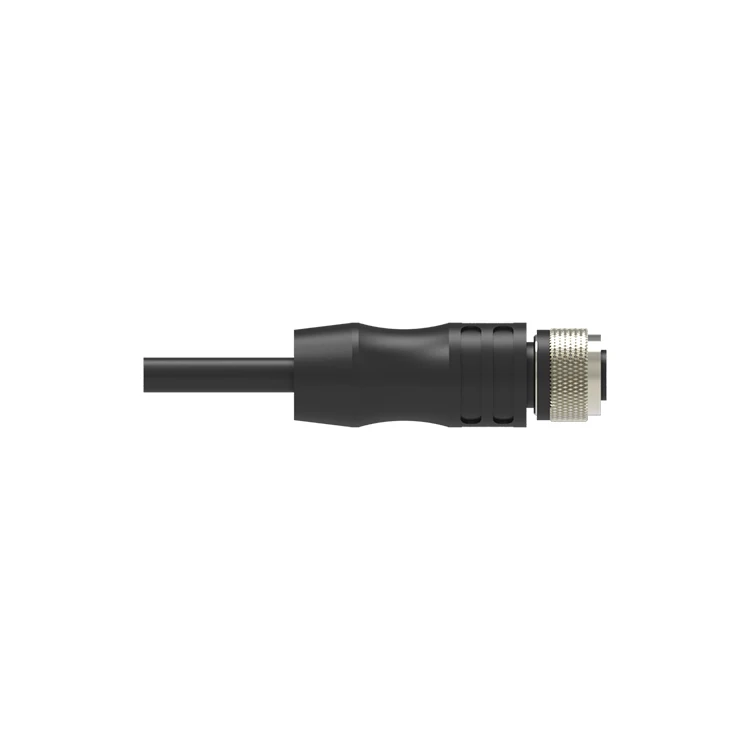

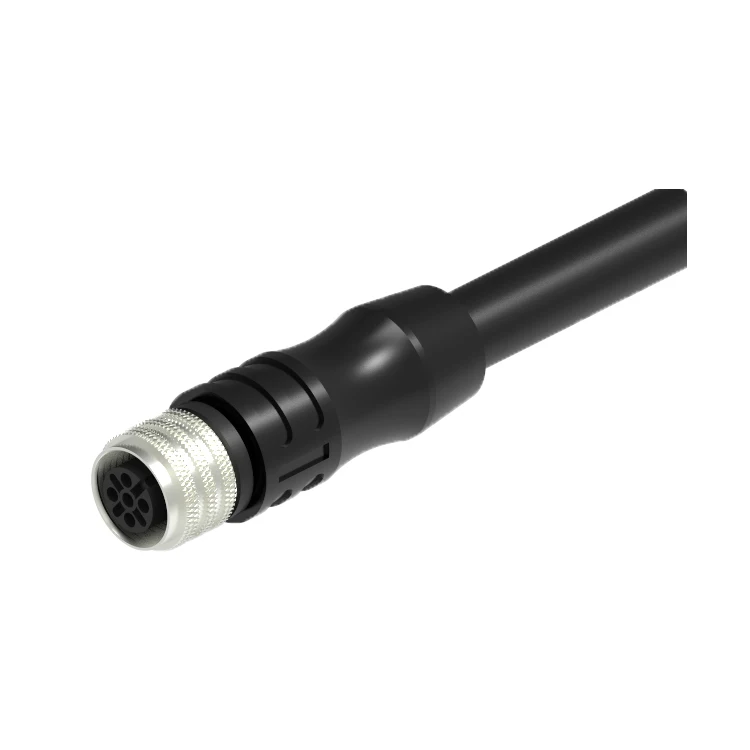

GSEE M12 8PIN PRE MOULDING FEMALE IP67 Connector
- Category: >>>
- Supplier: Tianjin Geneuo Technology Co. Ltd.
Share on (60808333153):
Product Overview
Description
Specification
Parameter | Value |
Plug body | TPU/Black |
Coupling nut | Brass/Nickel |
Contact carrier | TPU/Black |
Pin | Brass/Gold |
O-ring | FPM/FKM |
IP degree | IP67 |
Insulation | ≥10 9Ω |
Forward resistance | ≤5mΩ |
Rated current | 2A |
Rated voltage | 60V |
Pollution degree | 3 |
Temperature range | -40…80 ℃ |
Mechanical operation | ≥100 |
Maximum cable diameter | 11mm |
Products Description
Company Profile
No. | Certification | GSEE-TECH products |
1 | UL | Component Connector, Series GE, GES, GESS, GEAV, GEE |
2 | UL | Valve connectors,Series VA,VB,VBI,VC,VCI |
3 | UL | LED Luminaires, Series BLT32W, BLT48W, BLE48W |
4 | CE | JUNCTION BOX, Series JB |
5 | CE | Over Moulding Connector, Series M8, M12, M16, M23, 7/8" |
6 | CE | HEAVY DUTY CONNECTOR, Seires GA, GE, GEE, GD, GDD, GSB, GK, GQ |
7 | CE | Industrial Fieldbus Modules, GXPI, GXEI, GXEC, GXEN, GXDP, GXDN, GXCL, GXCI, GXLK |
8 | CE | Managed Industrial Ethernet Switch, Series GIE5000 |
9 | CE | Lite/Unmanaged Industrial Ethernet Switch, Series GIE3000 |
10 | CE | Lite/Unmanaged Industrial Ethernet Switch, Series GIE3005PL |
11 | CE | Lite/Unmanaged Industrial Ethernet Switch, Series GIE3008 |
12 | CE | Inductive sensors, Series P40T, P80T, M8, M12, M18,N30, M50, Q18, Q25, Q30, Q8CT |
13 | CE | POWER SUPPLIER, Series MPU120, MPU240, MPU300, MPU480, MPU960 |
14 | CC-Link | Remote I/O control module, GXCL-DI8DO8 |
15 | CC-Link IE | Remote I/O control module, GXCI0DI16 |
Q1. Do you have your own factory? Why to choose us?
A: Yes, our factory covers an area of nearly 40000 square meters. We have more than 10 years experiences in R & D, production and sales of industrial automation products, we have a professional team to serve for you and offer the best One-Stop sourcing service. We will definitely save you a lot of time and money. Warmly welcome to our factory!
Q2. Can I have a sample order for the products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A: Sample needs 1-2 weeks, mass production time needs 10-45 days.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-6 workdays to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the products?
A: Firstly let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the drawing & model and places deposit for formal order. Fourthly, we arrange the production. after receiving the payment, finished production will send them to you soon.
Q6. Could I use my own logo or design on goods?
A: Yes, customized logo and design on mass
production are available. MOQ should be negotiated depend on products.
production are available. MOQ should be negotiated depend on products.
Q7. Do you take orders for customizing packages?
A:Yes, we do. Our designer can help you to do your own packaging.
Q8. How to ship the order?
A:Yes, we do. Our designer can help you to do your own packaging.
