Best Selling CE Standard Fruit Juice Concentrate Machine
Bottle Filling Machine Price Lemonade Production Line
Product Description
Specification
1. Automatic Rinsing-filling-capping 3 in 1 juice beverage production line
2. Juice bottling equipment, hot juice filling machine, juice manufacturing machine, fruit juice processing machine,juice pulp filling machine
3. Zhangjiagang, Suzhou city, Jiangsu province, China
JIAYUAN RCGF series juice filling machine combines rinse, filling and capping together. The design is based on the advance International technology and own many years of experience. After considering lots of customers’ feedback, the machine adopts suspended bottle catcher technology which allows it to fill with different type of bottles by simply and easily change the bottle catcher. It can be either used to fill the purified and mineral water under ambient temperature, or used to fill the hot liquid (juice or tea) by change of a few accessories
Feature
a.The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.
b.The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology
c.The machine can be connected with UHT, CIP control center and bottle-invert sterilizer
d.The machine structure is reasonable and firm, the running state is stable
e.The suspension bottle neck catcher allows the machine change the bottle type easily
f.Safe protective devices ensure safety of operator and machine
g.Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage
h.The module of screw capper ensures the tightness of the cap and avoids bottle damage
i.Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination
j.Unique control mechanism keeps circumfluence volume below 5%
k.Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality
l.High efficient clean air filter circulation system ensures high sanitary requirements
m.Low overall machines noise that is comparable to any internationally known equipments in its class
n.Self-lubricationg system imported from America provides continuous smooth operation
Technical Parameters
| Model | RCGF 8-8-3 | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| Production capacity(500ml)(b/h) | 1500-2000 | 3000 | 6000 | 10000 | 14000 | 15000-20000 |
| Filling precision | ±2MM(Liquid Level) | ≤±5MM(Liquid Level) | ||||
| Feedback consumption | ≤10% | ≤10% | ||||
| Polyester bottle standard(mm) | (BottleDiameter)50-92;(Height):150-310 | (BottleDiameter)50-92;(Height):150-310 | ||||
| Suitable cap shape | (Plastic Screw Cap) | (Plastic Screw Cap) | ||||
| Water pressure of washing bottle(Mpa) | 0.18 | 0.18 | ||||
| Wash bottle consumption water (kg/h) | 600 | 800 | 1600 | 2500 | 3500 | 3500 |
| Gas sourse pressure(Mpa) | 0.6 | 0.6 | ||||
| Gas consumption(m3/min) | 0.1 | - | 0.3 | 0.4 | 0.5 | 0.5 |
| Total power | 2.2 | 5.88 | 6.68 | 7.68 | 9.18 | 9.18 |
| Total weight | 2200 | 2500 | 3000 | 4000 | 5000 | 5000 |
| Dimensions(L*W*H)(mm) | 2000×1600×2200 | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3600×2800×3150 | 3600×2800×3150 |
Machine Pictures

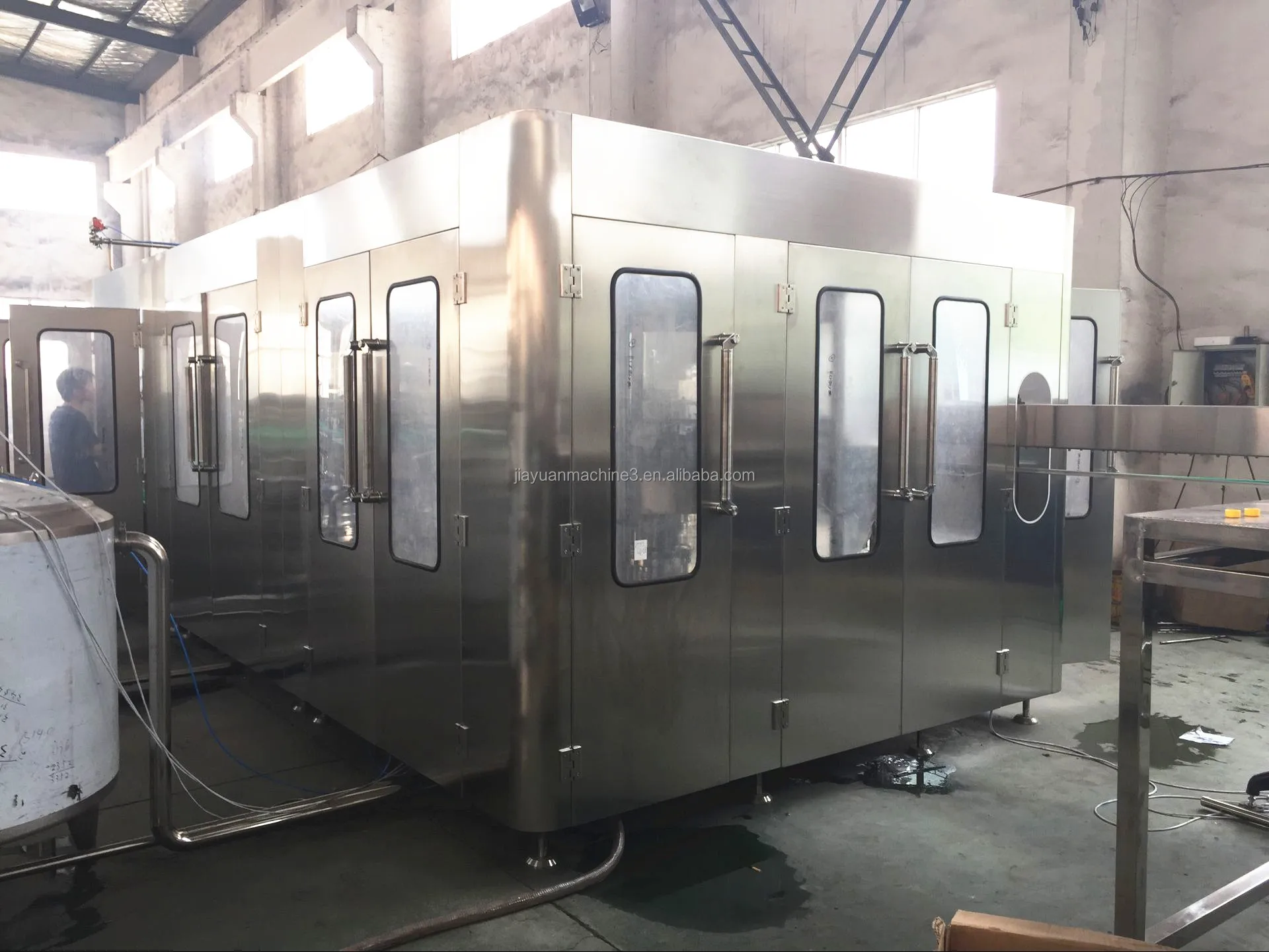

Full Look

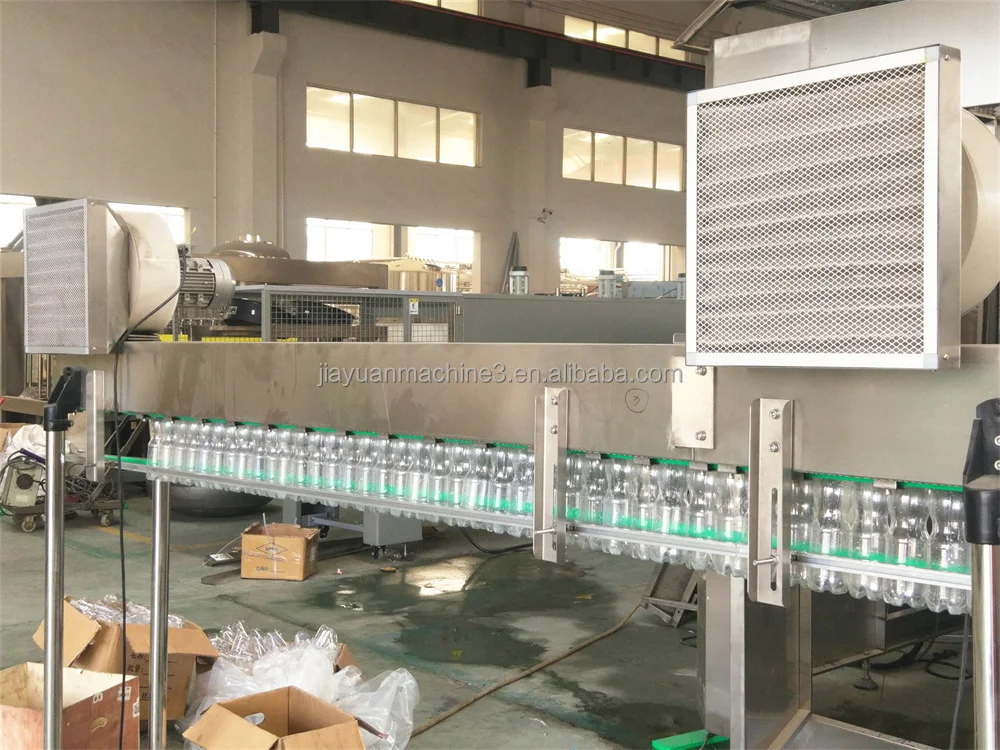

Air Conveyor

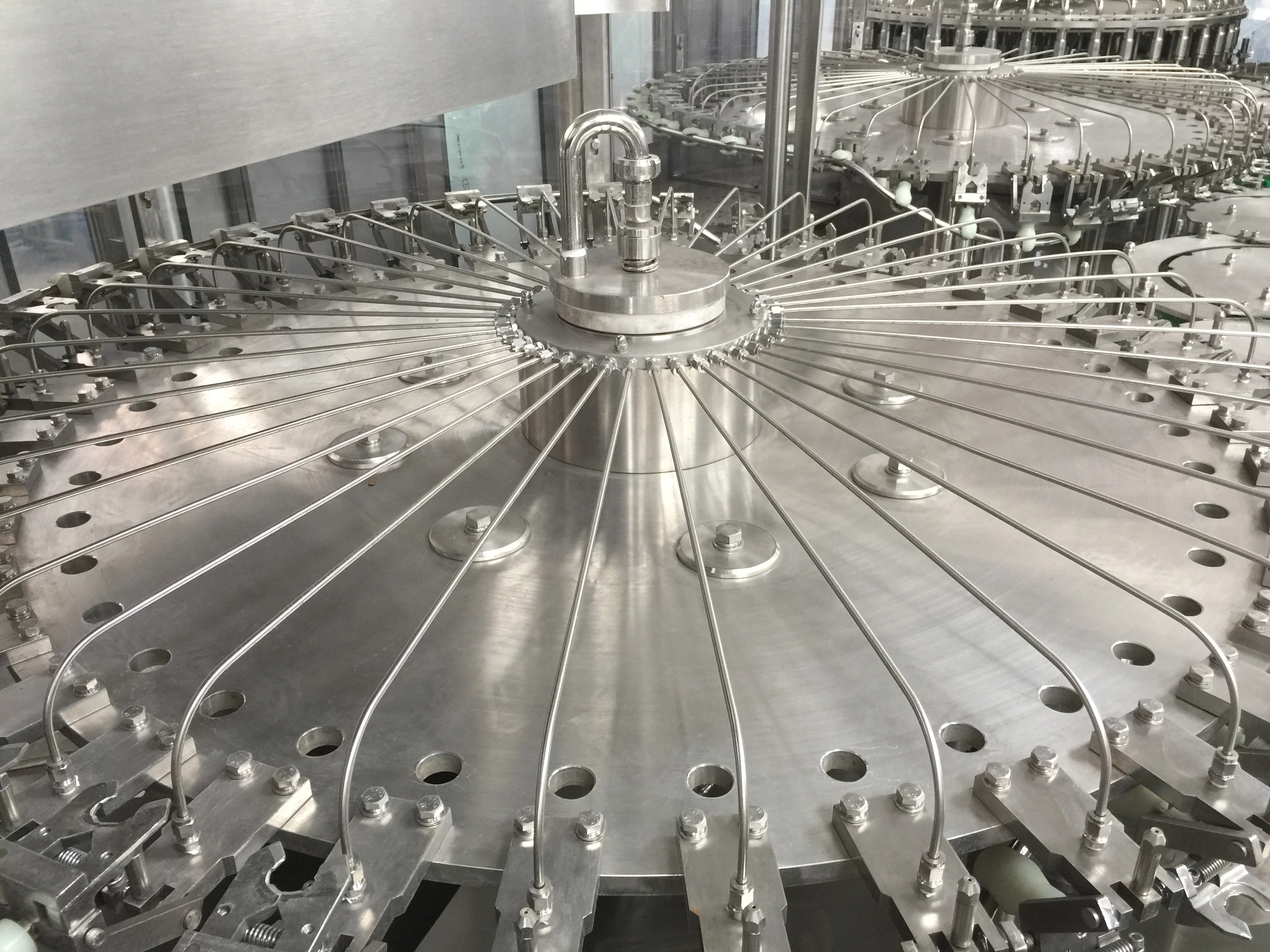

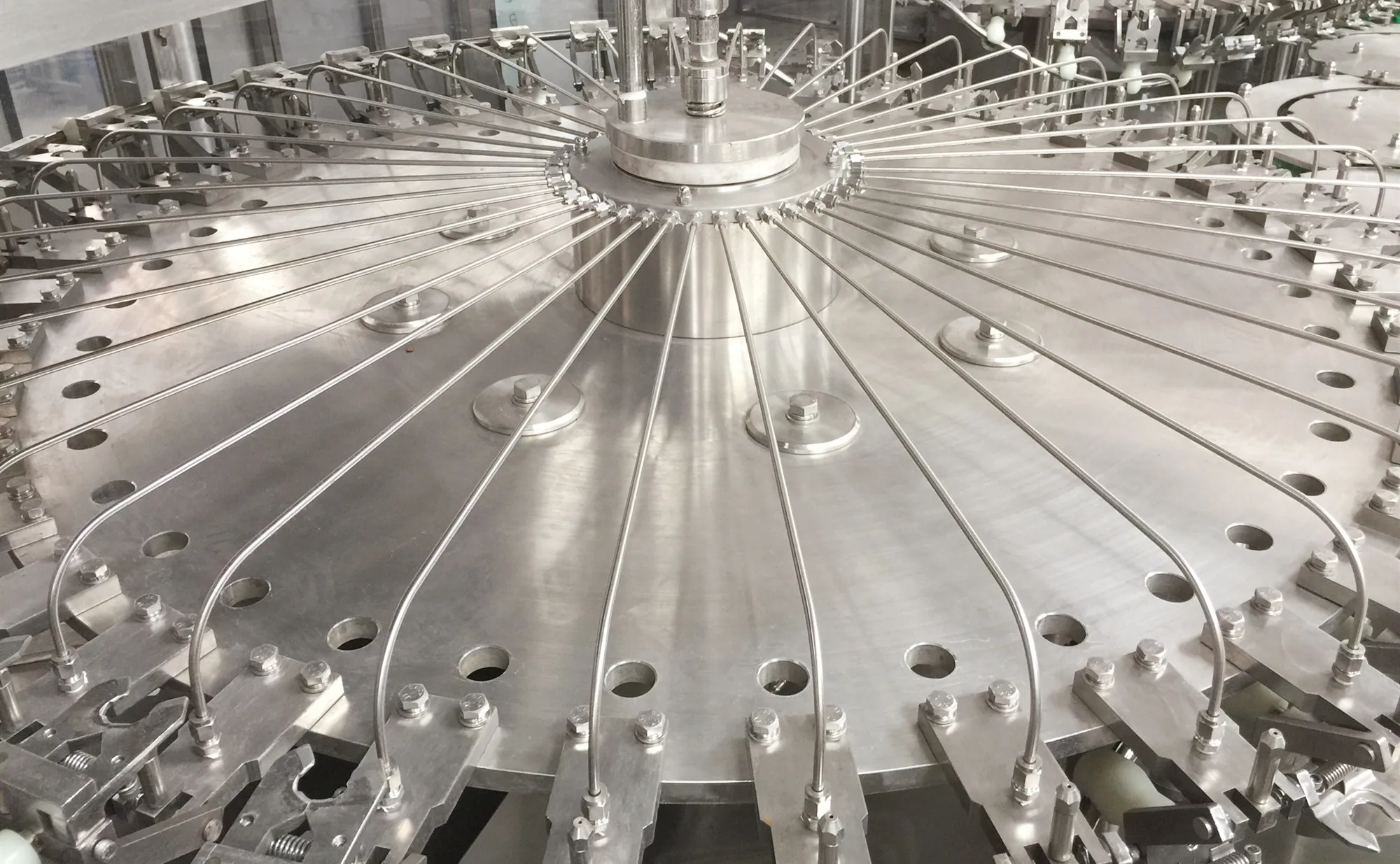

Washing Part

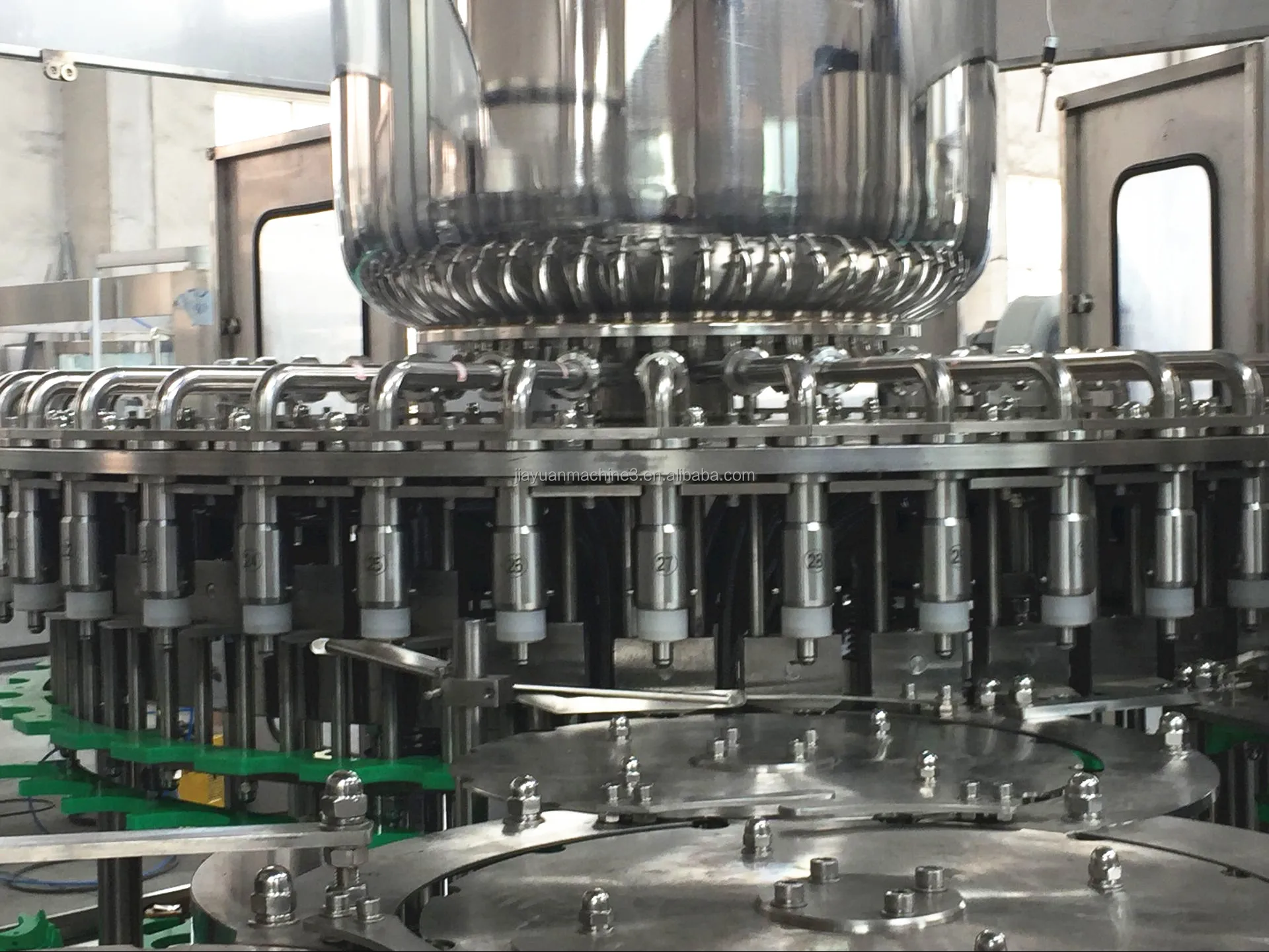

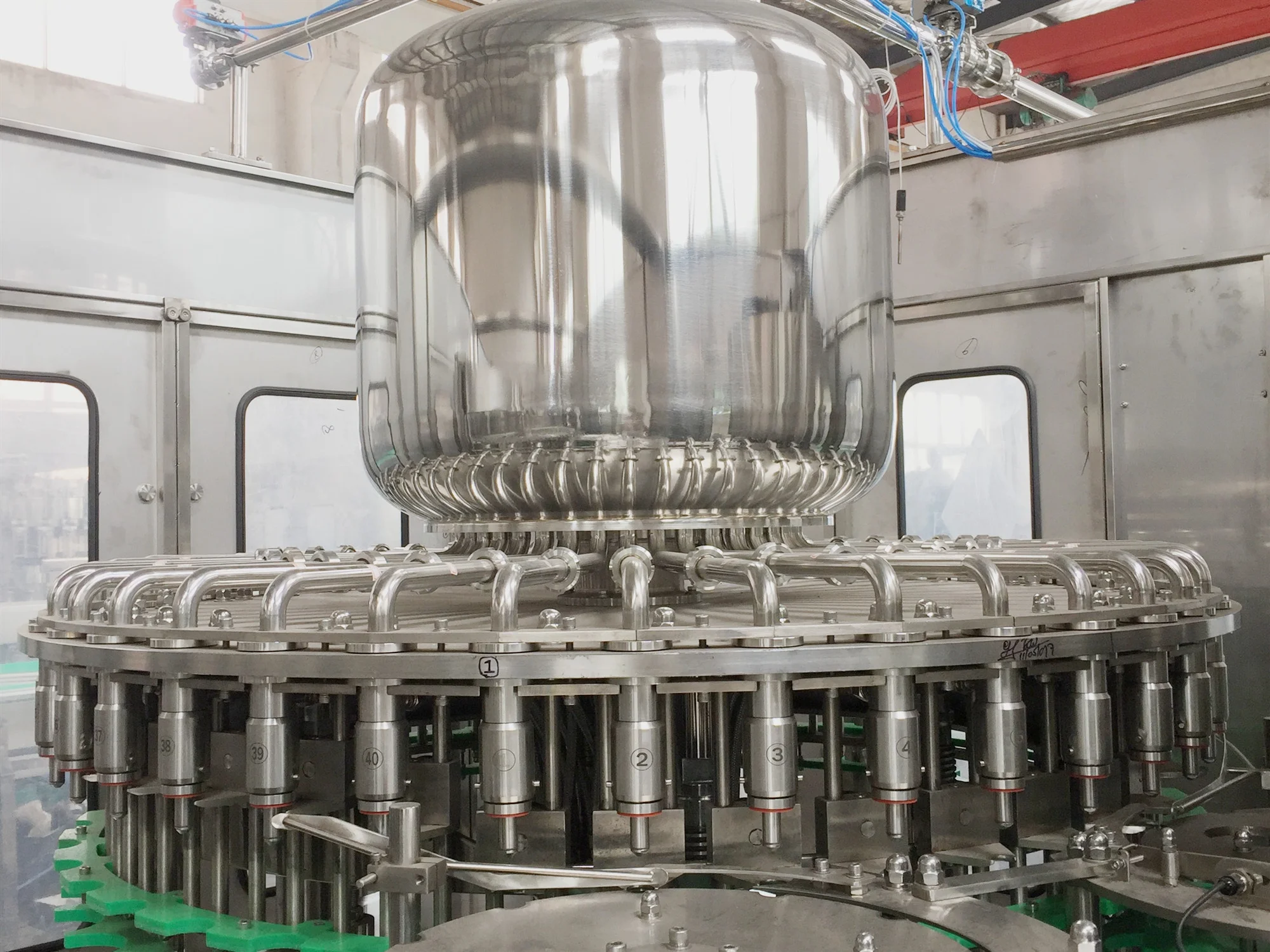

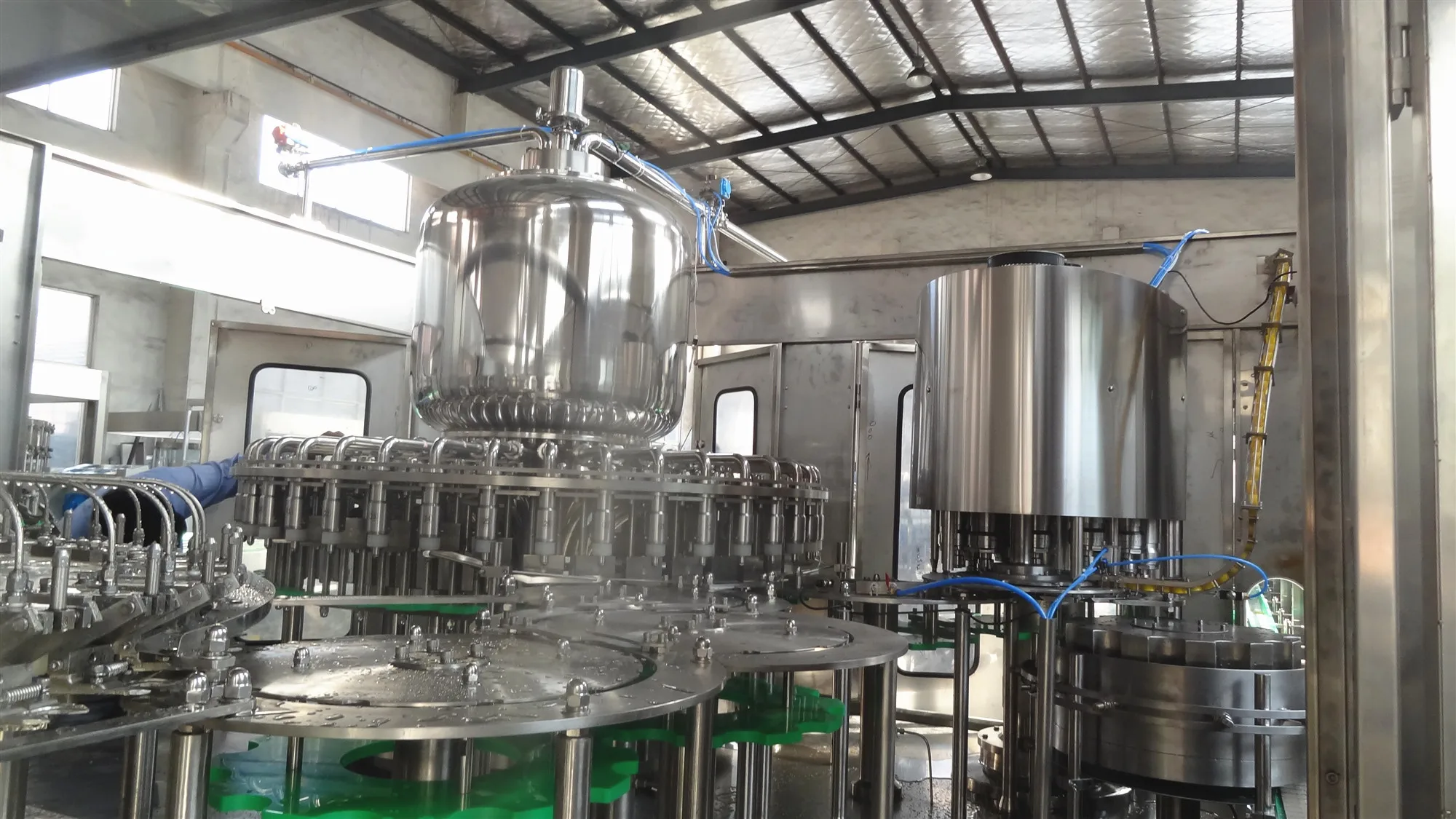

Filling Part

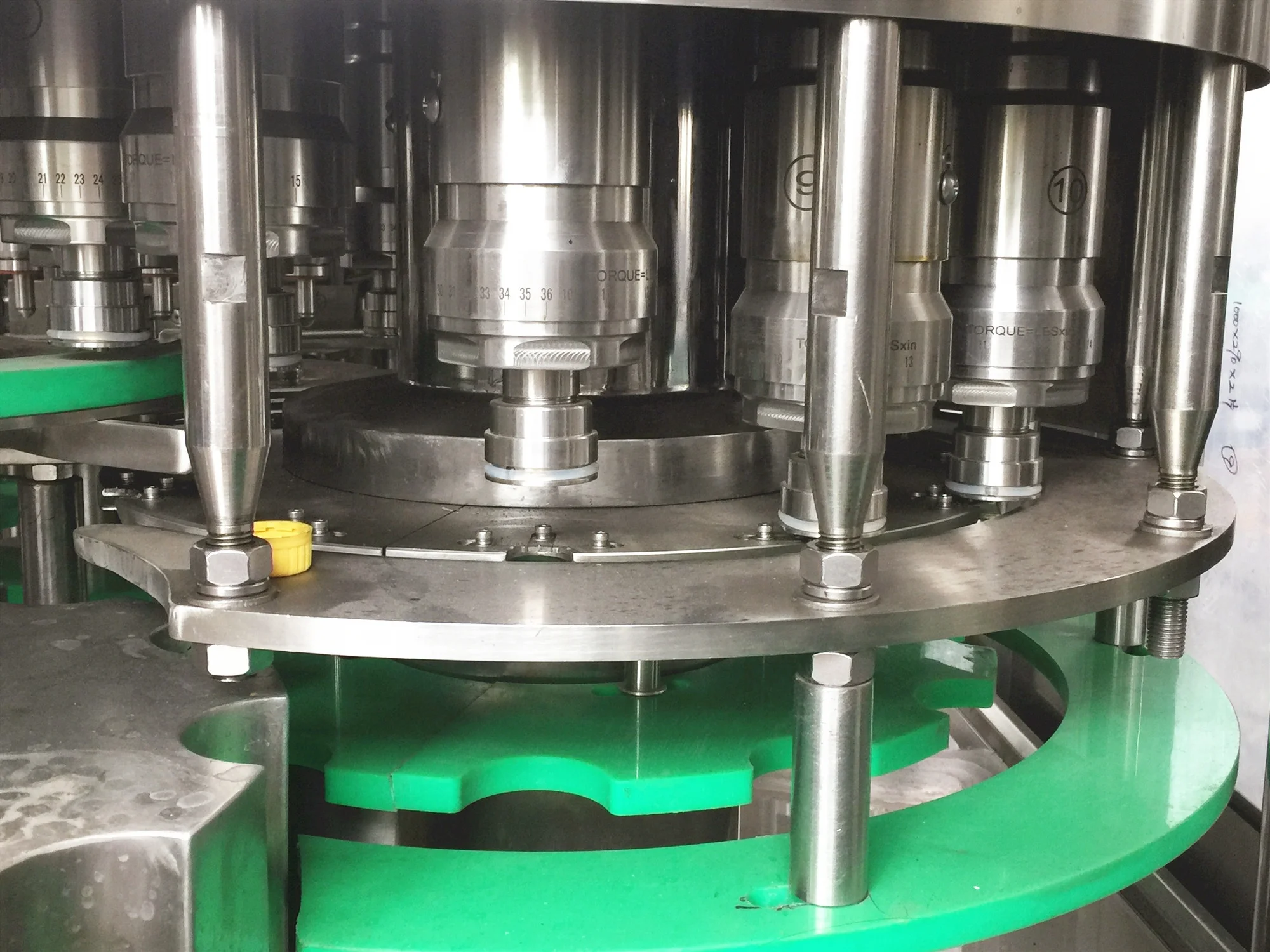

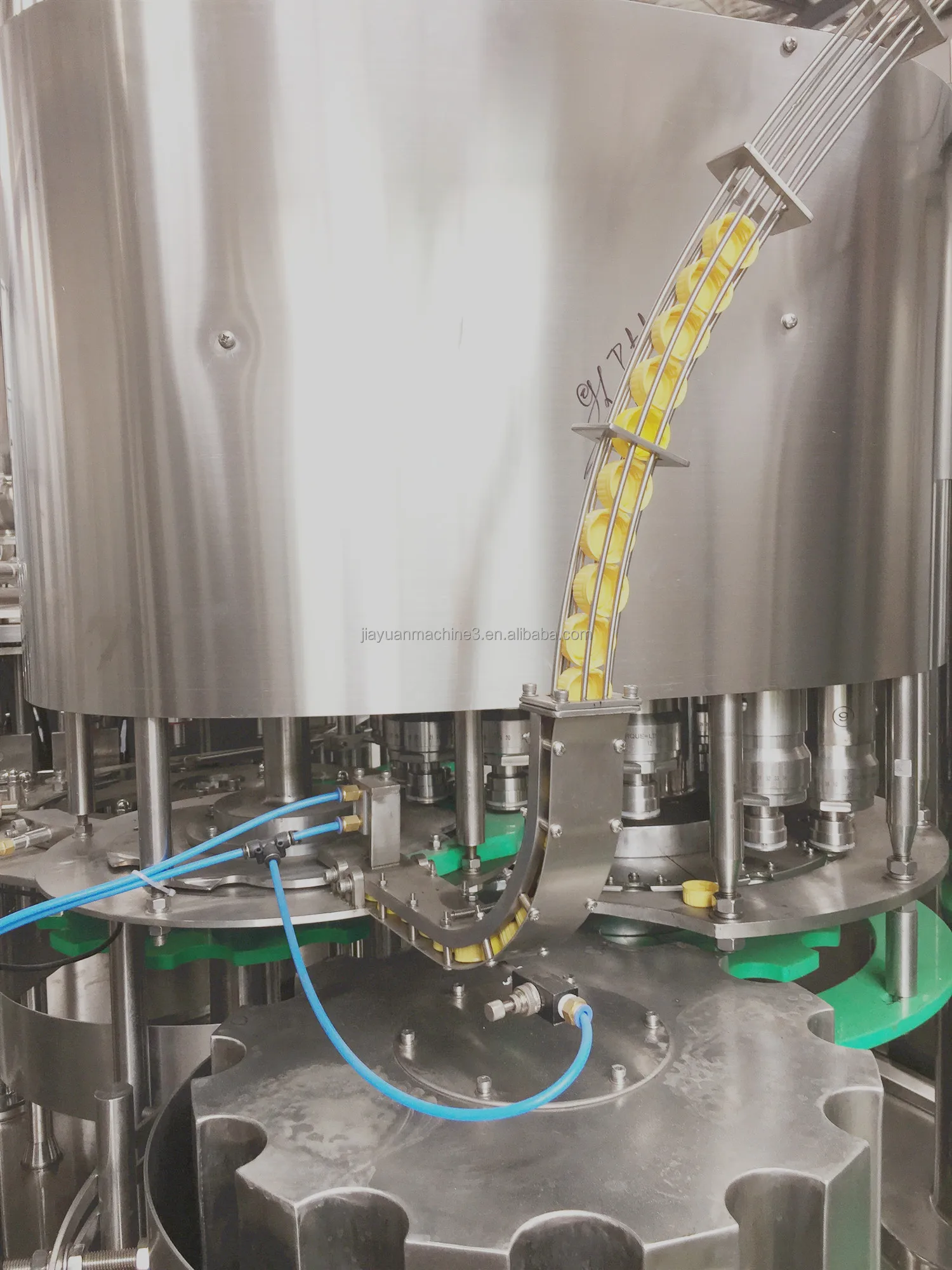

Capping Part
Related equipment

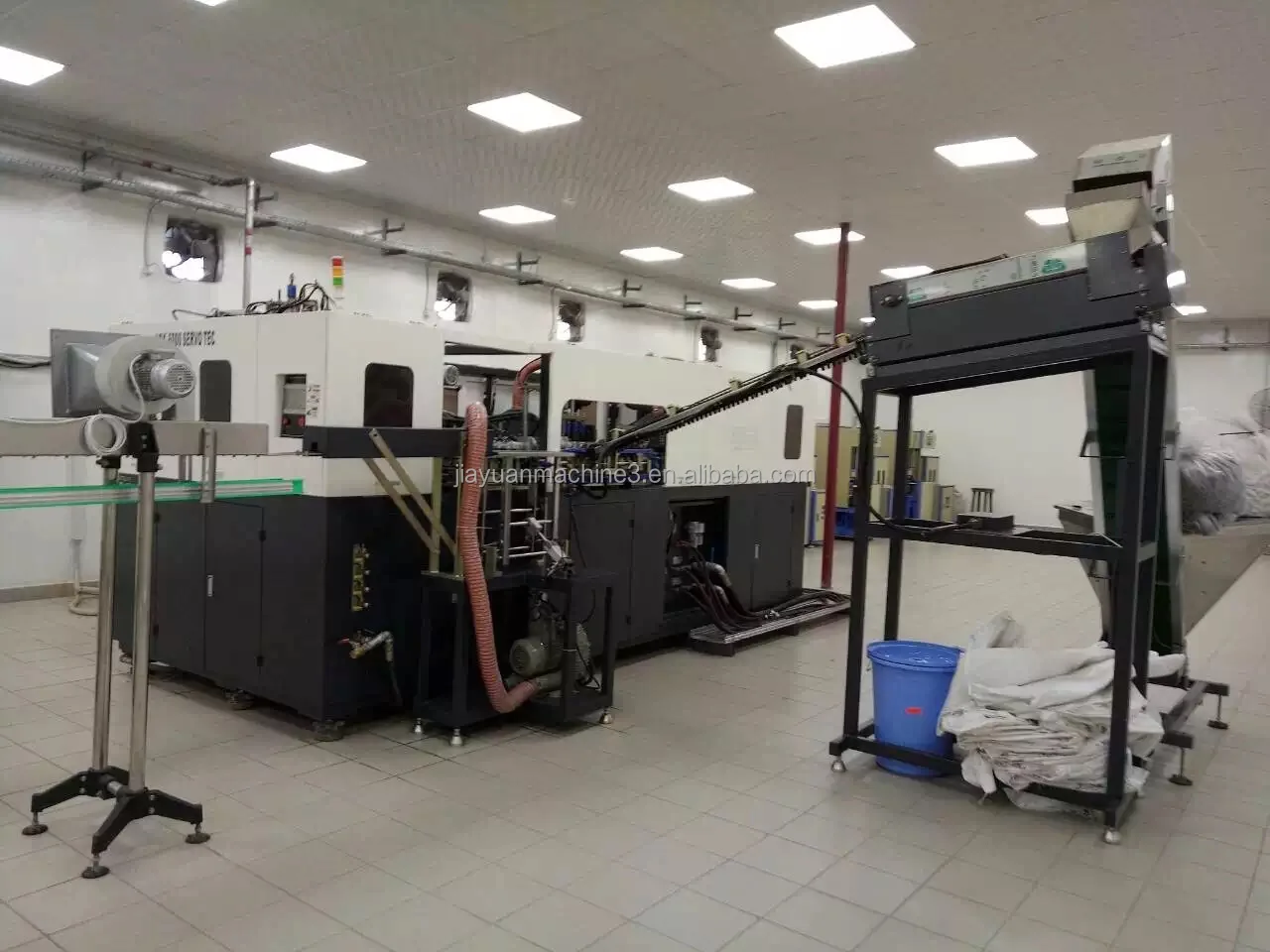

Blowing machine

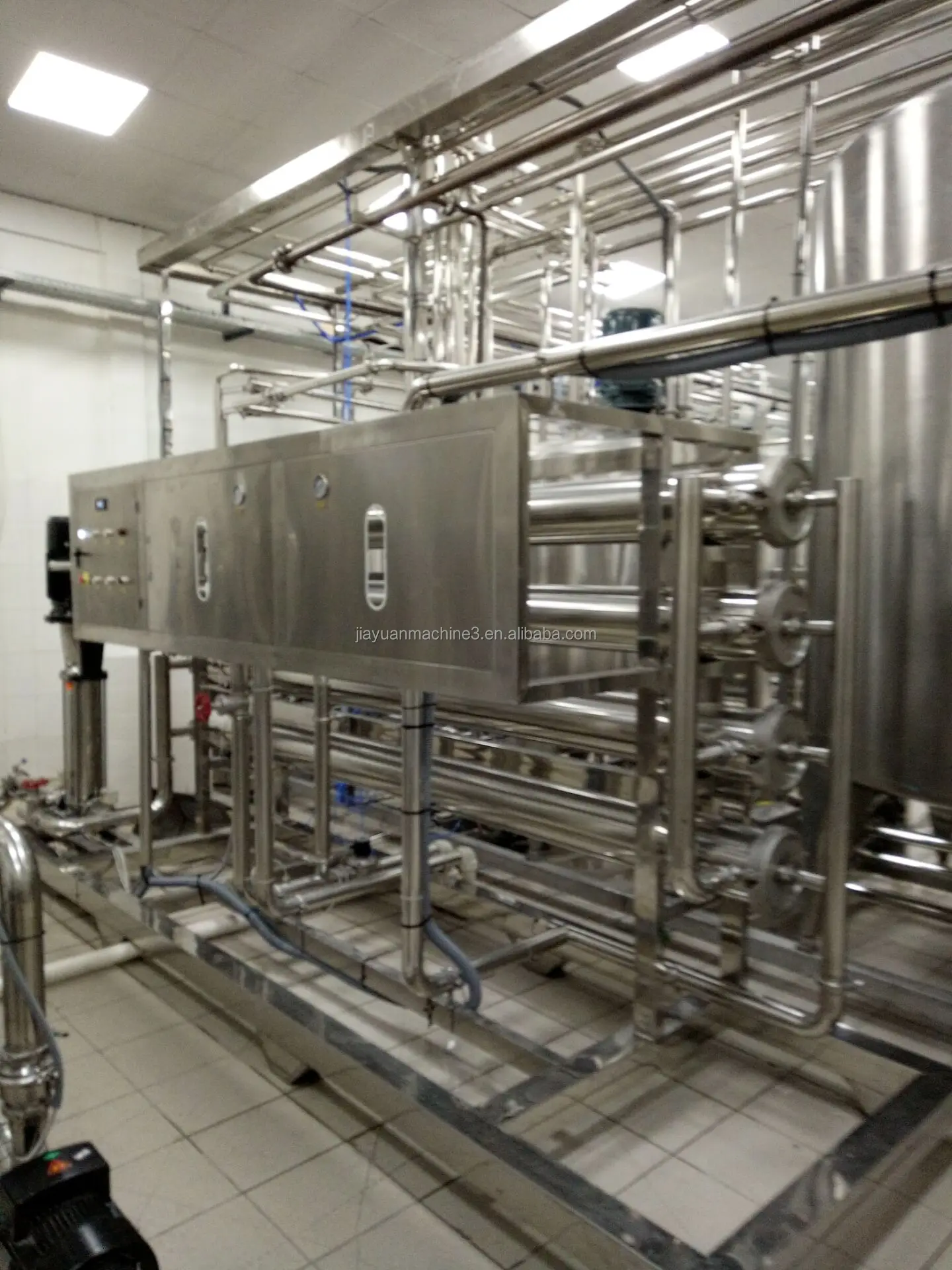

RO Water treatment system

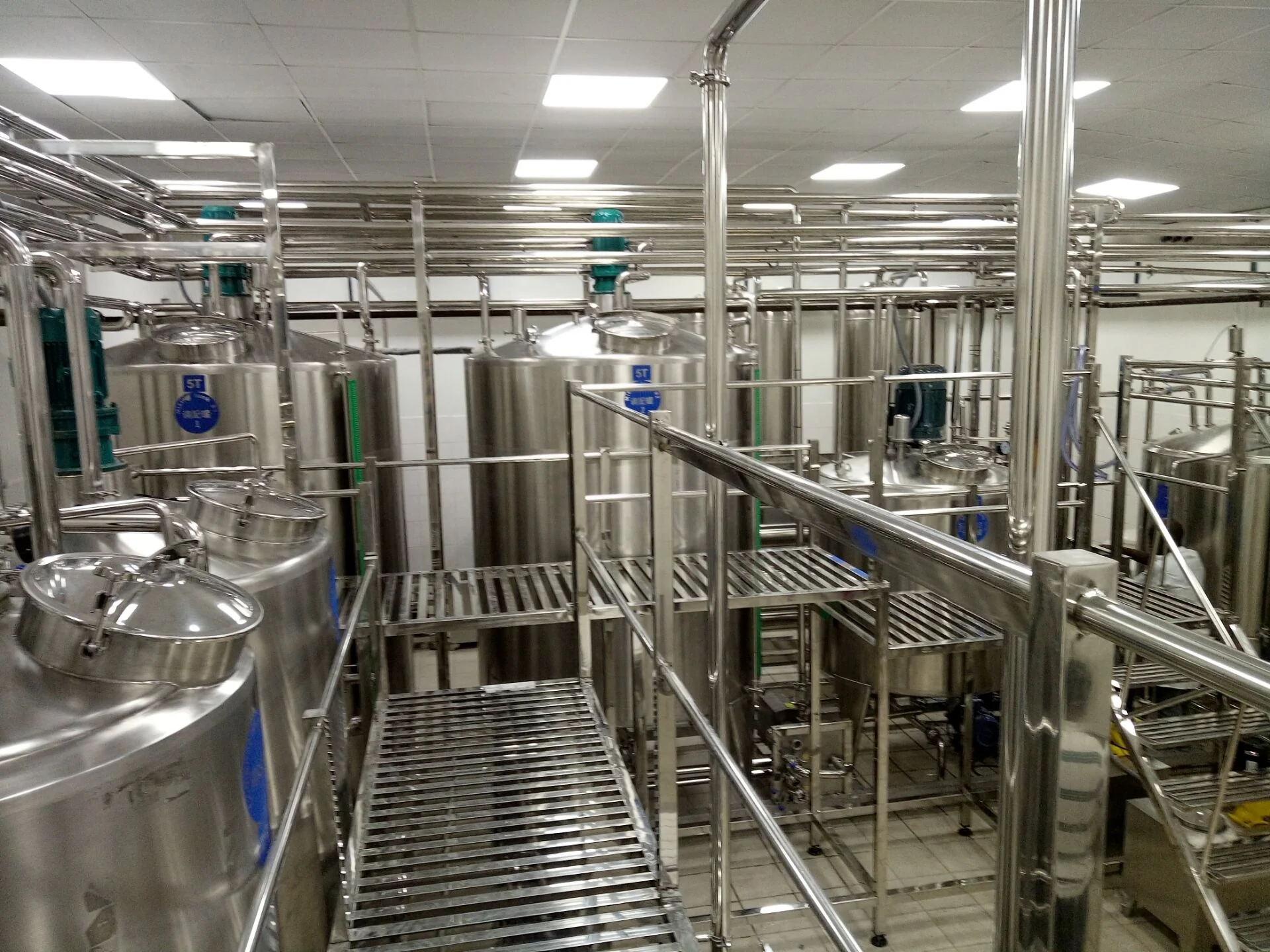

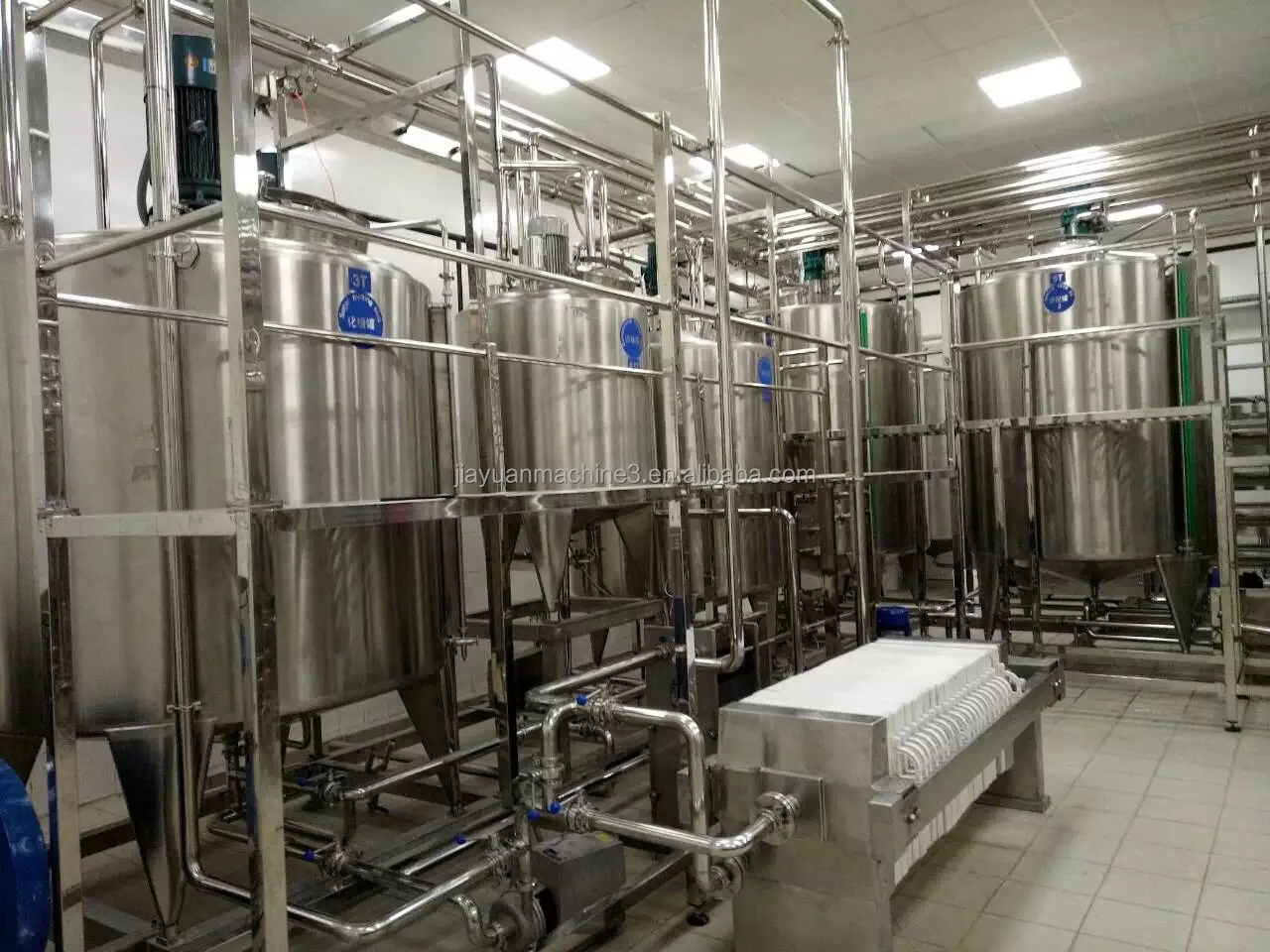

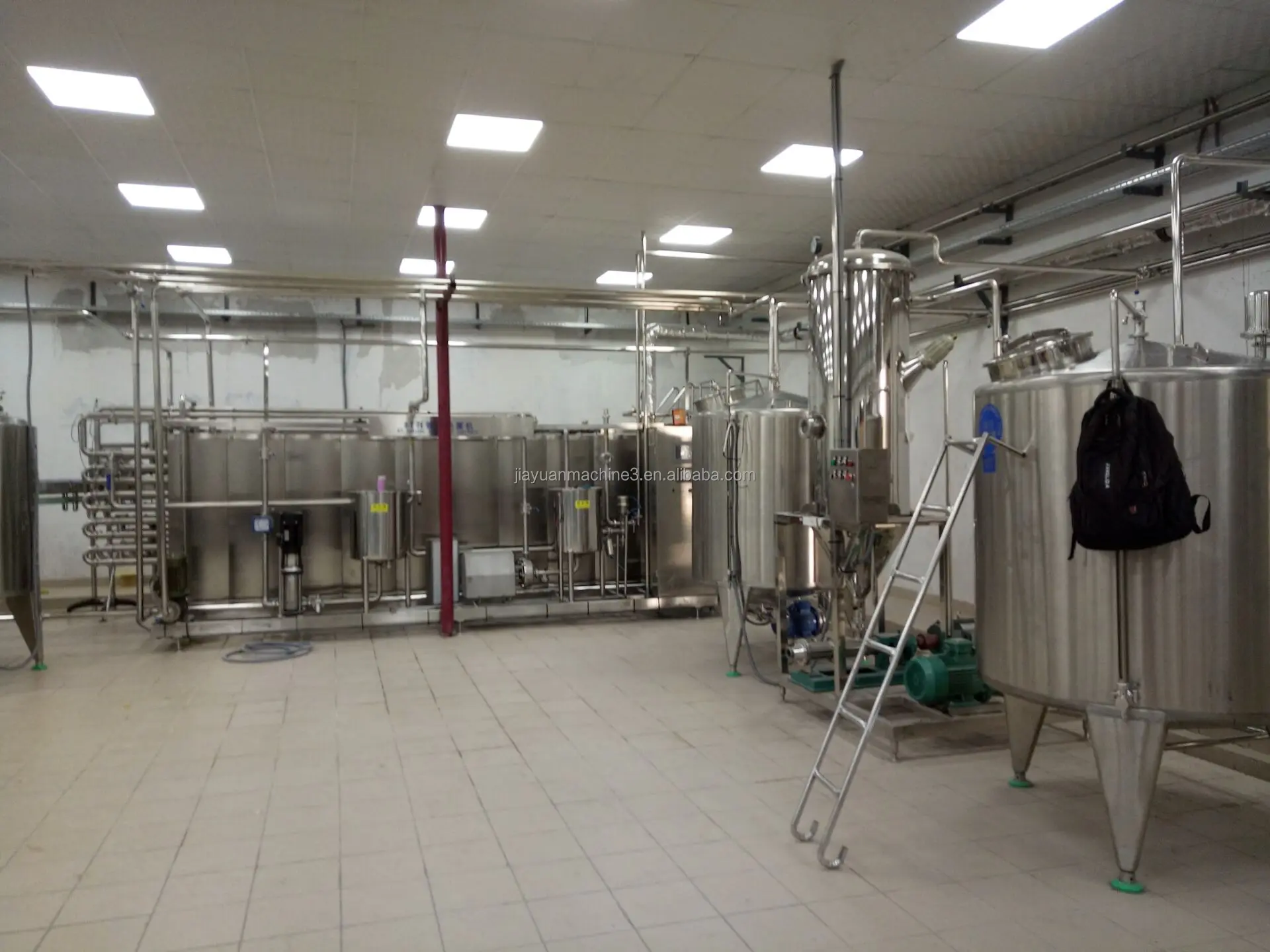

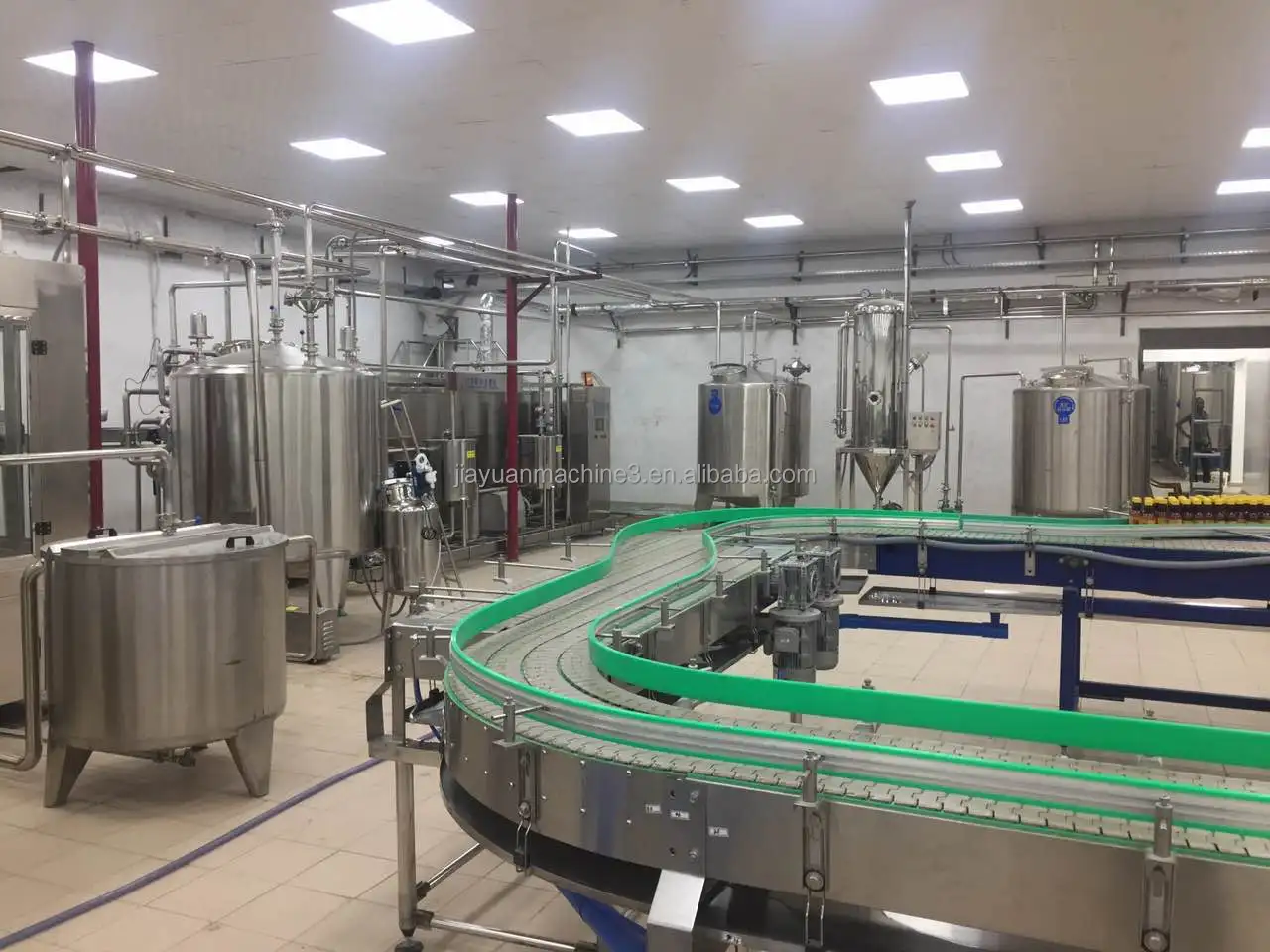

Juice Mixing system

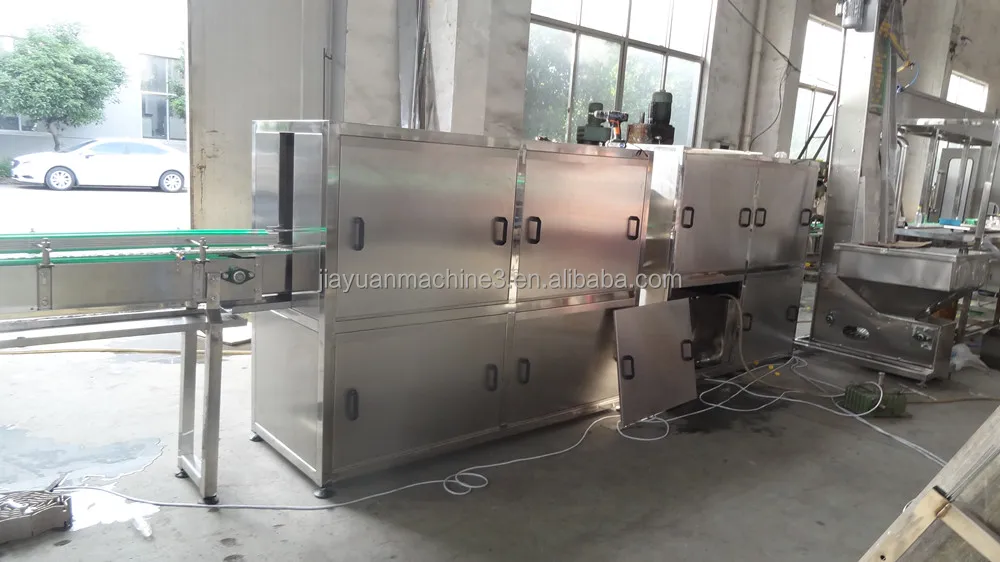

Bottle Dryer

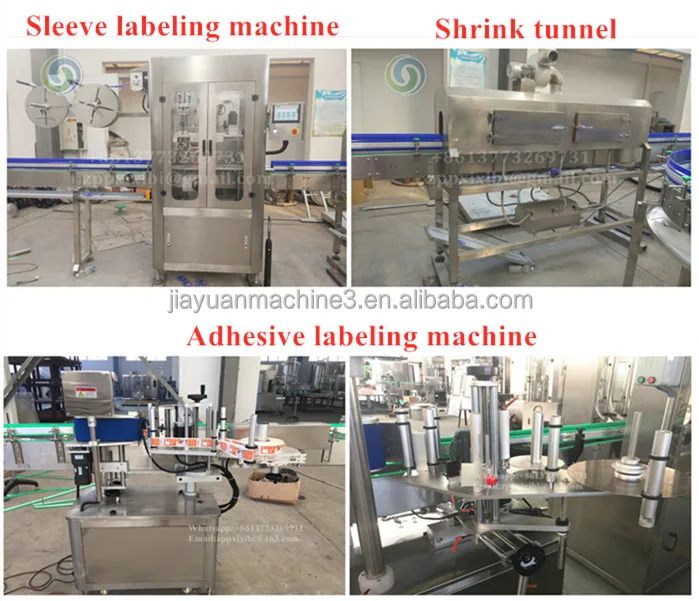

Labeling Machine

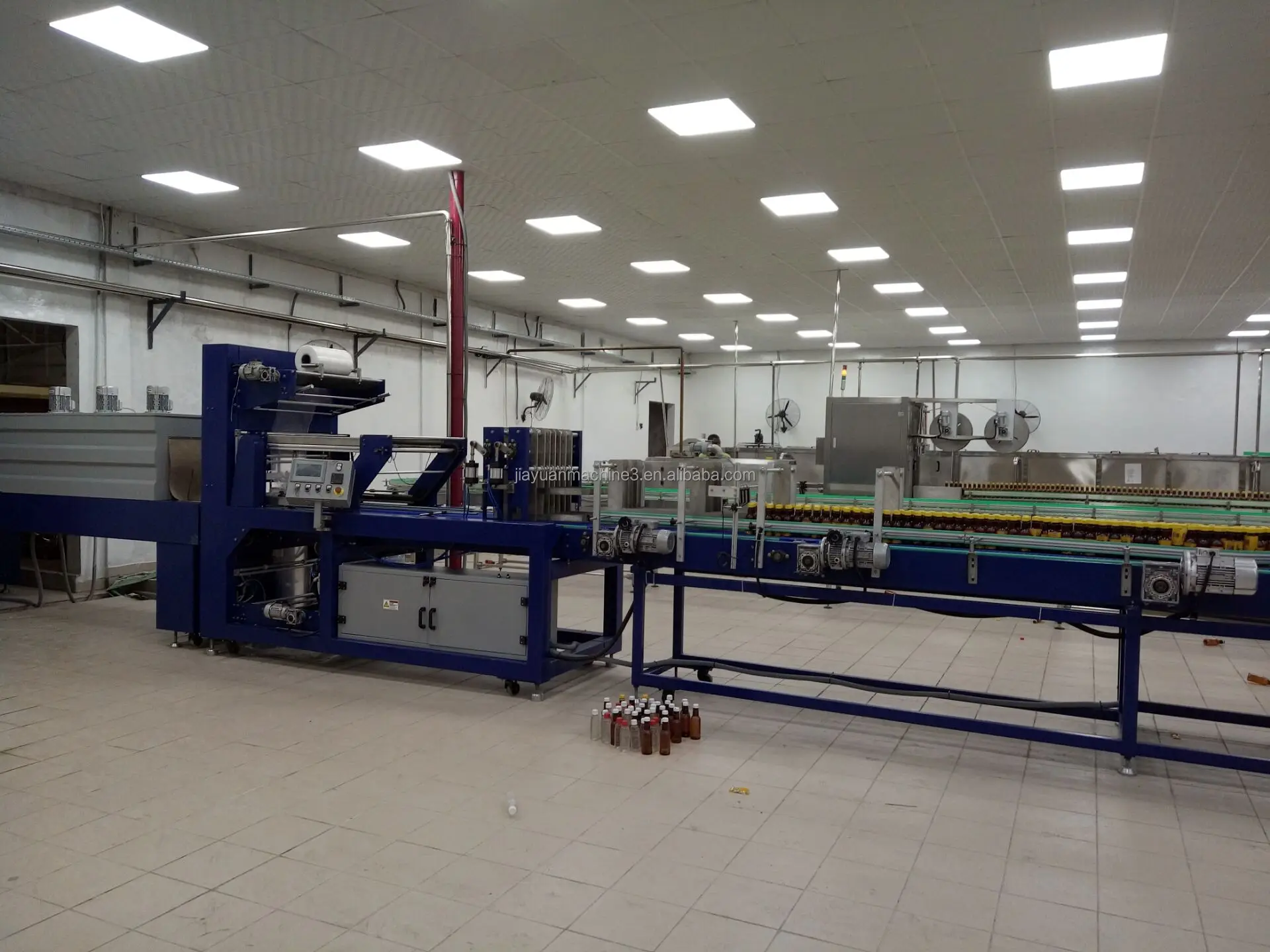

Linear type Packing machine
Flat conveyor system
Packaging & Shipping
Our Services
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
3.We are certificated by many famous certificated authories.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they canoperate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free.

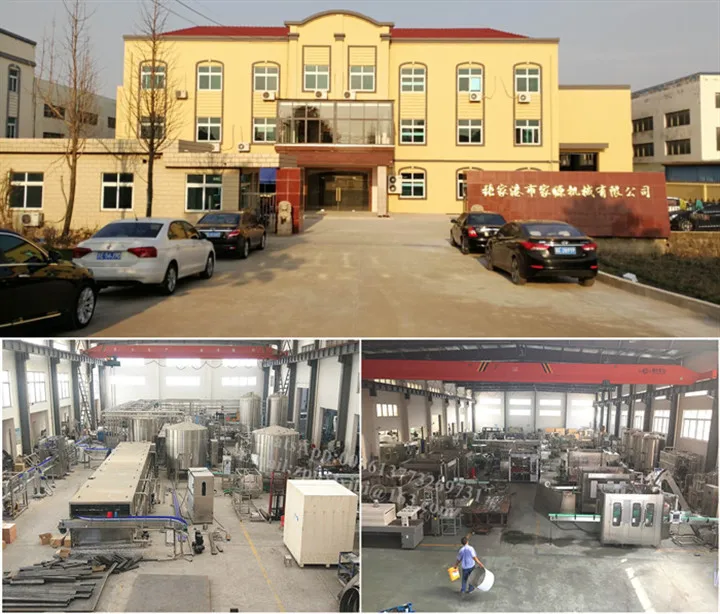

About us
ZHANGJIAGANG JIAYUAN MACHINERY CO.,LTD
JIAYUAN supply and manufacture the followings machines for you
1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner,raw water pump,storage tank
2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink, juice,wine,vinegar, milk,tea,oil and so on.
----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
----PET bottle, Glass bottle, PP bottle and Can
----Screw cap, Aluminum cap, Crown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer ---Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine--- for making plastic bottle
7) Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
JIAYUAN will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
