air source heat pump water heater

Product Overview

Description



We are a joint venture company with Spain, specialized with light commercial air conditioner and professional heat pump for more than 30 years.



We are the leading company in China for the inverter heat pump, we have the most completed full range inverter heat pump for more than 5 years. The performance has been very reliabel and the Scop is very high. We have got the testing report from TUV for and EN14511 and EN 14825, also Erp …



 We have a very large product range, both air source and water source heat pump. Both split type and monobloc type.

air source heat pump, we have the following series



1. High COP  Inverter monobloc  ASHP  With EN14825 report  MCS & UL from TUV

Heating cooling and domestic hot water function

Energy label  SCOP A+++, COP >4.93

Operation range from -20c to 53 c

Japanese DC inverter application

Low noise and low current start. Auto restart function optional

Water access parts are stainless steel to keep safe and non-pollution

8kw, 11k, 16k, 17k (3 phases)  & 25k 30KW available.

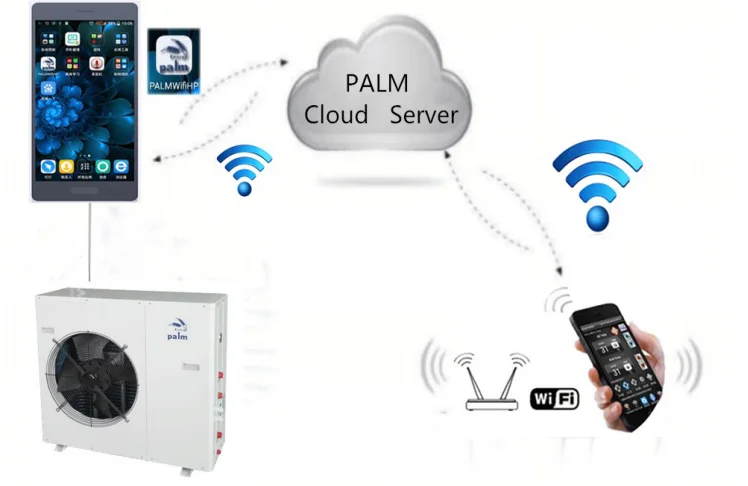

 WIFI internet /mobilephone CONTROL

Wilo inverter circulation pump.   super low noise EC fan motor

5 languages touch screen controller

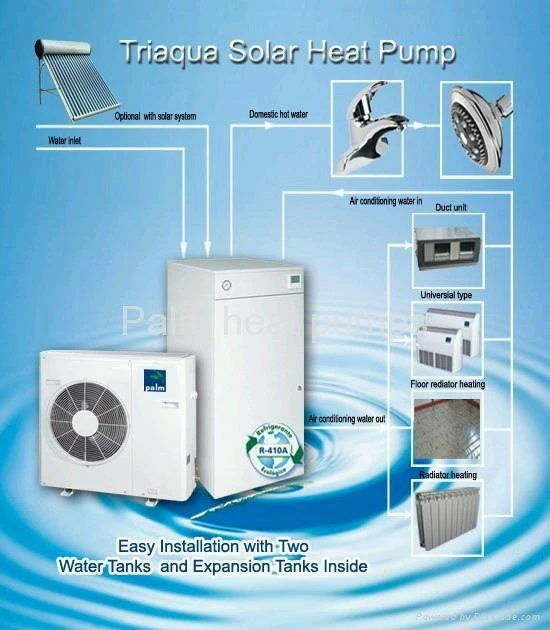

2. Split type Triaqua split type with EN14511 report from TUV

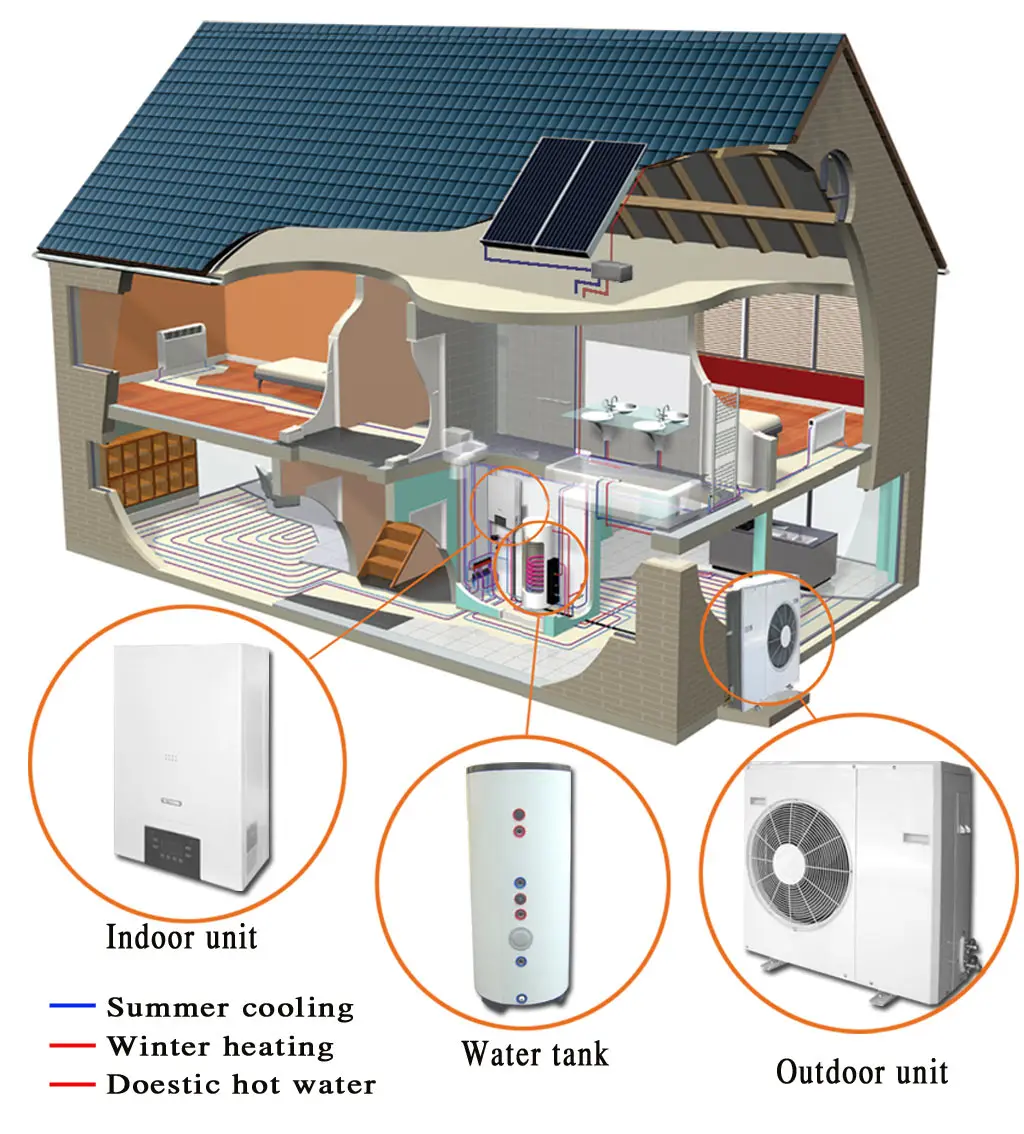

Cooling, heating, and domestic hot water in one solution.

High efficiency. Have got the TUV certificate with the performance.

The COP is very high. More than 4.0

Easy installation. Only two pcs, Already contents the domestic hot water tank and AC tank inside of the unit. The installation is very easy.

Low working temperature for -25.

Adapt to Solar panel, floor heating, radiator, fan coil. Very flexible with the installation.

5 sizes available 11k, 14k, 17k & 19k.and 23k







3. Split type  Tritherma  DC inverter EN14825  Report from TUV



Cooling, heating, and domestic hot water in one solution.

High efficiency

Easy installation. Only two pcs. Including the AC tank but not DHW tank  inside the unit.

Can utilize the existing water tank available at home.

Low working temperature for -25

Adapt to Solar panel, floor heating, radiator, fan coil. Very flexible with the installation.

7 sizes available:6k,8k, 11k, 14k, 17k & 20k, 23k.

DC inverter available .

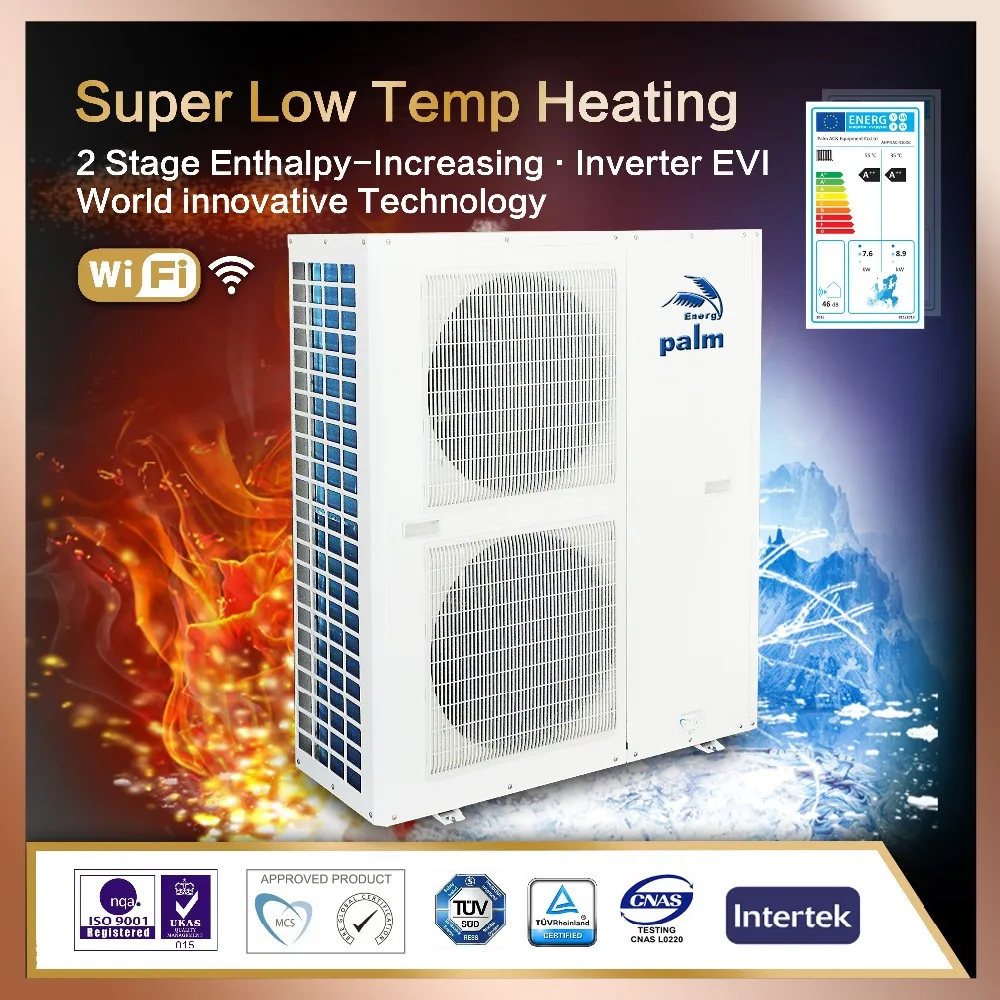

4.    EVI  monobloc ASHP working at -25C (both on off and inverter)

Heating + cooling ; heating + cooling+ DHW can be available as an optional function.

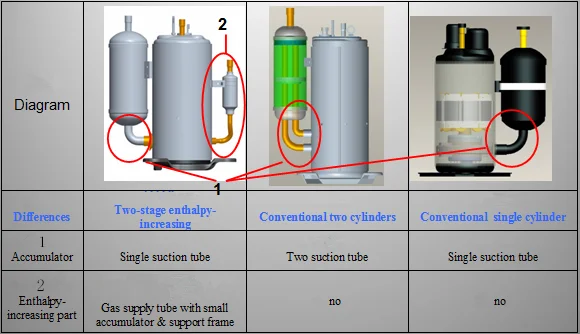

 Most advanced two stages Enthalpy - increasing EVI compressor.



Performance very well at -25C.  20% more energy saving on extream working condition

 Adapt to Solar panel, floor heating, radiator, fan coil. Very flexible with the installation.

High efficiency above 4.0Working rang -25  ~ 43
