Tobee Effluent Handling
$12,600
PWM Speed Control brushless water pump quality assurance 6V 12V 24V dc motor water pump
- Category: >>>
- Supplier: Dongguan Zhonglong Pump Technology Co. Ltd.
Share on (60808463694):
Product Overview
Description

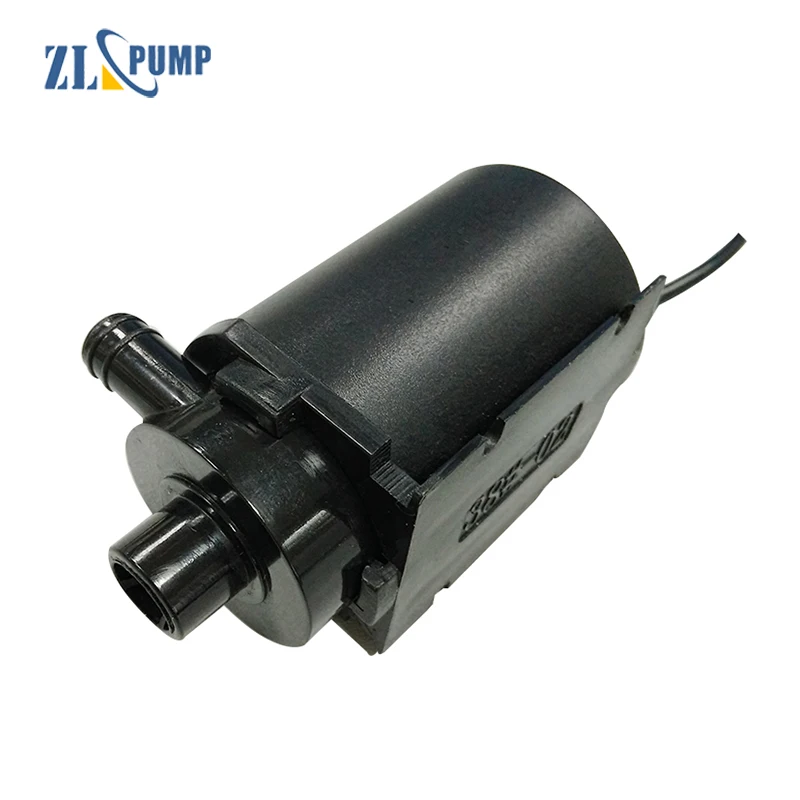

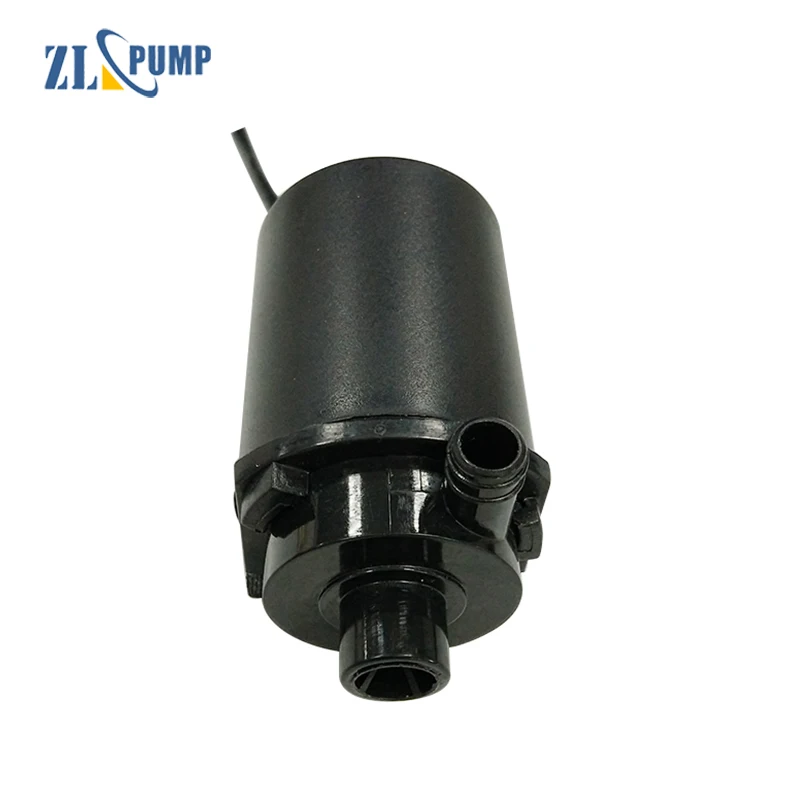

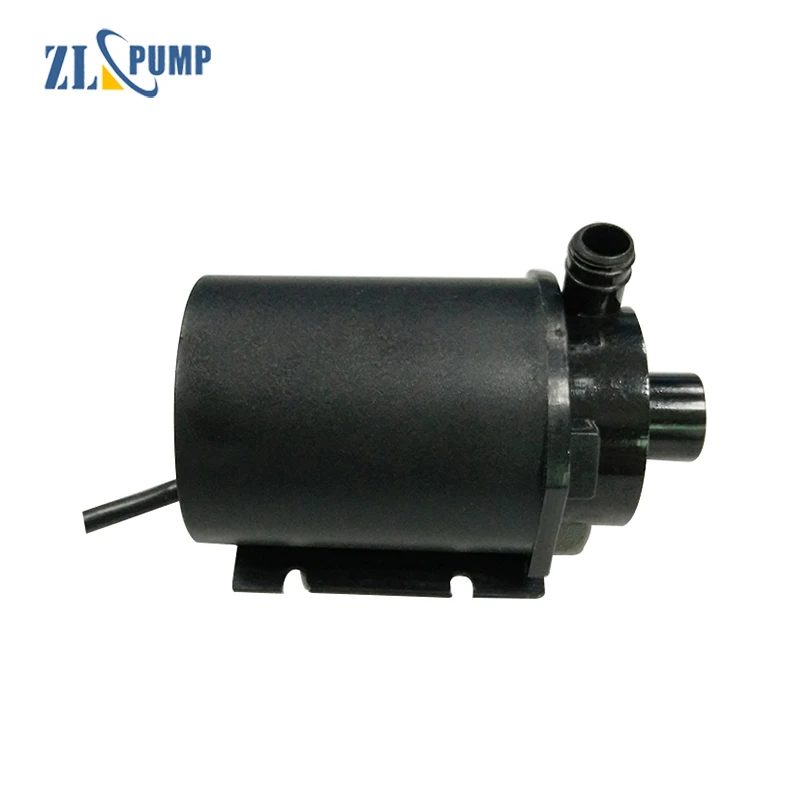

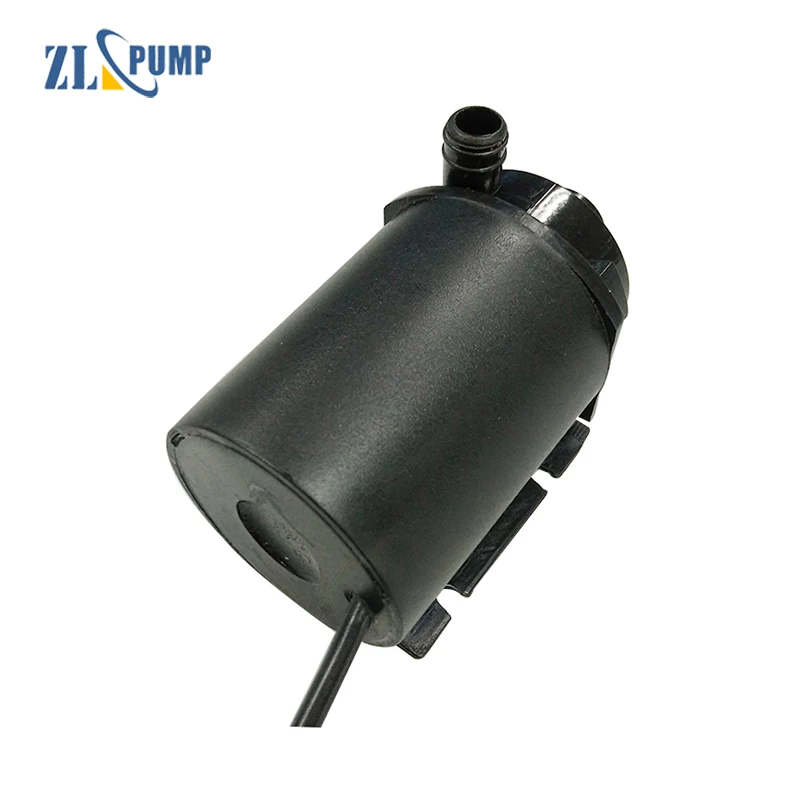

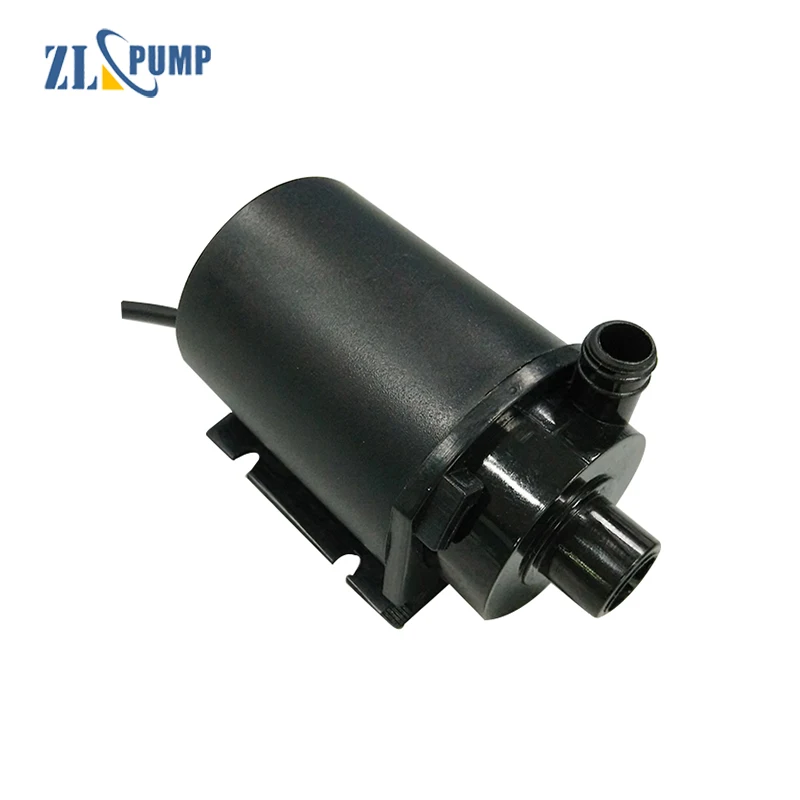

PWM Speed Control brushless water pump quality assurance 6V 12V 24V dc motor water pump
Product parameter
| Character/model | ZL38-02 | |||||||
| Working Voltage Range | DC: 6V-24V | |||||||
| Rating Power | 6V: 2-12W / 12V: 3-18W / 24V: 5-25W | |||||||
| Static Water Head | 1-5 M | |||||||
| Static Flow Rate | 3-12 L/min | |||||||
| Lifespan | Continuous operation≤24hrs, under normal working surrounding >20000Hr0Hr | |||||||
| Working Environment | Liquid: From weak acid to weak base, workable in water (Submerged ) | |||||||
| Max Noise | Under normal working status, 1M distance over test instrument <40dB | |||||||
| Max Working Temperature | Under normal surroundings, fluid medium temperature≤70℃ | |||||||
| Application | Solar water circulation system, Medical kit cold hot compress cycle, Small fountain, Aquarium, etc. | |||||||
| Size | IP Grade | Inlet | Outlet | Remark | ||||
| Lengt(mm) | Width(mm) | Height(mm) | OD(mm) | ID(mm) | OD(mm) | ID(mm) | Inlet and outlet with forward spinning standard pipe thread | |
| 96 | 47 | 90 | IP66 | G1/2'' standard pipe thread | φ13 | G1/2'' standard pipe thread | φ13 | |
Performance diagram
