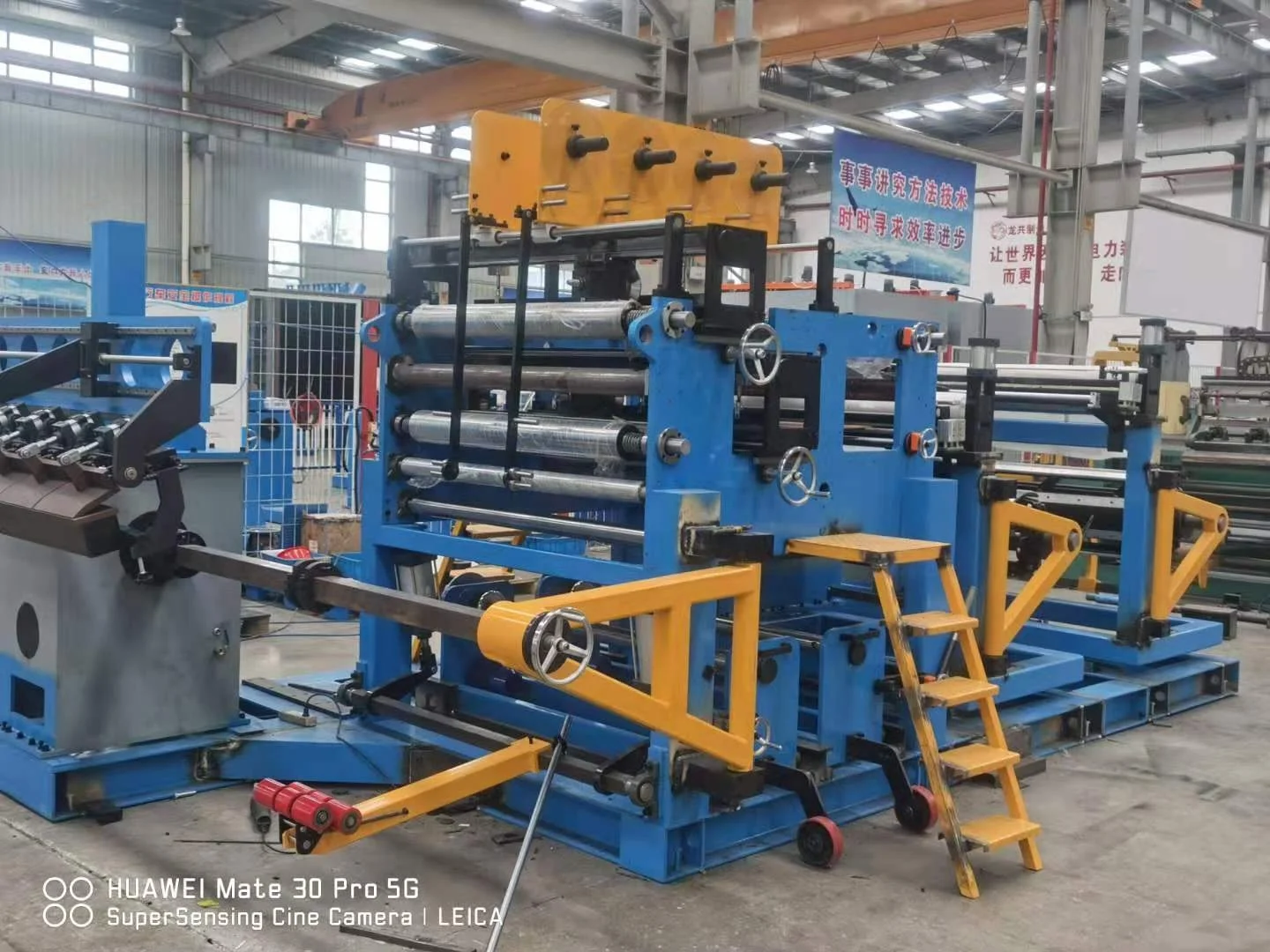

1500 машина для намотки фольги трансформатор HV

S.N

Item

Specification

1

                        Coil range

1.1

Axial length

400~1700 mm (not include wires)

1.2

Inner diameter and External diameter for coil

150~1000mm

1.3

Coil type

Round, rectangle

2

                       Coil material

2.1

Foil width

30~450 mm

2.2

Foil thickness

Copper foil and aluminum foil 0.2~2.0 mm

F b

2.4

Coil diameter (Max)

≤1000mm

2.5

Expansion core shaft diameter

Or 460-520mm

2.6

Coil weight (Max)

1500kg

3

Decoiler (1 set )

3.1

Effective length of loading container

300 mm,

3.2

Diameter range of of loading container

460~510

3.3

Load for loading container the decoiler ( Max)

1500 KG

3.4

Foil pull force

50-3000 N

3.5

Working method for foil pull force

Electric adjustable

3.6

 Centering way(deviation Recertify)

Manual/automatic type

3.7

Expand and contract method of loading container

Manual

4

Winding device (1 set)

4.1

Winding speed

0~150 r/min

4.2

Working torque( Max )

≤2000N.M

4.3

Winding power

18.5 KW

4.4

Speed regulation

Frequency stepless speed regulation

4.5

Winding shaft

70mm,(Can be customized)

5

Welding device (1 set)

5.1

Welding method

TIG ac/dc tungsten argon arc welding machine

5.2

Welding speed

Frequenc control 0~0.7m/min       (Stepleess  Speed Adjustment)

6

Shearing device (1 set )

6.1

Shearing form

Handheld electric scissors

6.2

Shearing speed

1.5 m/min
