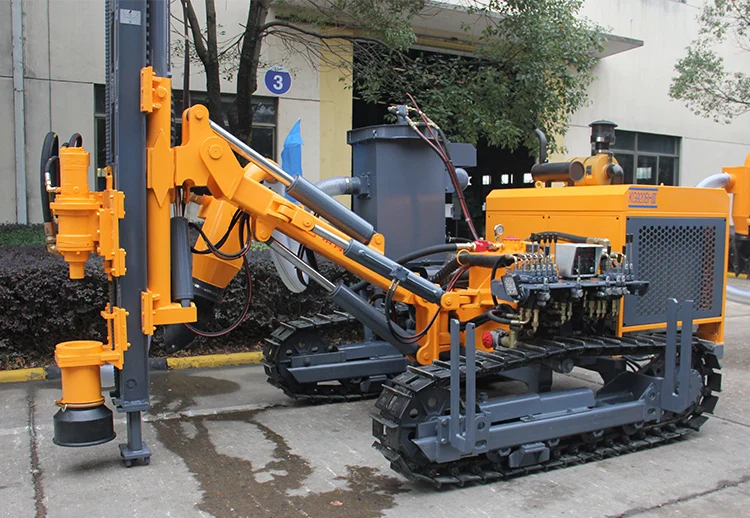

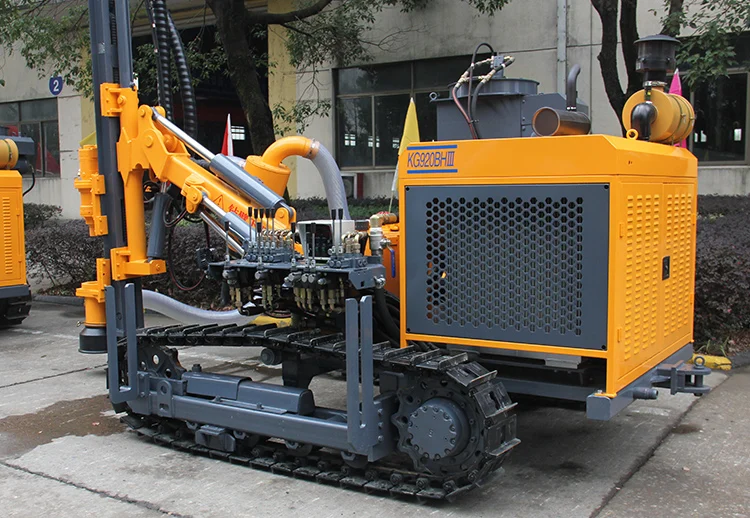

Kaishan KG920BHIII geological drilling rig machine portable well price
- Category: >>>
- Supplier: Zhejiang Xinyu Machinery Co. Ltd.
Share on (60808483355):
Product Overview
Description
Product Description

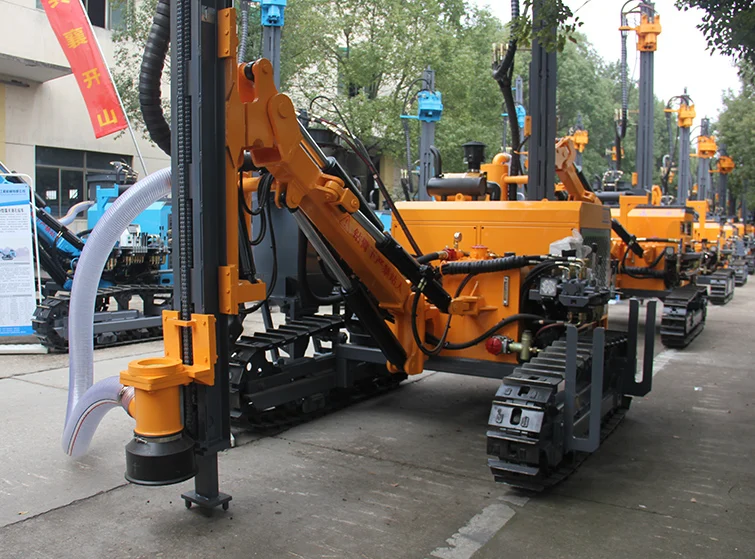

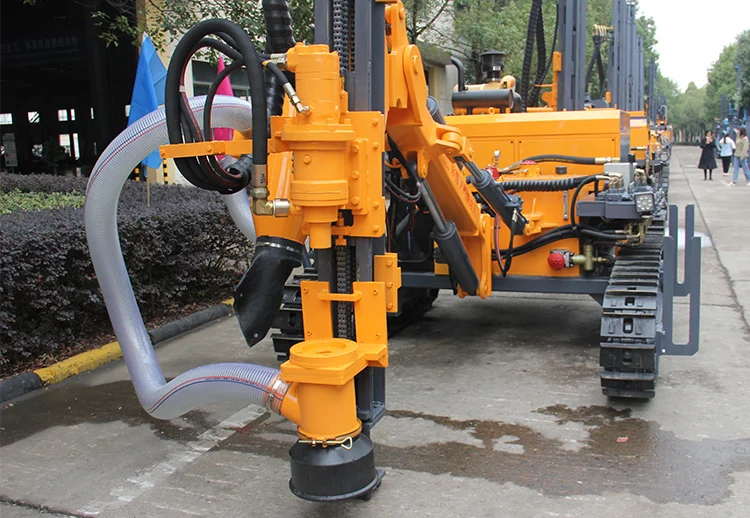

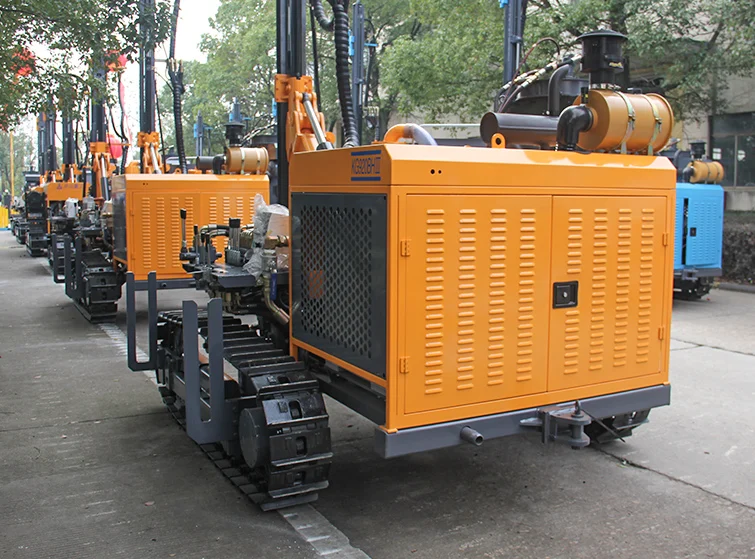

Detailed Images
Model | KG920B |
Type | Crawler |
Drilling Hardness | f=6-20 |
Drilling Diameter | φ90-115mm |
Drilling Depth | 25m |
Weight | 4200kg |
Dimension | 5600*2400*2300 mm |
The option of easy mining Kaishan Drilliing rig
1.High rock rigidity, hard to move,low efficiency?

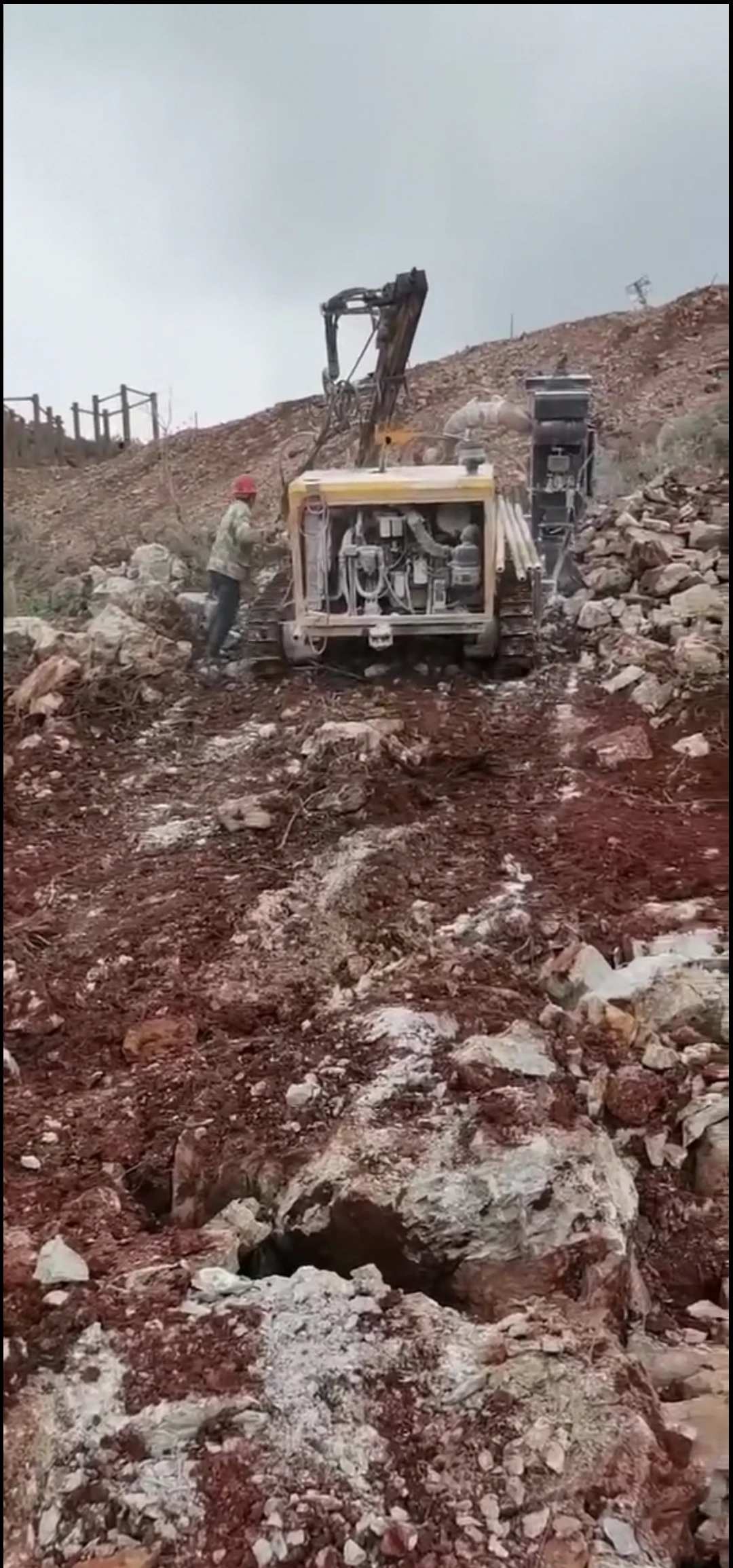

KG series drilling rig's max climb capacity is 40°, and max ground clearance is 450mm, so it can be easily overcome obstacles and better to achieve climbing and mining. The Rotation speed and Rotation torque have a direct impact on the drilling speed and the drilling cost. KG series' Rotation speed is controlled within a reasonable range of 70-120rpm. Although the machine vibration is reduced, the drilling speed is guaranteed. The greater the rotation torque, the stronger the ability to prevent stuck drilling. KG series drilling rig's max rotation torque is 4500N.m, even if the drilling rig is on a slope, it can be keep working high efficiently.
2.More conditional restrictions, hard to drill, less workload?
KG series drilling rig hydraulic system has been updated and upgraded. KG920B series uses new large diameter valve block 30 pumps, new diverter valve and new connector. The Max.feed force is 2200N. And the range of Boom lift is too wide, such as 25°up, 50°down and more. Also the range of Boom swing has tow ranges. The range of Guide Tilt has 50°up,135°down and 180°, also Guide swing has seven ranges. Even the compensation stroke can reach 900mm. Greatly expanded the drilling range, so KG series drilling rig has strong environmental adaptability.
3.Unstable gas supply affects project progress?
Kaishan LGCY series and KSCY series portable diesel screw air compressor often provide high power for KG series drilling rig. The efficiency of the screw air compressor depends on the rotor, also the life of the screw air compressor depends on the bearing and the shaft seal. Only Kaishan can produce a whole pedigree of rotor in the world and the diameter of 220kw rotor can reach 386cm. The bearing of screw air compressor generally use SKF, with low speed, the bearing no extra force, the work-life of the screw air compressor will be longer. Kaishan compressor's rotor is direct driven, no speed gear, lower speed and higher efficiency. So the work-life of Kaishan compressor is longer than other brand compressor. Kaishan compressor can continue to provide stable and efficient power for the mechanical equipment and support the equipment with high speed and stability.
Our Company
Certifications

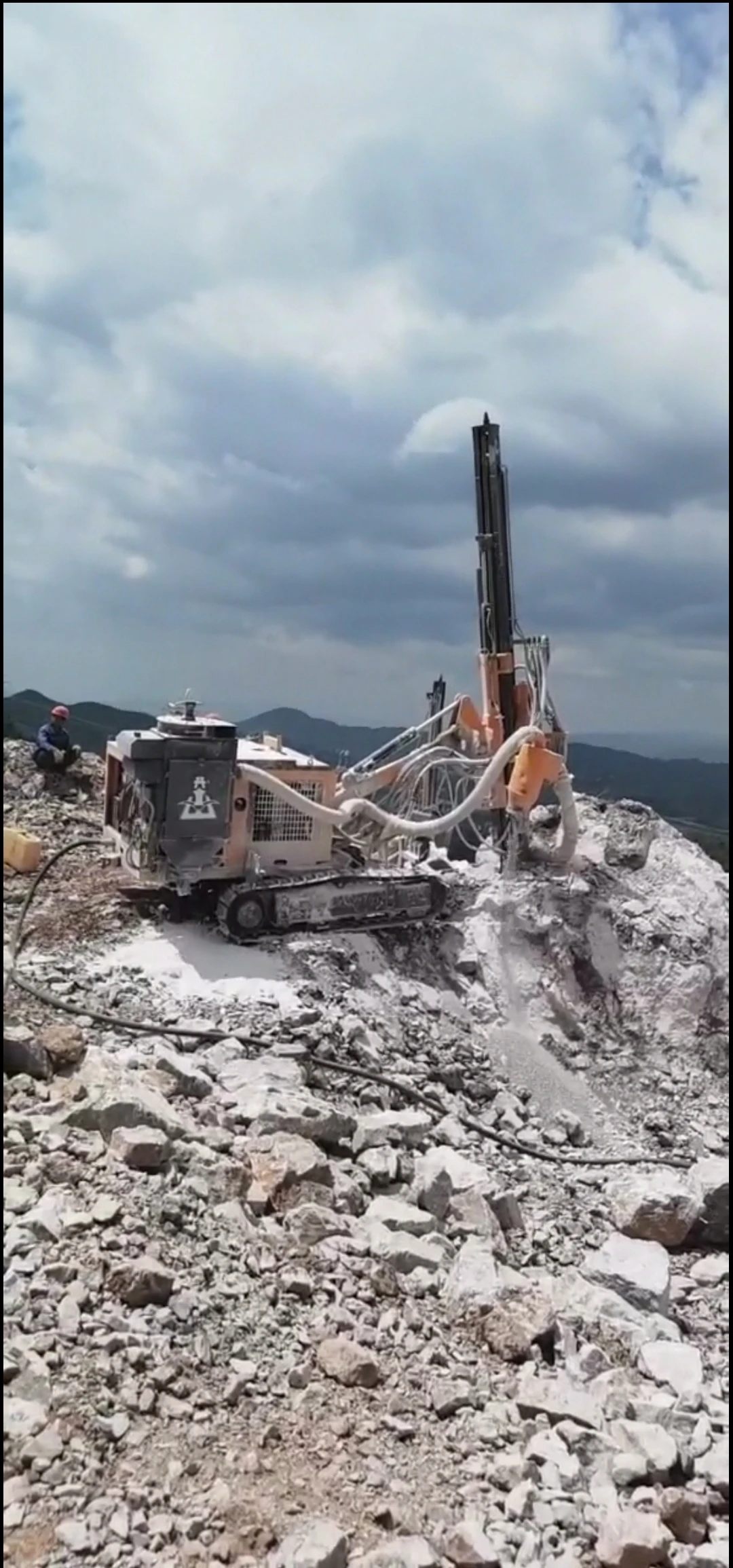

Our customer feedback
Packing & Delivery
Pre-Sales Services
Inquiry and consulting support
Sample testing support
View our Factory
After -Sales Service
Training how to instal the machine,trianing how to use the machine.
Engineers available to service machinery overseas.
FAQ
Q1: What’s the exactly address of your company?
A1: Room 102, Building 3, No. 12, Bailing Middle Road, Qujiang District, Quzhou, Zhejiang,China.
Q2: Are you factory or trading company?
A2: Now, we are a trading company. But our enterprises are transforming and upgrading to a manufacturer.
Q3: Do you supply spare parts of machines?
A3: Yes, we do. Not only air compressor spare parts like filter elements, but only drilling machine spare parts like drill bits, pipes and so on could be provided to you.
Q4: How about payment terms?
A4: Ordinary, our customers pay 30%T/T first as deposit, then we prepare the goods, the balance should be paid before delivery.
Q5: How about trade terms?
A5: EXW, FOB, CIF and CFR are the trade terms we often use, but others are also available. It’s up to our customers.
A1: Room 102, Building 3, No. 12, Bailing Middle Road, Qujiang District, Quzhou, Zhejiang,China.
Q2: Are you factory or trading company?
A2: Now, we are a trading company. But our enterprises are transforming and upgrading to a manufacturer.
Q3: Do you supply spare parts of machines?
A3: Yes, we do. Not only air compressor spare parts like filter elements, but only drilling machine spare parts like drill bits, pipes and so on could be provided to you.
Q4: How about payment terms?
A4: Ordinary, our customers pay 30%T/T first as deposit, then we prepare the goods, the balance should be paid before delivery.
Q5: How about trade terms?
A5: EXW, FOB, CIF and CFR are the trade terms we often use, but others are also available. It’s up to our customers.
