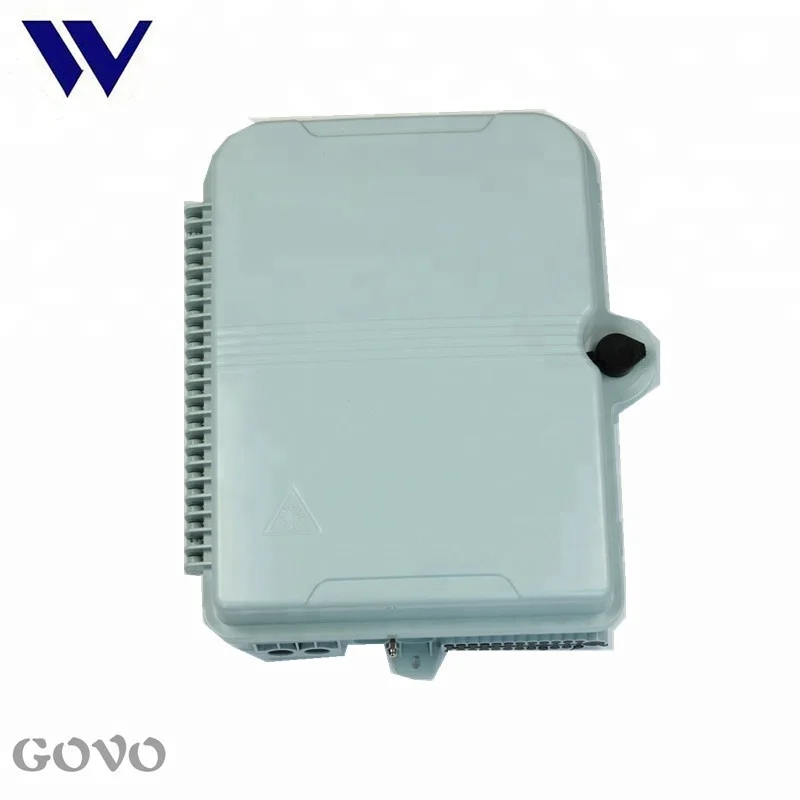

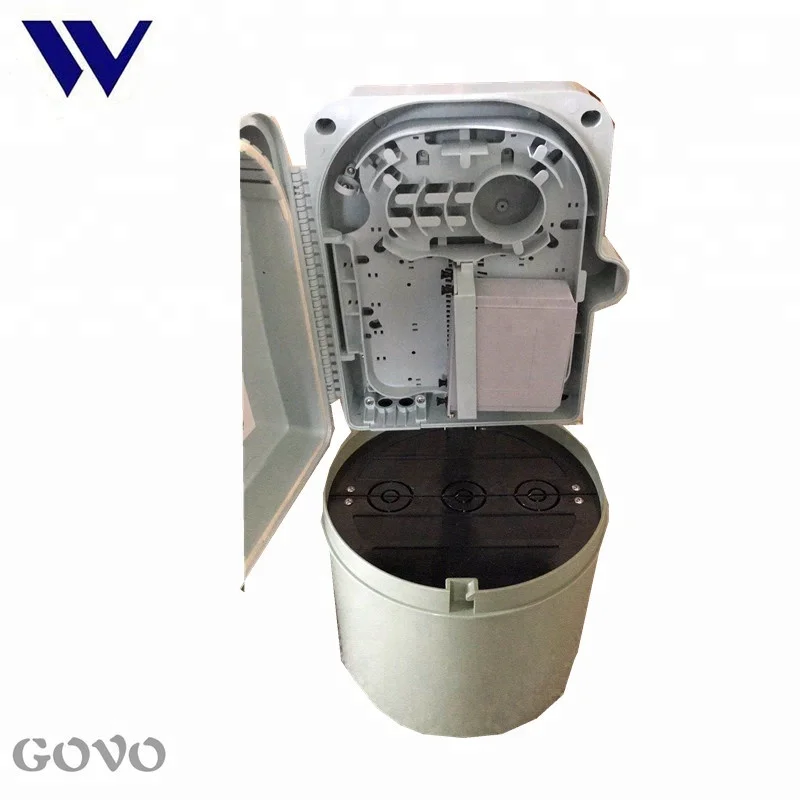

FOP 16A telecom pedestal FTTH Pedestal for Outdoor

Share on (60808528486):


Price:$33.00 - $39.00

Quantity:


Product Overview

Description


FOP-16A telecom pedestal FTTH Pedestal for Outdoor



Product Description





FOP-16 fiber optical pedestal is designed specifically


for the housing of fiber access terminals to provide an additional protection to the fiber passive equipments installed, the  green environment-friendly appearance makes itself perfectly suitable for FTTH.

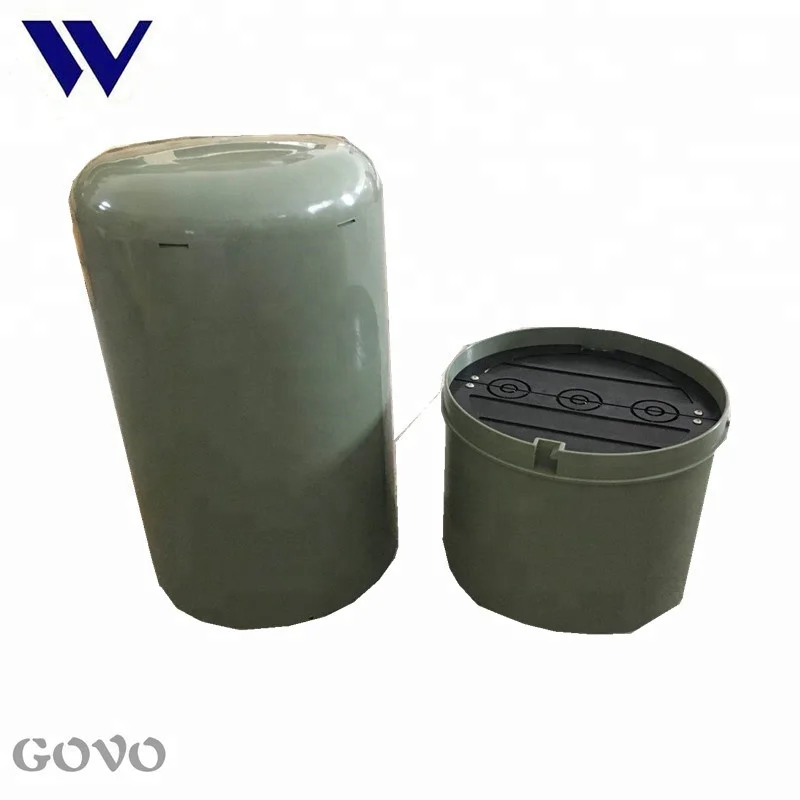

FOP-16 fiber pedestal.5





Features





Water-proof design with IP-55 Protection level.


Self-locking cover mechanism, with additional padlock.


Removable cable entry plate with 3 * 50mm cable entrance, better performance for humidity-proof.


Spacious inner space with universal mounting bracket, suitable for all types of FAT less than 300mm.


Made by high strength industrial-standard engineering plastic,better performance on anti-aging and UV-proof.


Stainless steel metal frame and anti-rusting components. 360 degrees air vents to keep a sound ventilation system. Smart design on packing,saves up to 30% on shipping cost.

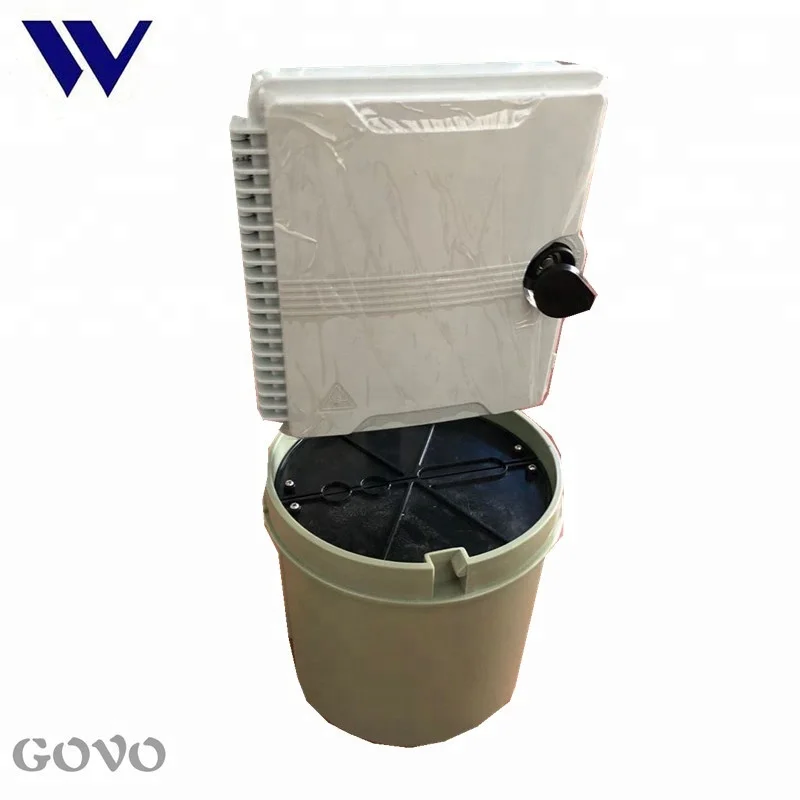

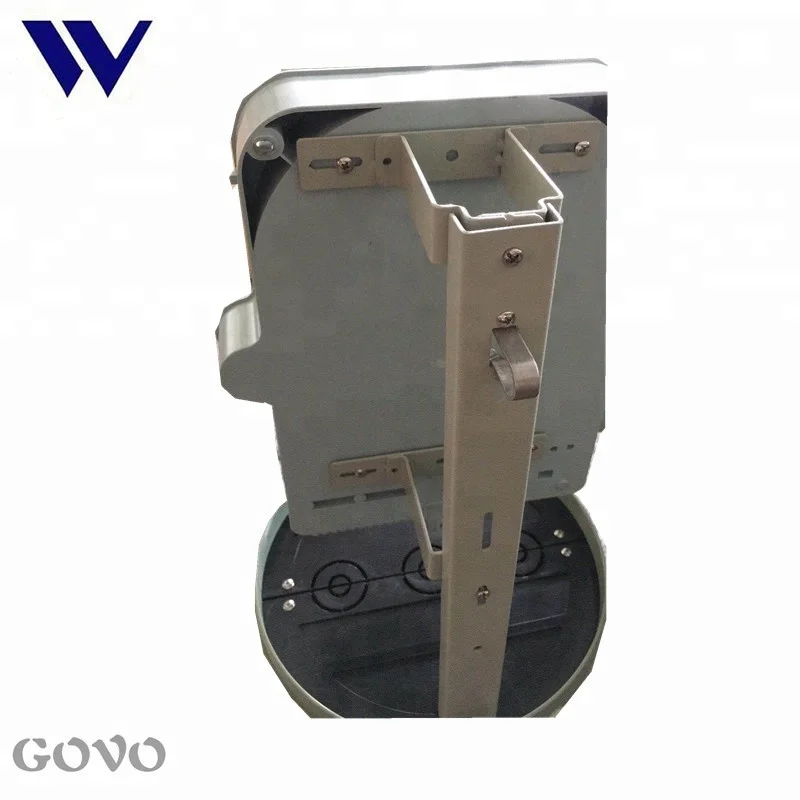

FOP-16 fiber pedestalFOP-16 fiber pedestal.3





Specification




































Model



Material



Field Size



Max Capacity


Shipping SizeWeightColor
FOP-16A

Non-metallic


ABS




H*D(mm) 700*310




FAT(ODP) Ports


24 Ports/


PLC 1x16(SC)




H*D(mm) 515*310


 4 kgLight Green
FOP-16B

Non-metallic


ABS




H*D(mm) 550*230




FAT(ODP) Ports


12Ports/


PLC 1x8(SC)





H*D(mm) 560*240


 3 kg

Light Green

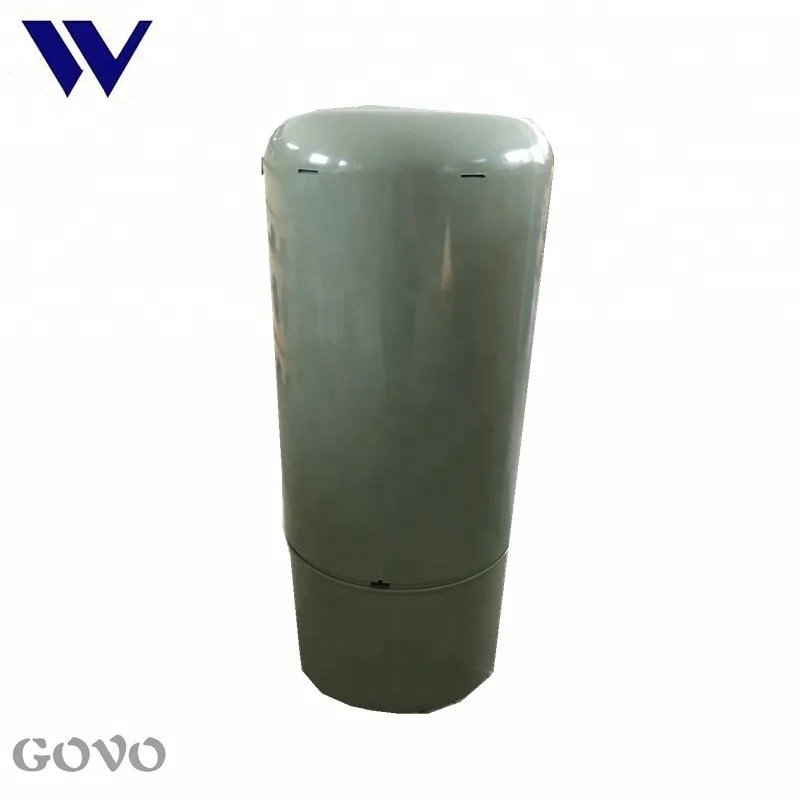

 FOP-16 fiber pedestal.7FOP-16 fiber pedestal.6








Related Products

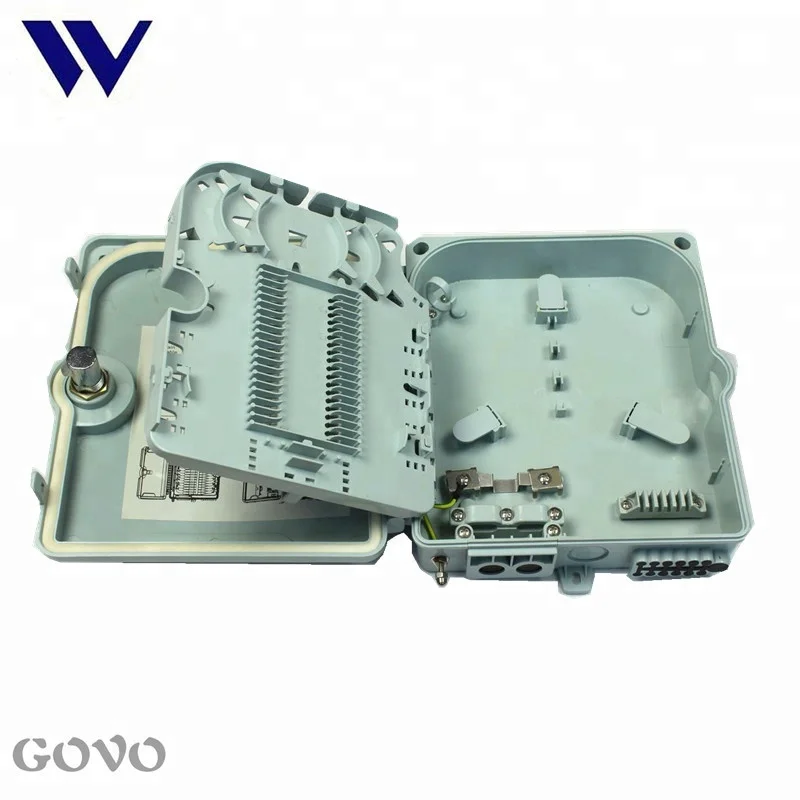

FAT-12A Termimal Box optional in wall mounting and pole mounting
