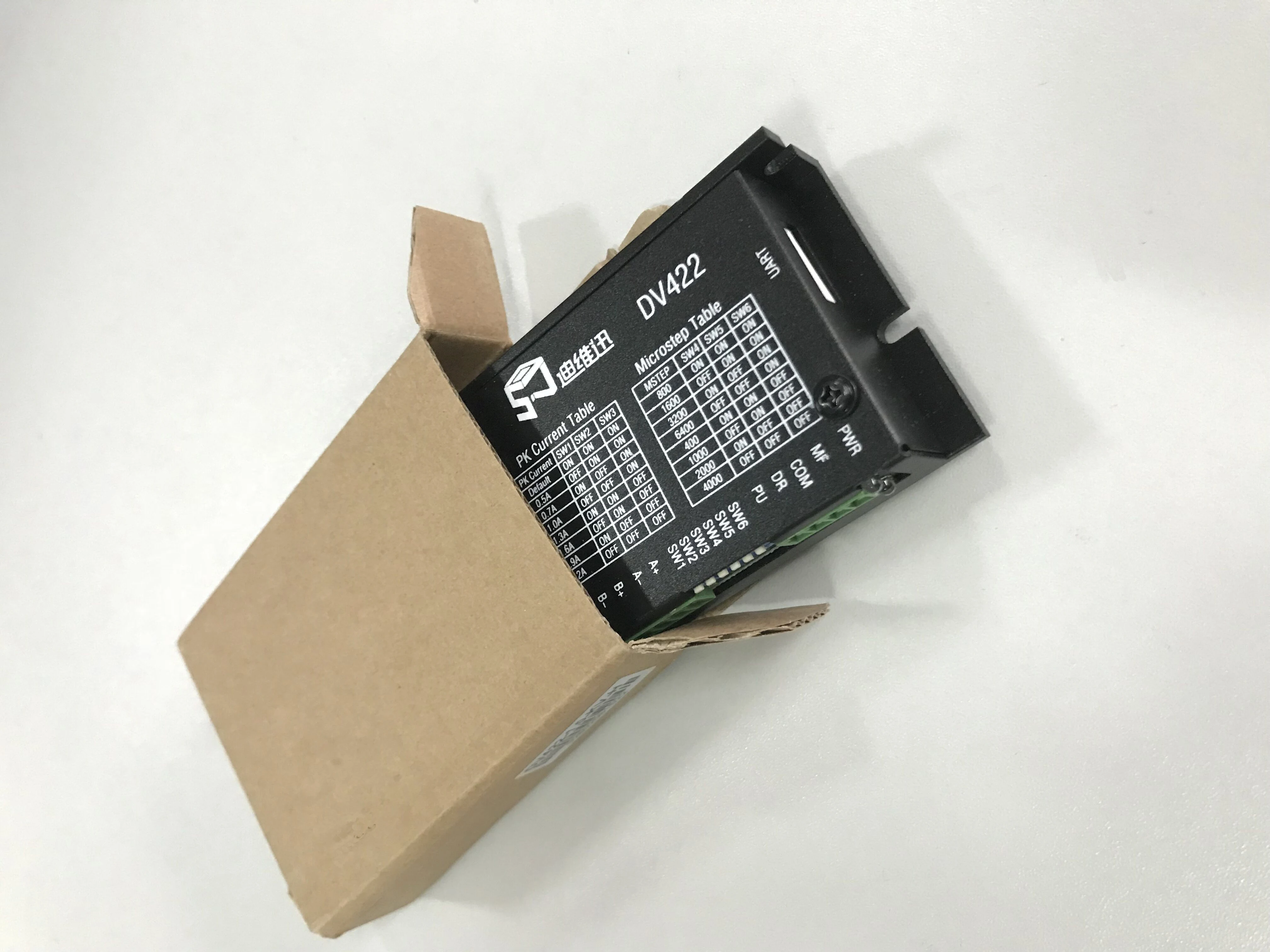

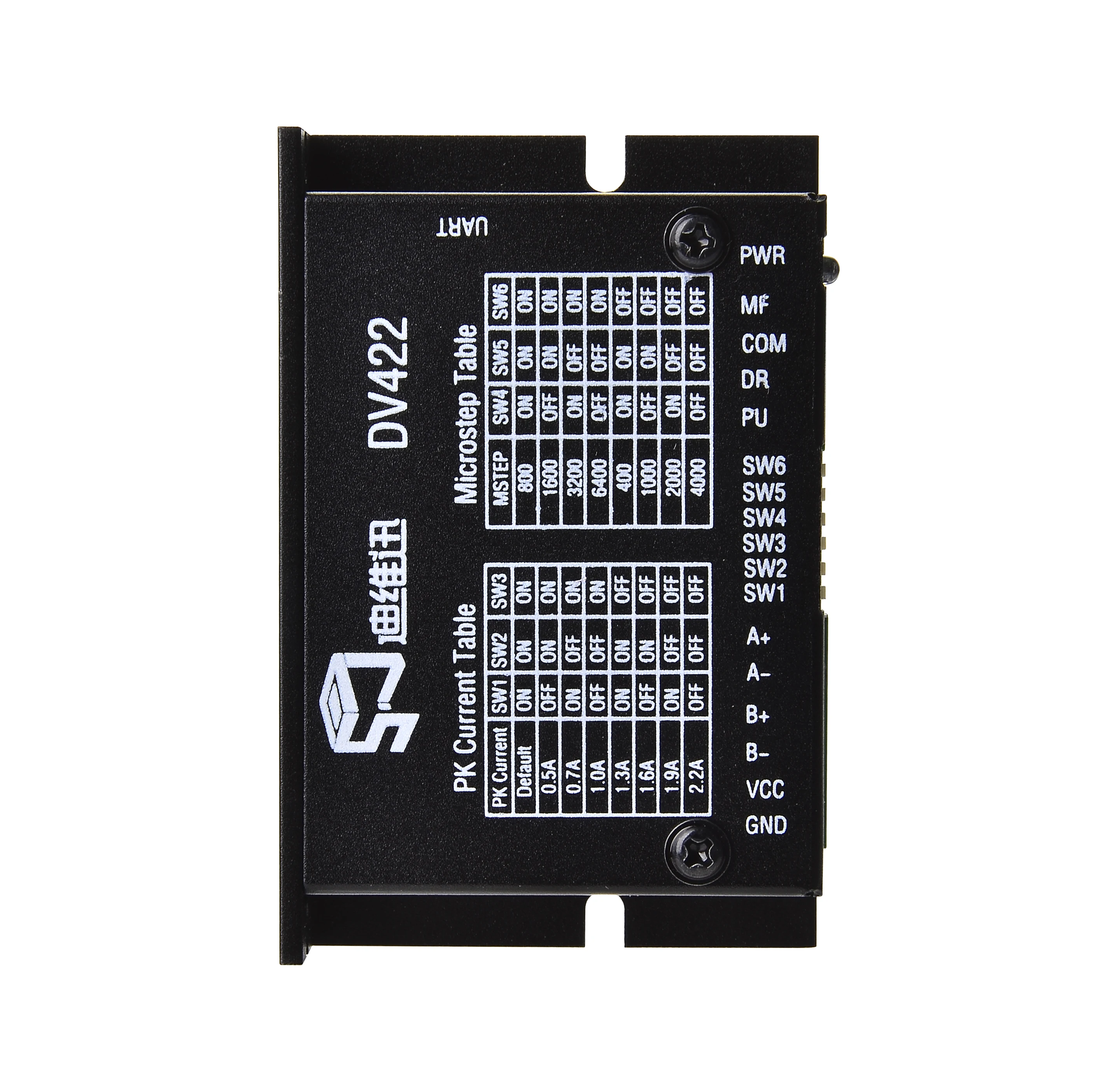

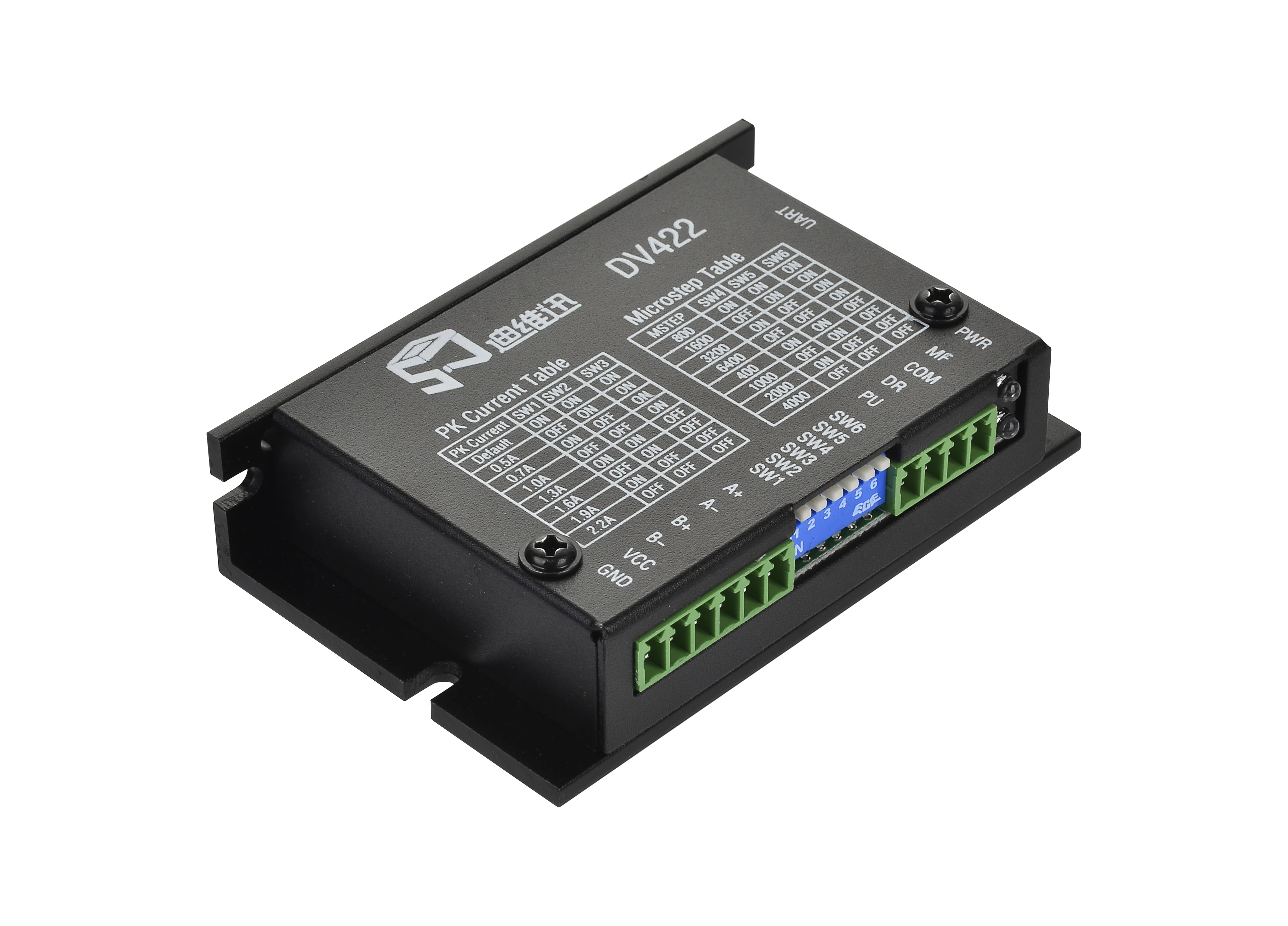

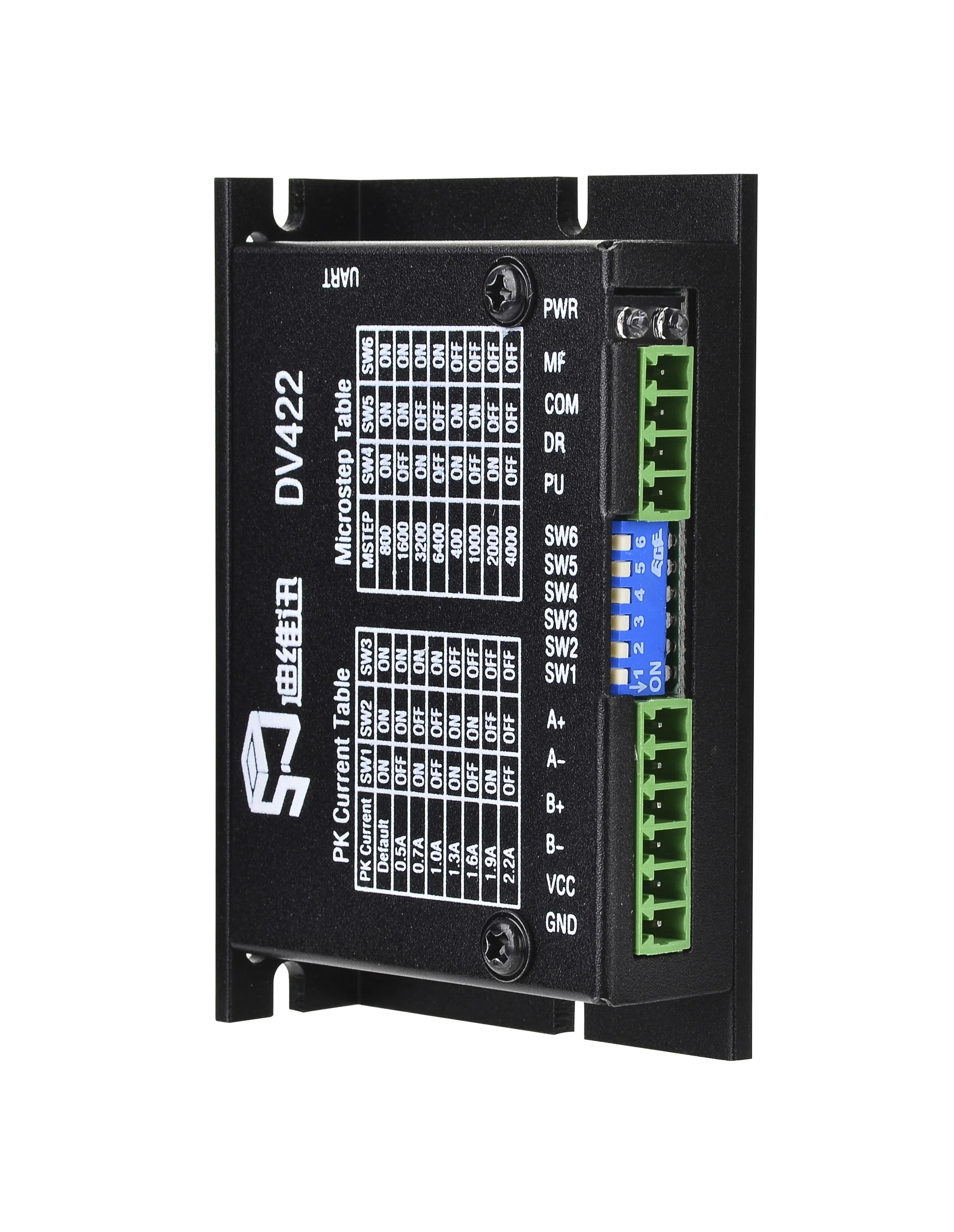

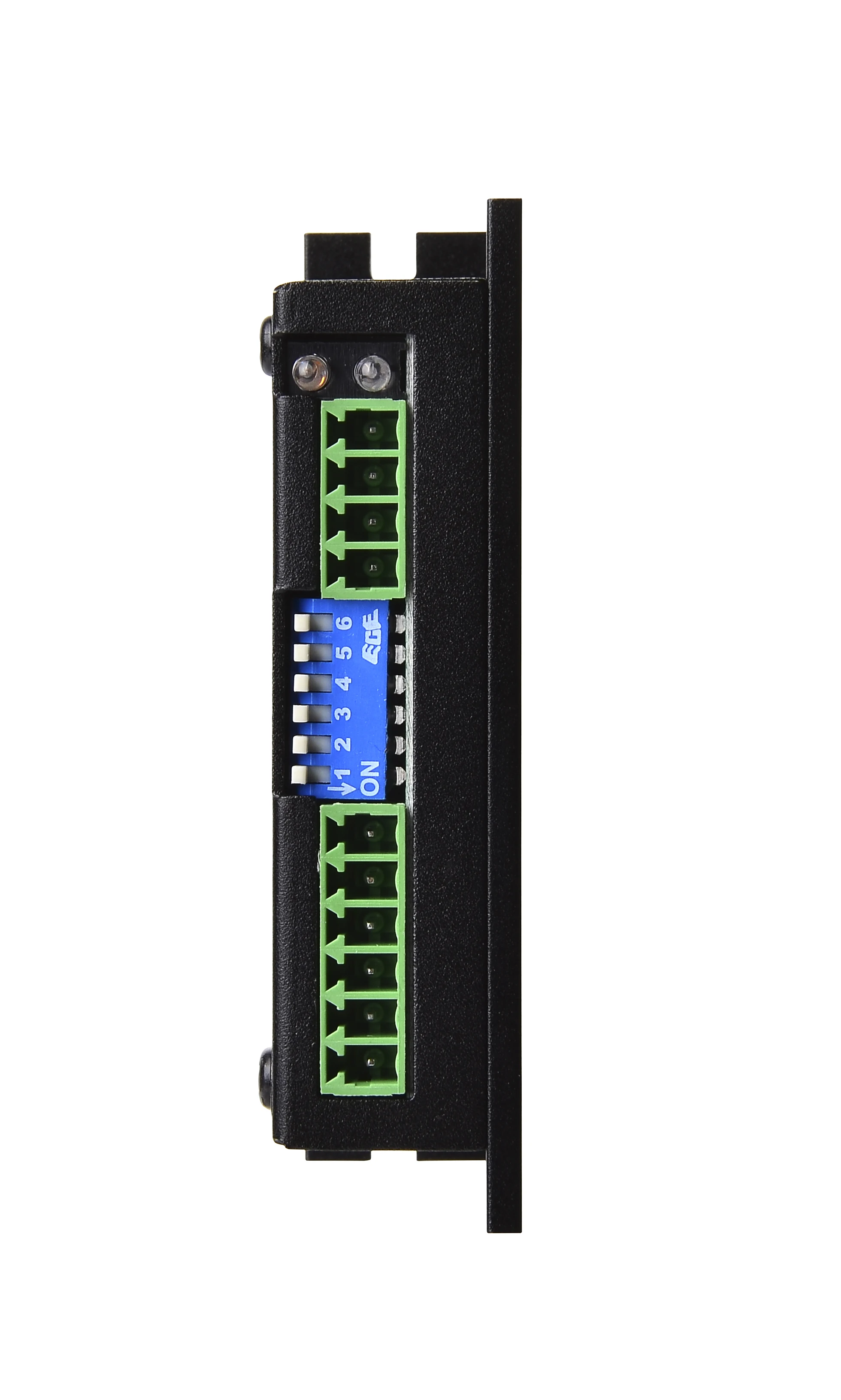

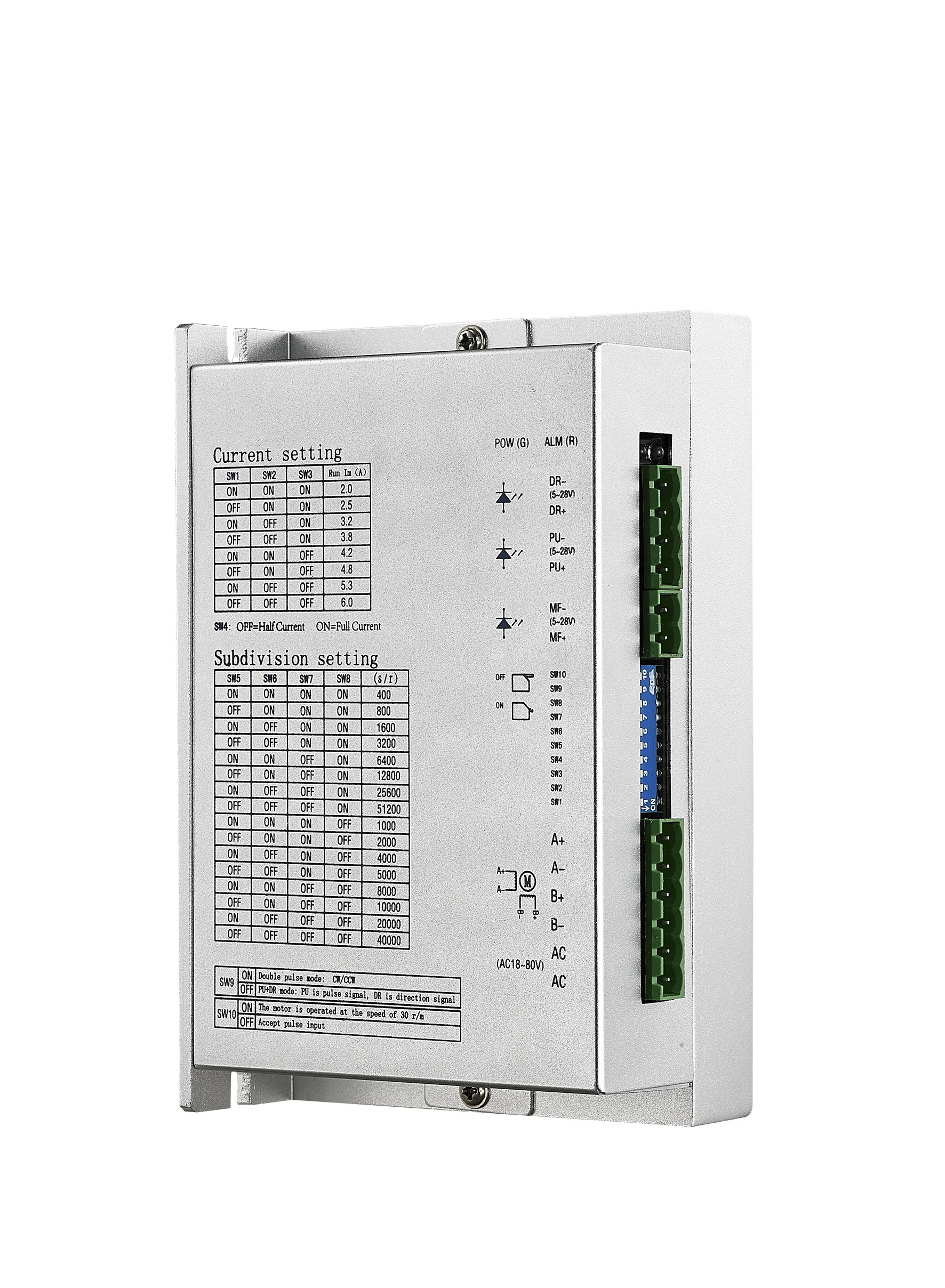

DV422

    The DV422 is full digital 2-phase stepper driver based on DSP control , the drive voltage ranges from 12V to 36VDC. It is designed for use with the 2-phase hybrid stepper motor of all kinds with 39mm to 42mm outside diameter, regulated phase current under 2.2A. Due to the perfect use of the constant current chopping circuit, the motor enables to run smoothly .The highest micro step is 40000ppr.

\t
Current Setting
\t
                      Microstep Setting
\t
SW1
\t
SW2
\t
SW3
\t
 Current
\t
SW4
\t
SW5
\t
SW6
\t
Microstep
\t
ON
\t
ON
\t
ON
\t
Default
\t
ON
\t
ON
\t
ON
\t
800
\t
OFF
\t
ON
\t
ON
\t
0.5A
\t
OFF
\t
ON
\t
ON
\t
1600
\t
ON
\t
OFF
\t
ON
\t
0.7A
\t
ON
\t
OFF
\t
ON
\t
3200
\t
OFF
\t
OFF
\t
ON
\t
1.0A
\t
OFF
\t
OFF
\t
ON
\t
6400
\t
ON
\t
ON
\t
OFF
\t
1.3A
\t
ON
\t
ON
\t
OFF
\t
400
\t
OFF
\t
ON
\t
OFF
\t
1.6A
\t
OFF
\t
ON
\t
OFF
\t
1000
\t
ON
\t
OFF
\t
OFF
\t
1.9A
\t
ON
\t
OFF
\t
OFF
\t
2000
\t
OFF
\t
OFF
\t
OFF
\t
2.2A
\t
OFF
\t
OFF
\t
OFF
\t
4000

Main Features

1) 8 channels constant angle, constant torque micro steps, highest micro step: 6400ppr

2) Highest response frequency: 200Kpps

3) Current of winding will be reduced by approximately 50% when no step pulse command is received for 1.5 seconds

4) Opto-isolated signal I/O

5) Drive current is adjustable in 8 channels from 0.3A/phase to 2.2A/phase

6) Single power supply from 12V to 36VDC

7) Better to overcome the problem of low frequency vibration

8) Dimension : 86×21×56mm3; Net Weight : 0.1Kg

Packing & Delivery
\t
Packaging
\t
Size
\t
2000mm (L) * 2000mm (W) * 1400mm(D)
\t
Weight
\t
2kgs(20pcs/carton)
\t



Packaging Details
\t
The normal package is wooden box(Size: 96mmL*30mmW*70mmH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

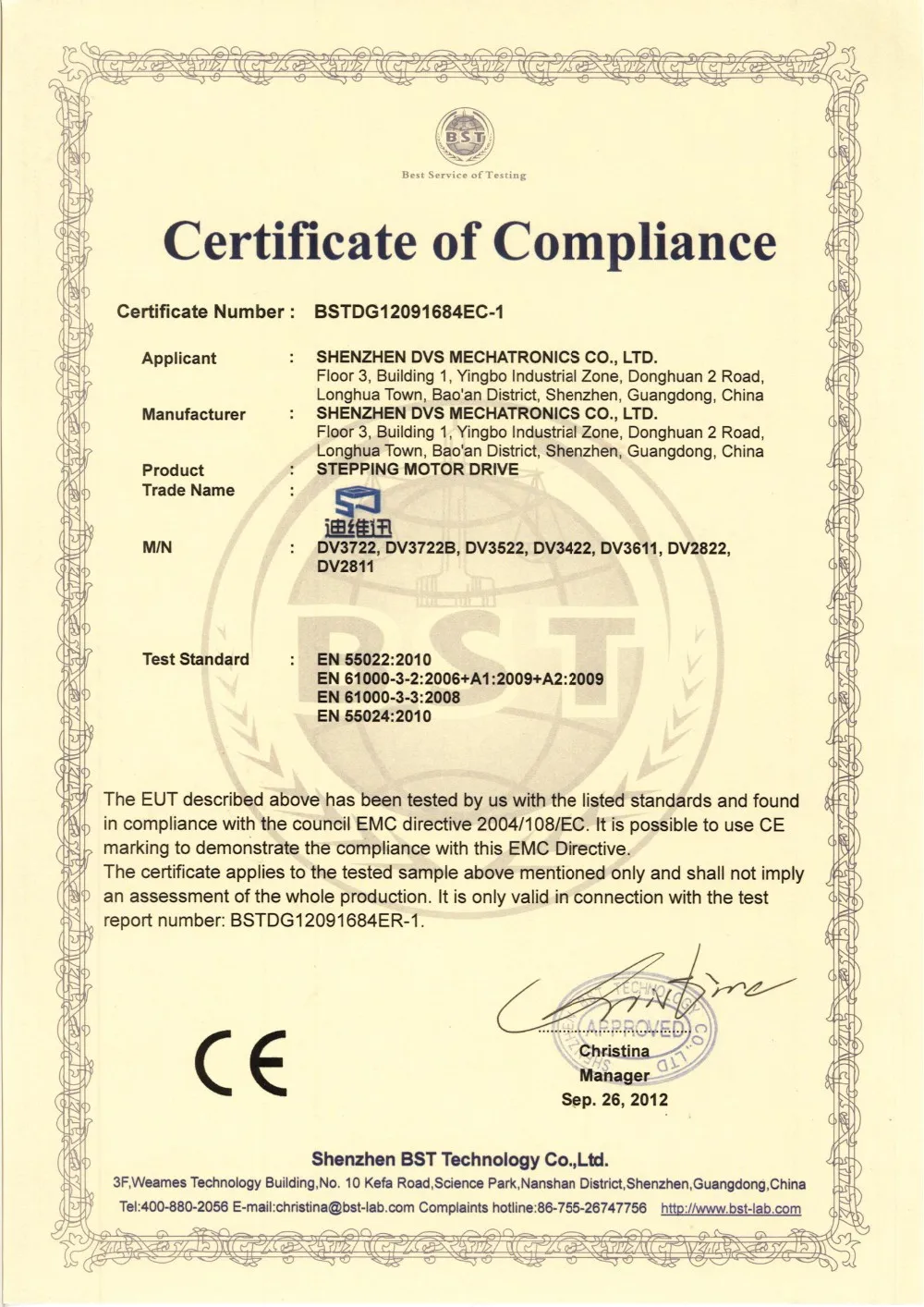

Certifications
