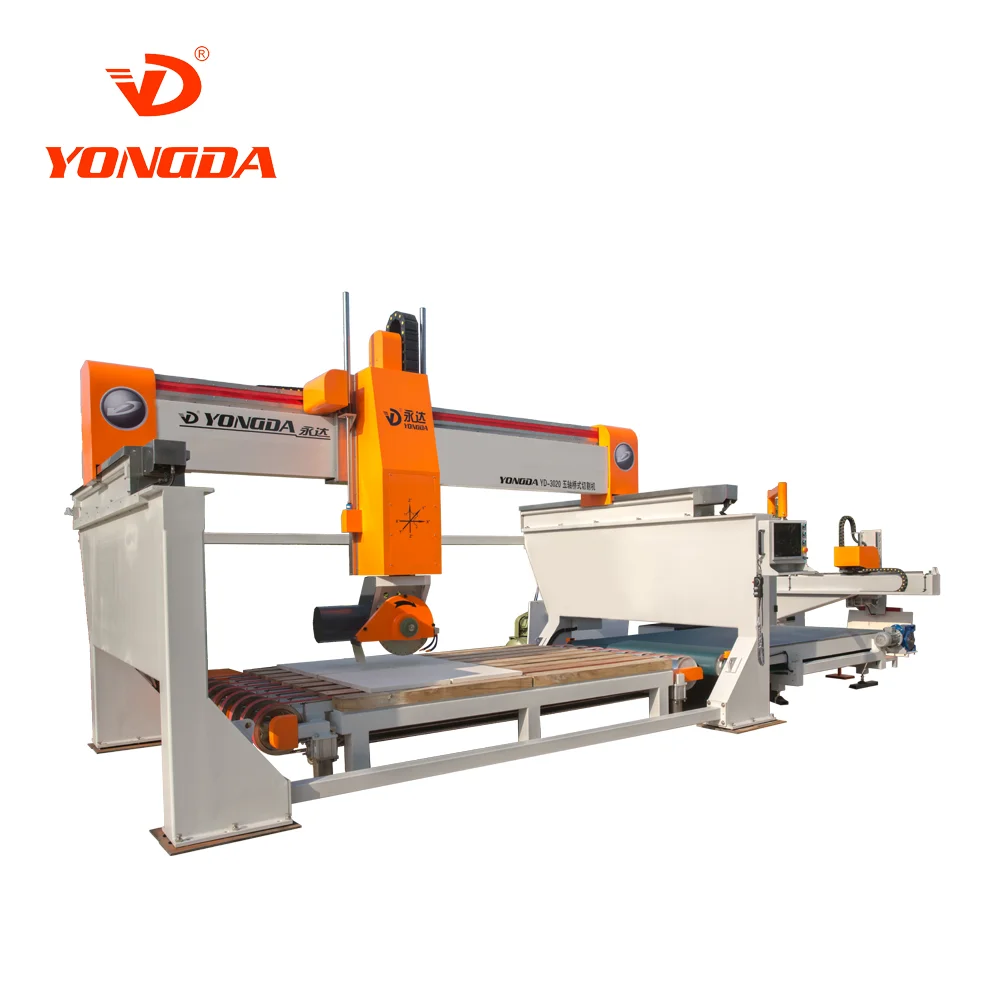

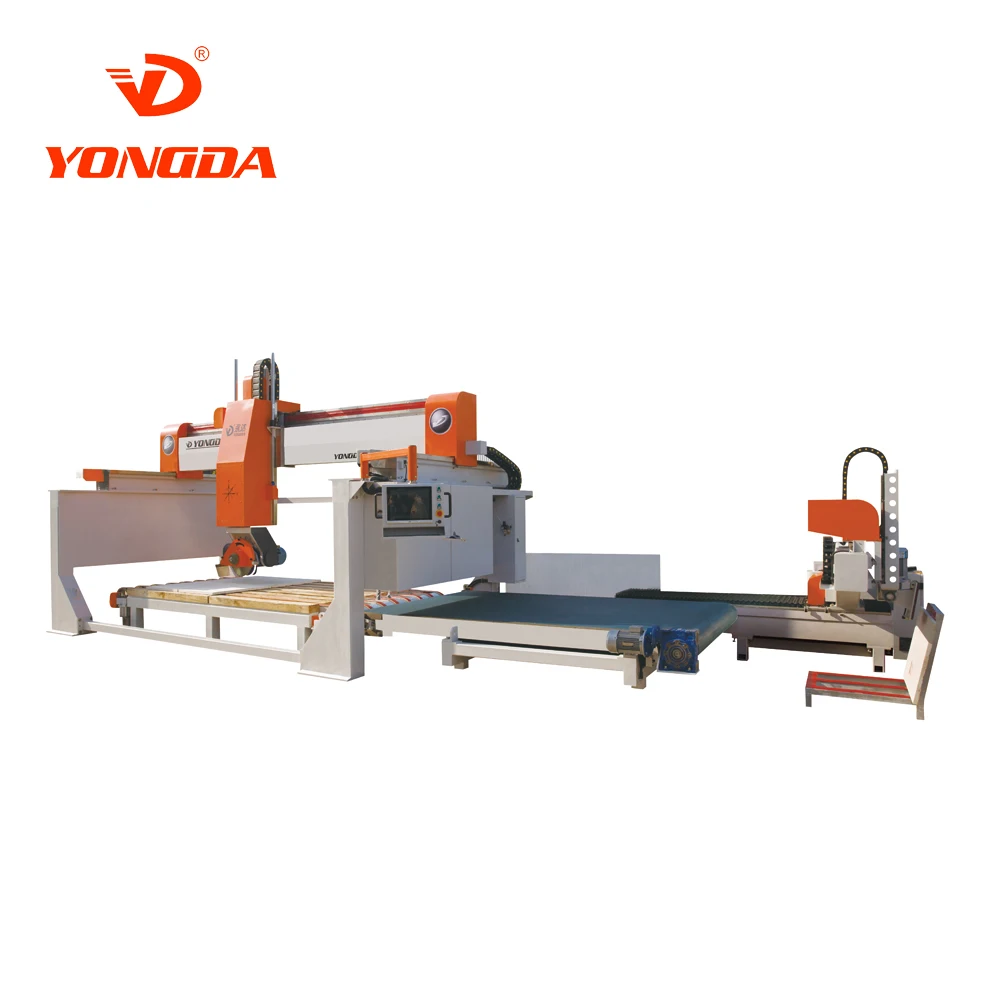

YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale
YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale
YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale
YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale
YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale

YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale

Share on (60808593579):


Price:RUB 6,579,877.20

Quantity:


Product Overview

Description

 PRODUCT RECOMMENDED



AC

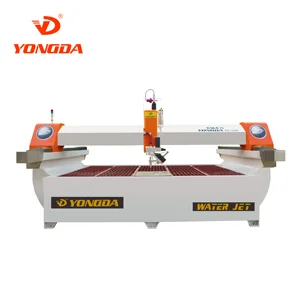

YONGDA YD1212 AC 5 Axis glass water jet cutting machine/water jet cutter high speed high accuracy multi-functional



YONGDA YD2015 cnc stone wood glass ceramic metal engraving cutting machine 3 Axis Engraving machine stone with two head

CNC()



YONGDA YD3020 3 AXIS CNC Center stone machining center specially designed for sanitary countertop CNC control system full-option



YONGDA YH-1200 1/4 90 degree Stone Arc-edge Grinding and Polishing Machine edging machine bulk-production for bullnose shaping



PRODUCT SPECIFICATIONS



YD-3020A 5 AXIS BRIDGE SAW MACHINE We have absolute price advantage in North American market.In order to satisfy the market diversity requirement, YONGDA researched full automatical CNC processing machine--5 AXIS bridge cutting machine. It's a gospel for stone processing enterprises.Functions of 5 AXIS bridge cutting machine included: all kinds of stone lines design, arc-edge, French edge, straight edge, bevel edge, abnormity edge, antiskid slot, dry-hang, wash basin processing and so on. "Multifunction, Cover small area, Low energy consumption, Simple operation, Accurate processing, easy and fast transformation between different functions" makes 5 AXIS bridge cutting machine a sharp weapon for stone processing enterprises.



ItemsYD-3020A/B
X axis stroke 3000mm
Y axis stroke 2000mm
Z axis stroke 500/700mm
A axis stroke 0-90 °
 C axis stroke±185°
 Dia of disc450/600mm
Rotation speed of disc3000/6000rpm
 Table size(lenth*width)3000*2000mm
 Table titlting degree0-85°
 Main motor power18kw
 Total power33kw
 Water consumption4m³/h
 Total weight7500kg
 Outer dimension6000*5000*3500mm



 PRODUCT FUNCTION

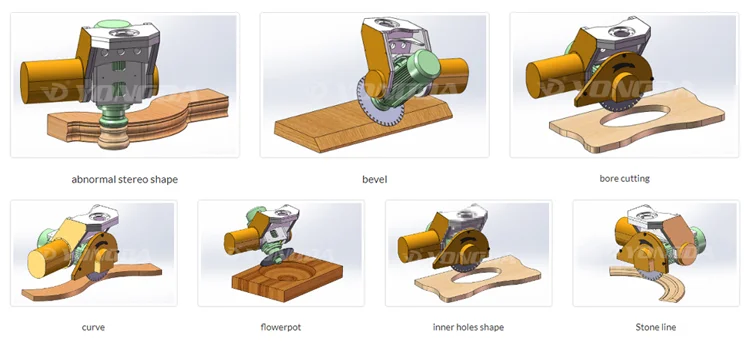

bridge cutting machine Product Function



 PRODUCT ADVANTAGES



bridge cutting machine Product advantages

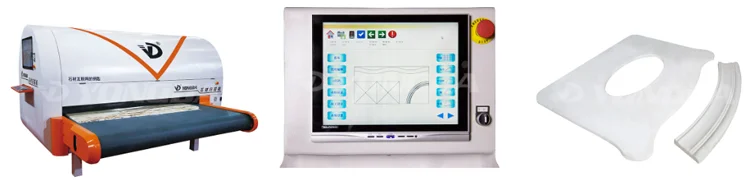

Connect the stone scanner6 axis CNC control systemcut any shape
bridge cutting machine Product advantages2

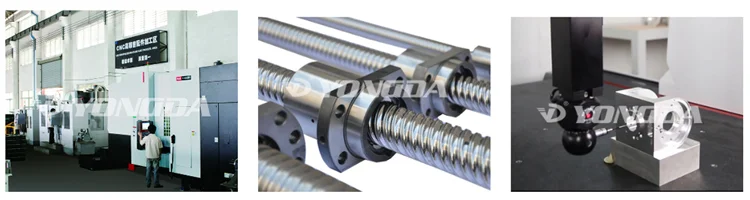

High-precision machining center processingApply unique oil immersion lubricationAll accessories go through the three-dimensional testing center



 PRODUCT MATERIAL



bridge cutting machine product material



CUTTING EFFECT



bridge cutting effect



 COMPANY INTRODUCING



COMPANY INTRODUCING
COMPANY INTRODUCING2



 CUSTOMER PHOTO



CUSTOMER PHOTO



 CERTIFICATION REPORT



CERTIFICATION REPORT



 ISSUE



issue



 AFTER-SALES SERVICE



AFTER-SALES SERVICE
