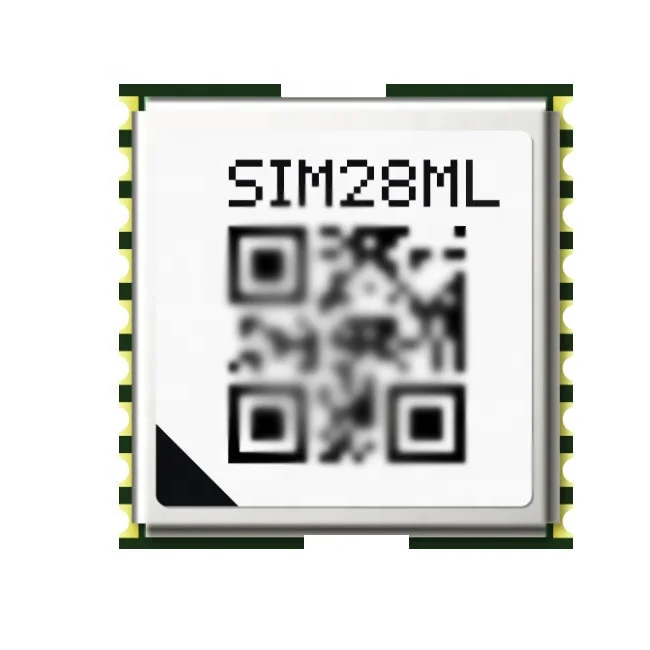

SIMCom presents a small, high performance and reliable assisted GPS module-SIM28ML. This is a standalone L1 frequency GPS module in a SMT type and it is designed with MTK high sensitivity navigation engine, which allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption.
Mechanical data • Dimensions: 10.1*9.7*2.5 mm • Weight: 0.5g
Features • Support EPOTM orbit prediction • Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS) • Support Jamming removing function • Low-noise amplifier has been integrated
Interfaces • Serial interfaces - UART • Digital I/O - TIMEMARK (PPS) - GPIO • Protocols - NMEA - PMTK
Support products • SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data • Power supply: +2.8V ~4.3V • Backup power: +2.0V ~4.3V • Power consumption - Acquisition: 17mA - Tracking: 16mA - Backup: 8μA • Antenna type - Active and Passive • Antenna power - External
Performance data • Receiver type - 22 tracking / 66 acquisition- channel GPS
———————————————————— 1.Demonstrated in liberary 2.All SV @ –130 dBm 3.50% 24 hr static, -130dBm 4.50%@ 30m/s 5.@3.3V with a passive antenna
