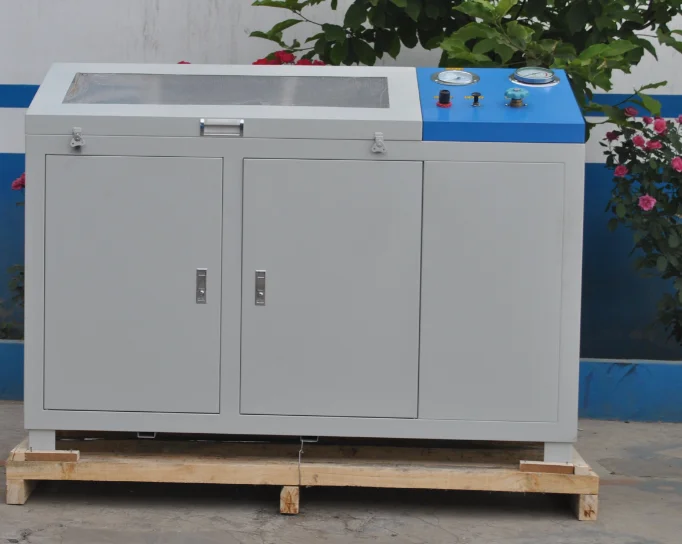

Computer control hydraulic pressure test bench
Computer control hydraulic pressure test bench
Computer control hydraulic pressure test bench

Computer control hydraulic pressure test bench

Share on (60808685828):


Price:RUB 265,363.00

Quantity:


Product Overview

Description

Product Description

2017HOT PIpe hydrostatic pressure testing machine

It used in all kinds of pressure time determination of non-metallic pipe at constant temperature and instantaneous blasting pressure measurement, the host using microprocessor full closed loop control system, realize the whole system full closed loop control.

It conforms to the requirements of domestic and international standards such as PVC, pp-r, PE-X, PPB aluminum plastic composite pipe, steel plastic composite pipe, etc.

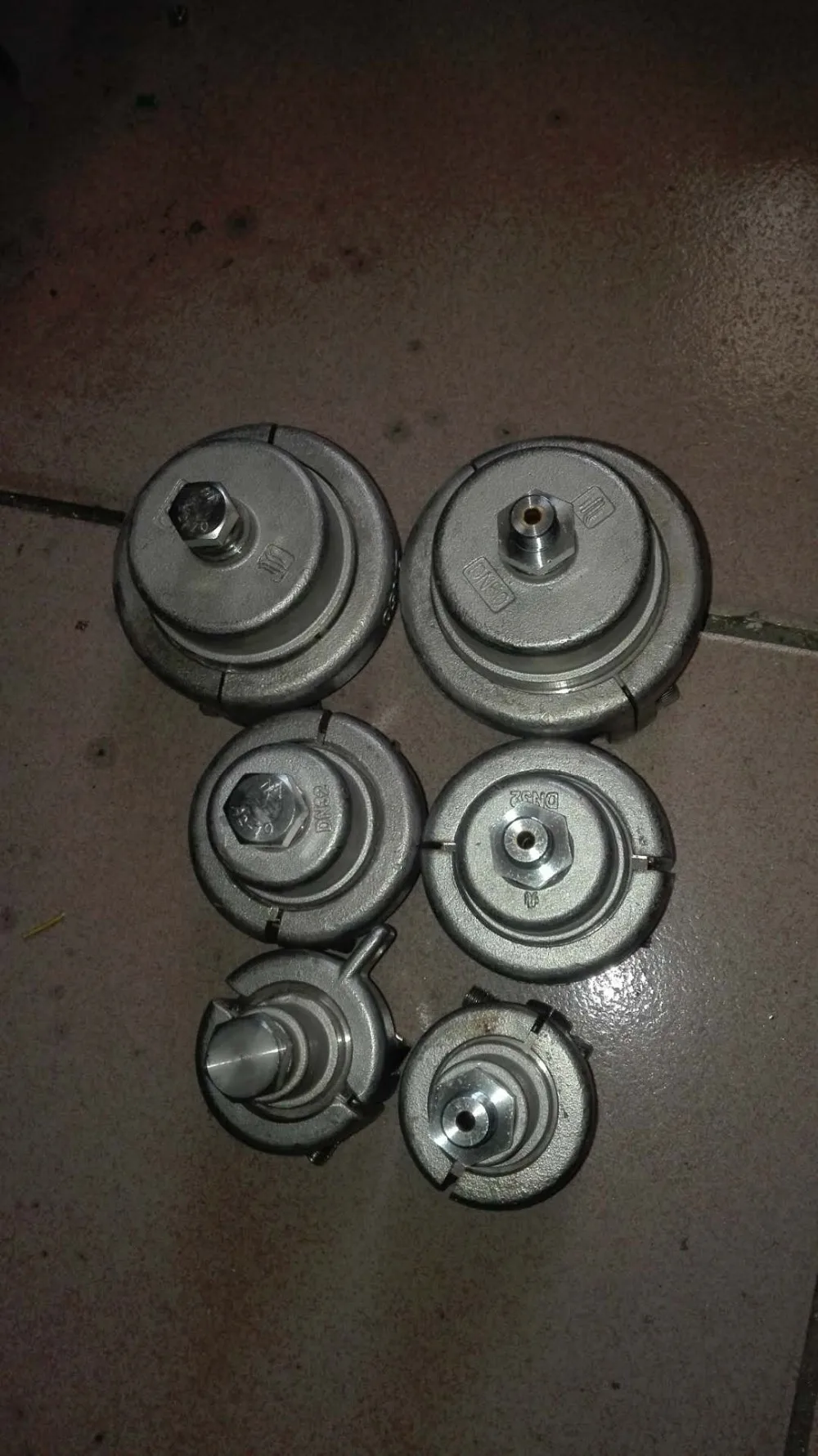

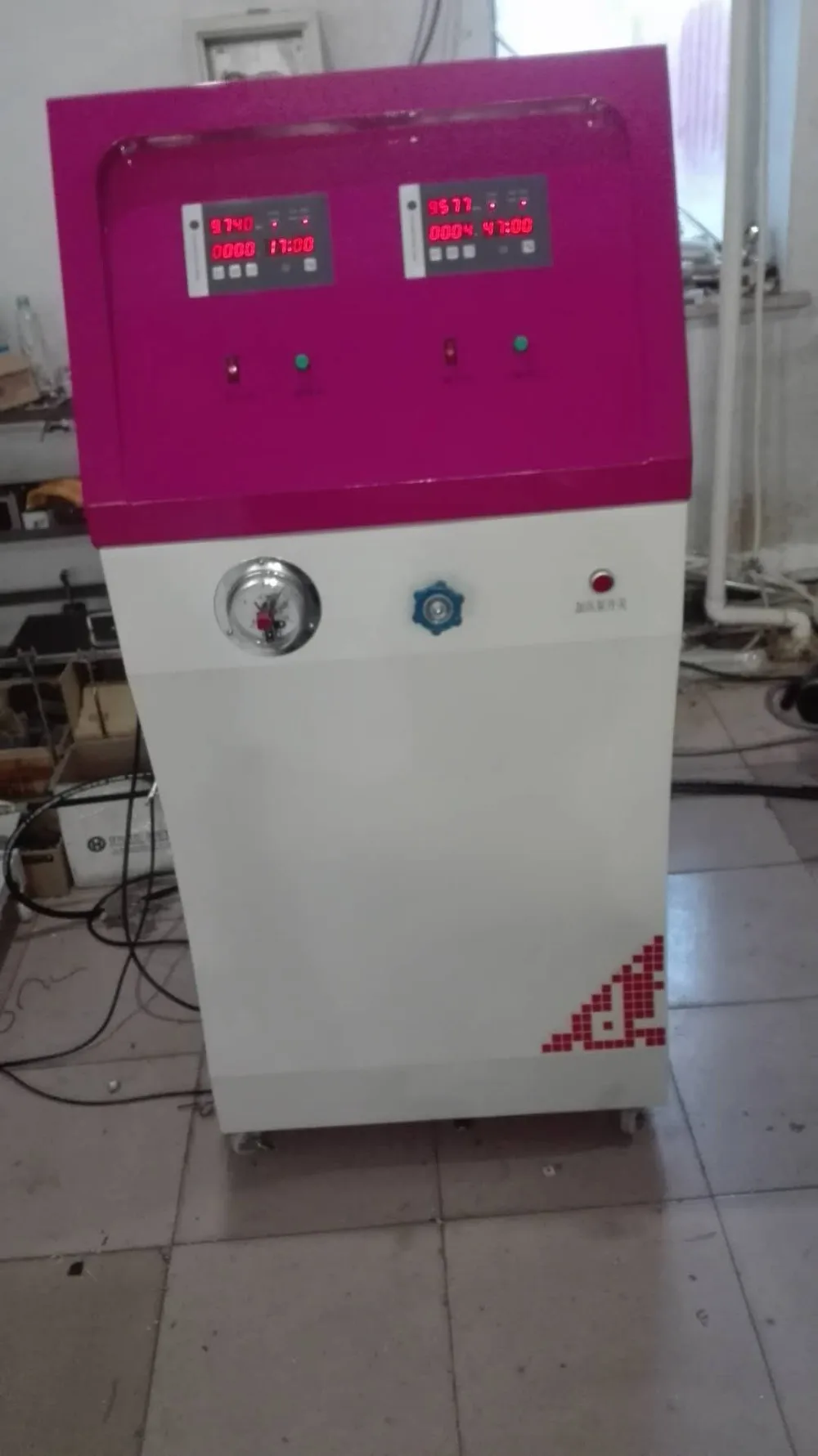

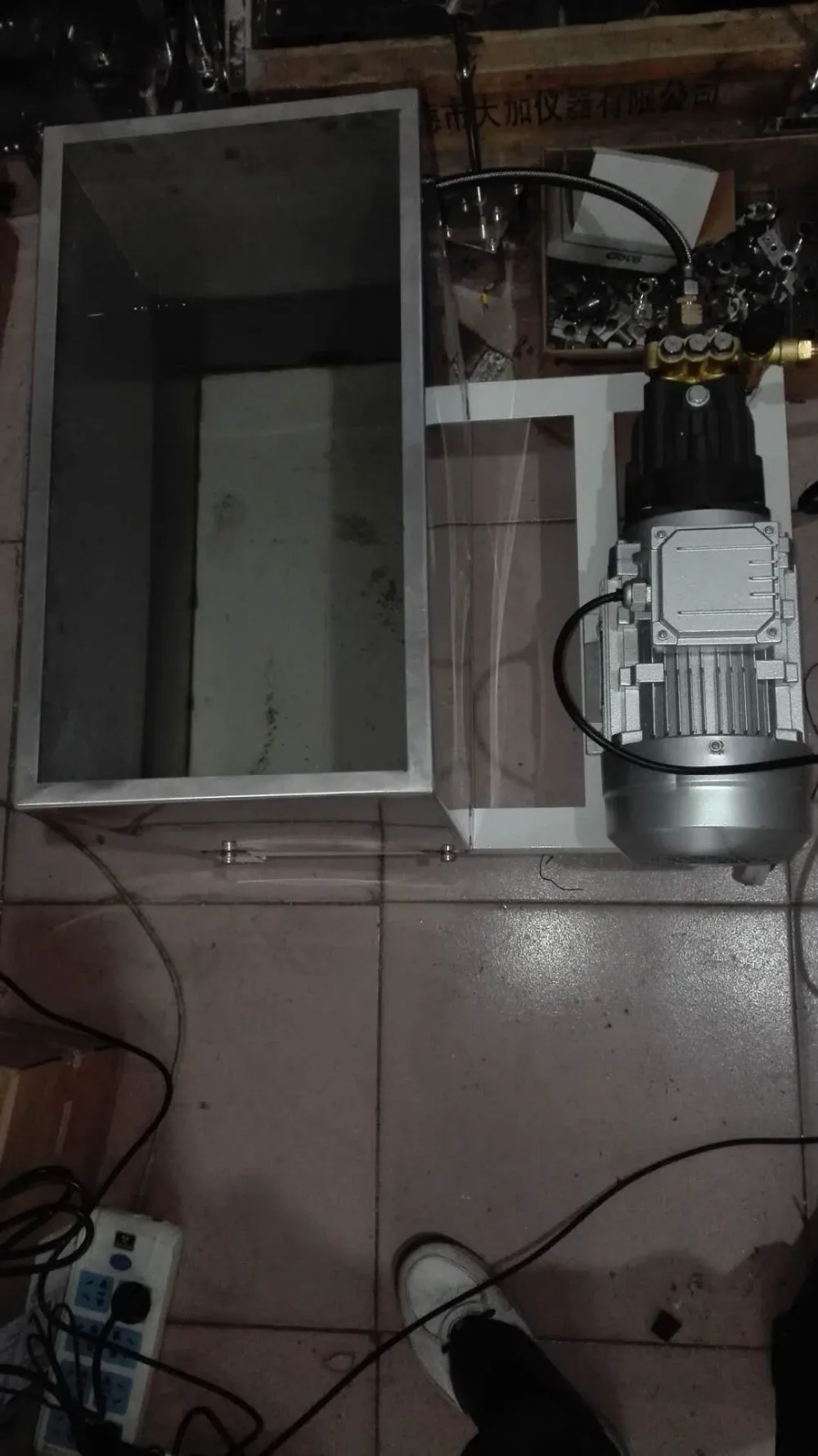

Detailed Images
Technical Parameter

1.Max Force:0.6~10Mpa

2.Diameter of sample:φ12-φ630mm (customized)

3.Simultaneous test line: 3 (customized)

4.Precision of pressure: ≤±1%

5.Constant pressure precision:-1%~+2%

6.Constant temperature range:20℃-95℃

7.Temperature fluctuations:≤±1℃

8.Temperature uniformity:≤±1℃

9.Timing range:0~10000h

10.Time display precision: ≤0.1%

12. Pressure sensor: the test pressure sampling frequency is 0.02 seconds.

13. Power supply voltage: three-phase 380V.

14. External dimensions: control cabinet: 700mmx 600mm x 1800mm.

Dielectric thermostat: :customized

Packing & Delivery

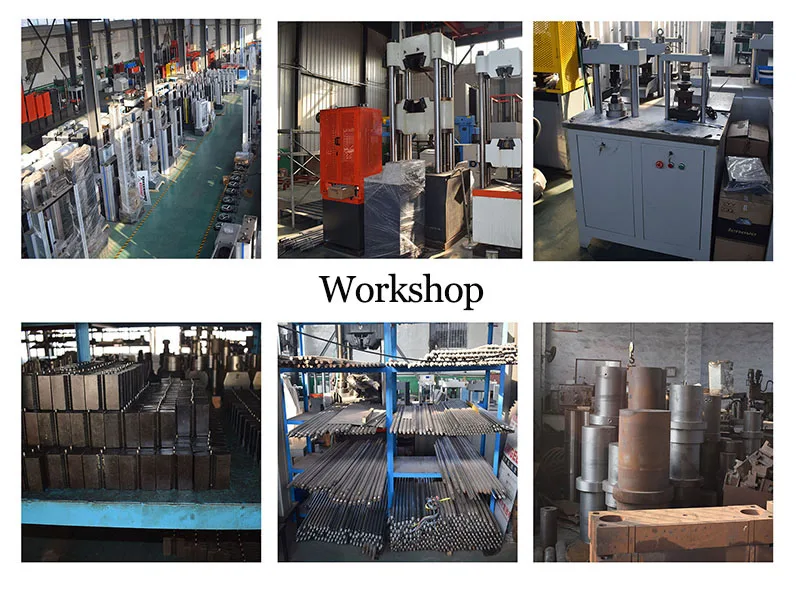

Our Company
Why choose us
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7-15 working days after we receive the payment or order confirmation.

Q: What is the warranty for the equipment?

A: 14 months. We can provide you lifelong technical support

Q: How to charge for after services?

A: Within warranty: Remote service: Free of charge; Field serivce: Only local travel expenses will be charged

After warranty: Remote service: Only material fees will be charged; Field service: All expenses including labor rates of field service, material fees and full travel expenses will be charged.
