Description

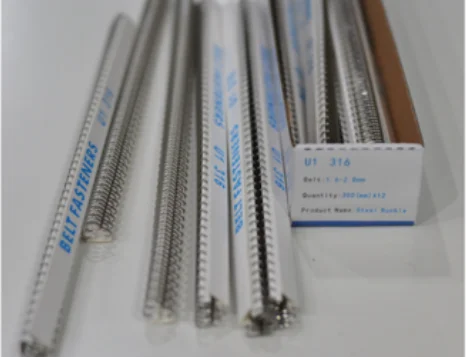

Alligator Fastener of Conveying Belt









Alligator Lacing-Belt Fastener--(Chinese Standard QB/T2291-97)

Size No.		Code	15#	20#	25#	27#	35#	45#	55#	65#	75#
Base Dimension	Length	L	190	290	290	290	290	290	290	290	290
	Width	B	15	20	22	25	30	34	40	47	60
	Width of Tooth	A	2.30	2.60	3.30	3.30	3.90	5.00	6.70	6.90	8.50
	Pitch of Teeth	T	5.59	6.44	8.06	8.06	9.67	12.08	16.11	16.11	20.71
	Tendon Width	C	3.0	3.0	3.3	3.3	4.7	5.5	6.5	7.2	9.0
	Pitch of Top of Teeth	K	5	6	7	8	9	10	12	14	18
	Thickness	6	1.10	1.20	1.30	1.30	1.50	1.80	2.30	2.50	3.00
Nos of Tooth per piece			34	36	45	36	30	24	18	18	14
Quantity per Carton	Nos of belt Fastener		16	10	16	16	8	8	8	8	8
	Nos of culm bolt		10	10	6	10	5	5	5	5	5
Belt Thickness of be applicable for			3-4	4-5	5-6	6-7	7-8	8-9.5	9.5-11	11-12.5	12.5-16

Note of Using Manual

1.This type of lacing is well suited for joining leather, rubber or canvas belt from 5/16" to 3/8" or 8-91/2mm in thickness.

2.The lacing is supplied in piece of 290mm in length, and may be readily parted into shorter lengths as required, it is advised that the length of lacing app;ied should be a little shorter than the width of the belt.

3.Both ends of the belt should be cut perfectly square. On lacing the belt,drive in by means of a hammer the prongs first at the sides and then gradually towards the center.Be sure that the lacing on the opposite belt ends are engaged smoothly with each other. Slip finally a pair of rocker pin back to back into the lacings to serve as a hinge.

4.The side of the lacing which of without cross bar should run next to the pulley.

5.Inspect the lacing regularly,and replace it without delay if it has been worn, use only the rocker pins supplied for the purpose of replacement.
