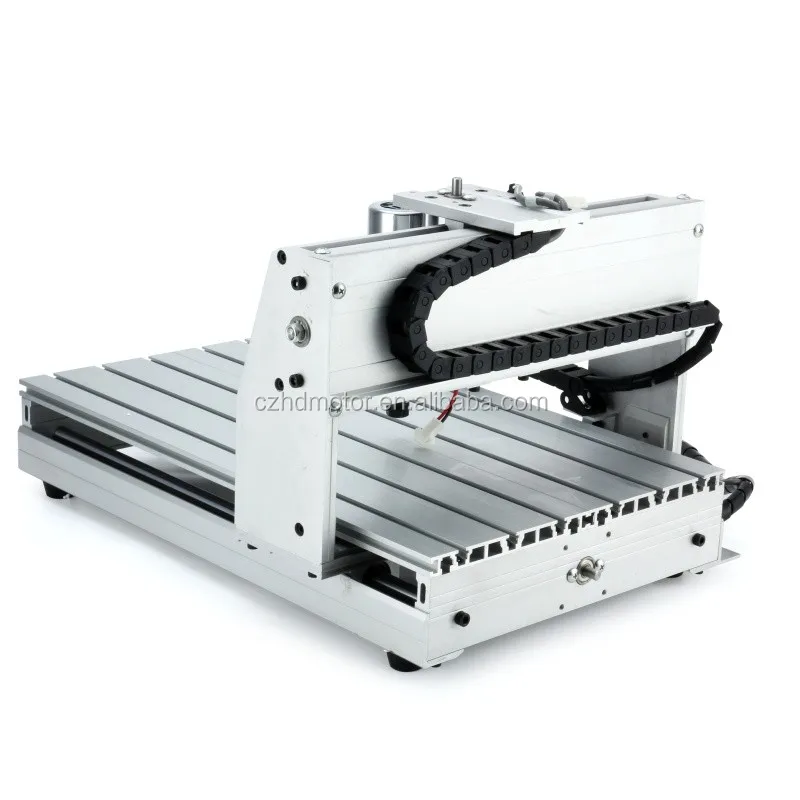

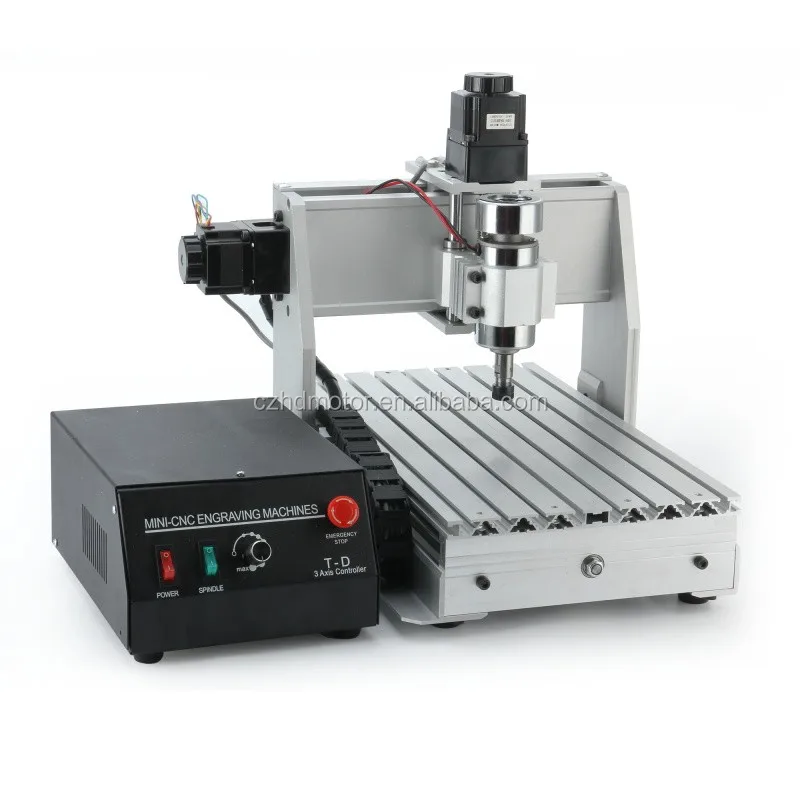

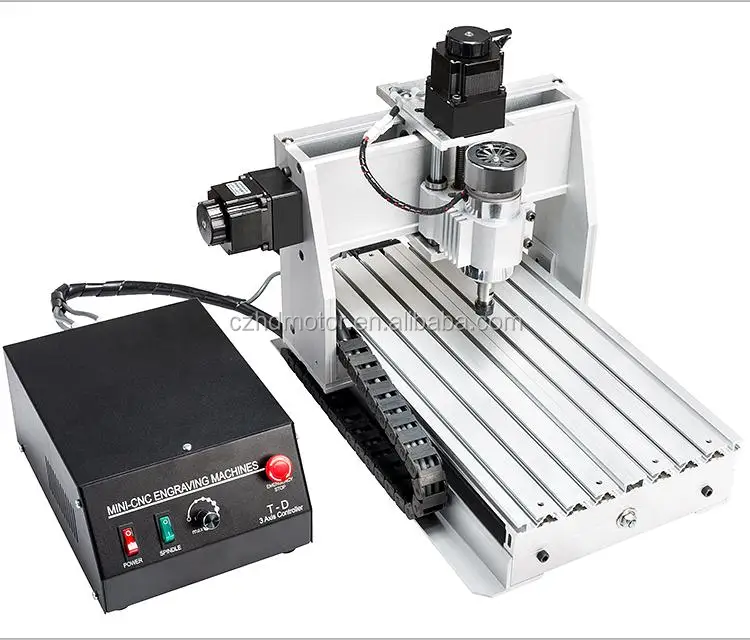

3020T 3axis CNC Router Mini CNC Desktop Engraving machine For Wood PCB
- Category: >>>
- Supplier: Changzhou Handi Motor Science And Technology Co. Ltd.
Share on (60808695176):
Product Overview
Description
High quality 3D Mini DIY CNC router 3020 3 axis Wood/Advertising working Carving Machine control system with 2.0 USB

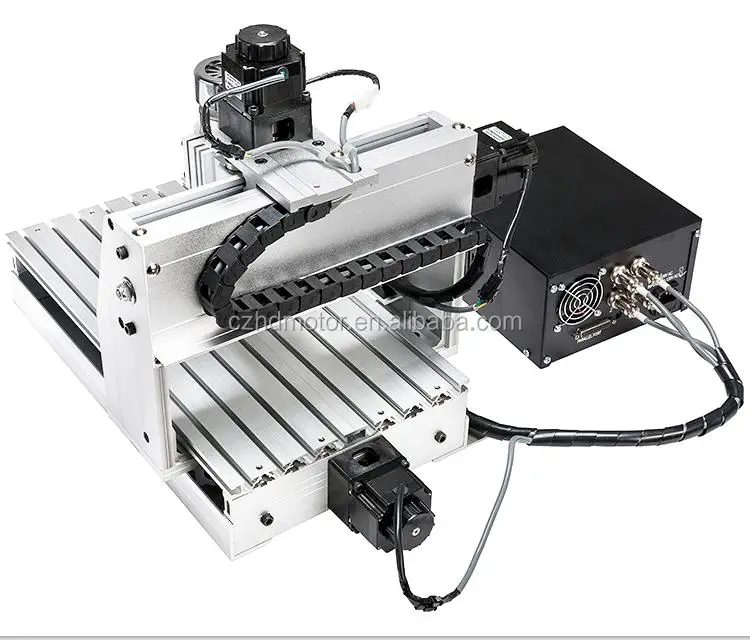

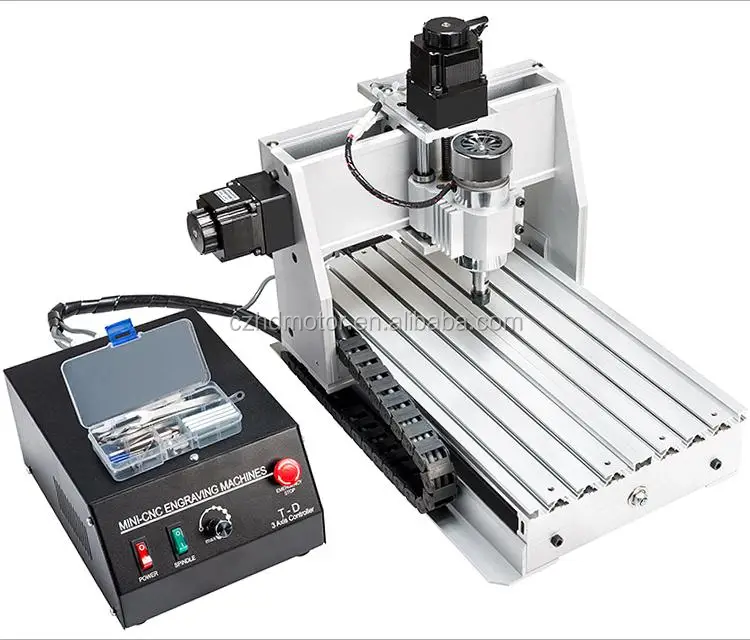

3020 3axis cnc router mini cnc desktop machine with USB
Product Description
Technical parameter:
Max.stroke | XYZ=210*300*60mm |
Machinable material thickness | ≤70mm |
Outline dimension | 440*310*290mm |
Frame material | 6061-T5 aluminium alloy |
Rail type | Chrome plated shaft + linear bearing |
Screw type | T type screw,diameter 12mm,Thread pitch 2mm |
Ball screw,diameter 12mm,Thread pitch 4mm | |
Mechnical resolution | XYZ-shaft:0.0025mm/step |
Positioning accuracy | 0.05mm |

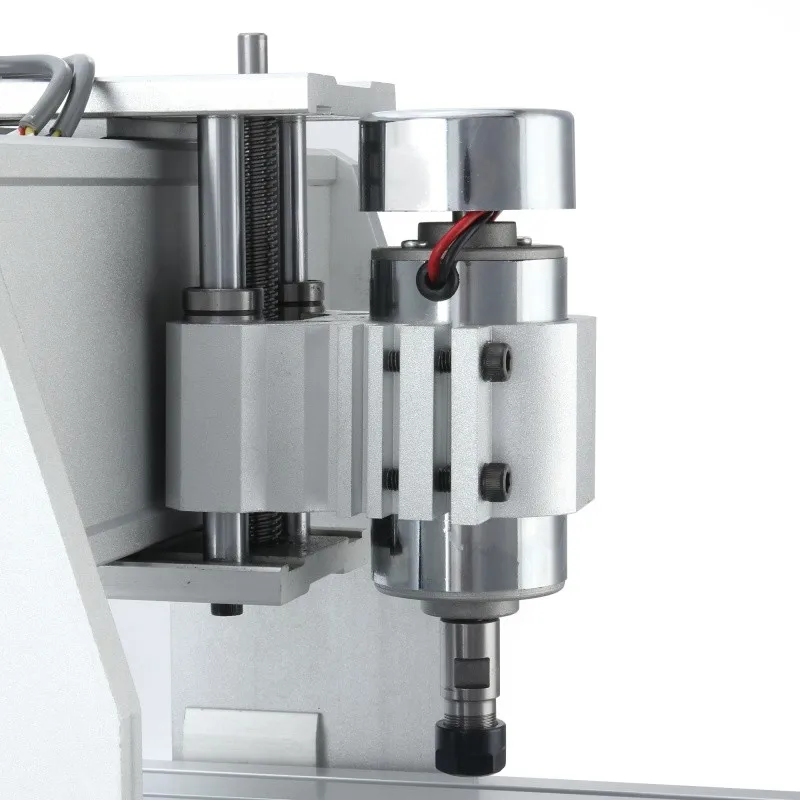

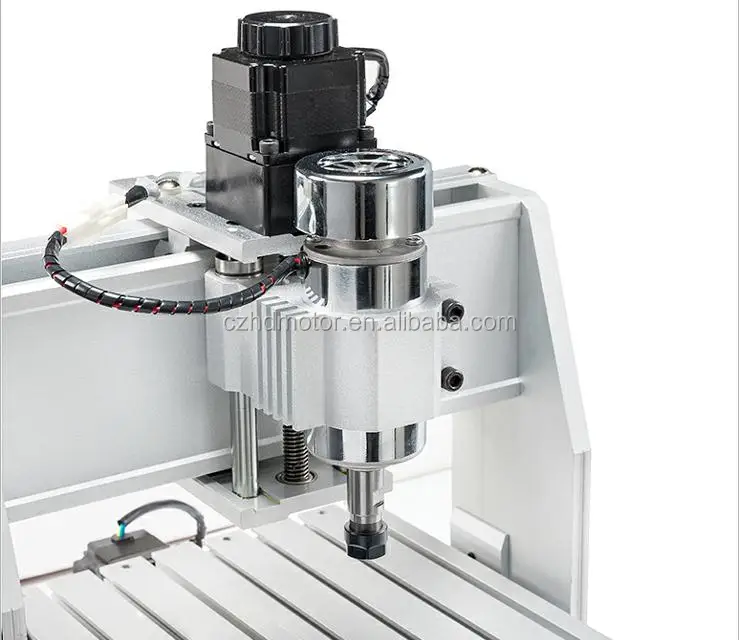

Spindle motor | 300W DC spindle motor |
RPM | 11000rpm/min |
Chuck type | ER11(3.175mm,6mm) |

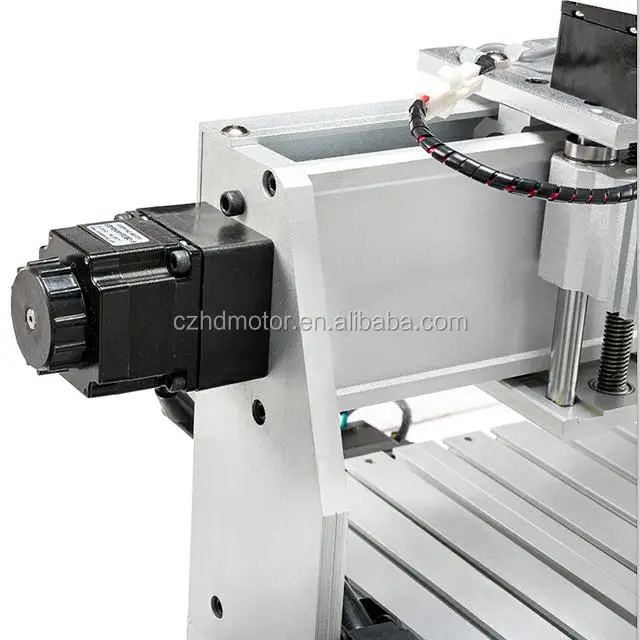

XYZ motor | Stepper motor JK57HS41-2004XB-01AF |

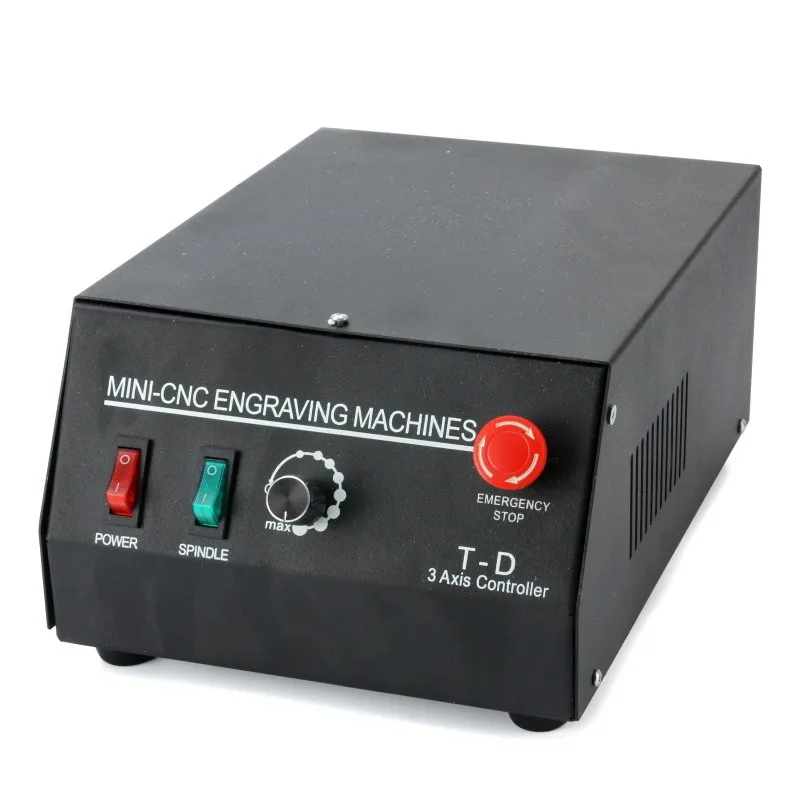

Stepper drive | High performance, each axis can independent drive |
Feed rate | 1500mm/min |
Communication interface | USB2.0 |
System requirement | WIN-Xp or WIN-7 |
Order code | G code/.nc/.ncc/.tab/.txt |
Voltage | Input 85V-240VAC(400HZ) |
Operation environment | Temp.:5℃-40℃;Humidity:35%-80% |
