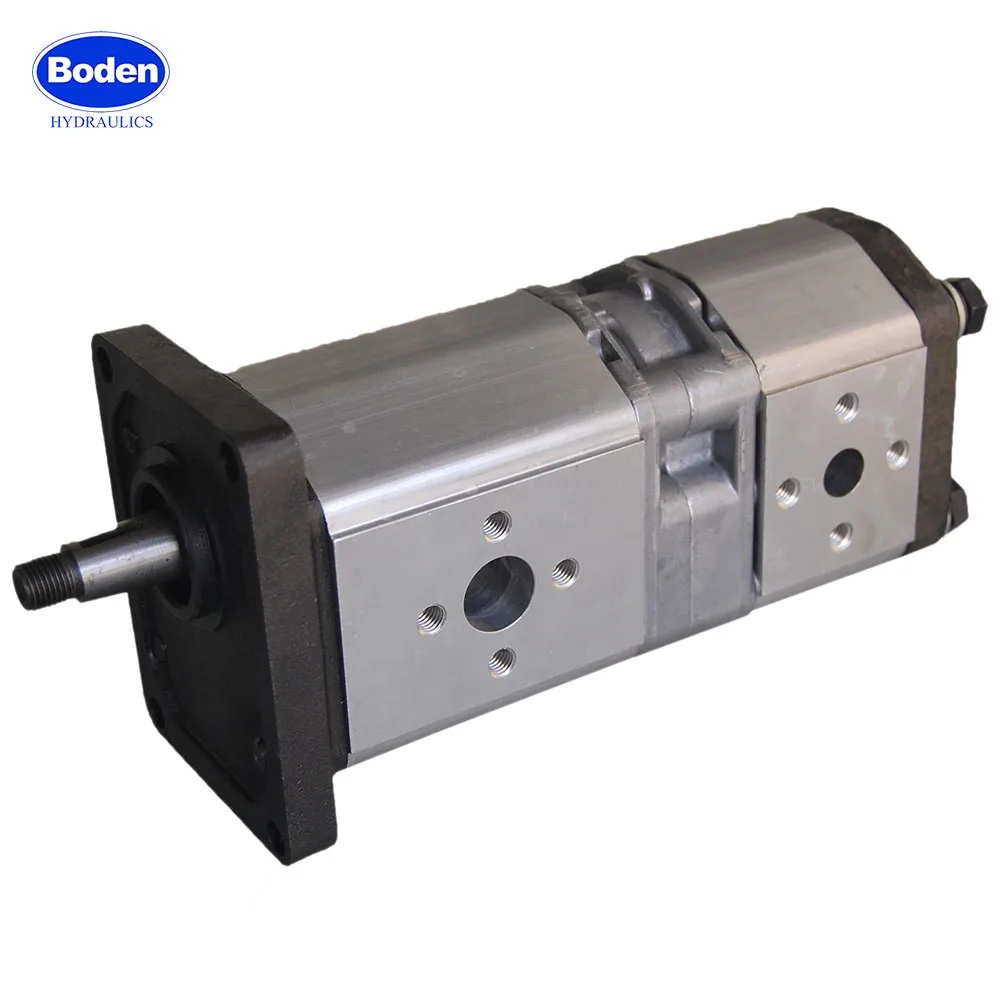

double triple tandem hydraulic gear pumps
- Category: >>>
- Supplier: Boden Hydraulics Co. Ltd.
Share on (60808746287):
Product Overview
Description
Product Description

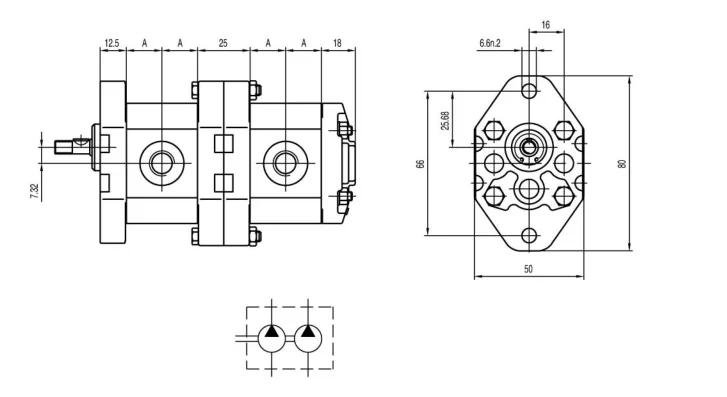

Technical information For BHP1/BKP1 hydraulic gear pump
| Displacement | Max.pressure | Max.speed | Min.speed | Dimensions | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | mm |
| 1.4 | 250 | 270 | 290 | 6000 | 800 | 22 |
| 2.1 | 250 | 270 | 290 | 6000 | 800 | 23 |
| 2.8 | 250 | 270 | 290 | 5000 | 800 | 24 |
| 3.5 | 250 | 270 | 290 | 5000 | 800 | 25 |
| 4.1 | 250 | 270 | 290 | 4000 | 800 | 26 |
| 5.2 | 230 | 245 | 260 | 4000 | 800 | 27.5 |
| 6.2 | 230 | 245 | 260 | 3500 | 800 | 29 |
| 7.6 | 200 | 215 | 230 | 3000 | 600 | 31 |
| 9.3 | 180 | 195 | 210 | 2500 | 600 | 33.5 |
| 11.0 | 170 | 185 | 200 | 2500 | 600 | 36 |
| 13.8 | 150 | 165 | 180 | 2000 | 600 | 40 |

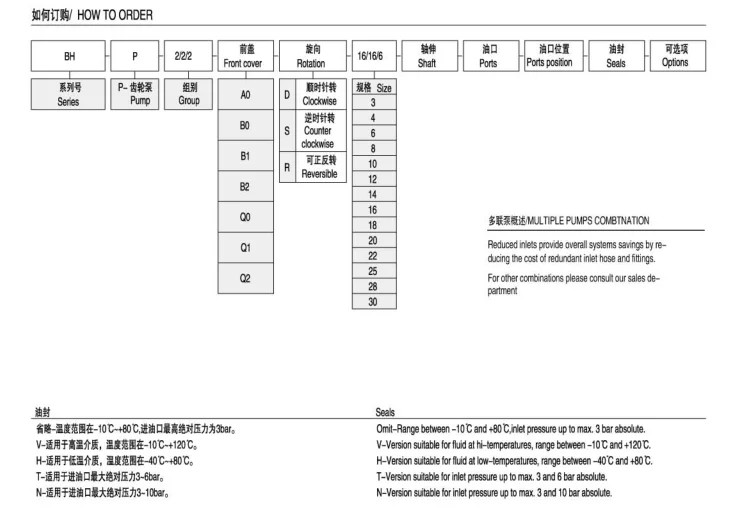

How to order to order Boden hydraulic gear motor
