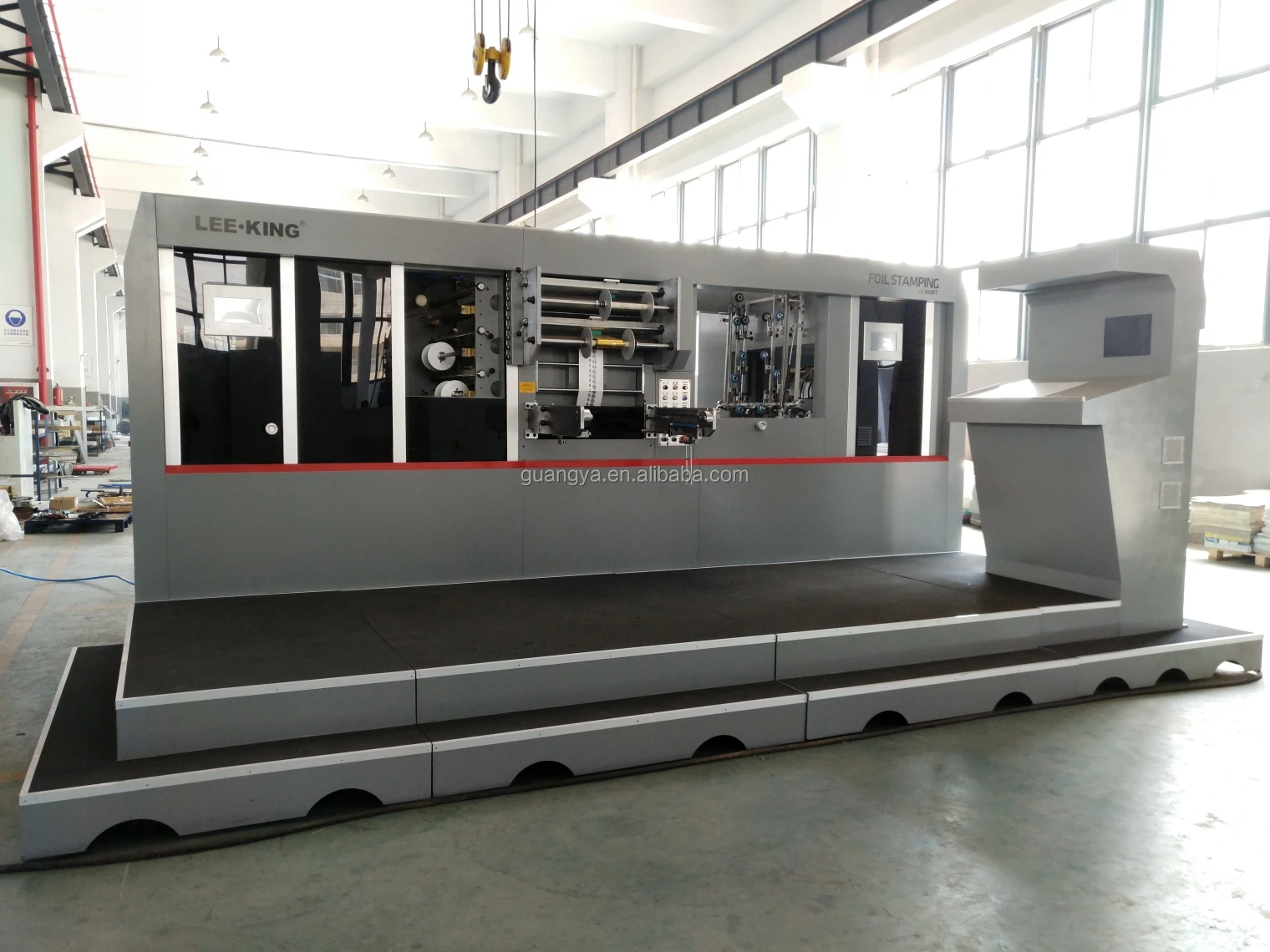

LK80MT Flat Bed Carton Box Die Cut Foil Hot Stamping Printing Machine

Share on (60808757366):


Price:RUB 10,926,083.70

Quantity:


Product Overview

Description

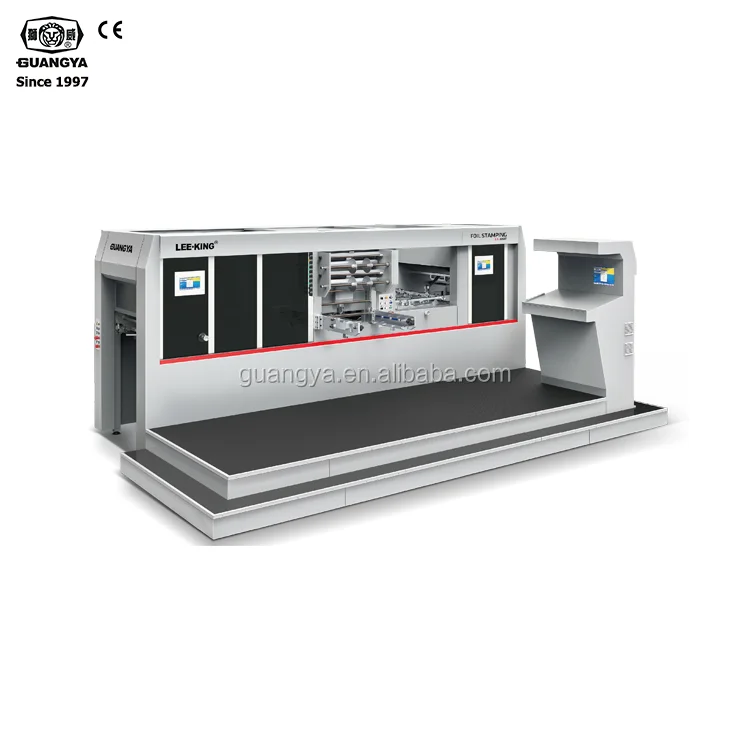

LK80MT Automatic Foil Stamping Die Cutting Machine

LK80MT

Product Description

 In order to meet various request of printing and packaging market, we designed the LK80MT Automatic Foil Stamping Machine, which is the latest research and development and manufacturing of new equipment with a higher degree of intelligence.



This machine adopts numerous advanced pneumatic and servo driving processing technology from home and abroad. After the strict assembly quality control, it has advantage of simple operation and safe reliable.



It could die cutting, hot stamping and pressing convex on different after printing packaging products, such as higher than 90gsm paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper, plastic card, PVC and so on.



Superior ability to adapt and convenient operation which make machine work stable and safety when machine speed reach 8000 sheets per hour. This machine will provide you to enjoy the comfortable operation and faster return on investment.



Specifications

Model

LK80MT

Max.paper size

800×620mm

Min.paper size

360×290mm

Max.cutting size

790×610mm

Inner chase size

880*628mm

Max. foil diameter

220mm

Max working speed

8000s/h

Max stamping speed

6500 s/h

foil pulling shafts

longitudinal 3,transversal 2

Cutting precision

±0.1mm

Pressure

200T

Paper range

90-2000g

Gripper

8-17mm

Machine weight

17T

Max.feeding pile height

1280mm

Max.delivery pile height

1070mm

Main motor power

7.5kw

Total machine power

38kw

Zones individually heated

10 zones

Air requirements

0.6Mpa, >0.37m3/min

Overall dimension

5380×3935×2445mm

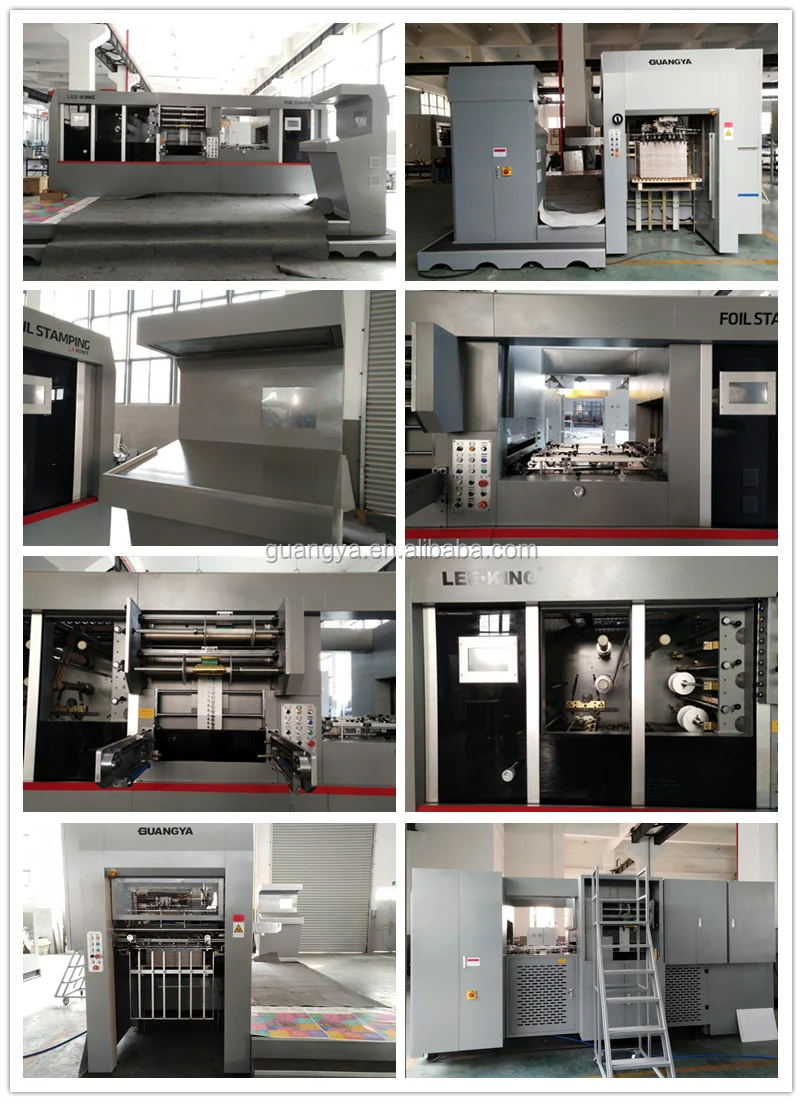

Mac under production

LK80MT 750

Foil stamp sample

Samples of hot foil stamping & embossing,

stamp sample

Related Products
LK2 106MT LK106MT5 LK106MF LK1450
Foil stamp -> die cut -> stripping in one processing Foil stamp & die cut 106x77cm Stripping die cut 106x77cm Automatic/Semi-auto die cut 145x106cm
TYM1400JT TYM1050 TL780 NEW TYMC 1100 HOLOGRAM
Roll to roll foil stamp emobss Roll to die cut Small Foil stamp & die cut 78x56cm Hologram foil stamp 110x80cm
Certifications

ce

Our Services

The Unique Human Care And Profession Passionate Sales Service System

We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 7 days with professional knowledge. We focus on customer service, all year non-stop service, personal training and so on. Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on. Realizing the idea of focusing on customer success, creating value to customer.


Company Information

Zhejiang Guangya Machinery Co., Ltd. was established in 1996, especially founded as a high technology manufacturer of print finishing equipment (Die Cutting Machine & Hot Foil Stamping Machine).

At present, Guangya machines can be found in over 80 countries, the products have gain the acceptance of customers all over the word.

Also Guangya has become one of the leading suppliers for solutions of the print finishing equipment in China.

Guangya hope to be your deal business partner to develop the prosperous future together.

fac18 750

FAQ

1. Are you a trading company or factory?
We are the manufacturer and also we have import export license. We have been in making die cutting machine and hot foil stamping machine for over 22 years.


2. Where is your company located? How can I visit there?
Our new factory address: No.258, Haize Road, Binhai New Zone, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.

The nearest transportation center is Wenzhou airport or Ruian train station.

3. Can you send technician for installation and training?
Yes, we can send our technician abroad for installation and training, but all the charges must be paid by buyer, such as the plane tickets (a round trip), meals, hotel, traffic etc.



4. What’s your advantages ?

--22 years' experience: We have been in making die cutting machine and hot foil stamping machine for over 22 years.

--Customers all over the world

--Certificate: CE certificate

--Fast reply: Our team will reply you soon.

--After-sale service: We have an aftersales department, service for your problems and dealing with spare parts.
