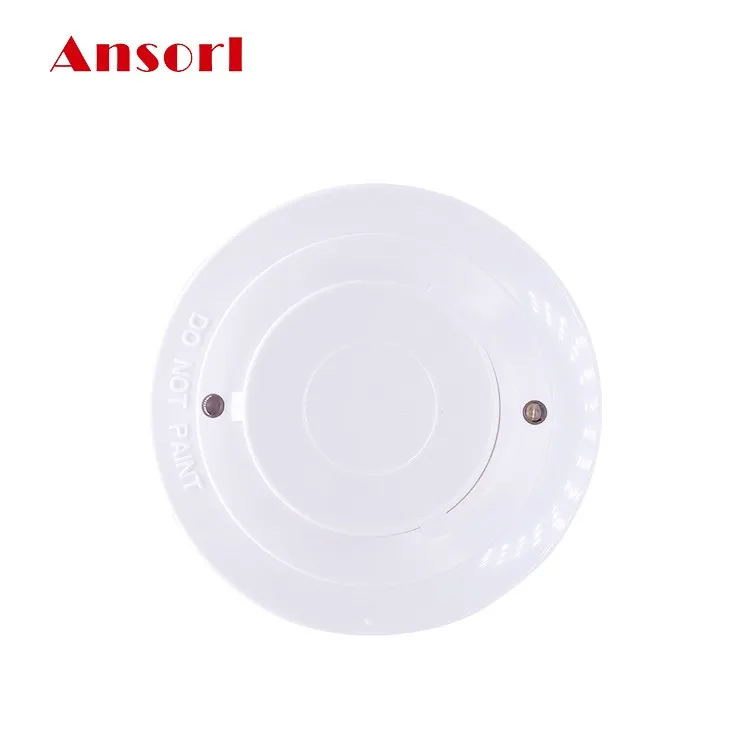

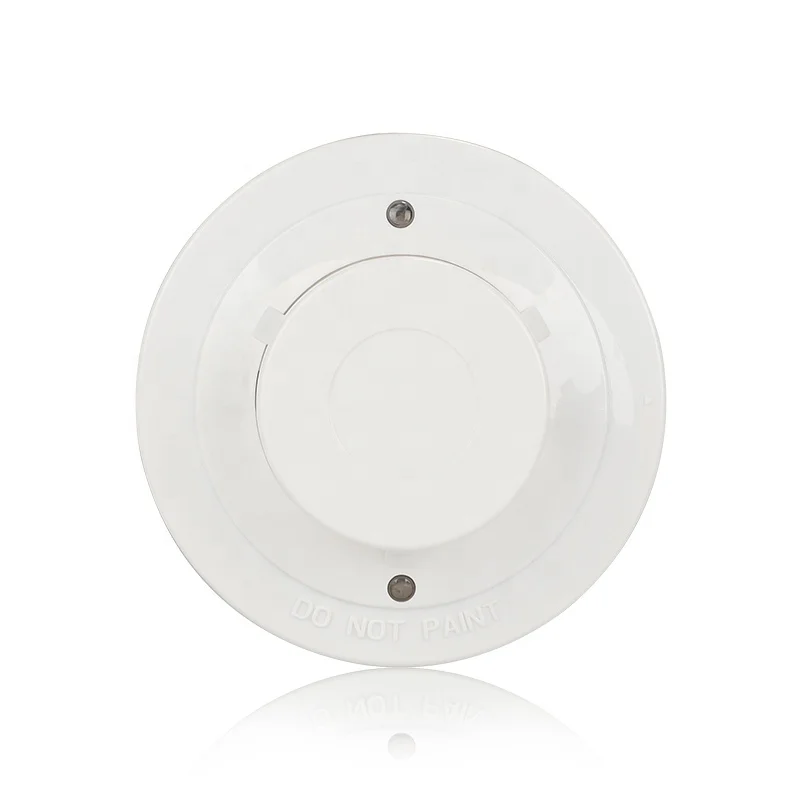

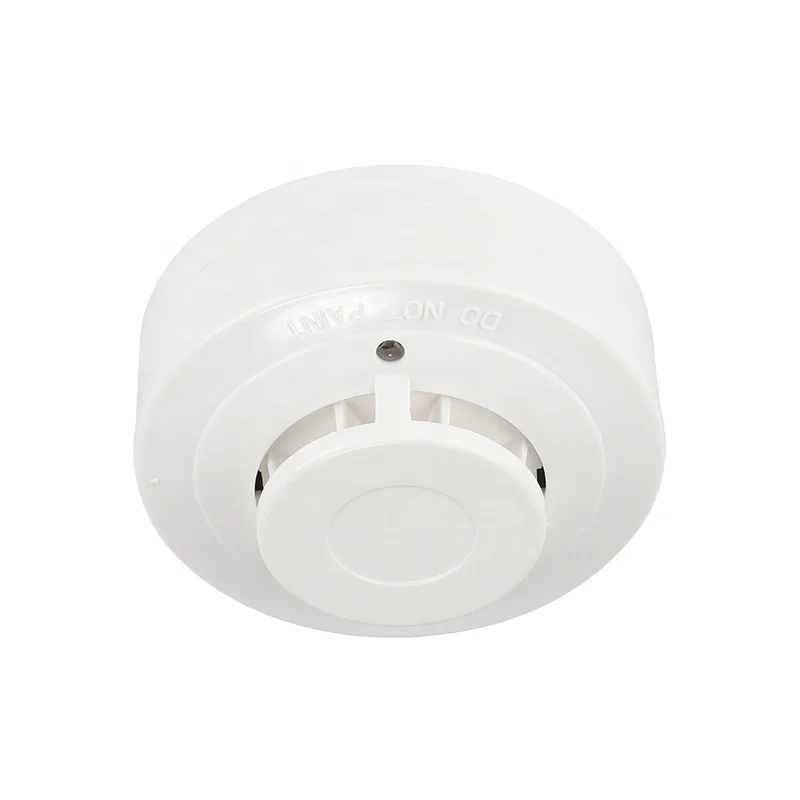

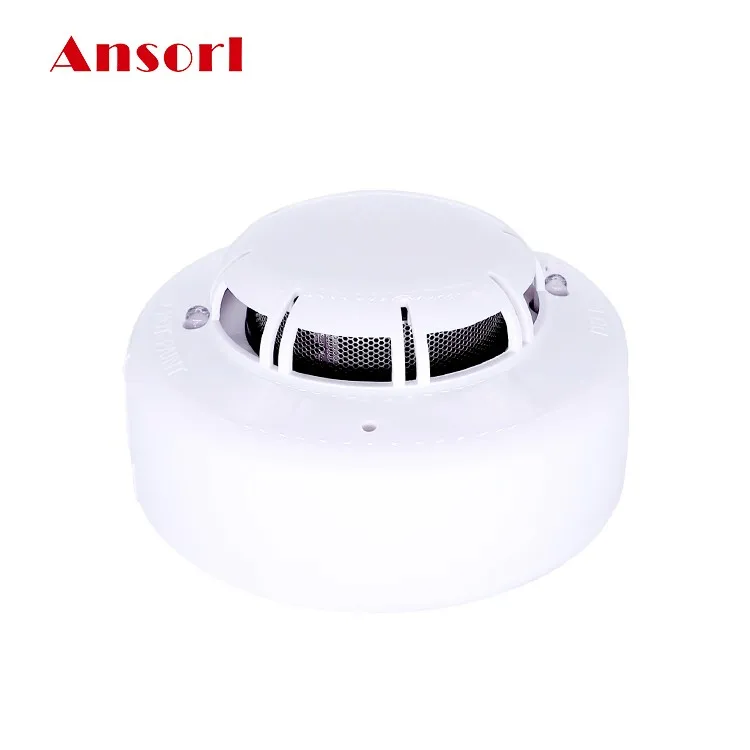

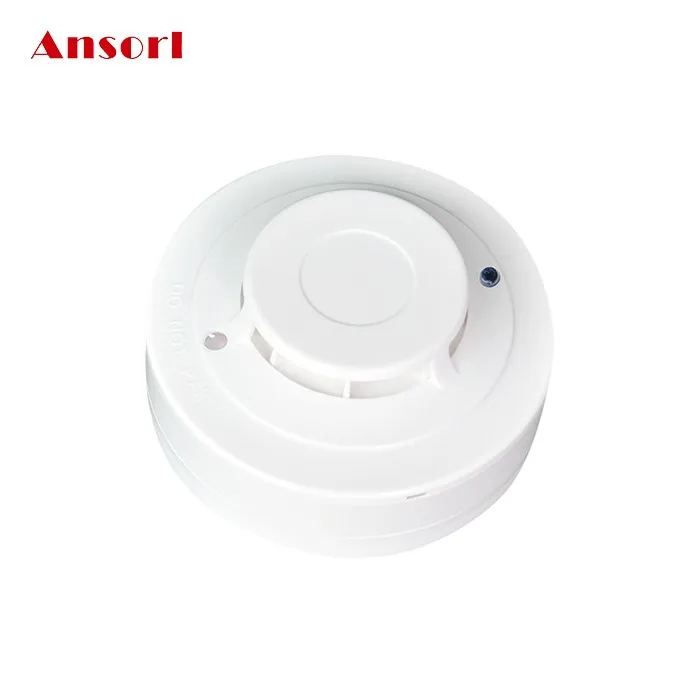

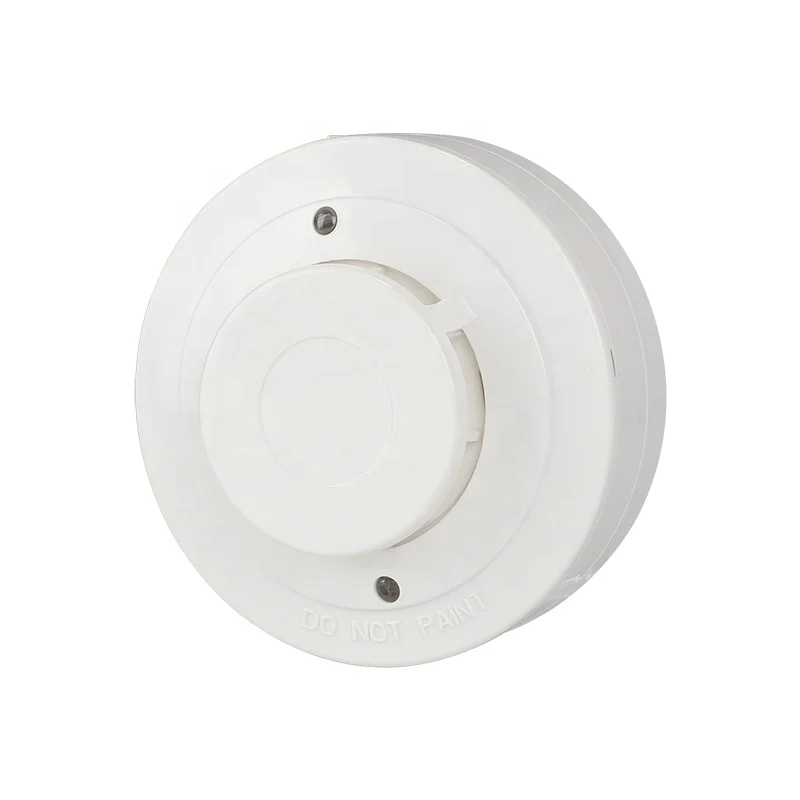

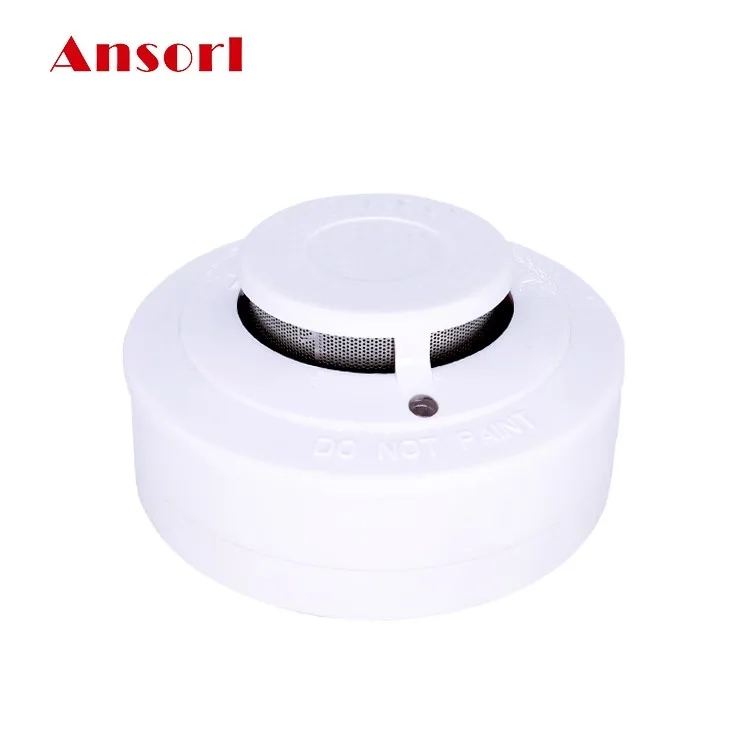

ANSORL AS-HD105 is a fixed temperature heat detector. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.

             Mating Detector Head onto Base

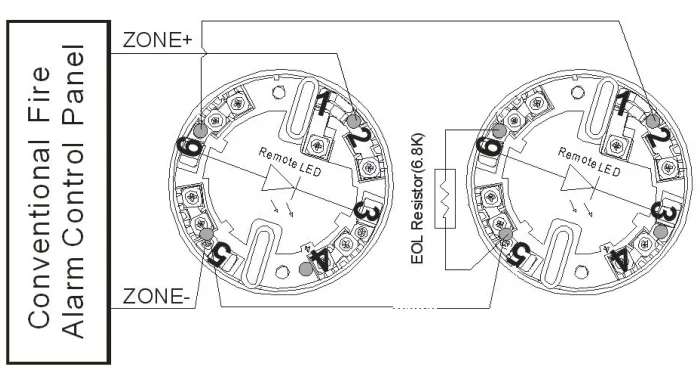

                                  Terminal Wiring

SPECIFICATIONS

Operating Voltage Range: 9 to 28 V DC Volts Non-polarized
Standby Current: ≤60µA@24 V DC
Maximum Alarm Current (LED on): ≤30 mA @ 24 V DC (1K Ohm current-limiting resistance)
Operating Humidity Range: ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing
Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
Temperature Alarm Sensitivity: 57°C (135°F) A1R

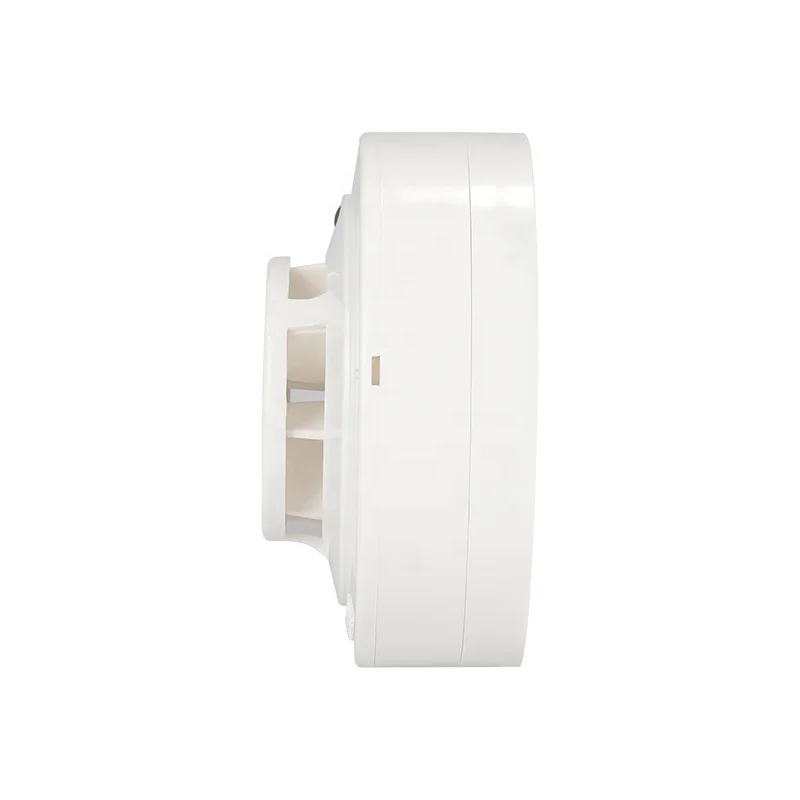

Height: 48 mm installed in Base
Diameter: 99 mm


INSTALLATION

NOTE: All wiring must conform to applicable local codes, ordinances, and regulations.


INSTALL THE DETECTOR BASE
1. Open area smoke or heat detectors are intended for mounting on a ceiling or a wall in accordance with the fire standard in your country.
2. Attach mounting base to ceiling or wall. The base of the detector can be mounted directly onto an electrical junction box such as an octagonal (75 mm, 90 mm or 100 mm), a round (75 mm), or a square (100 mm) box without using any type of mechanical adapter.
3. Position all wires flat against terminals, and fasten the wires on the terminals, See Terminal Wiring.

4. Terminals functions description:
Terminal 2: IN+( Zone Input+)
Terminal 5: IN- (Zone Input- )

Terminal 6: IN+( Zone Output+)
Terminal 5: IN- (Zone Output- )

Terminal 6: Remote Indicator+
Terminal 3: Remote Indicator-


WARNING: The detector is only connected to conventional fire alarm panel, NOT permit to connect DC9-28V power supply directly to terminal IN+, IN-


INSTALL THE DETECTOR HEAD

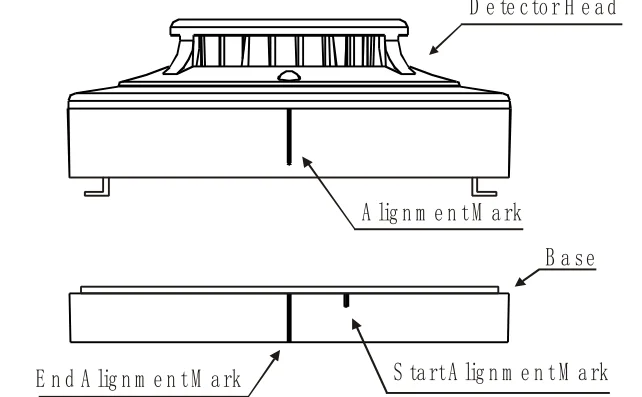

1. Align detector head alignment mark line with the base’s start alignment mark line as shown in Figure 2
2. Push the detector head into the base while turning it clockwise to secure it in place.
3. Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts, etc.
4. After all detectors have been installed, apply power to the control panel.
5. Test the detector(s) as described in the TESTING section of this manual.
6. Notify the proper authorities that the system is in operation.


NOTE:POWER FROM THE PANEL BEFORE INSTALLING DETECTORS.
