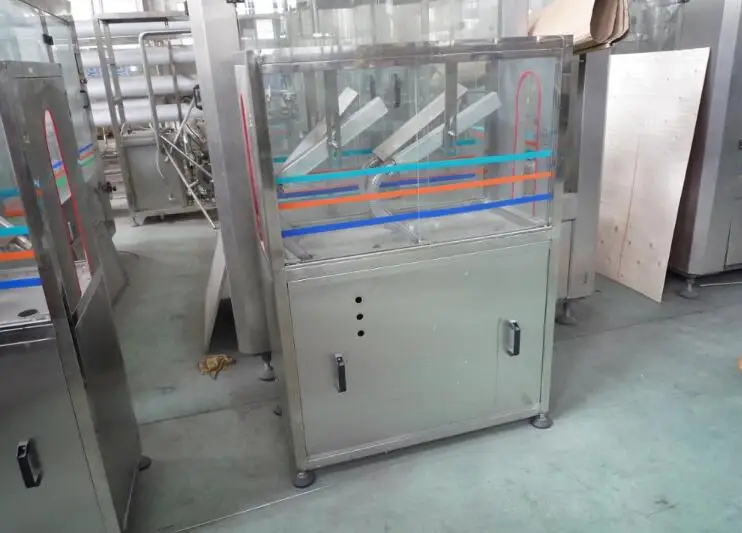

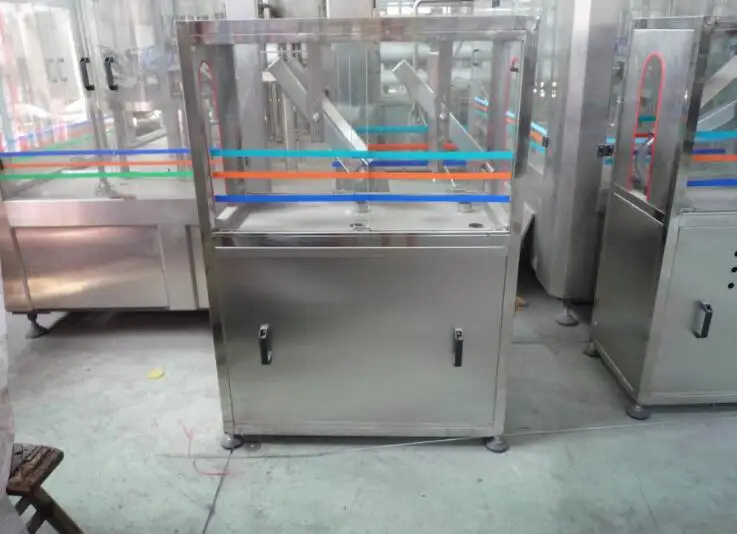

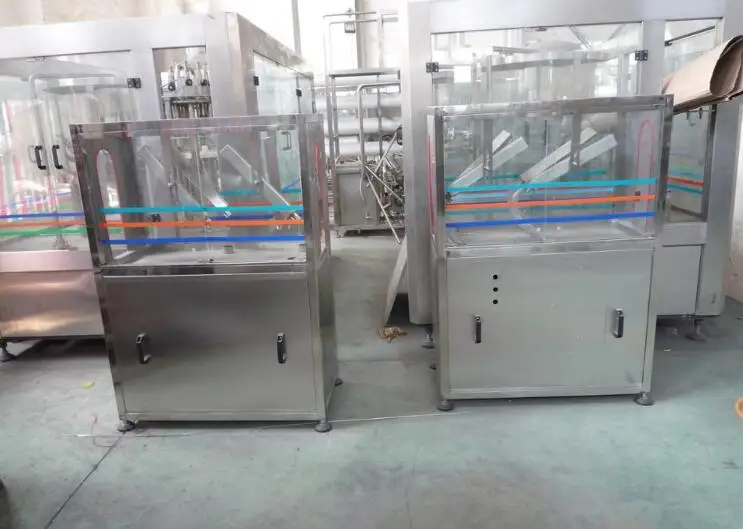

CG 2 model air knife Bottle dryer with 8000 10000BPH

 Quick Detail of the Bottle dryer
1, Capacity: 10000BPH
2, Material: SUS304 ,SUS316
3, Working temperature: Room temperature
4, Help to blow water drops on bottles

Description of the Bottle dryer
The bottle dryer is a necessary part of the filling machinery. Its function is caused by high-speedwind. The high-speed wind blows into air trunk and causes wind tunnel effect. enhance and maintain a high wind speed, air ducts can easily adjust devices according to bottle , tank diameter and height so that it is more efficient and can adjust more easily. Air ducts are made of (in accordance with food hygiene requirements on material) 304 stainless steel.

 To remove the humidity of bottles;
High pressure air pipe is applied to the machine;
Dust proof cover outside;
Has water accumulation plate;

 Model CG-2
Capacity BPH 8000-10000BPH
Blowing rate M3/H 3000
Material SUS304/SUS316
Suitable bottle Various bottles
Power kw 7.5
Weight kg 200
Dimension (L*W*H) mm 1000*750*1700

 1. Installation & adjustment
After the equipment are arrived at the customer's site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians' guidance. Costs of the staff are decided at last.
2. Training
1). We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users'technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
2). The buyer can send staff to our company for learning.
3. Quality assurance
1). We guarantee the goods offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.
2). We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
3). We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
4). The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
